◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#1303) — 19 parça

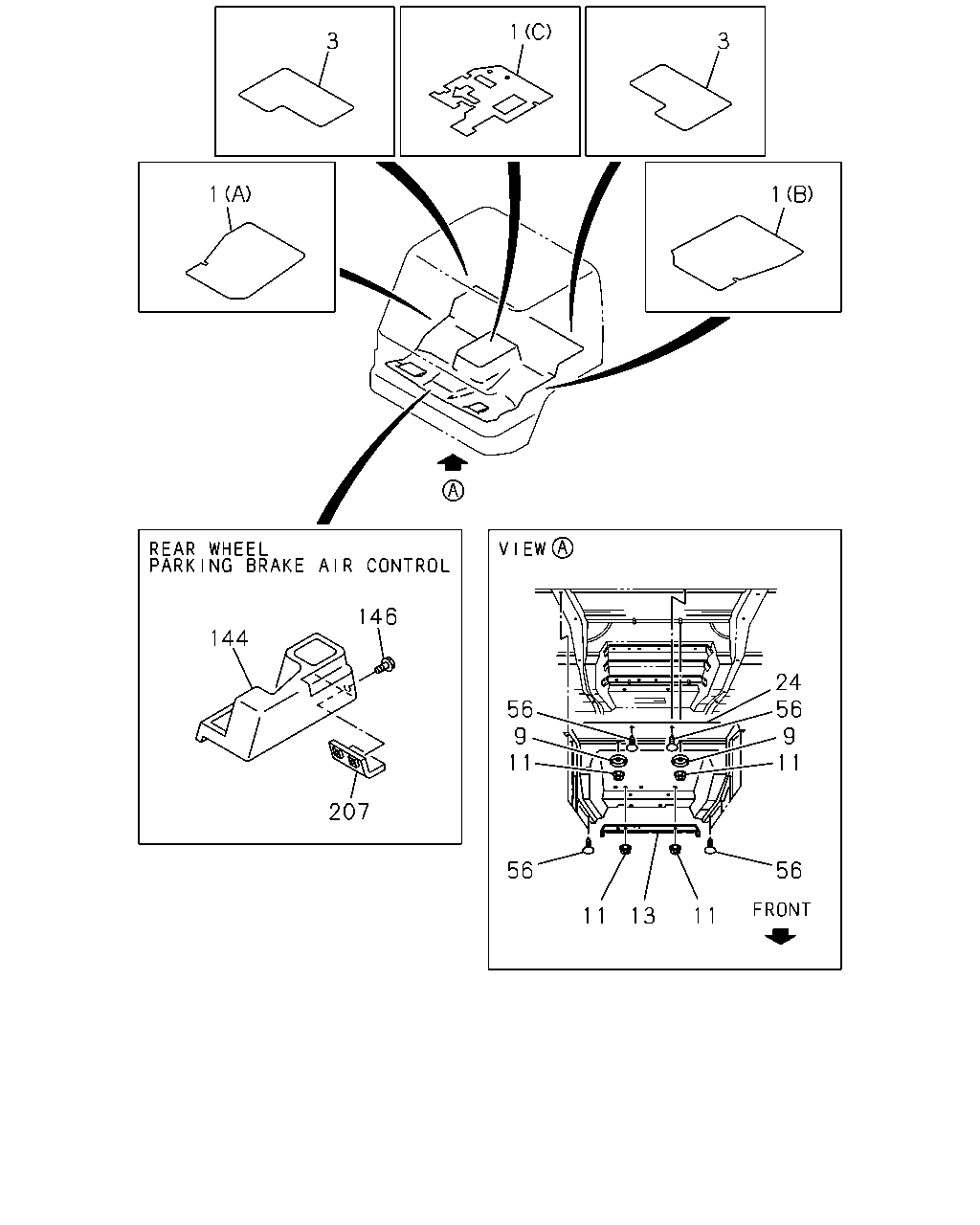

çizim 92313
1 3 3 1 1 146 144 24 56 9 11 56 9 11 207 56 56 13 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
DELUXE CAB(W14) (C) 900X1000 CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9202- ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9202- ● ●
1 SHEET; MELTING,FLOOR
(A) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9202- ● ●
3 SHEET; MELTING,BED PAN
DELUXE CAB(W14) CUT BULK SHEET 900X1000 		1-61970-039-0 02 1 9202- ● ●
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9202- ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 05 1 9202- ●
11 NUT; HEAT INSULATOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE 		1-09984-141-0 05 1 9202- ●
11 NUT; HEAT INSULATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE 		1-09984-141-0 04 1 9202- ●
13 PLATE; HEAT INSULATOR 1-71998-159-5 01 1 9202- ● ●
24 INSULATOR; HEAT,FRT 1-71998-398-9 01 1 9202- ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-398-9 01 1 9202- ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-481-2 01 1 9202- ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9202- ● ●
144 COVER; HAND BRK VLV 1-73998-819-0 01 1 9202- ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73998-819-0 01 1 9202- ●
146 BOLT; COVER BRKT
M6X16 W/WASHER 		9-03900-616-0 06 1 9202- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/WASHER 		9-03900-616-0 06 1 9202- ●
207 BRACKET ASM; HAND BRAKE VALVE 1-73998-575-0 01 1 9202- ●
207 BRACKET ASM; HAND BRAKE VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73998-575-0 01 1 9202- ●
