6-20 — SIDE PANEL AND STEP (#130293) — 96 parça

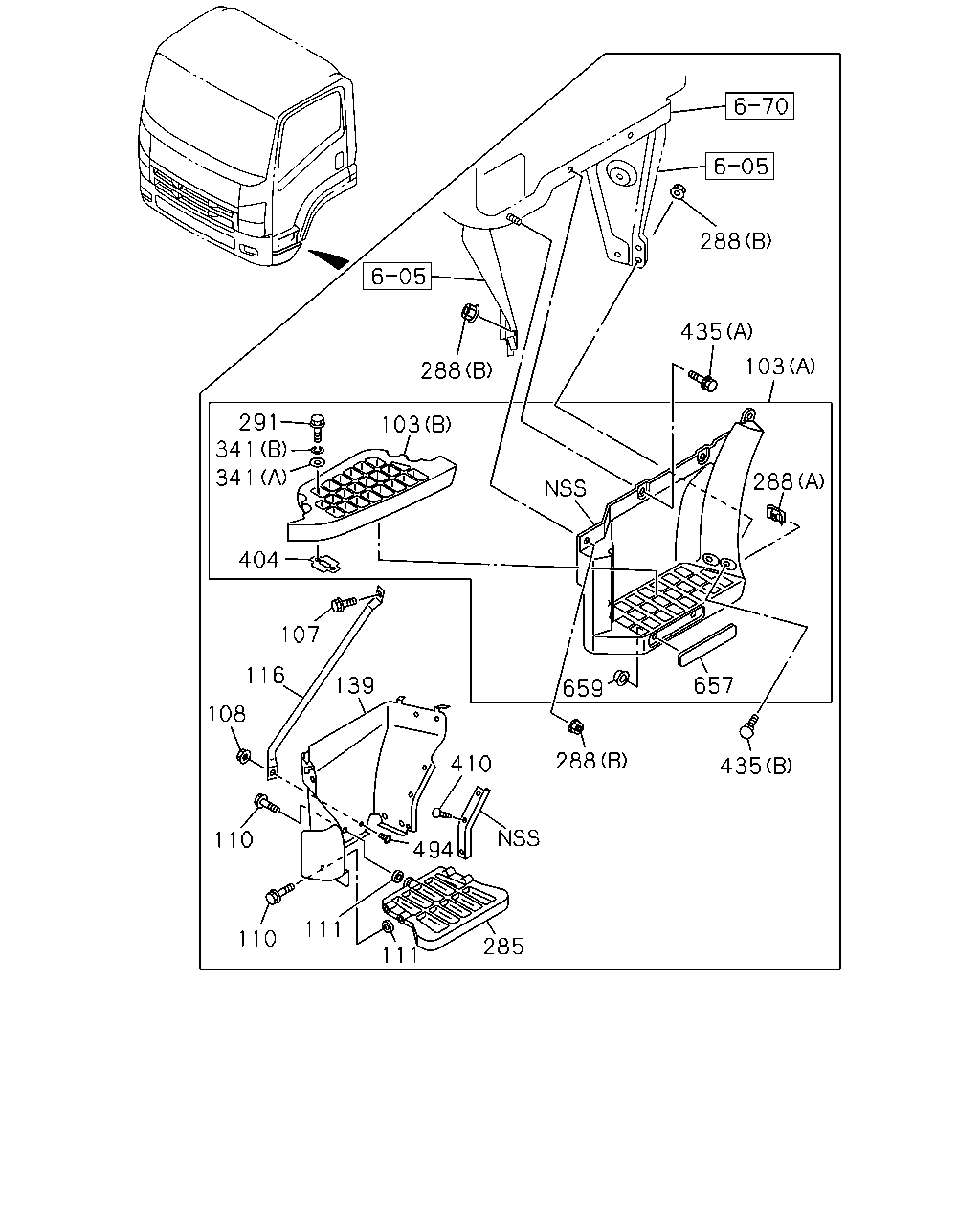

288 103 291 341 341 404 107 116 108 139 110 110 111 111 285 410 494 288 659 657 435 288 103 435 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	1311-	●	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	1311-	●	●
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
110	BOLT; 1ST STEP PLATE M8X16 FLANGE	0-28050-816-0	10	1	1311-	●	●
111	COVER; 1ST STEP	1-71998-153-0	10	1	1311-	●	●
116	STAY; 1ST STEP,FRT	8-98080-640-0	01	1	1311-	●	●
116	STAY; 1ST STEP,FRT	8-98080-639-0	01	1	1311-	●	●
139	CLOSING; 1ST STEP	8-98080-636-0	01	1	1311-	●	●
139	CLOSING; 1ST STEP	8-98080-635-0	01	1	1311-	●	●
285	PLATE; STEP,1ST STEP	1-71998-312-2	02	1	1311-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1311-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1311-	●	●
291	BOLT; STEP PLATE EXC. KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1311-	●	●
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	1311-	●	●
341	WASHER; PL,STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	1311-	●	●
404	BRACKET EXC. KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1311-	●	●
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	1311-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1311-	●	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1311-	●	●
494	STUD; BRKT	8-94389-701-0	02	1	1311-	●	●
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	1311-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1311-	●	●

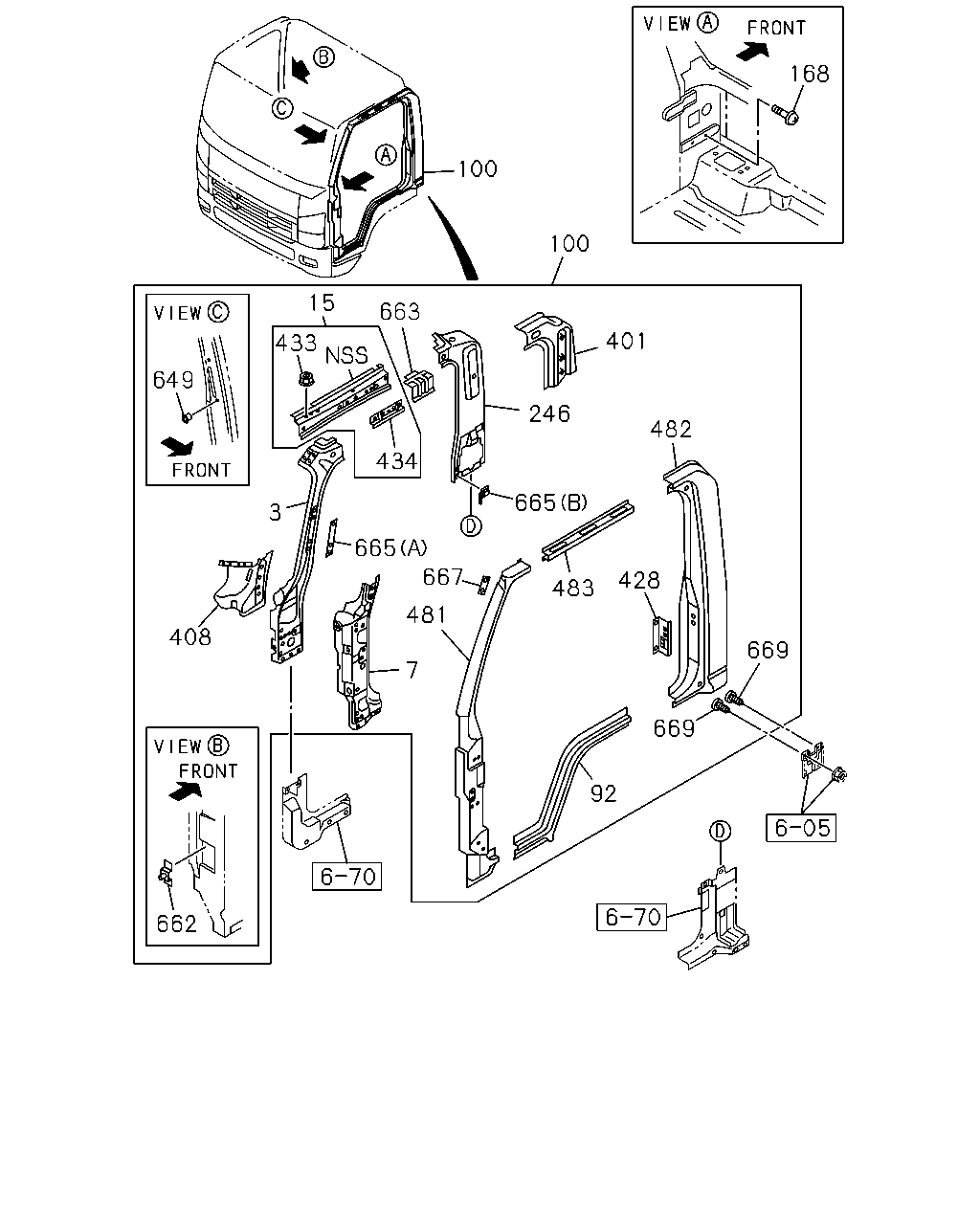

100 100 168 649 662 408 3 15 663 433 434 246 401 482 669 669 92 428 483 665 667 481 7 665

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1311-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1311-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1311-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1311-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	1311-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	1311-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1311-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1311-	●	●
100	PANEL ASM; BODY SIDE	8-97586-056-4	01	1	1311-	●	●
100	PANEL ASM; BODY SIDE	8-98088-577-4	01	1	1311-	●	●
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1311-	●	●
246	PANEL; RR PILLAR,INNER	8-97585-301-3	01	1	1311-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-154-3	01	1	1311-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-97585-303-2	01	1	1311-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-98065-791-0	01	1	1311-	●	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	1311-	●	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	1311-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	1311-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	1311-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	1311-	●	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1311-	●	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1311-	●	●
481	PANEL; SIDE FRT PILLAR	8-98093-581-0	01	1	1311-	●	●
481	PANEL; SIDE FRT PILLAR	8-98092-911-0	01	1	1311-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-467-1	01	1	1311-	●	●
482	PANEL; SIDE RR PILLAR	8-98092-922-0	01	1	1311-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1311-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1311-	●	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1311-	●	●
662	BRACKET; DUCT	8-97584-611-1	01	1	1311-	●	●
663	BRACKET; AIR	8-97585-208-2	01	1	1311-	●	●
663	BRACKET; AIR	8-97585-207-2	01	1	1311-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	1311-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	1311-	●	●
667	BRACKET; MIRROR	8-98109-948-0	01	1	1311-	●	●
669	STUD; FENDER M6X18	8-98013-113-1	04	1	1311-	●	●

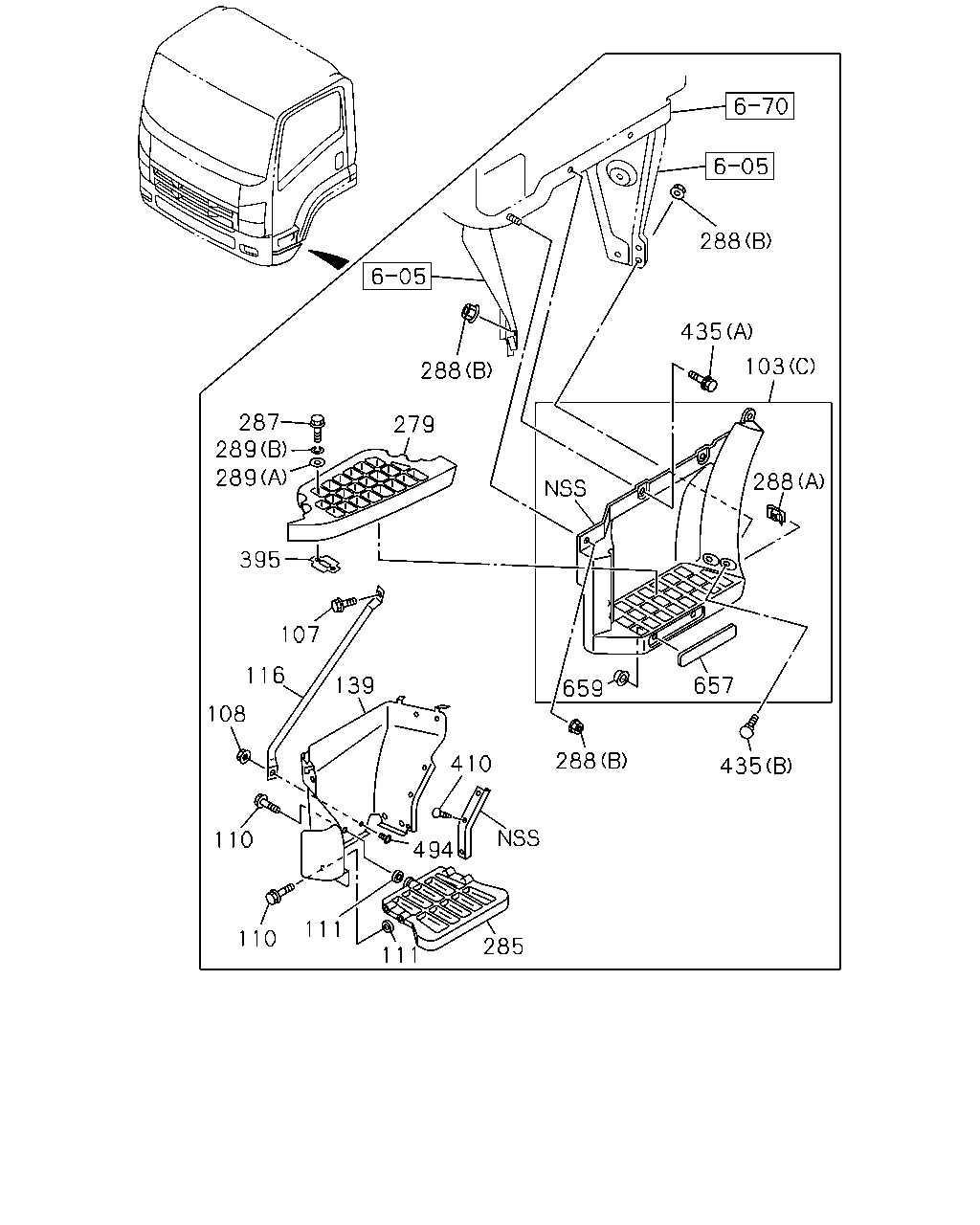

287 289 289 395 107 116 108 139 410 494 285 111 111 110 110 288 659 657 435 288 103 435 288 279 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-329-3	01	1	1311-	●	●
103	PLATE; STEP KD PREPARATORY PACK<6HF> (C)	8-98037-327-3	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-623-1	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-628-0	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (A)	8-98080-622-1	01	1	1311-	●	●
103	PLATE; STEP EXC. KD PREPARATORY PACK<6HF> (B)	8-98080-627-0	01	1	1311-	●	●
107	BOLT; SIDE STEP M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
108	NUT; SIDE STEP M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
110	BOLT; 1ST STEP PLATE M8X16 FLANGE	0-28050-816-0	10	1	1311-	●	●
111	COVER; 1ST STEP	1-71998-153-0	10	1	1311-	●	●
116	STAY; 1ST STEP,FRT	8-98080-640-0	01	1	1311-	●	●
116	STAY; 1ST STEP,FRT	8-98080-639-0	01	1	1311-	●	●
139	CLOSING; 1ST STEP	8-98080-636-0	01	1	1311-	●	●
139	CLOSING; 1ST STEP	8-98080-635-0	01	1	1311-	●	●
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-628-0	01	1	1311-	●	●
279	BOARD; STEP 1ST KD PREPARATORY PACK<6HF>	8-98080-627-0	01	1	1311-	●	●
285	PLATE; STEP,1ST STEP	1-71998-312-2	02	1	1311-	●	●
287	BOLT; BOARD STEP KD PREPARATORY PACK<6HF>	8-98165-009-0	08	1	1311-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1311-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1311-	●	●
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (A)	8-98112-672-1	08	1	1311-	●	●
289	WASHER; PL,STEP KD PREPARATORY PACK<6HF> (B)	8-98112-673-1	08	1	1311-	●	●
395	BRACKET; SIDE STEP KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1311-	●	●
410	CLIP; COVER,STEP PLATE OD=12 L=14.8	8-94279-921-0	06	1	1311-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1311-	●	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1311-	●	●
494	STUD; BRKT	8-94389-701-0	02	1	1311-	●	●
657	REFLECTOR; REFLEX	8-97378-910-0	02	1	1311-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1311-	●	●

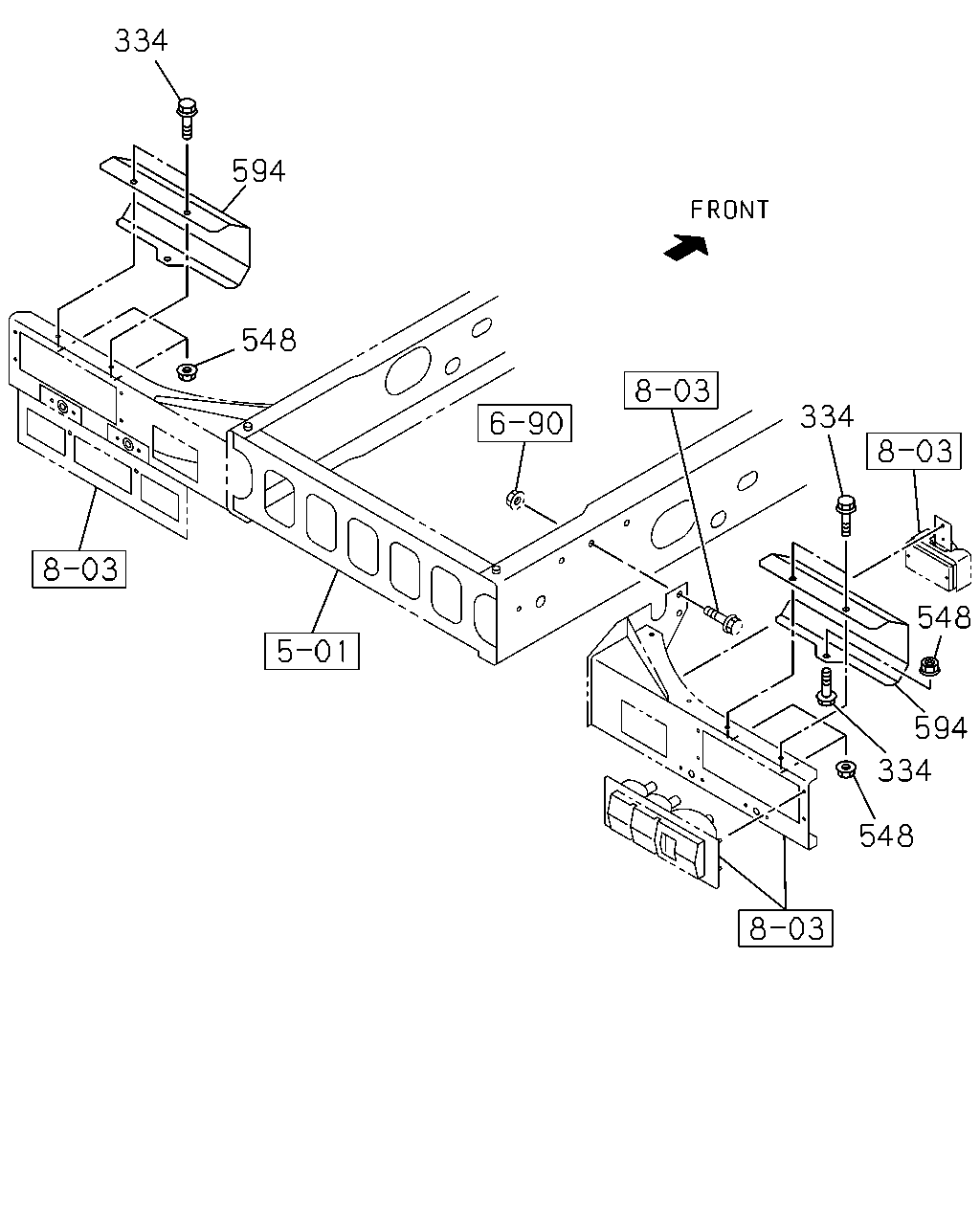

334 594 548 334 548 594 334 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
334	BOLT; COVER EXC. ISRAEL COUNTRY(CV4) M8X12 FLANGE	0-28060-812-0	06	1	1311-	●	●
548	NUT; BRKT EXC. ISRAEL COUNTRY(CV4) M8 CAP NUT FLANGE	8-97372-242-0	06	1	1311-1312	●	●
548	NUT; BRKT EXC. ISRAEL COUNTRY(CV4) M8 CAP NUT FLANGE	8-98261-347-0	06	1	1401-	●	●
594	COVER; RR COMB LAMP EXC. ISRAEL COUNTRY(CV4)	8-98249-274-0	02	1	1311-	●	●
