6-05 — FRONT PANEL (#130291) — 231 parça

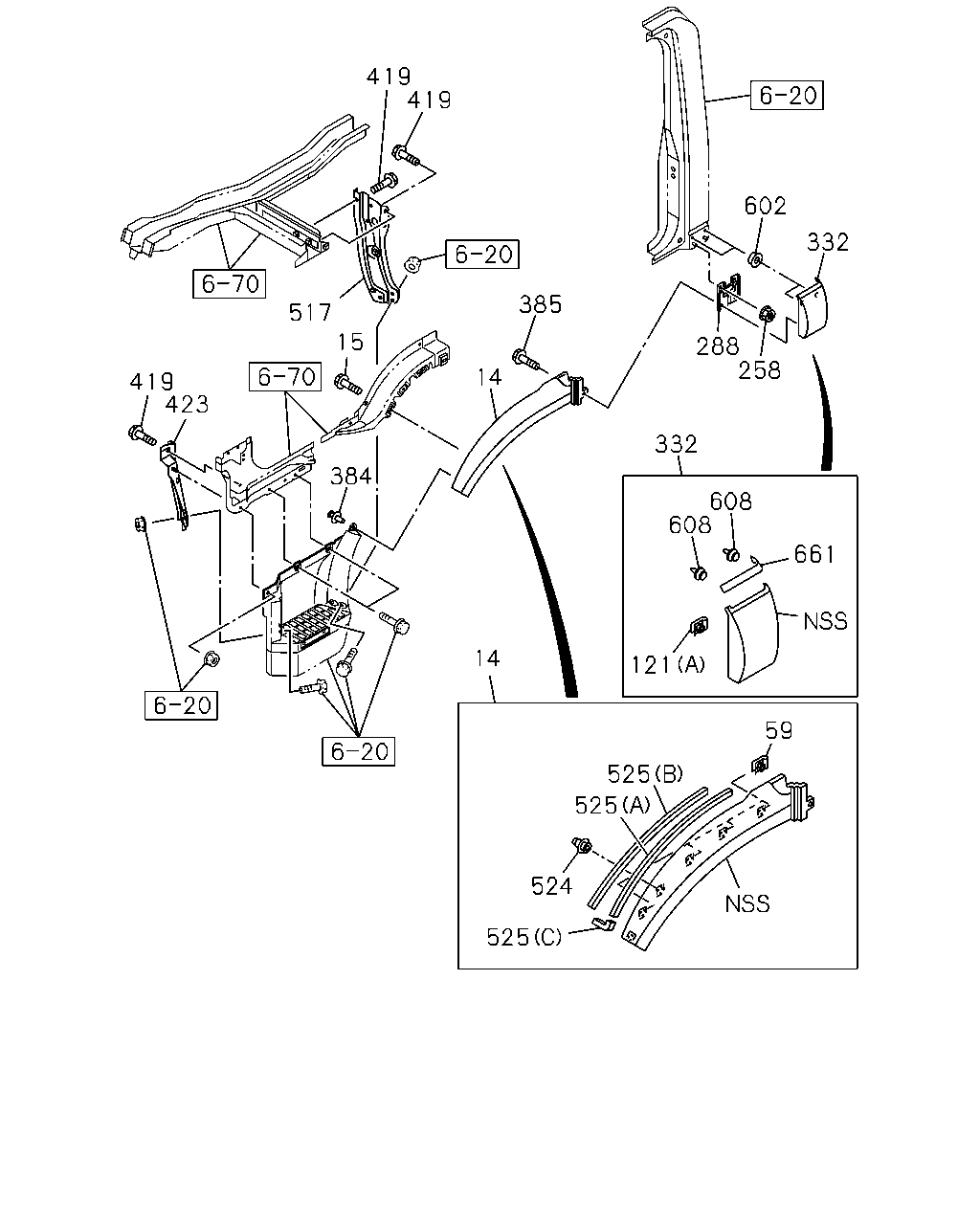

çizim 385533
419 385 14 15 517 419 14 384 423 525 525 524 525 59 121 608 608 332 661 258 288 332 602 419
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1311- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1311- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1311- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1311- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1311- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1311- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1311- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1311- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1311- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1311- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1311- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1311- ● ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 1311- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-706-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-716-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-320-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-313-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-347-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-341-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-709-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-719-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97413-350-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97413-344-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-708-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-718-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-349-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-343-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-715-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-725-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-713-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-723-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-712-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-722-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-741-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-740-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-707-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-717-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-348-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-342-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-351-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-345-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-711-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-721-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-710-0 01 1 1311- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-720-0 01 1 1311- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1311- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1311- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1311- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1311- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1311- ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1311- ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1311- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1311- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1311- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1311- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1311- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1311- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 04 1 1311- ● ●
661 FINISHER; FENDER RR 8-98072-722-0 01 1 1311- ● ●
661 FINISHER; FENDER RR 8-98041-171-1 01 1 1311- ● ●

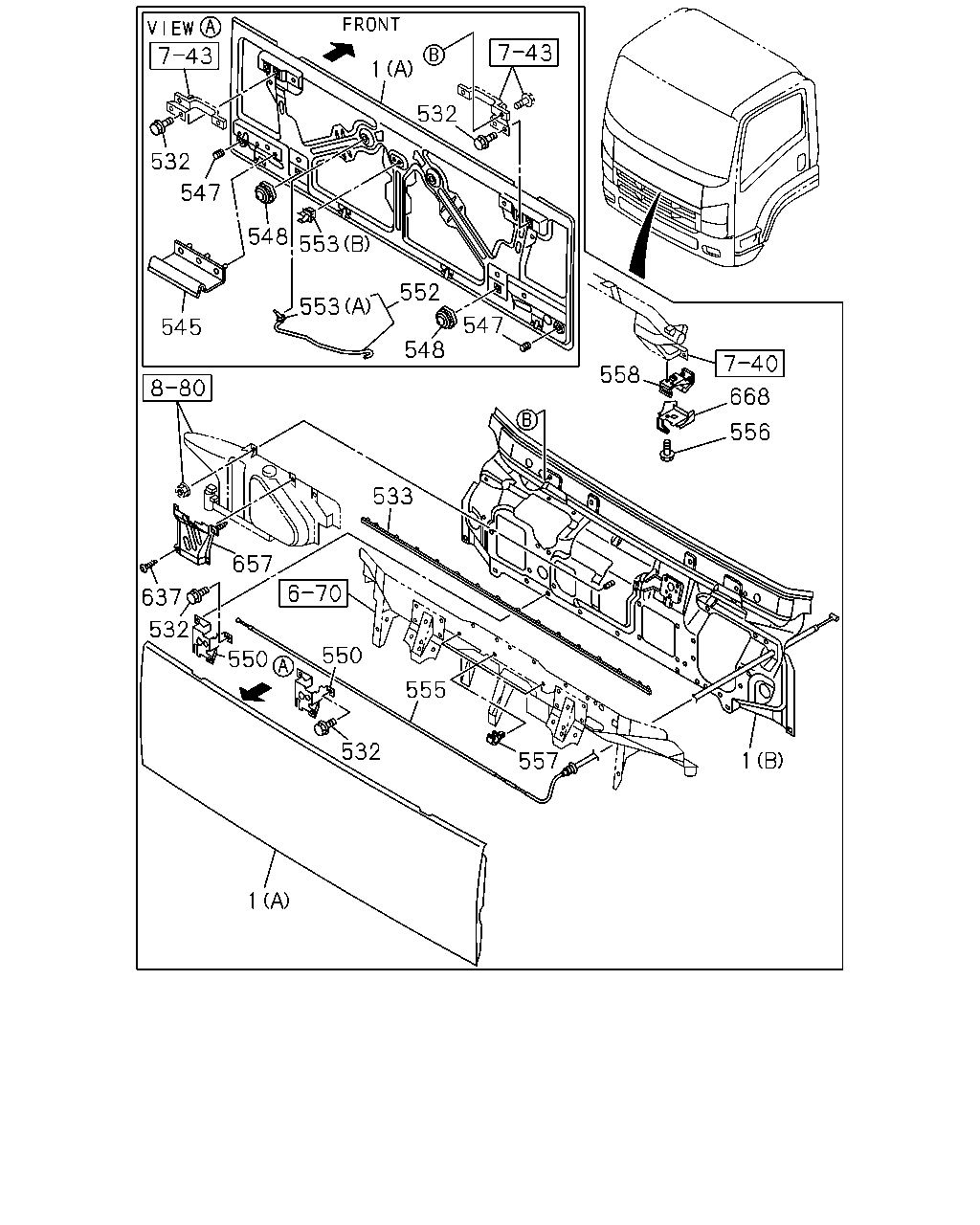

çizim 385590
532 1 548 547 545 657 637 532 550 1 532 550 555 557 1 556 668 558 547 548 553 552 553 532 533
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1311- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1311- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1311- ● ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1311- ● ●
545 SEAL; FRT LID 8-98123-264-0 01 1 1311- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1311- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1311- ● ●
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 1311- ● ●
552 STAY; FRT LID 8-98089-837-1 01 1 1311- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1311- ● ●
553 CLIP; STAY
(A) 		8-98094-541-0 01 1 1311- ● ●
555 CABLE; FRT LID 8-98036-573-1 01 1 1311- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1311- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1311- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 1311- ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1311- ● ●
657 COVER; WIPER IDLER 8-98060-907-0 01 1 1311- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1311- ● ●

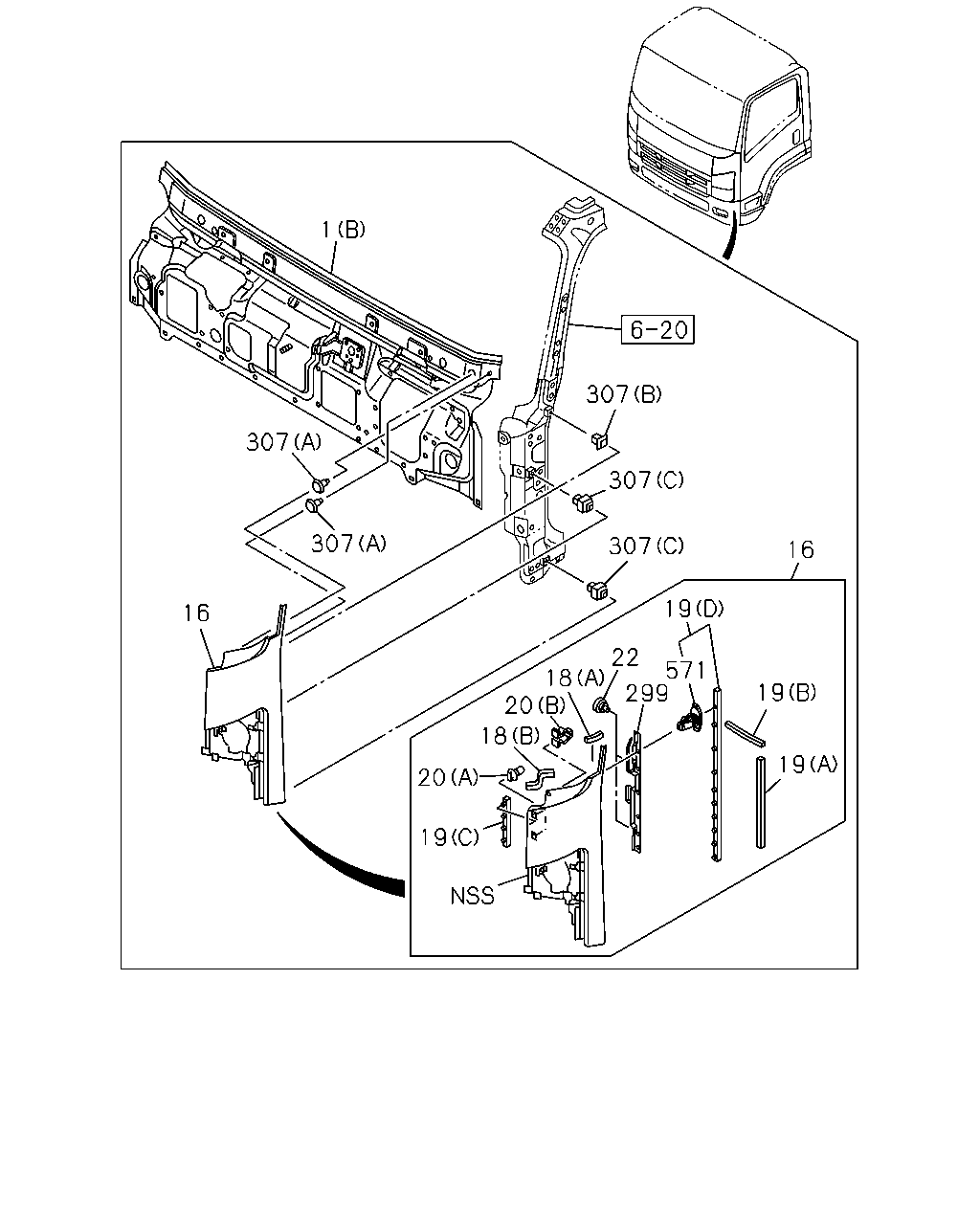

çizim 385715
1 307 307 16 19 307 19 19 571 22 18 20 18 20 19 299 307 307 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1311- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1311- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1311- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-98038-608-0 02 1 1311- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-98043-511-1 02 1 1311- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-98035-268-0 02 1 1311- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-98062-215-0 02 1 1311- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BO DY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98036-581-0 01 1 1311- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BO DY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (D) 		8-98041-359-2 01 1 1311- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) (C) 		8-98036-580-0 01 1 1311- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) (D) 		8-98041-358-2 01 1 1311- ● ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-97410-739-1 04 1 1311- ● ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-97410-740-3 02 1 1311- ● ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1311- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BO DY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1311- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1311- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1311- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1311- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1311- ● ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) NATURAL 		8-98027-457-0 20 1 1311- ● ●

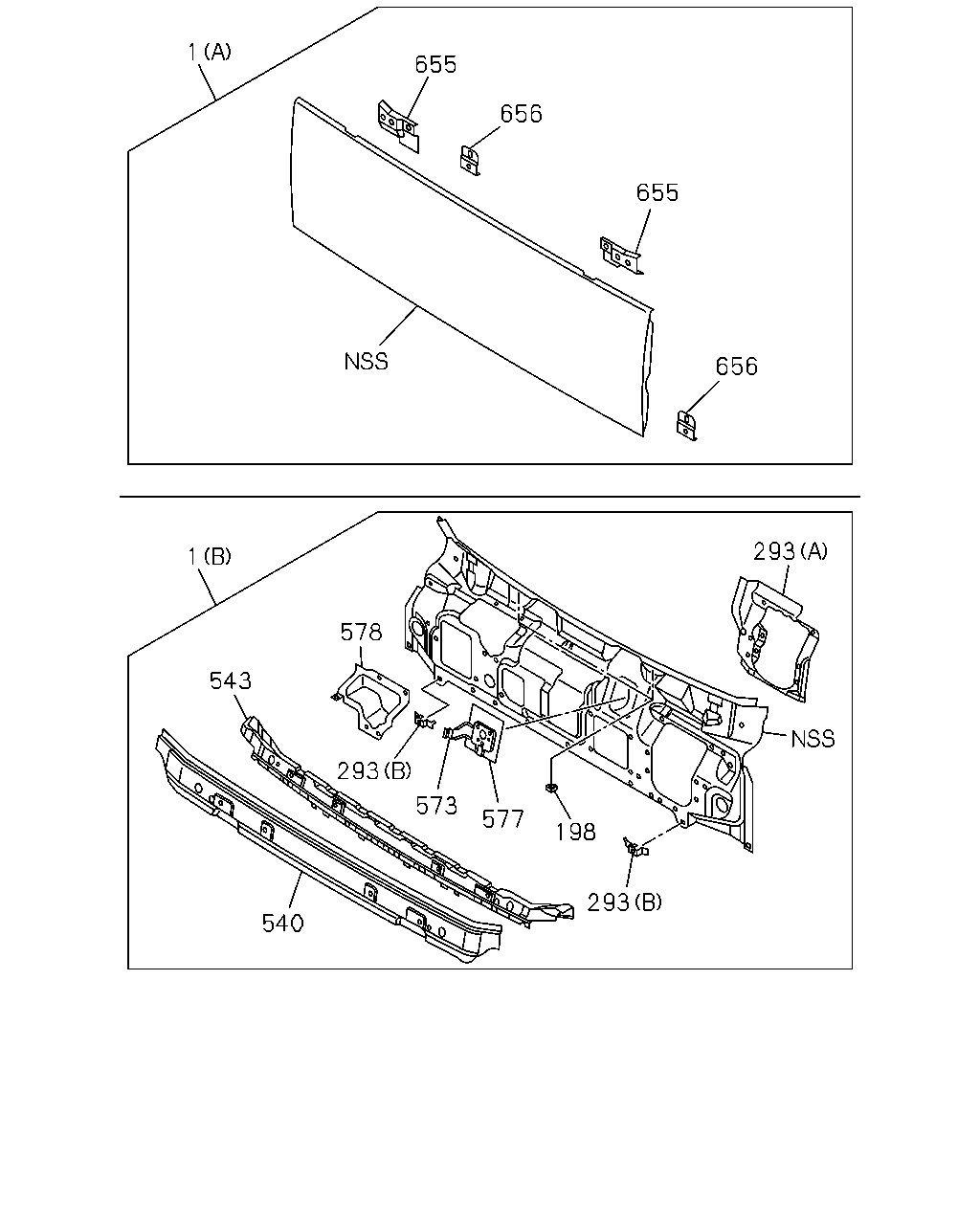

çizim 386343
1 655 655 656 293 293 198 577 573 293 543 540 1 656 578
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1311- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1311- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1311- ● ●
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 1311- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1311- ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1311- ● ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1311- ● ●
543 CLOSING; FRT MTG RAIL 8-98067-965-2 01 1 1311- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1311- ● ●
577 BRACKET; IDLER 8-97586-019-1 01 1 1311- ● ●
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 1311- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1311- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1311- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1311- ● ●

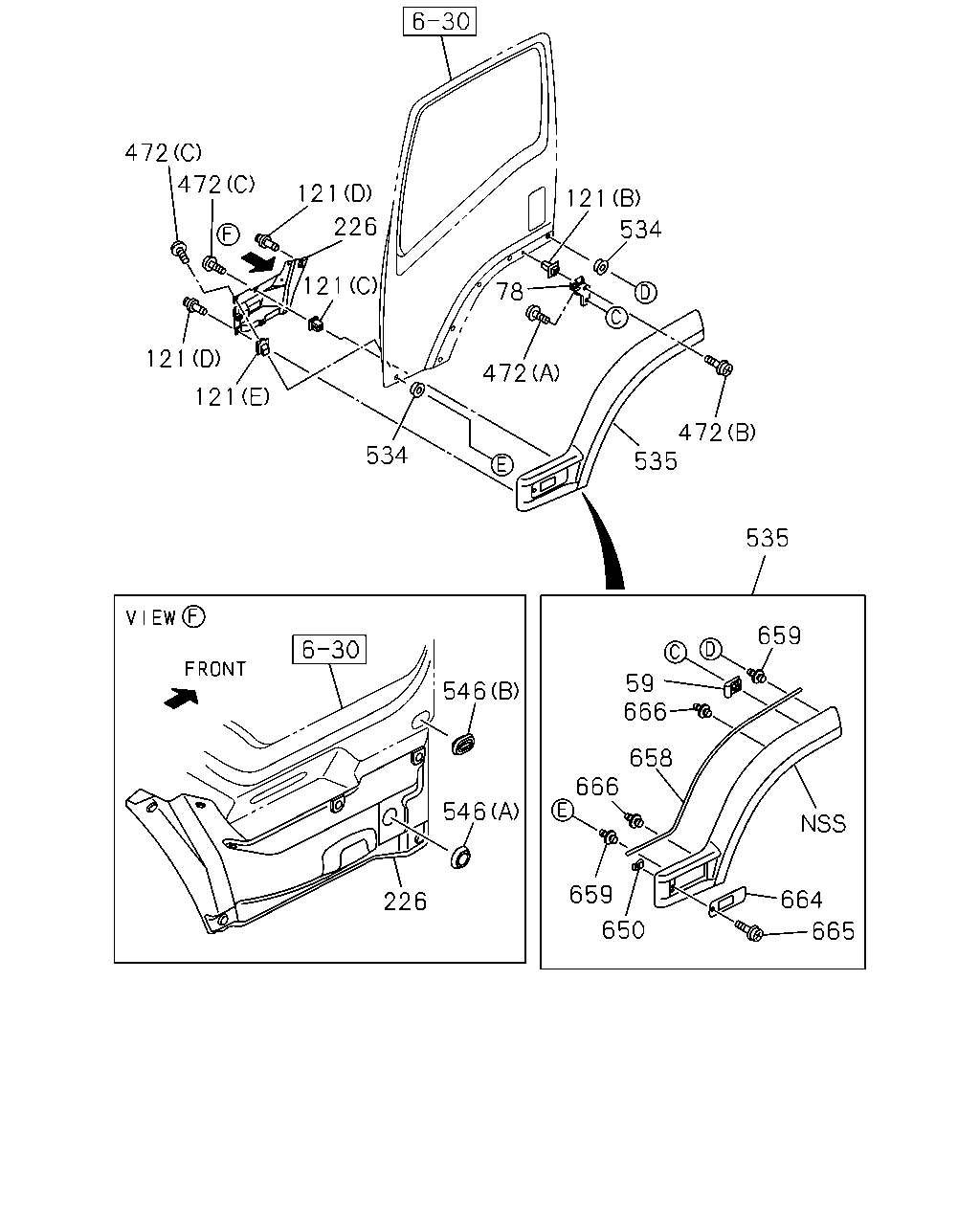

çizim 386500
121 534 472 535 535 472 78 534 472 472 121 226 121 121 121 546 546 226 659 59 666 658 666 659 650 664 665
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1311- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1311- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1311- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1311- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1311- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1311- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1311- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1311- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1311- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1311- ● ●
226 PROTECTOR; FRT 8-98080-913-1 01 1 1311- ● ●
226 PROTECTOR; FRT 8-98080-912-1 01 1 1311- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1311- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1311- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1311- ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97417-708-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97417-698-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97412-869-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97412-862-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97412-870-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97412-863-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97417-711-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97417-701-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97412-872-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97412-865-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97417-710-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97417-700-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-873-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-866-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97417-717-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97417-707-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-715-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-705-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-714-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-704-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-716-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-706-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-709-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-699-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-871-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-864-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-874-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-867-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-713-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-703-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-712-3 01 1 1311- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-702-3 01 1 1311- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1311- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1311- ● ●
650 NUT; SPIRE 8-94279-501-0 02 1 1311- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1311- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1311- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-549-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-521-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-497-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-485-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-499-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-487-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-539-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-511-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-503-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-491-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-551-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-523-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-505-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-493-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-543-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-515-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-559-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-531-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-563-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-535-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-607-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-605-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-537-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-509-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-501-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-489-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-507-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-495-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-596-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-533-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-547-0 01 1 1311- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-519-0 01 1 1311- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1311- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
