Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

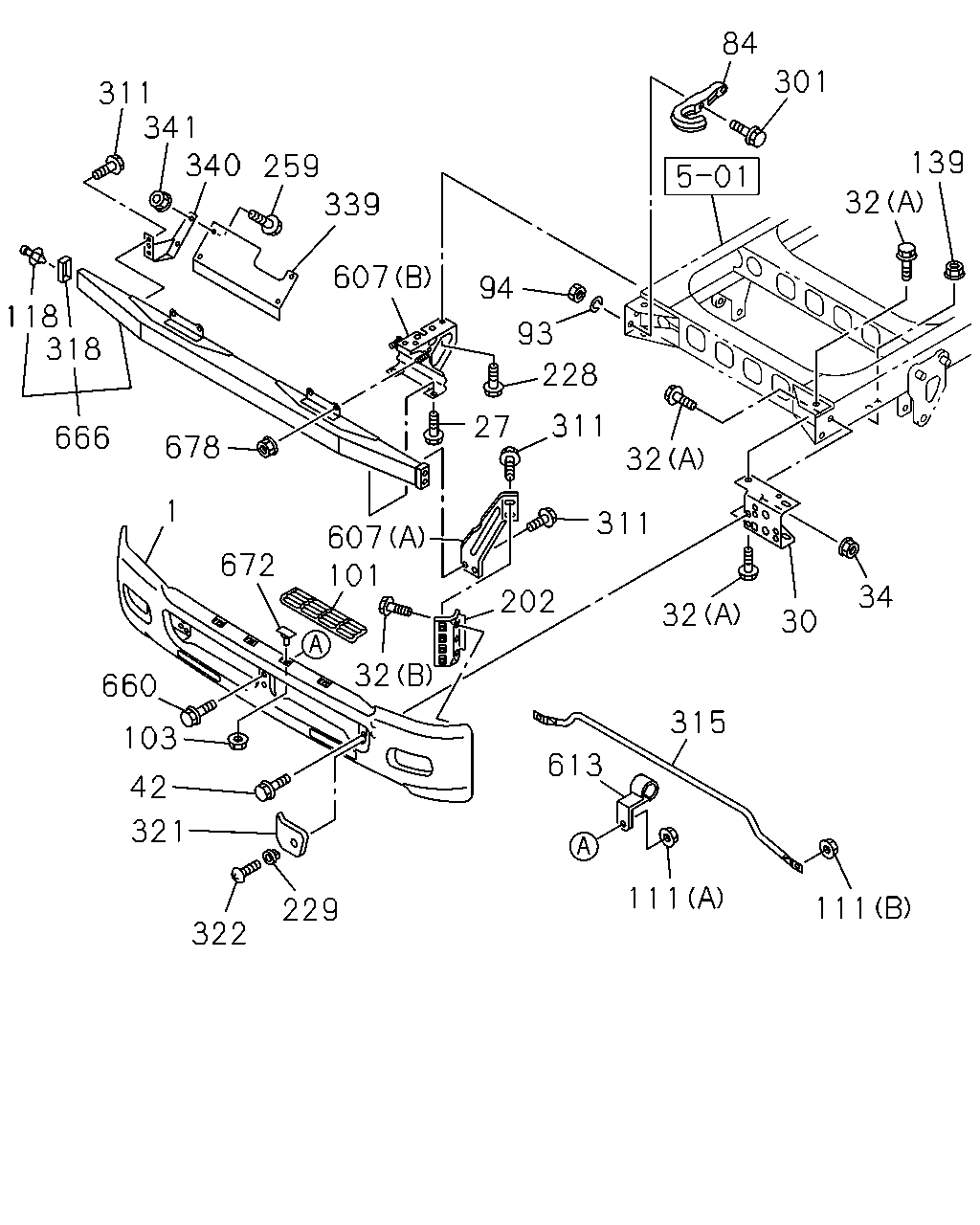

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#130288) — 44 parça
Tümü
A - FCD6CS
B - FCR6CS
30
34
32
613
111
111
315
311
32
311
228
301
139
32
84
94
27
202
607
672
660
42
321
322
103
229
32
101
678
666
1
318
118
340
259
341
311
339
607
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
WHITE
8-97425-907-0
01
1
1311-
●
●
27
BOLT; BUMPER TO BACK BAR
M12X35 FLANGE
0-28651-235-0
04
1
1311-
●
●
30
BRACKET; FRT BUMPER
8-97611-518-4
01
1
1311-
●
●
30
BRACKET; FRT BUMPER
8-97611-517-5
01
1
1311-
●
●
32
BOLT; BRKT,BUMPER
(B) M6X12 FLANGE
0-28050-612-0
06
1
1311-
●
●
32
BOLT; BRKT,BUMPER
(A) M10X35 FLANGE
0-28651-035-0
06
1
1311-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1311-
●
●
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1311-
●
●
84
HOOK
1-57181-003-5
01
1
1311-
●
●
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1311-
●
●
94
NUT; HOOK
M14
0-91110-514-0
02
1
1311-
●
●
101
STEP; BUMPER
8-97611-541-0
01
1
1311-
●
●
101
STEP; BUMPER
8-97611-540-0
01
1
1311-
●
●
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1311-
●
●
111
NUT; STAY
(A) M6 FLANGE
0-91180-106-0
01
1
1311-
●
●
111
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
118
RETAINER; BUMPER SIDE
8-98232-279-0
04
1
1311-
●
●
139
NUT; BRKT FIX
M14 FLANGE
0-91180-214-0
04
1
1311-
●
●
202
BRACKET; BUMPER SIDE
8-97620-619-0
02
1
1311-
●
●
228
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
06
1
1311-
●
●
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1311-
●
●
259
BOLT; COVER
M8X25 FLANGE
0-28650-825-0
04
1
1311-
●
●
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
1311-
●
●
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
1311-
●
●
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1311-
●
●
315
STAY; BUMPER
8-97611-513-0
01
1
1311-
●
●
318
CAP; BUMPER SIDE
8-98232-191-0
02
1
1311-
●
●
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1311-
●
●
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1311-
●
●
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1311-
●
●
339
COVER; SNOW GUARD
8-98056-520-2
01
1
1311-1402
●
●
339
COVER; SNOW GUARD
8-98258-274-0
01
1
1403-
●
●
340
BRACKET; SNOW GUARD
8-98056-523-1
01
1
1311-1312
●
●
340
BRACKET; SNOW GUARD
8-98258-223-0
01
1
1401-
●
●
341
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
607
BRACKET
(A)
8-97620-616-0
01
1
1311-
●
●
607
BRACKET
(B)
8-98045-836-3
01
1
1311-
●
●
607
BRACKET
(A)
8-97620-615-0
01
1
1311-
●
●
607
BRACKET
(B)
8-98045-835-4
01
1
1311-
●
●
613
CLIP
8-97623-589-0
01
1
1311-
●
●
660
BOLT; STAY
M6X16 W/LK&PL WASHER
0-50640-616-0
01
1
1311-
●
●
666
PROTECTOR; UNDER
8-98045-817-1
01
1
1311-
●
●
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1311-
●
●
678
NUT; BUMPER TO BACK BAR
M12 FLANGE
0-91180-212-0
04
1
1311-
●
●
