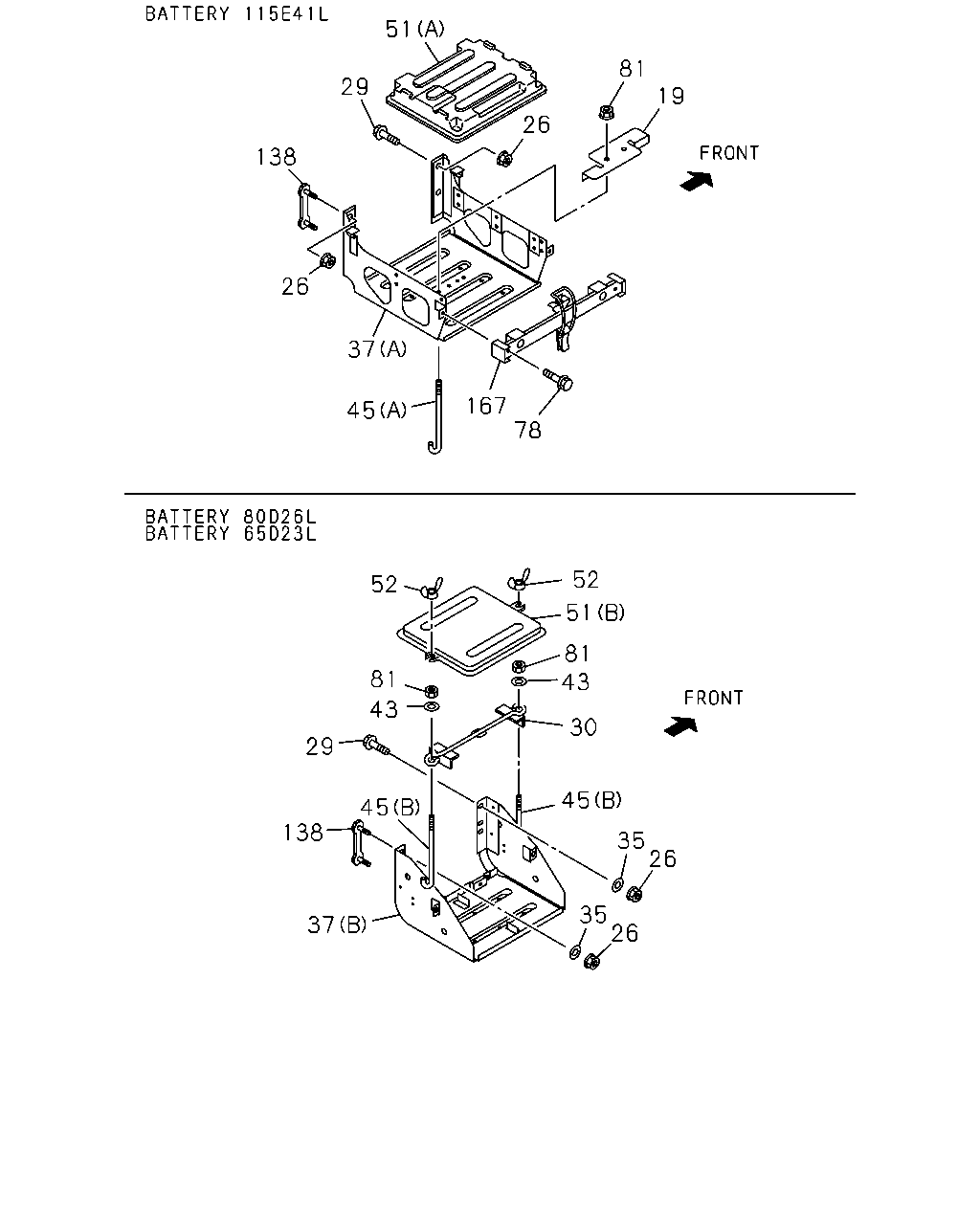

5-20 — BATTERY CARRIER
(#130286) — 22 parça
Tümü
A - FCD6CS
B - FCR6CS
51
81
26
19
29
138
26
37
45
167
52
51
81
43
30
45
35
26
35
26
43
52
81
29
138
37
45
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
STAY; BATTERY
BATTERY 115E41L<8MA>
8-98120-443-0
01
1
1311-
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1311-
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
02
1
1311-
●
●
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1311-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1311-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)
8-98204-177-2
01
1
1311-
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B)
8-97384-068-2
01
1
1311-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (B)
8-97384-067-2
01
1
1311-
●
●
37
BRACKET; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)
8-98204-178-2
01
1
1311-
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=8.4 OD=22
0-91614-708-0
02
1
1311-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=250
1-53616-108-0
02
1
1311-
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1311-
●
●
45
ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=235
8-98120-478-0
02
1
1311-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)
1-53612-037-2
01
1
1311-
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1311-
●
●
51
COVER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)
8-98124-443-0
01
1
1311-
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1311-
●
●
78
BOLT; COVER
BATTERY 115E41L<8MA> M8X20 FLANGE
0-28650-820-0
02
1
1311-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
138
STUD
8-98178-497-0
01
1
1311-1311
●
●
138
STUD
8-98255-710-0
01
1
1312-
●
●
167
BRACKET; STOPPER
BATTERY 115E41L<8MA>
8-98204-179-2
01
1
1311-
●
●
