◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#130284) — 26 parça

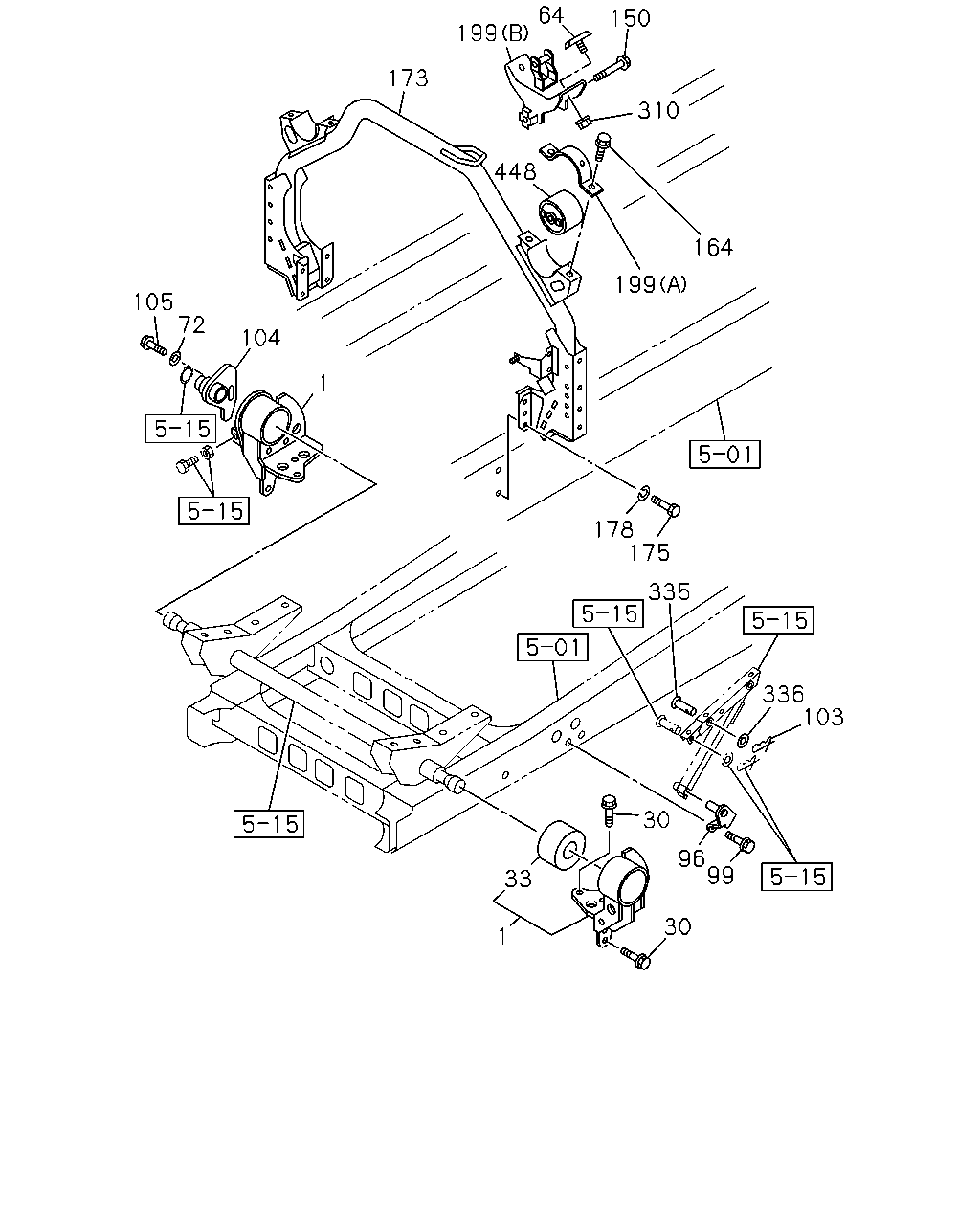

çizim 385713
150 310 64 199 173 448 199 164 178 175 335 336 103 96 99 30 33 1 30 1 104 72 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98017-606-1 01 1 1311- ● ●
1 BRACKET; CAB MTG 8-98017-605-2 01 1 1311- ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1311- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 8-98013-932-2 02 1 1311- ● ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1311- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1311- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1311- ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 1311- ● ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1311- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98017-610-3 01 1 1311-1510 ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98330-669-0 01 1 1511- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1311- ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1311- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE 		0-28651-225-0 04 1 1311- ● ●
173 MEMBER; CAB MTG RR 8-98226-836-0 01 1 1311- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1311- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1311- ● ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 01 1 1503- ● ●
199 BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98297-105-0 01 1 1503- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98099-068-0 02 1 1311-1502 ● ●
199 BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF> (B) 		8-98099-068-0 02 1 1503- ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98158-426-0 02 1 1311- ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1311- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1311- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1311- ● ●
448 BUSHING; CAB MTG 8-98010-759-2 02 1 1311- ● ●
