5-01 — FRAME AND OTHER PARTS (#130283) — 127 parça

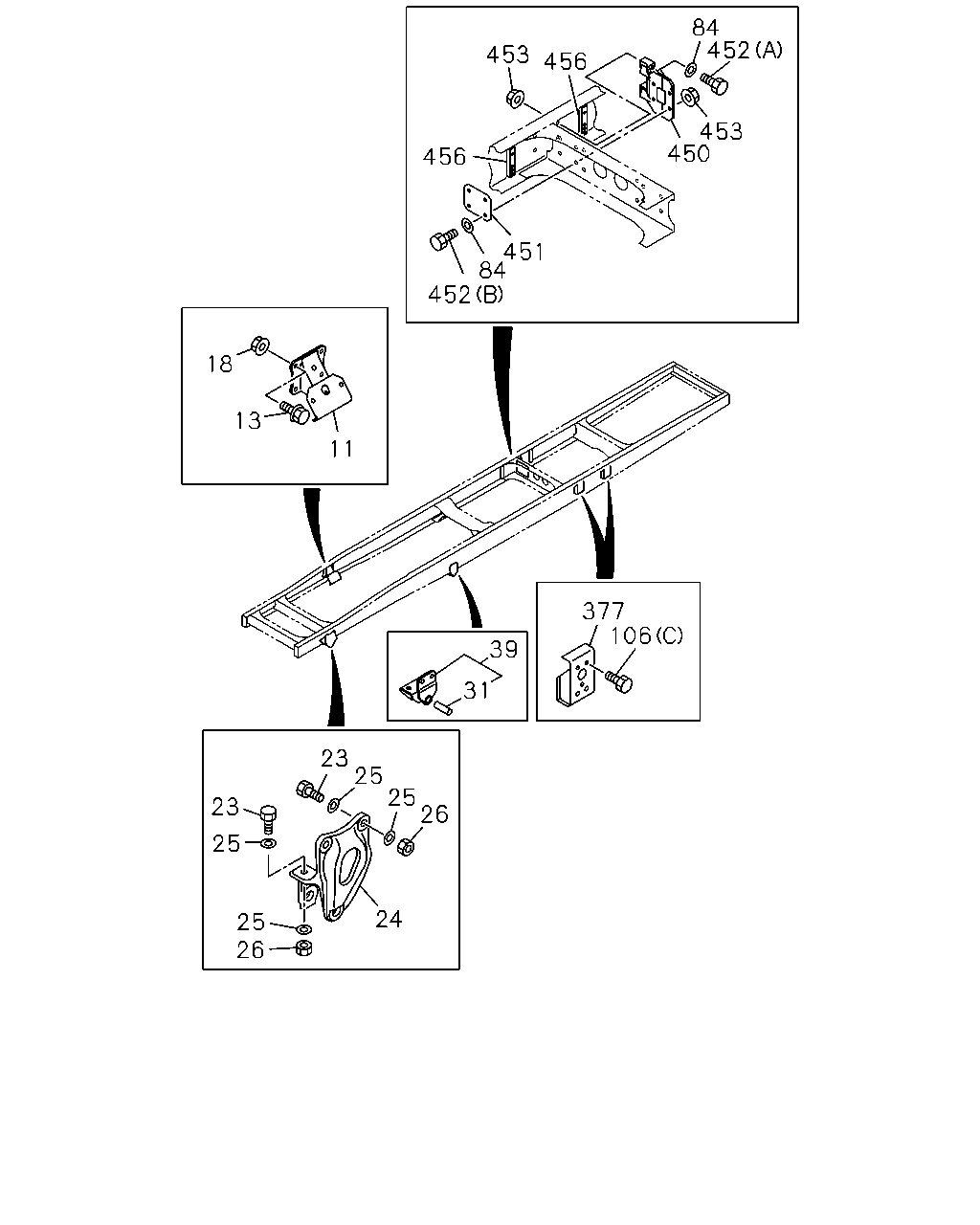

24 26 25 25 23 23 25 25 26 31 39 377 106 11 13 18 84 452 453 450 456 453 456 451 84 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG	8-97639-363-0	02	1	1311-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1311-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1311-	●	●	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1311-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-983-0	01	1	1311-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-984-0	01	1	1311-	●	●	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1311-	●	●	●	●
26	NUT; BRKT,SPR FSR AIR SUS(FCD***) M14	0-91110-514-0	08	1	1311-	●			●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1311-		●	●
26	NUT; BRKT,SPR FSR LEAF SUS(FCR***) M14	0-91110-514-0	12	1	1311-	●			●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1311-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-126-2	02	1	1311-	●	●	●	●
84	WASHER; PL,BRKT FSR AIR SUS(FCD***) ID=16.2	1-09503-316-0	12	1	1311-	●	●	●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-	●	●	●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-	●	●	●	●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1311-	●			●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●	●
377	BRACKET; TOP PLATE FSR AIR SUS(FCD***)	8-98061-350-0	04	1	1311-	●	●	●	●
450	BRACKET; V ROD FSR AIR SUS(FCD***)	1-53353-121-0	02	1	1311-	●	●	●	●
451	GUSSET; V ROD FSR AIR SUS(FCD***)	8-97610-436-0	02	1	1311-	●	●	●	●
452	BOLT; V ROD FSR AIR SUS(FCD***) (B) M16X50	1-09000-679-0	08	1	1311-	●	●	●	●
452	BOLT; V ROD FSR AIR SUS(FCD***) (A) M16X110	1-09000-738-0	04	1	1311-	●	●	●	●
453	NUT; V ROD FSR AIR SUS(FCD***) M16 FLANGE	1-09440-066-0	12	1	1311-	●	●	●	●
456	PATCH; STOPPER FSR AIR SUS(FCD***)	8-97610-437-1	04	1	1311-	●	●	●	●

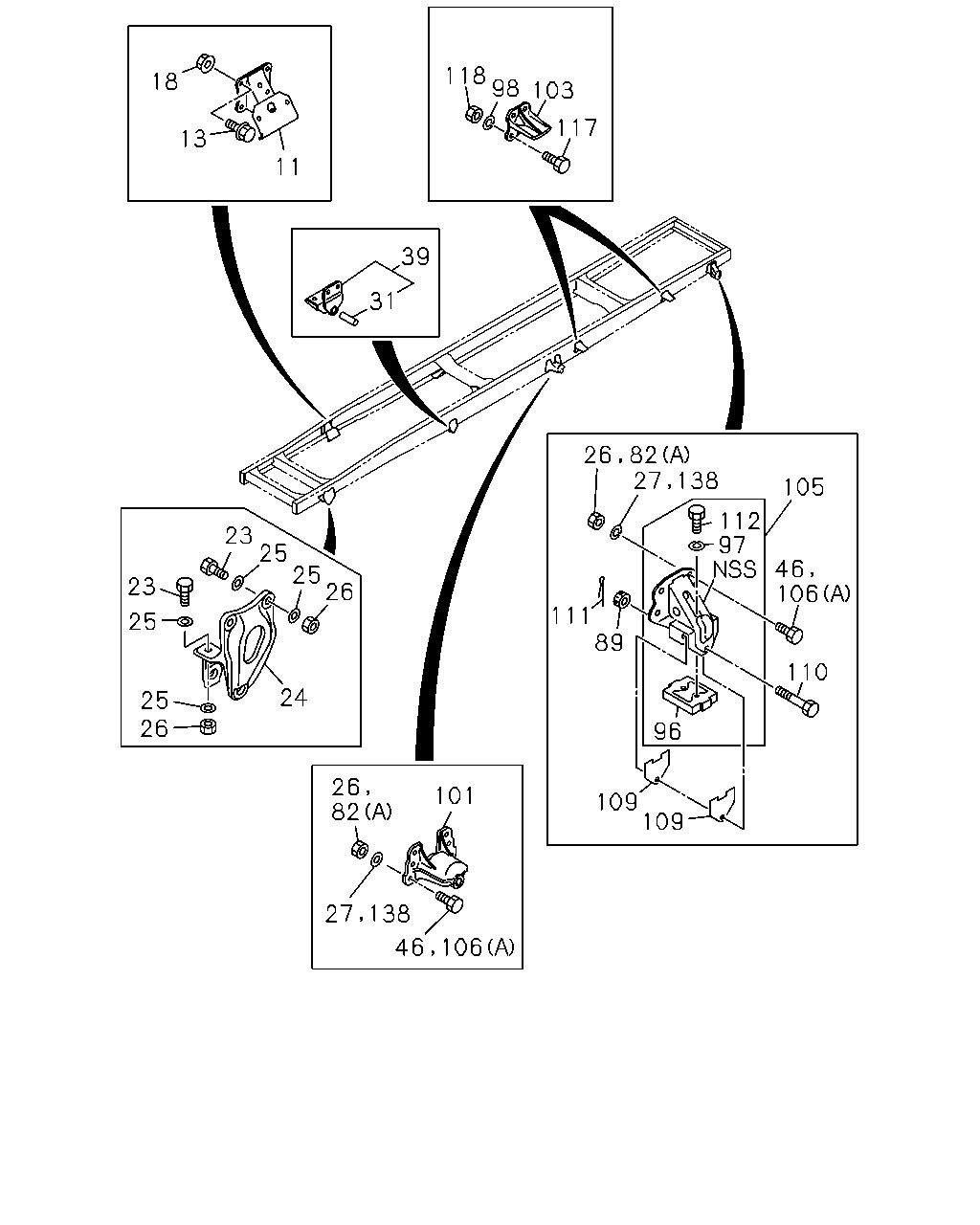

13 11 18 23 23 25 25 26 24 25 25 26 26 82 101 27 138 46 106 109 109 110 106 97 96 89 111 26 82 105 112 46 31 39 117 103 98 118 138 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG	8-97639-363-0	02	1	1311-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1311-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1311-	●	●	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1311-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-983-0	01	1	1311-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-984-0	01	1	1311-	●	●	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1311-	●	●	●	●
26	NUT; BRKT,SPR FSR AIR SUS(FCD***) M14	0-91110-514-0	08	1	1311-	●			●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1311-		●	●
26	NUT; BRKT,SPR FSR LEAF SUS(FCR***) M14	0-91110-514-0	12	1	1311-	●			●
27	WASHER; LK,BRKT,FRT SPR FSR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	04	1	1311-	●			●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1311-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-126-2	02	1	1311-	●	●	●	●
46	BOLT; BRKT FIX FSR LEAF SUS(FCR***) M14X50	0-20951-450-0	04	1	1311-	●			●
82	NUT; BRKT FSR AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1311-	●	●	●	●
82	NUT; BRKT FSR LEAF SUS(FCR***) (A) M14	0-91110-514-0	02	1	1311-	●			●
82	NUT; BRKT FSR LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1311-		●	●
89	NUT; LEAF SPR STOPPER FSR LEAF SUS(FCR***) M12	0-91116-512-0	02	1	1311-	●	●	●	●
96	PAD; RR SPR FSR LEAF SUS(FCR***)	1-53359-051-2	02	1	1311-	●	●	●	●
97	WASHER; LK,PAD FSR LEAF SUS(FCR***) ID=14.2	0-91510-814-0	04	1	1311-	●	●	●	●
98	WASHER; LK,STOPPER FSR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	16	1	1311-	●	●	●	●
101	BRACKET; RR SPR,FRT FSR LEAF SUS(FCR***)	1-53353-090-4	02	1	1311-	●	●	●	●
103	STOPPER; SUB SPR FSR LEAF SUS(FCR***)	1-53356-059-1	04	1	1311-	●	●	●	●
105	BRACKET; RR SPR,RR FSR LEAF SUS(FCR***)	1-53354-084-0	02	1	1311-	●	●	●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-	●	●	●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-	●	●	●	●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1311-	●			●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●	●
109	SHIM; RR SPR FSR LEAF SUS(FCR***)	1-53359-043-1	04	1	1311-	●	●	●	●
110	BOLT; LEAF SPR STOPPER FSR LEAF SUS(FCR***) M12X121	8-98010-414-0	02	1	1311-	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER FSR LEAF SUS(FCR***) OD=2.8 L=28	0-81123-028-0	02	1	1311-	●	●	●	●
112	BOLT; PAD FSR LEAF SUS(FCR***) M14X25	0-20851-425-0	04	1	1311-	●	●	●	●
117	BOLT; STOPPER FSR LEAF SUS(FCR***) M14X50	0-20951-450-0	16	1	1311-	●	●	●	●
118	NUT; STOPPER FSR LEAF SUS(FCR***) M14	0-91110-514-0	16	1	1311-	●	●	●	●
138	WASHER; LK,BRKT FSR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	02	1	1311-	●			●
138	WASHER; LK,BRKT FSR LEAF SUS(FCR***) ID=14.2	0-91510-614-0	06	1	1311-		●	●

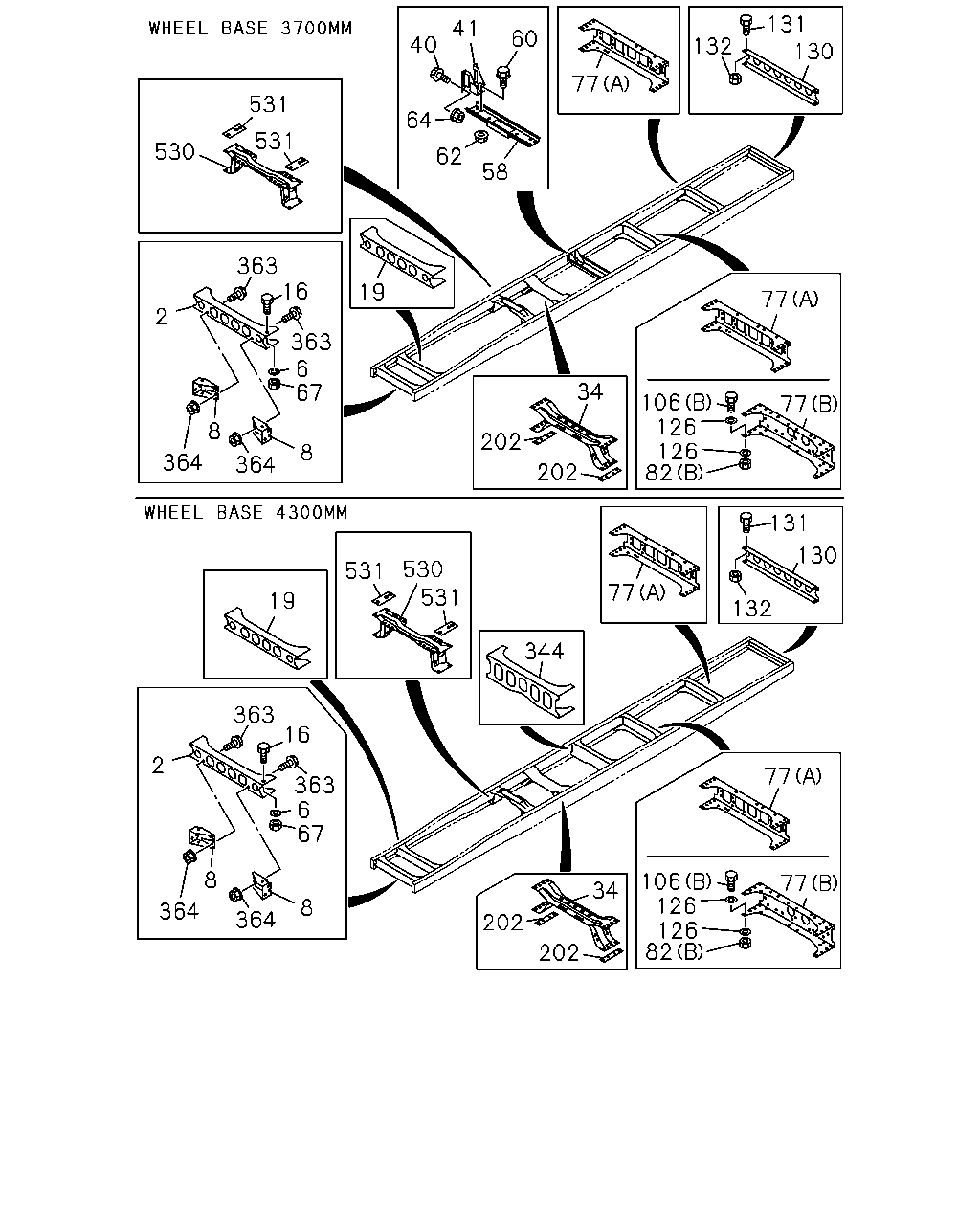

41 40 64 58 19 363 16 363 2 364 8 67 8 364 202 34 202 106 82 126 77 77 132 131 77 60 62 531 531 530 19 363 16 363 6 67 364 364 2 531 530 531 344 77 131 130 132 106 126 126 82 77 77 34 202 202 126 8 8 6 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97609-462-9	01	1	1311-	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1311-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-912-2	01	1	1311-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-913-3	01	1	1311-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1311-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97645-585-2	01	1	1311-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97609-501-2	01	1	1311-	●	●	●	●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1311-	●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-973-2	01	1	1311-	●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-974-2	01	1	1311-	●
58	MEMBER; CENTER BRG FSR AIR SUS(FCD***)	8-97636-022-0	01	1	1311-	●
58	MEMBER; CENTER BRG FSR LEAF SUS(FCR***)	8-97638-924-0	01	1	1311-	●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	1311-	●
62	NUT; MBR M10 FLANGE	0-91180-110-0	08	1	1311-	●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	08	1	1311-	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1311-	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FSR AIR SUS(FCD***) (B) REAR	8-97609-481-4	01	1	1311-	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FSR AIR SUS(FCD***) (A) FRONT	8-97609-483-0	01	1	1311-	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FSR LEAF SUS(FCR***) (A) FRONT,REAR	8-97609-481-4	02	1	1311-	●	●	●	●
82	NUT; BRKT FSR AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1311-	●	●	●	●
82	NUT; BRKT FSR LEAF SUS(FCR***) (A) M14	0-91110-514-0	02	1	1311-	●			●
82	NUT; BRKT FSR LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1311-		●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-	●	●	●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-	●	●	●	●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1311-	●			●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●	●
126	WASHER; PL,BRKT FSR AIR SUS(FCD***) ID=10.5 OD=22	0-91614-610-0	08	1	1311-	●	●	●	●
130	MEMBER; CROSS,END	8-97609-470-0	01	1	1311-	●	●	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1311-	●	●	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1311-	●	●	●	●
202	SPACER; 3RD C/MBR	8-97609-756-1	02	1	1311-	●	●	●	●
344	MEMBER; CROSS,4TH	8-97609-473-2	01	1	1311-		●	●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1311-	●	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	1311-	●	●	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1311-	●	●	●	●
531	SPACER; C/MBR,T/M	8-97616-461-1	02	1	1311-	●	●	●	●

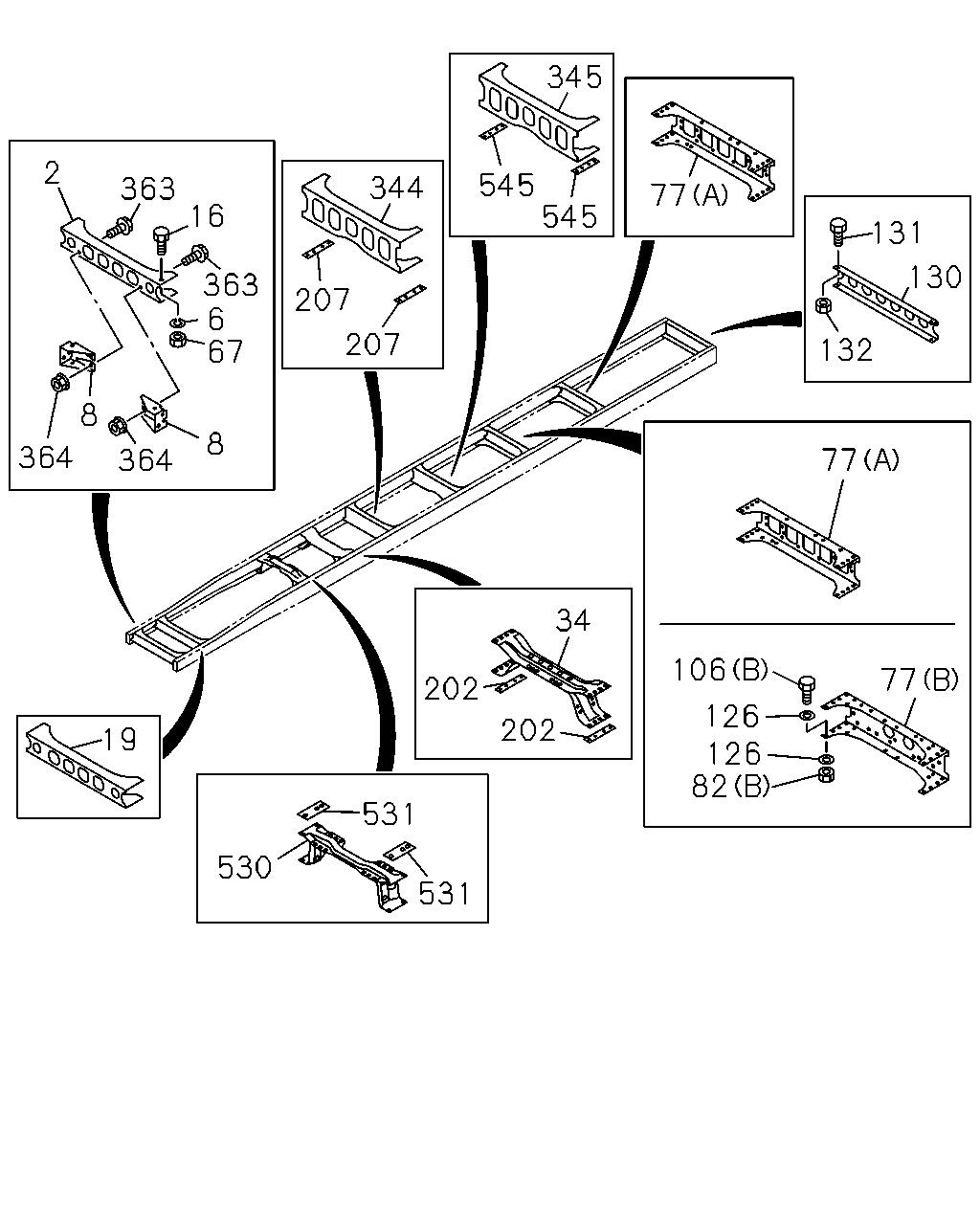

77 106 126 126 82 77 132 130 131 77 545 545 345 344 207 207 67 363 6 16 363 2 8 8 364 364 19 530 202 202 34 531 531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97609-462-9	01	1	1311-	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1311-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-912-2	01	1	1311-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97617-913-3	01	1	1311-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1311-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97645-585-2	01	1	1311-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97609-501-2	01	1	1311-	●	●	●	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1311-	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FSR AIR SUS(FCD***) (B) REAR	8-97609-481-4	01	1	1311-	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FSR AIR SUS(FCD***) (A) FRONT	8-97609-483-0	01	1	1311-	●	●	●	●
77	MEMBER; CROSS,TRUNNION RR FSR LEAF SUS(FCR***) (A) FRONT,REAR	8-97609-481-4	02	1	1311-	●	●	●	●
82	NUT; BRKT FSR AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1311-	●	●	●	●
82	NUT; BRKT FSR LEAF SUS(FCR***) (A) M14	0-91110-514-0	02	1	1311-	●			●
82	NUT; BRKT FSR LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1311-		●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-	●	●	●	●
106	BOLT; BRKT FSR AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-	●	●	●	●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	02	1	1311-	●			●
106	BOLT; BRKT FSR LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●	●
126	WASHER; PL,BRKT FSR AIR SUS(FCD***) ID=10.5 OD=22	0-91614-610-0	08	1	1311-	●	●	●	●
130	MEMBER; CROSS,END	8-97609-470-0	01	1	1311-	●	●	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1311-	●	●	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1311-	●	●	●	●
202	SPACER; 3RD C/MBR	8-97609-756-1	02	1	1311-	●	●	●	●
207	SPACER; 4TH C/MBR FSR LEAF SUS(FCR***)	8-97609-758-0	02	1	1311-				●
344	MEMBER; CROSS,4TH	8-97609-473-2	01	1	1311-		●	●	●
345	MEMBER; CROSS,5TH	8-97609-473-2	01	1	1311-			●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1311-	●	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	1311-	●	●	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1311-	●	●	●	●
531	SPACER; C/MBR,T/M	8-97616-461-1	02	1	1311-	●	●	●	●
545	SPACER; 5TH C/MBR FSR LEAF SUS(FCR***)	8-97609-758-0	02	1	1311-				●
