Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

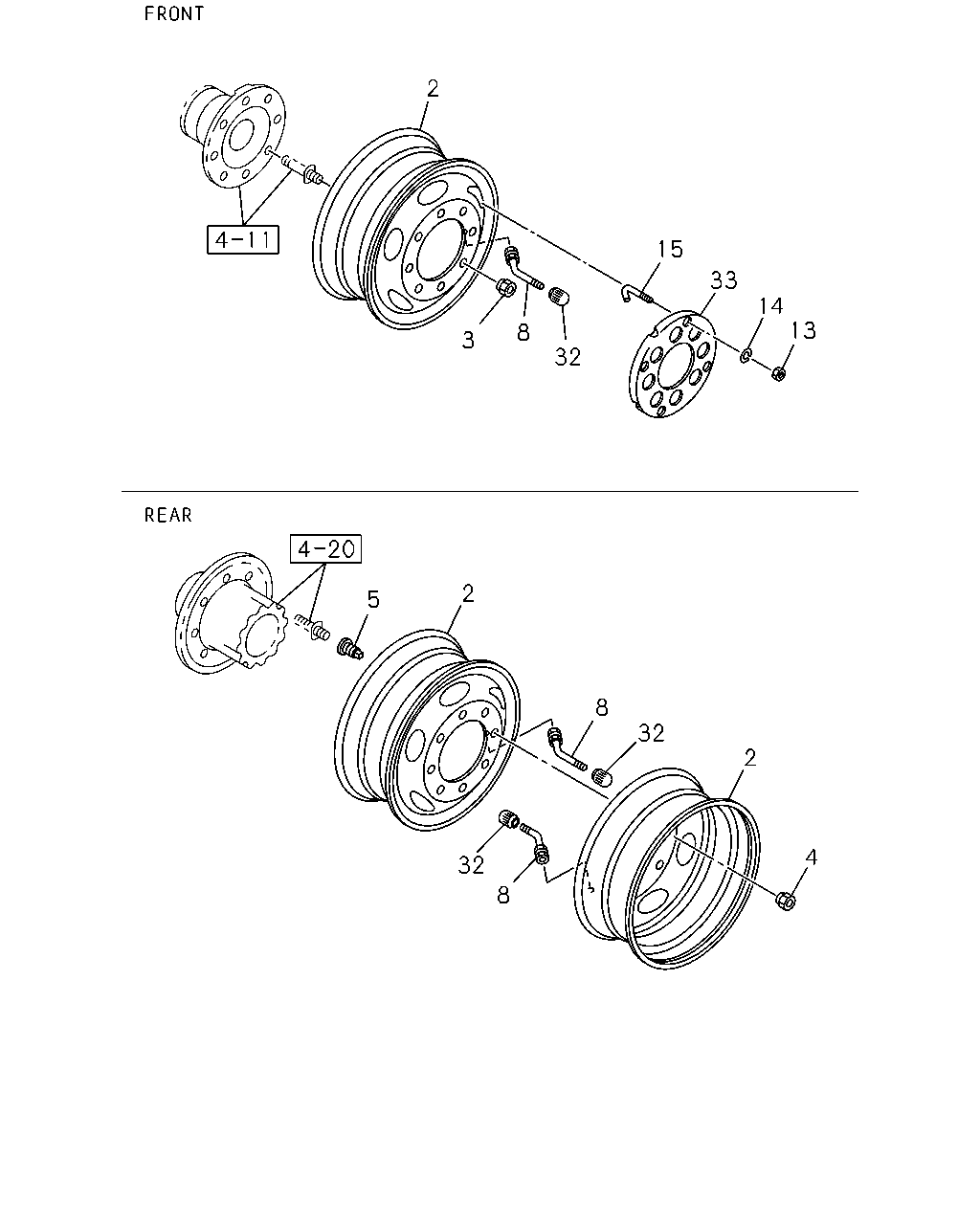

4-80 — ROAD WHEEL
(#130282) — 16 parça
Tümü
A - FCD6CS
B - FCR6CS
13
14
33
15
8
3
2
32
2
8
5
32
2
4
8
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
FRONT,REAR
1-42350-761-1
06
1
1311-
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42350-761-1
01
1
1311-
●
●
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
1311-
●
●
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
1311-
●
●
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
08
1
1311-
●
●
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
08
1
1311-
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
08
1
1311-
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
08
1
1311-
●
●
8
VALVE; TIRE
FRONT,REAR
1-42370-020-3
06
1
1311-
●
●
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42370-020-3
01
1
1311-
●
●
13
NUT; STEP DISC
M10
0-91110-510-0
08
1
1311-
●
●
14
WASHER; LK,STEP DISC
ID=10.2
0-91510-810-0
08
1
1311-
●
●
15
BOLT; STEP DISC
1-43139-073-0
08
1
1311-
●
●
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
07
1
1311-
●
●
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
06
1
1311-
●
●
33
COVER; WHEEL
1-43139-062-2
02
1
1311-
●
●
