◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11047 - EXR LHD EURO4 WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#13028) — 61 parça
çizim 91767
250 253 255 254 256 257
BalonParca AdiParca NoAdetTipApplied Date
250 LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82180-012-0 01 1 0611-
253 BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82691-605-0 01 1 0611-
254 LENS; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-207-0 01 1 0611-
255 GASKET; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-706-0 01 1 0611-
256 RIM; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-402-0 01 1 0611-
257 NUT; SEARCH LIGHT
INSPECTION LAMP<T95> M10 FLANGE 		0-91180-110-0 01 1 0611-

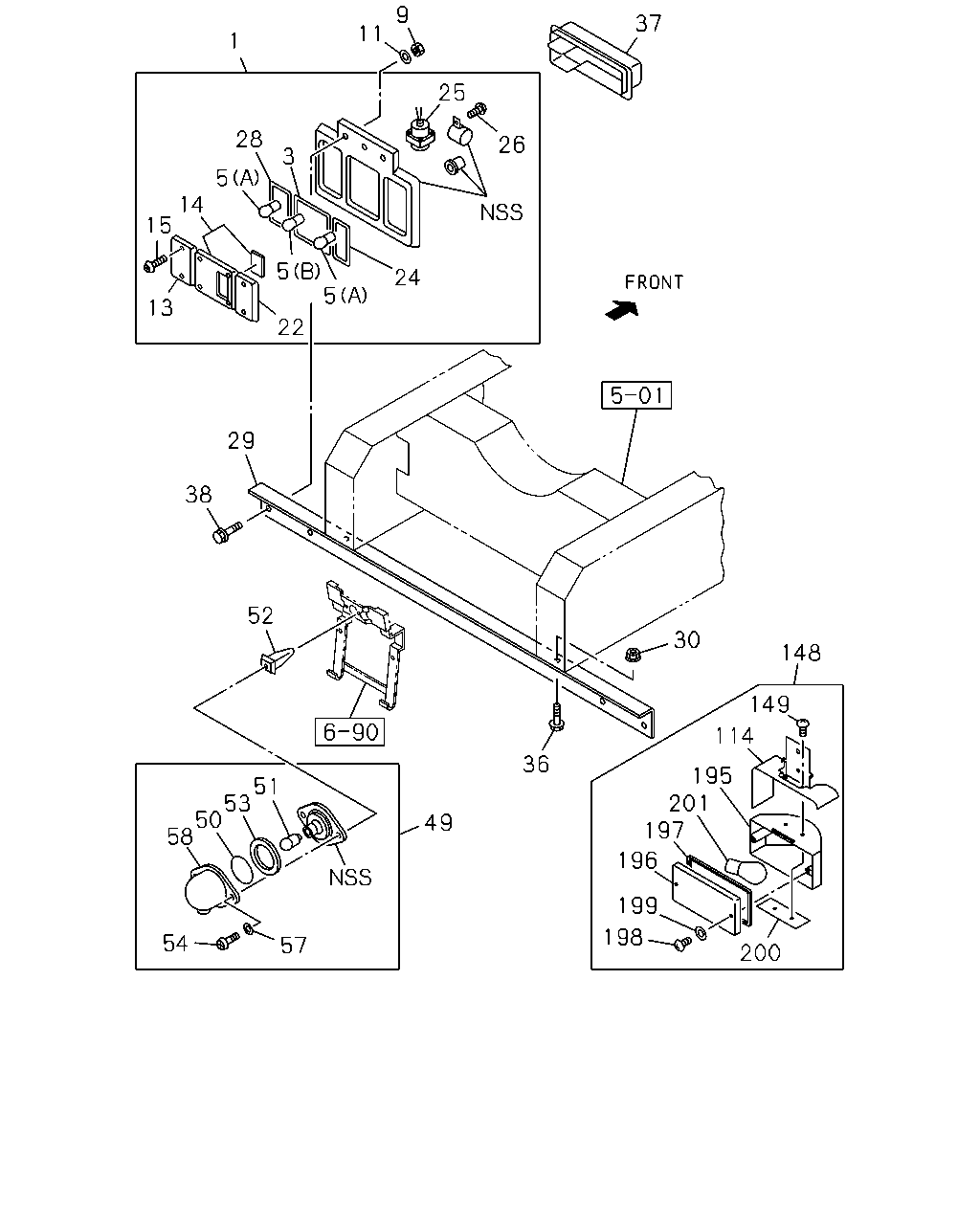

çizim 105464
9 37 11 1 25 28 26 3 5 14 15 5 5 24 13 22 29 38 52 30 148 149 114 36 195 201 197 51 53 50 58 49 196 199 198 54 57 200
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-97213-369-0 01 1 0611-0712
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		1-82230-208-0 01 1 0801-
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> REVERSING WARNING BUZZER<YM9> 		8-97213-370-0 01 1 0611-0712
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> REVERSING WARNING BUZZER<YM9> 		1-82230-209-0 01 1 0801-
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> EXC. REVERSING WARNING BUZZER<YM9> 		8-97213-368-0 01 1 0611-0712
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> EXC. REVERSING WARNING BUZZER<YM9> 		1-82230-207-0 01 1 0801-
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-505-0 01 1 0611-
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-505-0 01 1 0611-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> (A) 24V 21W 		1-82194-036-0 02 1 0611-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> (A) 24V 21W 		1-82194-036-0 02 1 0611-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> (B) 24V 21/5W 		1-82194-038-0 01 1 0611-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> (B) 24V 21/5W 		1-82194-038-0 01 1 0611-
9 NUT; LAMP,RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M6 		0-91110-506-0 04 1 0611-
11 WASHER; PL,LAMP,RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> ID=6.4 OD=18 		0-91610-706-0 04 1 0611-
13 LENS; TURN SIGNAL
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94174-639-0 01 1 0611-
13 LENS; TURN SIGNAL
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94174-638-0 01 1 0611-
14 LENS; TAIL & STOP,RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94178-625-0 01 1 0611-
14 LENS; TAIL & STOP,RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94178-624-0 01 1 0611-
15 SCREW; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0611-
15 SCREW; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0611-
22 LENS; BACKUP,RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-512-1 01 1 0611-
22 LENS; BACKUP,RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-512-1 01 1 0611-
24 GASKET; BACK,LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-506-0 01 1 0611-
24 GASKET; BACK,LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-506-0 01 1 0611-
25 HORN ASM; BACK
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0611-
26 SCREW; BACK HORN
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M4X14 TAPPING 		9-07076-414-0 01 1 0611-
26 SCREW; BACK HORN
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0611-
26 SCREW; BACK HORN
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0611-
28 GASKET; TURN,LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-507-0 01 1 0611-
28 GASKET; TURN,LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		8-94257-507-0 01 1 0611-
29 BRACKET; LAMP,RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		1-53487-021-1 01 1 0611-
30 NUT; BRKT,RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M10 FLANGE 		0-91180-210-0 02 1 0611-
36 BOLT; BRKT,RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M10X40 FLANGE 		0-28651-040-0 02 1 0611-
37 COVER; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		1-82239-008-0 01 1 0611-
37 COVER; RR COMB LAMP
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> 		1-82239-007-0 01 1 0611-
38 BOLT; LAMP,RR COMB
TAIL & STOP LAMPS VAR1 3 PIECE<TCF> M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0611-
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0611-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0611-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0611-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0611-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0611-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0611-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0611-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0611-
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 0611-
148 LAMP ASM; RR FOG 8-97181-002-0 01 1 0611-0712
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 0801-
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 0611-
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 0611-
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 0611-
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 0611-
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 0611-
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 0611-
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 0611-
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
