◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#130274) — 38 parça

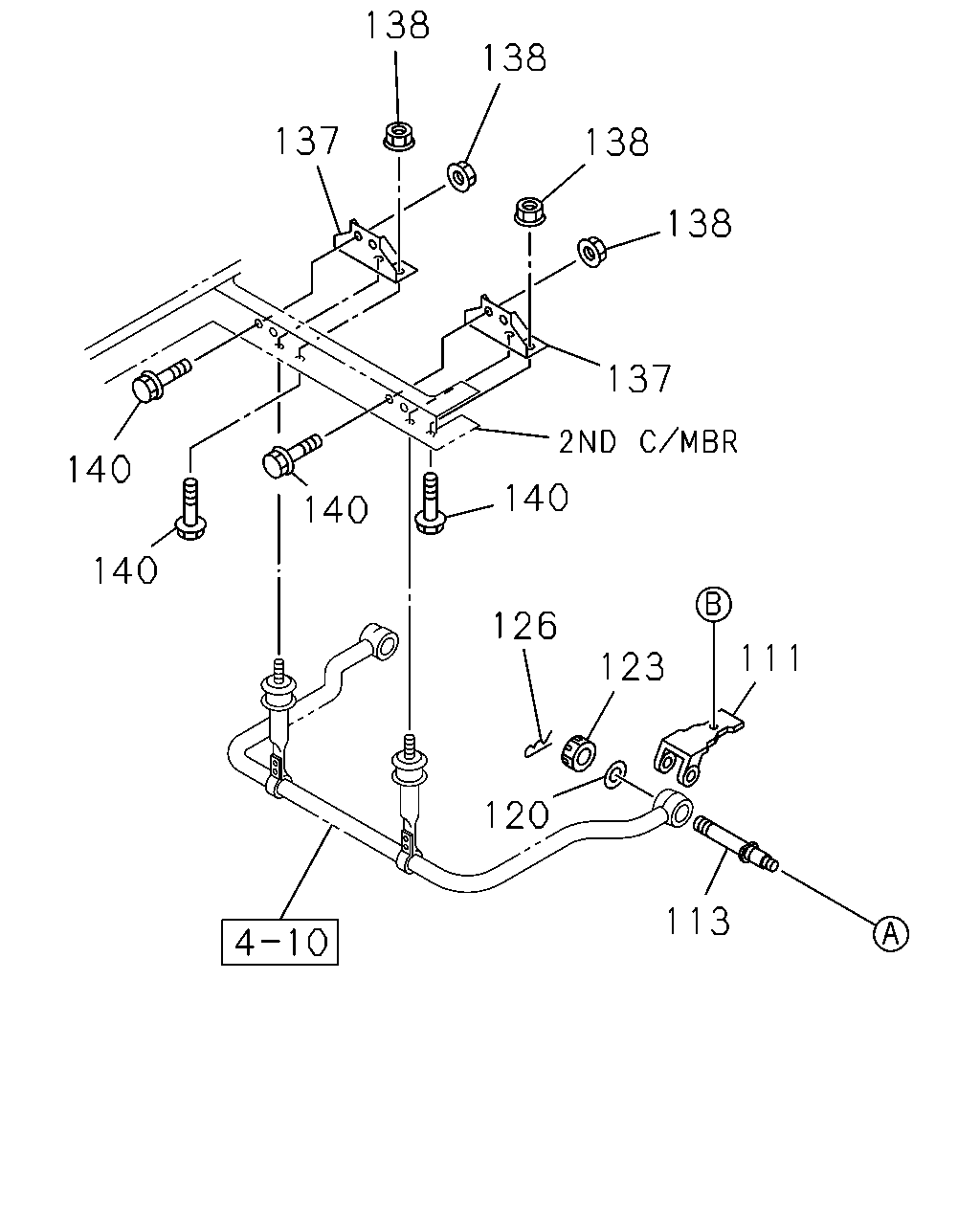

çizim 385842
138 137 138 138 140 126 123 111 113 120 140 140 140 137 138
BalonParca AdiParca NoAdetTipApplied Date A B
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-655-1 01 1 1311- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-654-1 01 1 1311- ● ●
113 PIN; SUPPORTER 8-98019-317-0 02 1 1311- ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
ID=23 		0-91614-522-0 02 1 1311- ● ●
123 NUT; PIN TO SUPPORTER
M22 		0-91116-522-0 02 1 1311- ● ●
126 PIN; SPLIT,STAB
OD=4.6 L=45 		0-81125-045-0 02 1 1311- ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-060-2 02 1 1311- ● ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1311- ● ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1311- ● ●

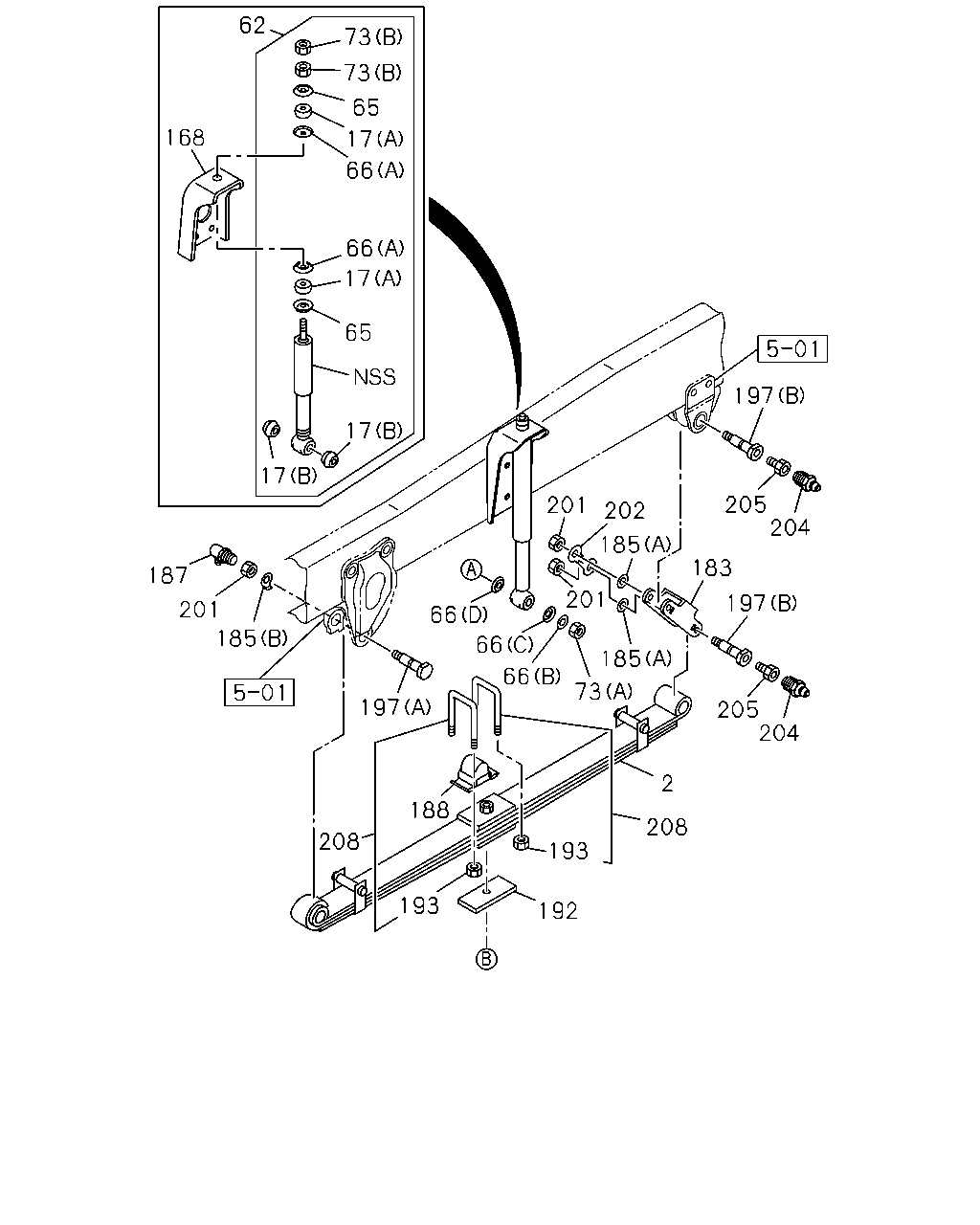

çizim 386176
168 62 73 65 73 17 66 66 65 17 17 17 187 201 185 197 66 66 66 185 73 201 201 202 185 183 197 205 204 204 205 197 2 208 193 192 193 188 208
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98063-484-0 01 1 1311-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98229-529-0 01 1 1408- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98063-483-0 01 1 1311-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98229-528-0 01 1 1408- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		1-51631-009-1 04 1 1311- ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		9-51631-050-0 04 1 1311- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-1 02 1 1311- ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=16.8 		1-51631-022-0 04 1 1311- ● ●
73 NUT; BRKT,SHOCK
(A) M16 		0-91110-516-0 02 1 1311- ● ●
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1311- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-820-0 02 1 1311- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1311- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1311- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1311- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1311- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 1311- ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1311- ● ●
193 NUT; U BOLT
M18 FLANGE 		1-09440-039-1 08 1 1311- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1311- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1311- ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1311- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1311- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1311- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1311- ● ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-444-0 04 1 1311- ● ●
