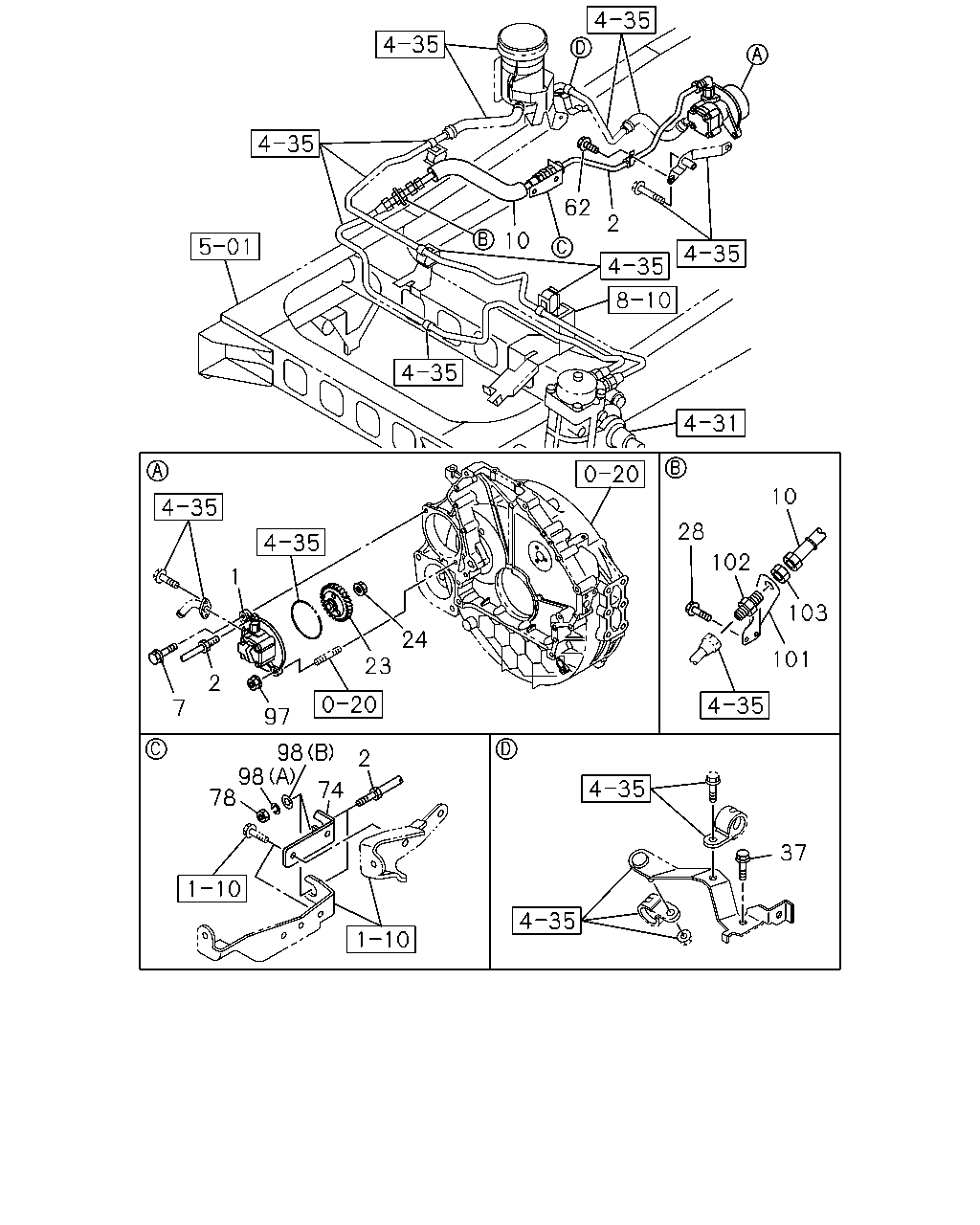

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#130271) — 20 parça

2 62 10 10 102 28 103 101 24 23 1 2 7 97 2 98 98 78 74 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-640-0	01	1	1311-	●	●
2	PIPE ASM; OIL,SUCTION GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98123-616-0	01	1	1311-	●	●
2	PIPE ASM; OIL,SUCTION GENERATOR 24V90A(K44)	8-98134-200-0	01	1	1311-	●	●
7	BOLT; OIL PUMP,P/S M10X30 FLANGE	0-28751-030-0	01	1	1311-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=500	1-09364-957-2	01	1	1311-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL GENERATOR 24V90A(K44) L=460	1-09365-026-0	01	1	1311-	●	●
23	GEAR; OIL PUMP Z=30	8-94390-842-1	01	1	1311-	●	●
24	NUT; GEAR,P/S PUMP M12 FLANGE	0-91180-112-0	01	1	1311-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28050-825-0	02	1	1311-	●	●
37	BOLT; P/S PUMP M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●
62	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1311-	●	●
74	BRACKET; PIPE GENERATOR 24V90A(K44)	8-98073-737-0	01	1	1311-	●	●
78	NUT; BRKT M20	0-91111-520-0	01	1	1311-	●	●
97	NUT; OIL PUMP,P/S M10 FLANGE	0-91180-110-0	01	1	1311-	●	●
98	WASHER; LK,BRKT (A) ID=20.2	0-91510-620-0	01	1	1311-	●	●
98	WASHER; LK,BRKT (B) ID=21	0-91610-520-0	01	1	1311-	●	●
101	BRACKET; UNION GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98076-297-0	01	1	1311-	●	●
101	BRACKET; UNION GENERATOR 24V90A(K44)	8-98077-651-0	01	1	1311-	●	●
102	UNION M20 & M22 STRAIGHT	1-09654-167-1	01	1	1311-	●	●
103	NUT; UNION M22	0-91111-522-0	01	1	1311-	●	●
