◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#130270) — 55 parça

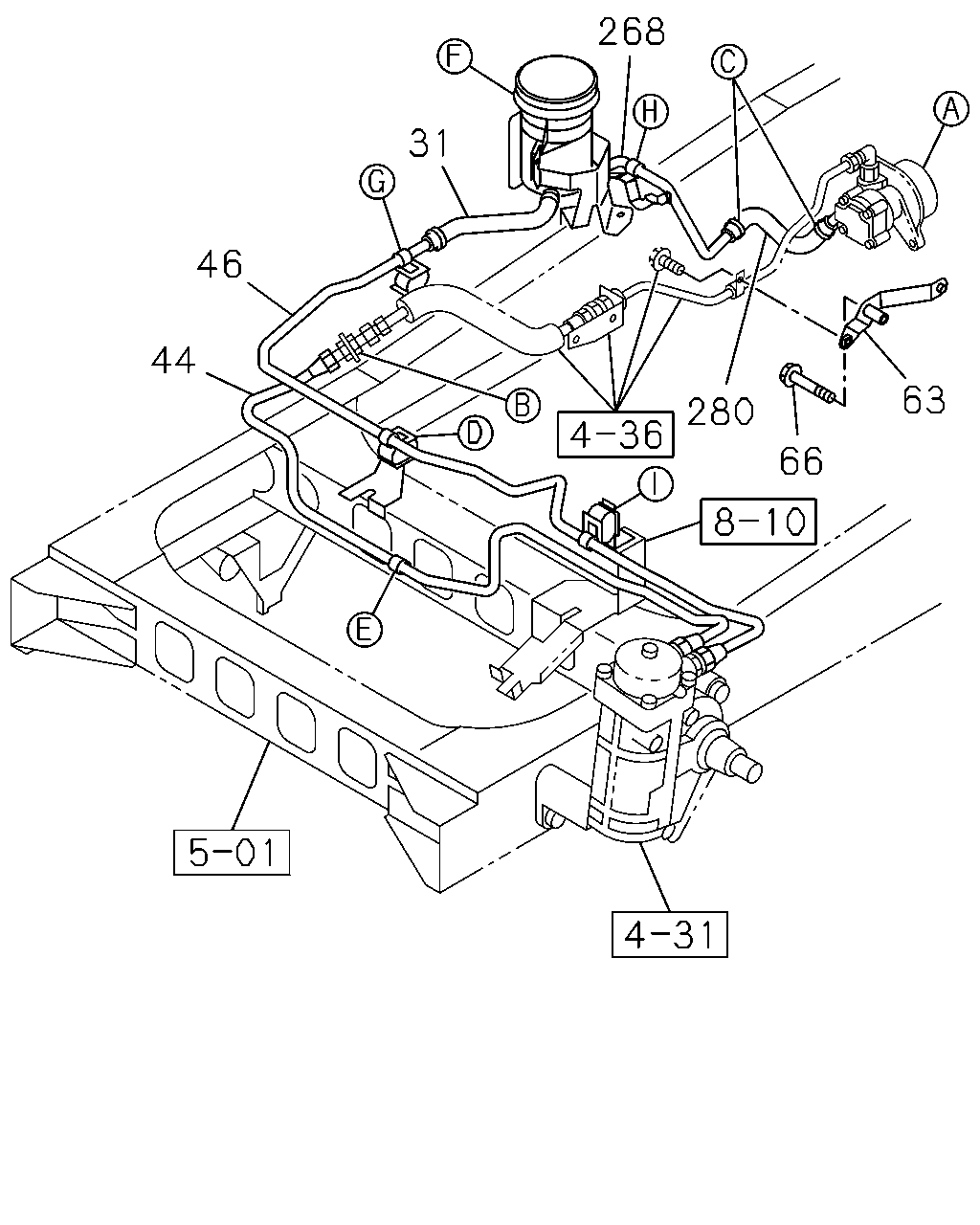

çizim 385707
268 31 46 44 63 280 66
BalonParca AdiParca NoAdetTipApplied Date A B
31 HOSE; P/S OIL TANK,INL 8-98125-915-1 01 1 1311-1503 ● ●
31 HOSE; P/S OIL TANK,INL
L=220 SERVICED BY L=300 		0-09814-300-0 01 1 1504- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) 		8-98222-216-0 01 1 1311- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V90A(K44) 		8-98222-215-0 01 1 1311- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1593 		8-98204-058-0 01 1 1311-1503 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1606 		8-98300-059-0 01 1 1504- ● ●
63 BRACKET; CLIP,P/S 8-98133-447-2 01 1 1311- ● ●
66 BOLT; BRKT,OIL PIPE
M10X60 FLANGE 		0-28151-060-0 01 1 1311- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98167-795-0 01 1 1311- ● ●
280 HOSE; P/S OIL PUMP,INL 8-98171-963-0 01 1 1311- ● ●

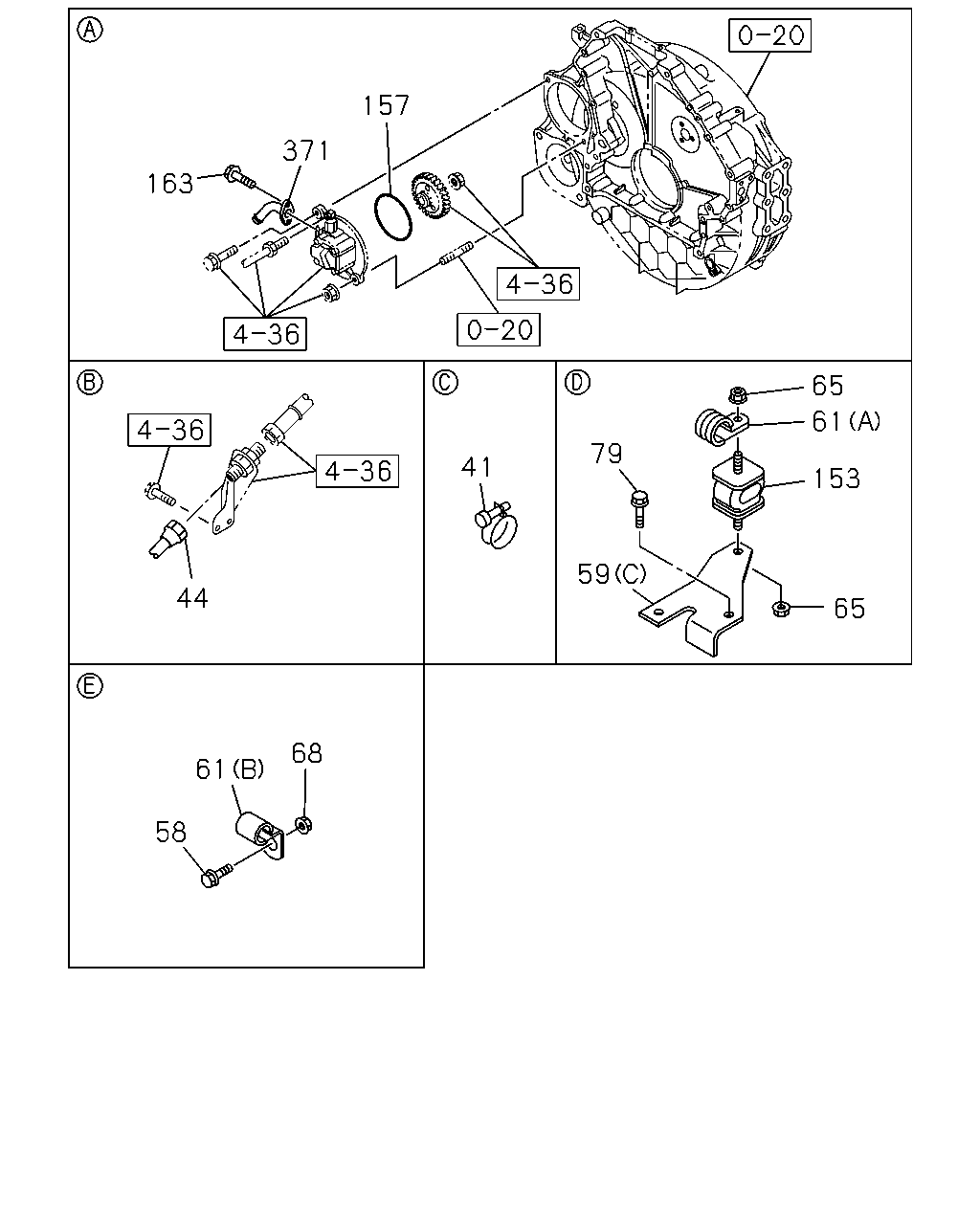

çizim 385733
163 371 157 44 41 79 59 65 61 153 65 61 58 68
BalonParca AdiParca NoAdetTipApplied Date A B
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1311- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) 		8-98222-216-0 01 1 1311- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V90A(K44) 		8-98222-215-0 01 1 1311- ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) L=75 		1-47477-119-0 01 1 1311- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) L=95 		1-82699-085-0 01 1 1311- ● ●
59 BRACKET; CLIP,OIL PIPE
(C) 		8-98222-221-0 01 1 1311- ● ●
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 03 1 1311- ● ●
61 CLIP; OIL PIPE
(B) ID=13 H=18 L=20 		1-09700-813-0 01 1 1311- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1311- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ●
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 03 1 1311- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		8-97386-295-0 01 1 1311- ● ●
163 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1311- ● ●
371 PIPE; OIL,INLET 8-94397-227-0 01 1 1311- ● ●

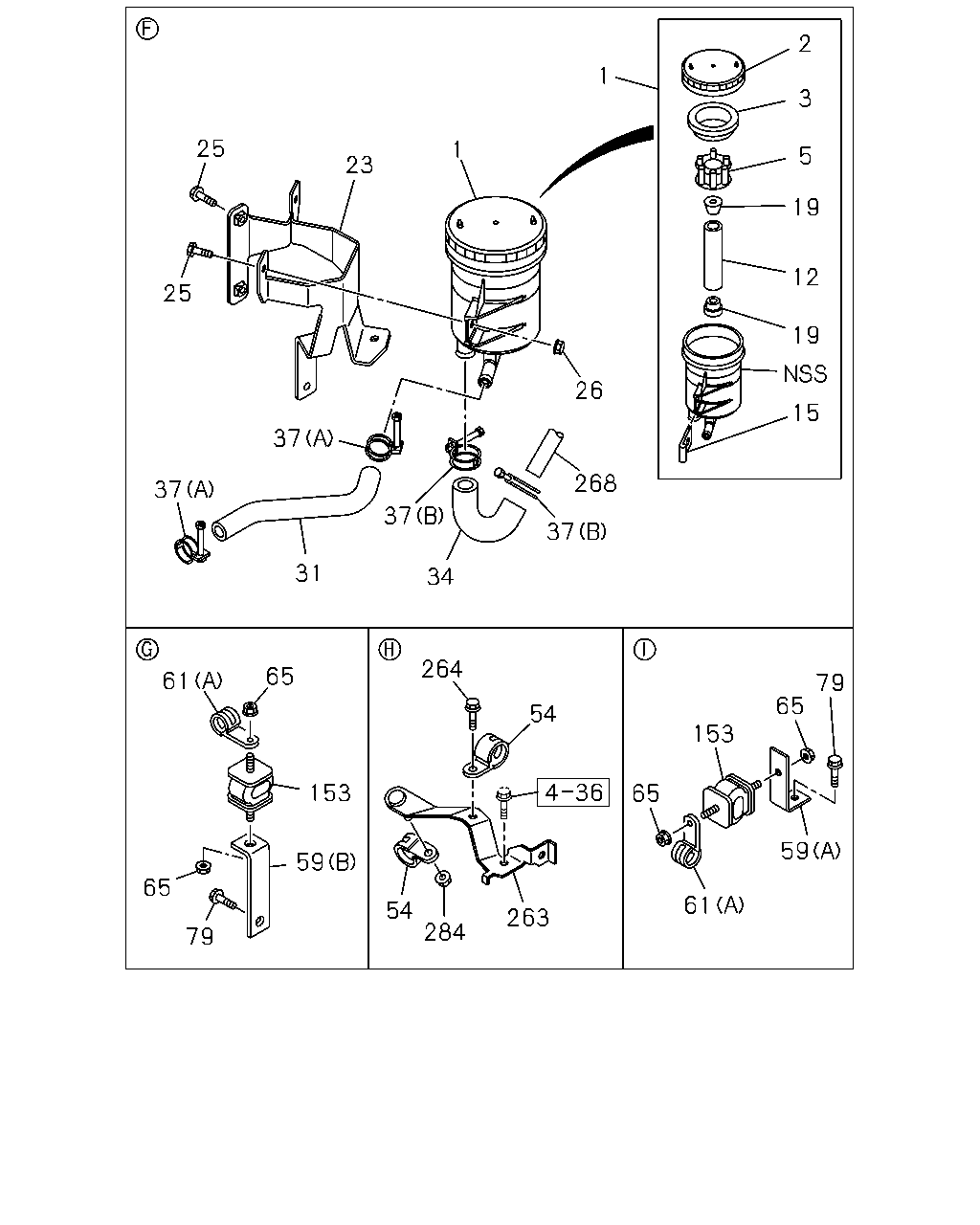

çizim 386211
25 25 23 1 1 2 3 5 19 12 19 15 26 37 37 31 37 34 268 37 61 65 153 59 65 79 264 54 54 284 263 65 153 65 79 59 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1311- ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1311- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1311- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1311- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1311- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1311- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 1311- ● ●
23 BRACKET; OIL TANK,P/S 8-98148-531-0 01 1 1311- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
31 HOSE; P/S OIL TANK,INL 8-98125-915-1 01 1 1311-1503 ● ●
31 HOSE; P/S OIL TANK,INL
L=220 SERVICED BY L=300 		0-09814-300-0 01 1 1504- ● ●
34 HOSE; P/S OIL TANK,OUTLET 8-98167-796-1 01 1 1311- ● ●
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1311- ● ●
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1311- ● ●
54 CLIP; OIL PIPE
ID=19 L=20 		0-95235-836-0 02 1 1311- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) L=75 		1-47477-119-0 01 1 1311- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) L=95 		1-82699-085-0 01 1 1311- ● ●
59 BRACKET; CLIP,OIL PIPE
(C) 		8-98222-221-0 01 1 1311- ● ●
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 03 1 1311- ● ●
61 CLIP; OIL PIPE
(B) ID=13 H=18 L=20 		1-09700-813-0 01 1 1311- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1311- ● ●
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ●
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 03 1 1311- ● ●
263 BRACKET; P/S PIPE 8-98167-794-1 01 1 1311- ● ●
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98167-795-0 01 1 1311- ● ●
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
