Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

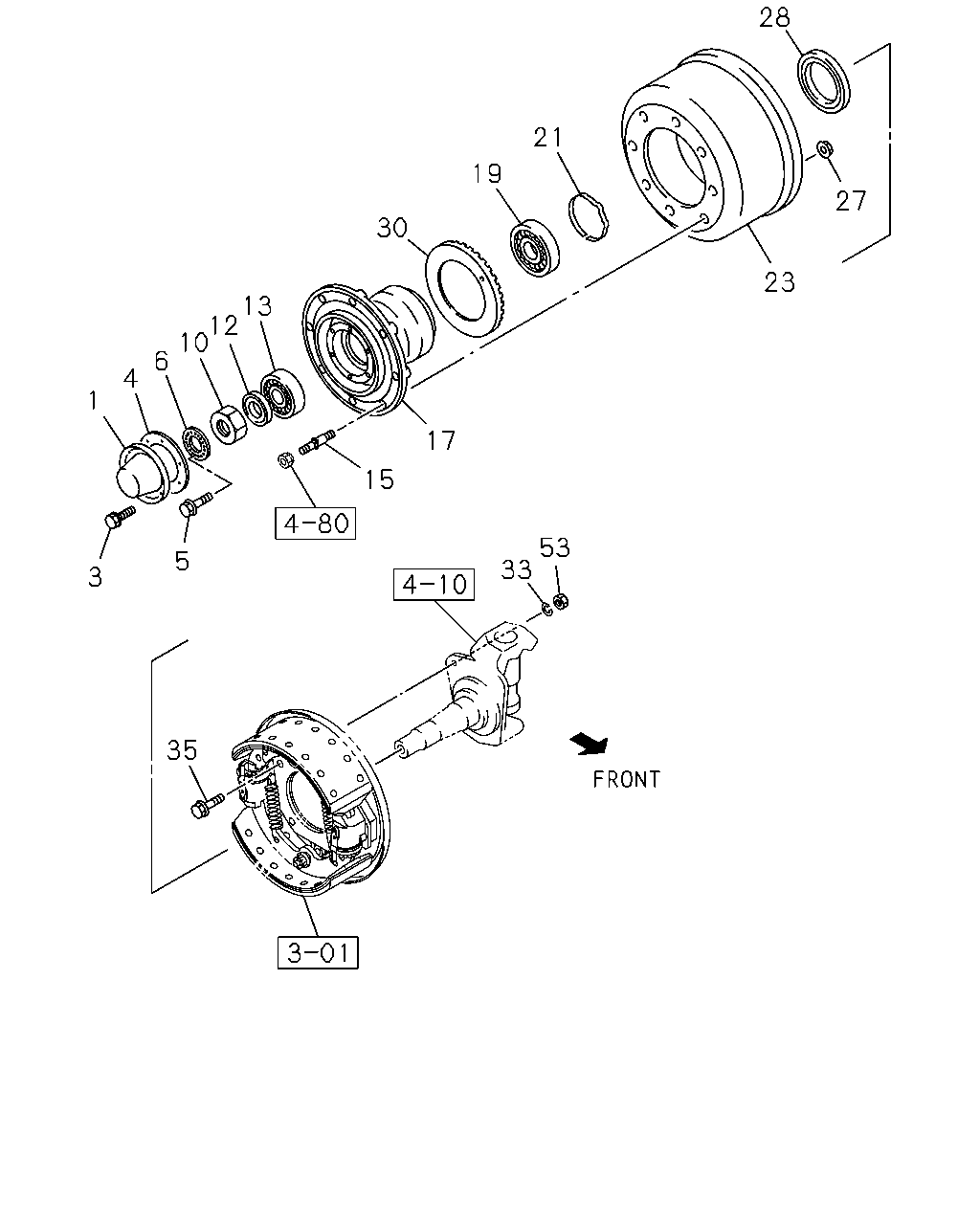

4-11 — FRONT HUB AND DRUM OR ROTOR
(#130264) — 20 parça
Tümü
A - FCD6CS
B - FCR6CS
35
5
3
1
4
6
10
12
13
30
19
15
17
21
28
27
23
53
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1311-
●
●
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
1311-
●
●
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1311-
●
●
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1311-
●
●
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
1311-
●
●
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1311-
●
●
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1311-
●
●
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1311-
●
●
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X49.5 RH THREAD
1-42331-148-1
08
1
1311-
●
●
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X49.5 RH THREAD
1-42332-148-1
08
1
1311-
●
●
17
HUB; FRT AXLE
1-42312-162-0
02
1
1311-
●
●
19
BEARING; HUB INNER,FRT AXLE
1-09812-217-0
02
1
1311-
●
●
21
RING; SNAP,HUB
OD=132
9-09950-164-0
02
1
1311-
●
●
23
DRUM; BRK,FRT
1-42315-414-0
02
1
1311-
●
●
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
1311-
●
●
28
SEAL; OIL,FRT HUB
OD=128
1-09625-129-0
02
1
1311-
●
●
30
RING; EXCITER,FRT HUB
1-42319-203-0
02
1
1311-
●
●
33
WASHER; LK,DRUM COVER
ID=14.2
0-91510-814-0
08
1
1311-
●
●
35
BOLT; DRUM COVER
M14X50
1-09040-066-0
08
1
1311-
●
●
53
NUT; DRUM COVER
M14
0-91110-514-0
08
1
1311-
●
●
