◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#130262) — 469 parça

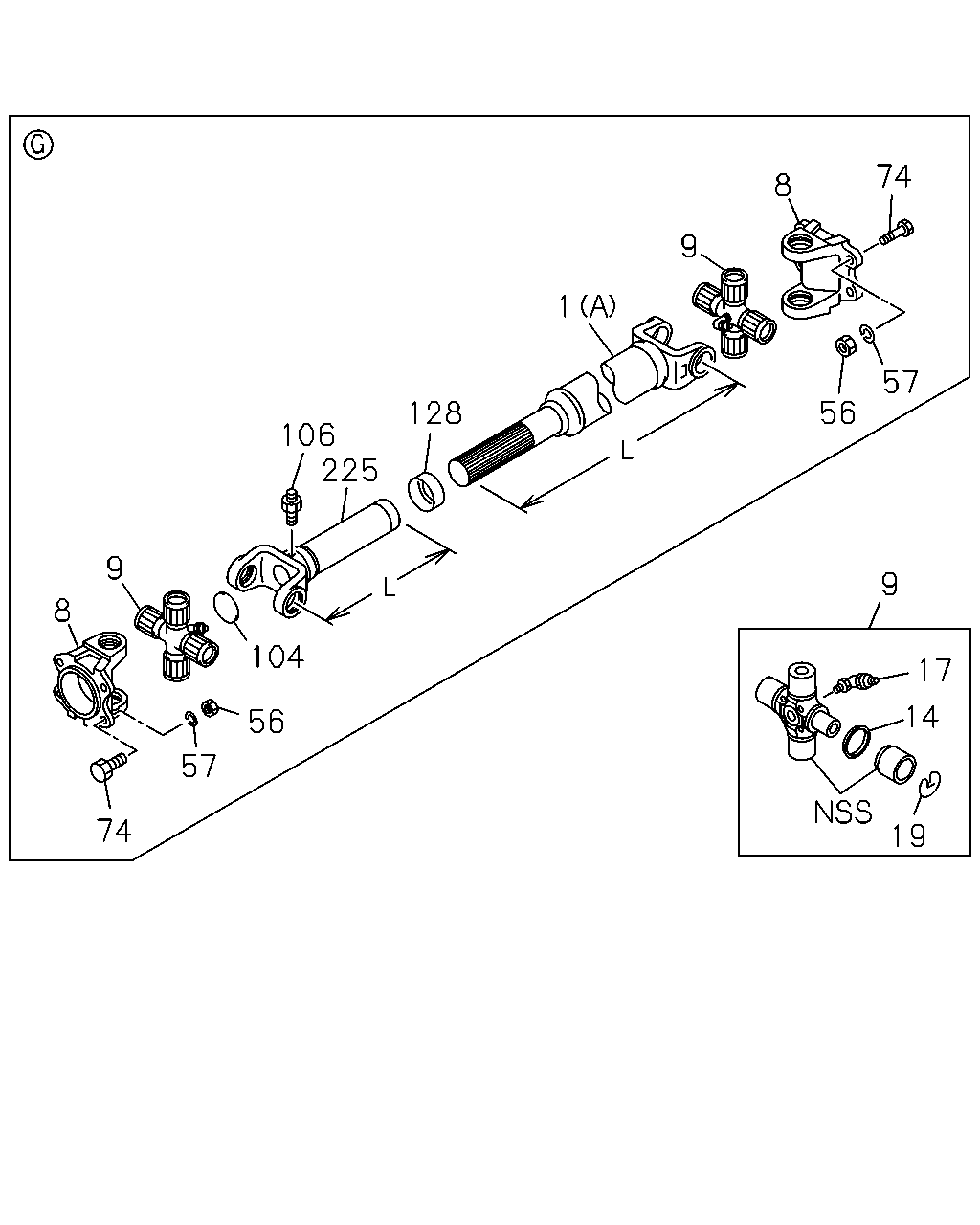

çizim 385727
9 17 14 19 56 57 74 8 9 1 128 225 106 9 8 74 57 56 104
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=714 		8-98205-026-0 01 1 1506- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1106 		1-37151-637-1 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1311- ● ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1099 		8-98150-816-0 01 1 1311- ● ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1261 		8-98069-663-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1271 		8-98069-657-0 01 1 1311- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37211-056-3 01 1 1311-1505 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37300-102-1 AR 1 1311-1505 ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-925-1 AR 1 1506- ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1311- ● ● ● ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37319-012-0 04 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1311- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1311- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1311- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1311- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1311- ● ● ● ●

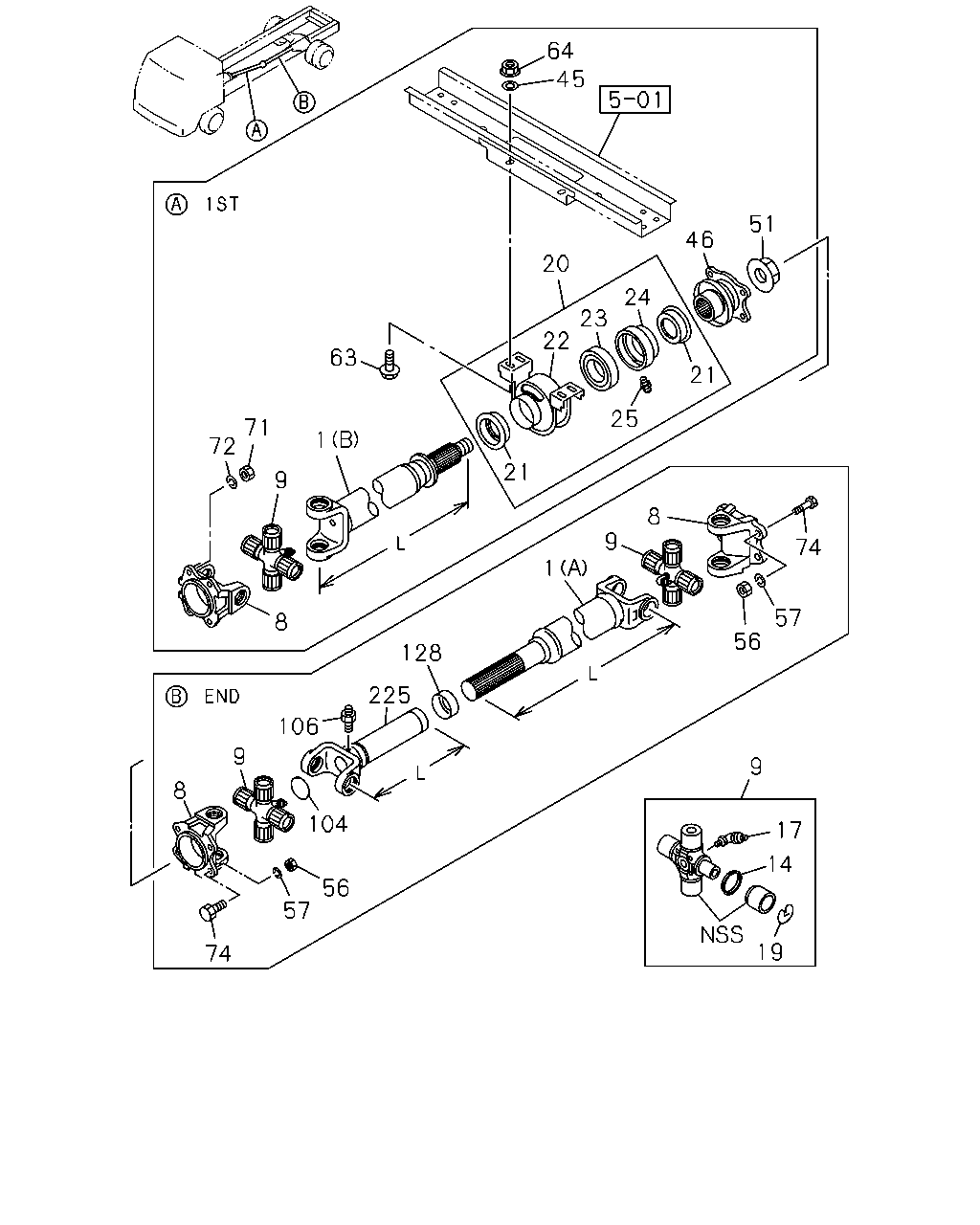

çizim 386048
64 46 45 51 20 23 22 21 25 21 24 63 71 72 8 128 1 9 1 9 8 74 57 56 9 17 14 19 225 106 9 8 74 56 104 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=714 		8-98205-026-0 01 1 1506- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1106 		1-37151-637-1 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1311- ● ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1099 		8-98150-816-0 01 1 1311- ● ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1261 		8-98069-663-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1271 		8-98069-657-0 01 1 1311- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37211-056-3 01 1 1311-1505 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37300-102-1 AR 1 1311-1505 ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-925-1 AR 1 1506- ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1311- ● ● ● ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37319-012-0 04 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1311- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1506- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-881-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1506- ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37510-105-0 01 1 1311- ●
21 SEAL; OIL,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=54 		1-09625-161-0 02 1 1311-1505 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1311-1505 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1311-1505 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1506- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1506- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37516-059-0 01 1 1311-1505 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1311-1505 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1311-1505 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1506- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1506- ● ●
23 BEARING; CENTER,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-00090-071-0 01 1 1311-1505 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1311-1505 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1311-1505 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1506- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1506- ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1506- ● ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-882-0 01 1 1506- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1506- ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37529-068-0 01 1 1311- ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1506- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-889-0 01 1 1506- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1506- ● ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1311- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1311- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1506- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-815-0 01 1 1506- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1506- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37245-071-0 01 1 1311- ●
51 NUT; FLANGE,SPLINED
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30 		8-97160-857-0 01 1 1311-1505 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1311-1505 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1311-1505 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1506- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1506- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1311- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1311- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1311- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1311- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1311- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1311- ● ● ● ●

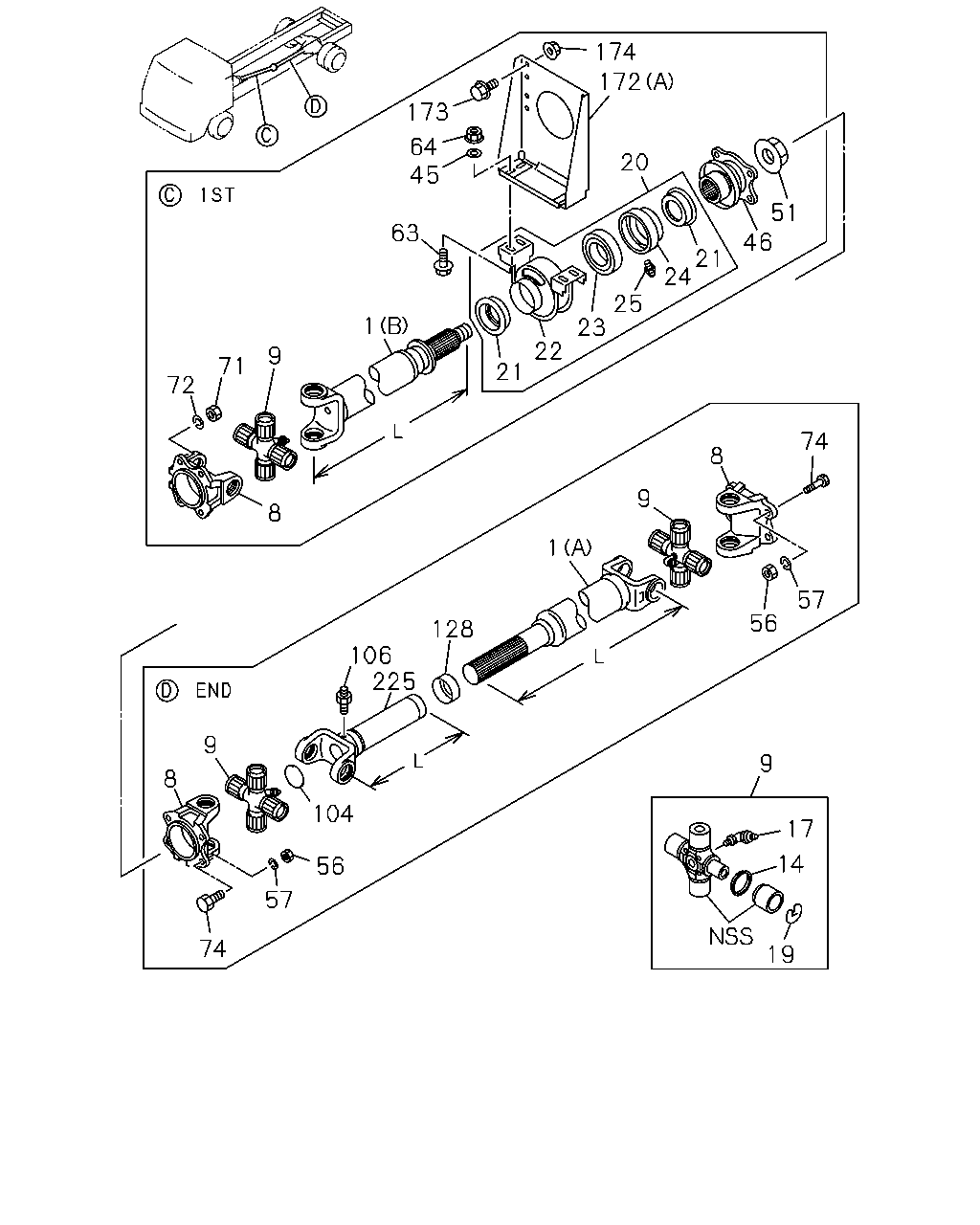

çizim 386369
173 64 45 63 174 172 20 51 46 21 24 25 23 22 21 1 9 71 72 8 128 106 225 9 8 104 56 57 74 1 9 8 74 57 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=714 		8-98205-026-0 01 1 1506- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1106 		1-37151-637-1 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1311- ● ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1099 		8-98150-816-0 01 1 1311- ● ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1261 		8-98069-663-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1271 		8-98069-657-0 01 1 1311- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37211-056-3 01 1 1311-1505 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37300-102-1 AR 1 1311-1505 ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-925-1 AR 1 1506- ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1311- ● ● ● ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37319-012-0 04 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1311- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1506- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-881-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1506- ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37510-105-0 01 1 1311- ●
21 SEAL; OIL,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=54 		1-09625-161-0 02 1 1311-1505 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1311-1505 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1311-1505 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1506- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1506- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37516-059-0 01 1 1311-1505 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1311-1505 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1311-1505 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1506- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1506- ● ●
23 BEARING; CENTER,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-00090-071-0 01 1 1311-1505 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1311-1505 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1311-1505 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1506- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1506- ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1506- ● ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-882-0 01 1 1506- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1506- ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37529-068-0 01 1 1311- ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1506- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-889-0 01 1 1506- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1506- ● ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1311- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1311- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1506- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-815-0 01 1 1506- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1506- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37245-071-0 01 1 1311- ●
51 NUT; FLANGE,SPLINED
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30 		8-97160-857-0 01 1 1311-1505 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1311-1505 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1311-1505 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1506- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1506- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1311- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1311- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1311- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1311- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1311- ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR AIR SUS(FCD***) (A) 		8-98044-076-0 01 1 1311- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-122-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (B) 		1-37515-121-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (A) 		1-37515-119-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (A) 		1-37515-120-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR AIR SUS(FCD***) (B) 		1-37515-120-0 01 1 1311- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1311- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1311- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1311- ● ● ● ●

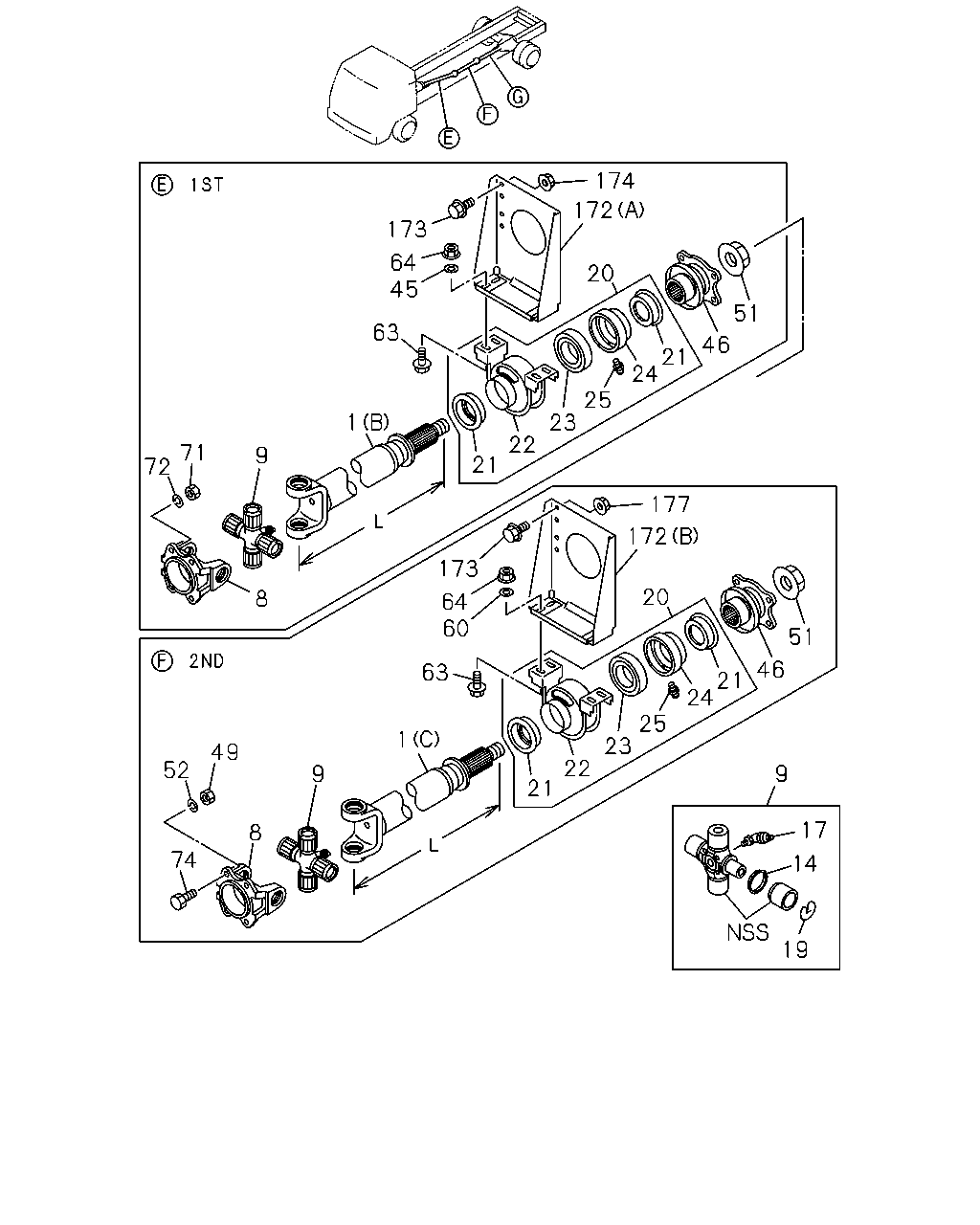

çizim 386474
49 52 74 9 8 1 63 60 64 173 21 22 23 25 24 21 9 17 14 19 46 51 20 172 177 21 22 23 25 24 21 46 51 20 172 174 173 64 45 63 4 9 71 72 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=714 		8-98205-026-0 01 1 1506- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789 		8-98069-581-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=921 		8-98069-698-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=931 		8-98069-695-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1106 		1-37151-637-1 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1101 		8-98069-675-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1116 		8-98069-665-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179 		8-98069-574-0 01 1 1311- ● ● ●
1 SHAFT; PROP
(C) L=569 		8-98069-566-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1086 		8-98069-690-0 01 1 1311- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1099 		8-98150-816-0 01 1 1311- ● ●
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1311- ●
1 SHAFT; PROP
FSR AIR SUS(FCD***) (A) L=1261 		8-98069-663-0 01 1 1311- ●
1 SHAFT; PROP
FSR LEAF SUS(FCR***) (A) L=1271 		8-98069-657-0 01 1 1311- ●
8 YOKE; FLANGE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37211-056-3 01 1 1311-1505 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1311-1505 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1506- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		8-98048-925-0 01 1 1311-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1311- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37300-102-1 AR 1 1311-1505 ●
9 JOURNAL ASM; PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-925-1 AR 1 1506- ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		8-98020-800-0 04 1 1311-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1311- ● ● ● ●
14 COVER; DUST,SPIDER
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37319-012-0 04 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1311-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1311-1505 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1311- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1311- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		8-98020-881-0 01 1 1311-1505 ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1506- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-881-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1506- ● ●
20 BEARING ASM; CTR,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37510-105-0 01 1 1311- ●
21 SEAL; OIL,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=54 		1-09625-161-0 02 1 1311-1505 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1311-1505 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1311-1505 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1506- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1506- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-37516-059-0 01 1 1311-1505 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1311-1505 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1311-1505 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1506- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1506- ● ●
23 BEARING; CENTER,PROP SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-00090-071-0 01 1 1311-1505 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1311-1505 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1311-1505 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1506- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1506- ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		8-98020-882-0 01 1 1311-1505 ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1506- ● ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-882-0 01 1 1506- ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1506- ● ●
24 RETAINER; CENTER BRG,1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37529-068-0 01 1 1311- ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND 		8-98020-889-0 01 1 1311-1505 ● ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1506- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-889-0 01 1 1506- ●
25 NIPPLE; GREASE,CENTER BRG 8-98020-889-0 01 1 1506- ● ●
25 NIPPLE; GREASE,CENTER BRG
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1311- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1311- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		8-98020-815-0 01 1 1311-1505 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1506- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98020-815-0 01 1 1506- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1506- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST 		1-37245-071-0 01 1 1311- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ●
51 NUT; FLANGE,SPLINED
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30 		8-97160-857-0 01 1 1311-1505 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1311-1505 ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1311-1505 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1506- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1506- ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1311- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1311- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1311- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1311- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1311- ● ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR AIR SUS(FCD***) (A) 		8-98044-076-0 01 1 1311- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-122-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (B) 		1-37515-121-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (A) 		1-37515-119-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR LEAF SUS(FCR***) (A) 		1-37515-120-0 01 1 1311- ●
172 BRACKET; CENTER BRG
FSR AIR SUS(FCD***) (B) 		1-37515-120-0 01 1 1311- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1311- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1311- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
