◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#130260) — 83 parça

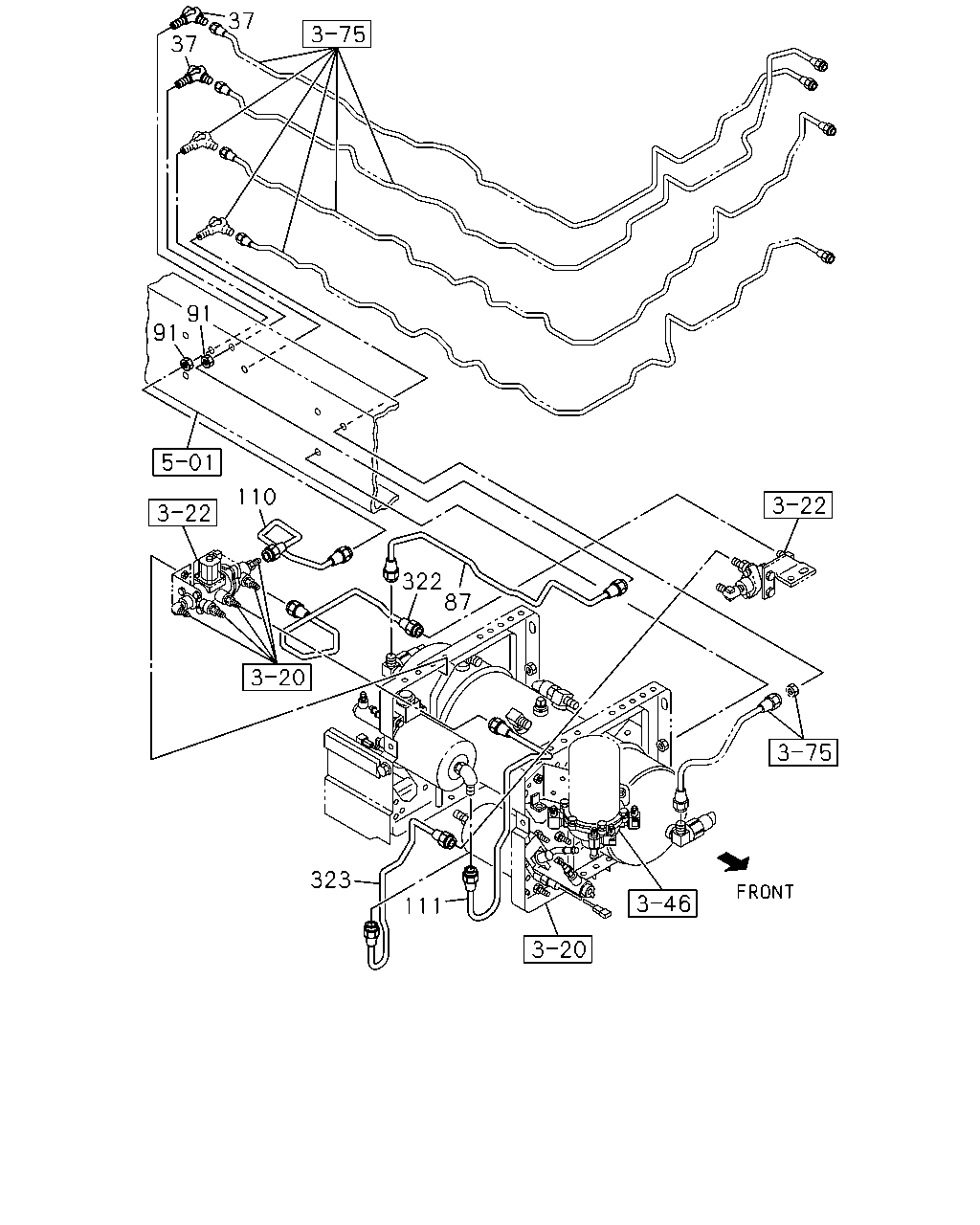

çizim 385772
37 37 91 91 110 322 87 323 111
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1311- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1311- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1311- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1311- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=438 		8-98223-458-0 01 1 1311- ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1311- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=680 SERVICED BY L=700 		1-47428-870-0 01 1 1311- ● ●
323 PIPE; AIR,DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1311- ● ●

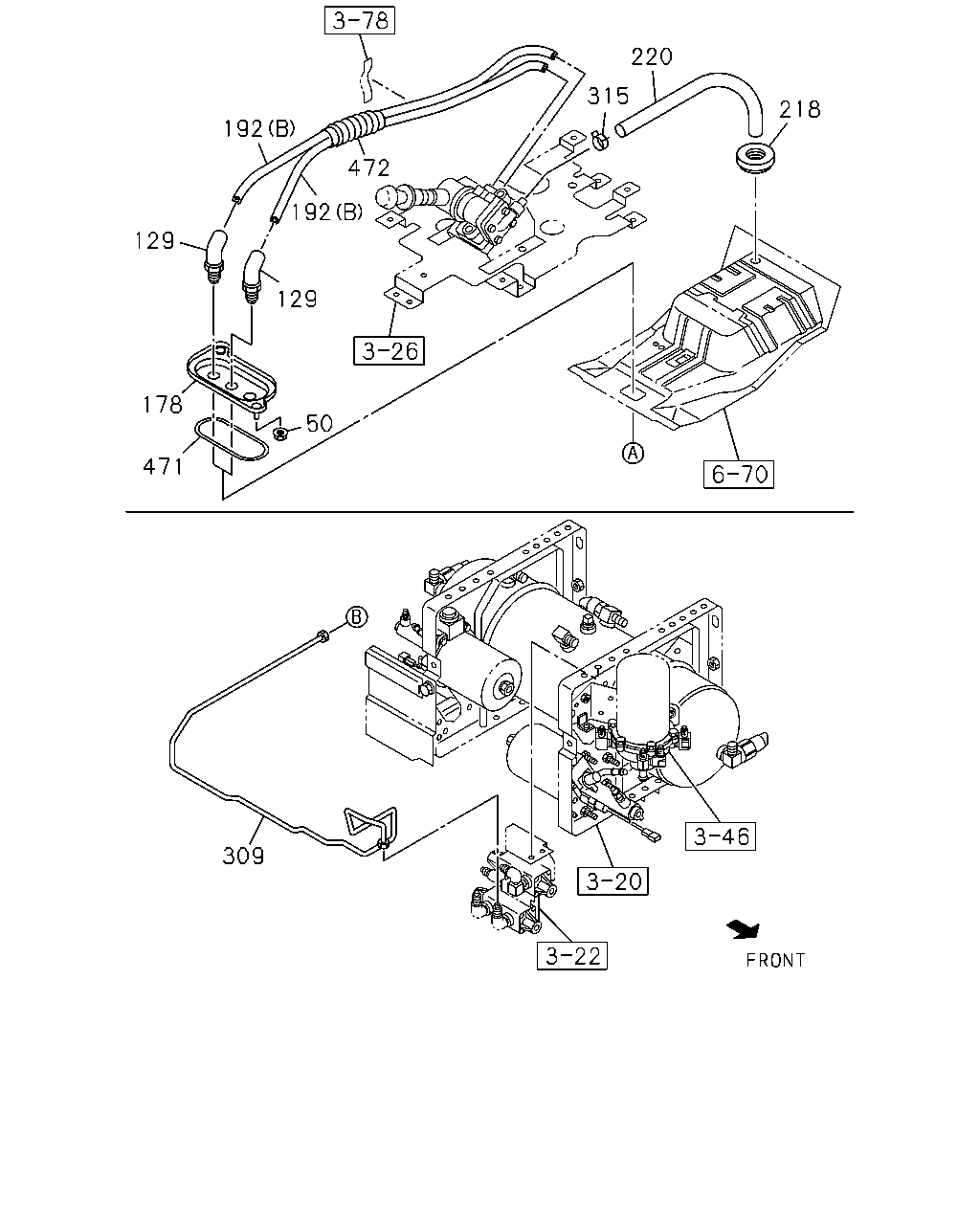

çizim 385795
192 472 192 129 129 178 471 50 315 220 218 309
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1311- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1311- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1311- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1311- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1311- ● ●
309 PIPE; AIR,MPV TO UNION
L=1336 SERVICED BY L=1400 		1-47428-878-0 01 1 1311- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1311- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1311- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1311- ● ●
çizim 385814
192 192 223 97 37 98 223 192
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1311- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1311- ● ●
97 UNION; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1311- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1311- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1311- ● ●

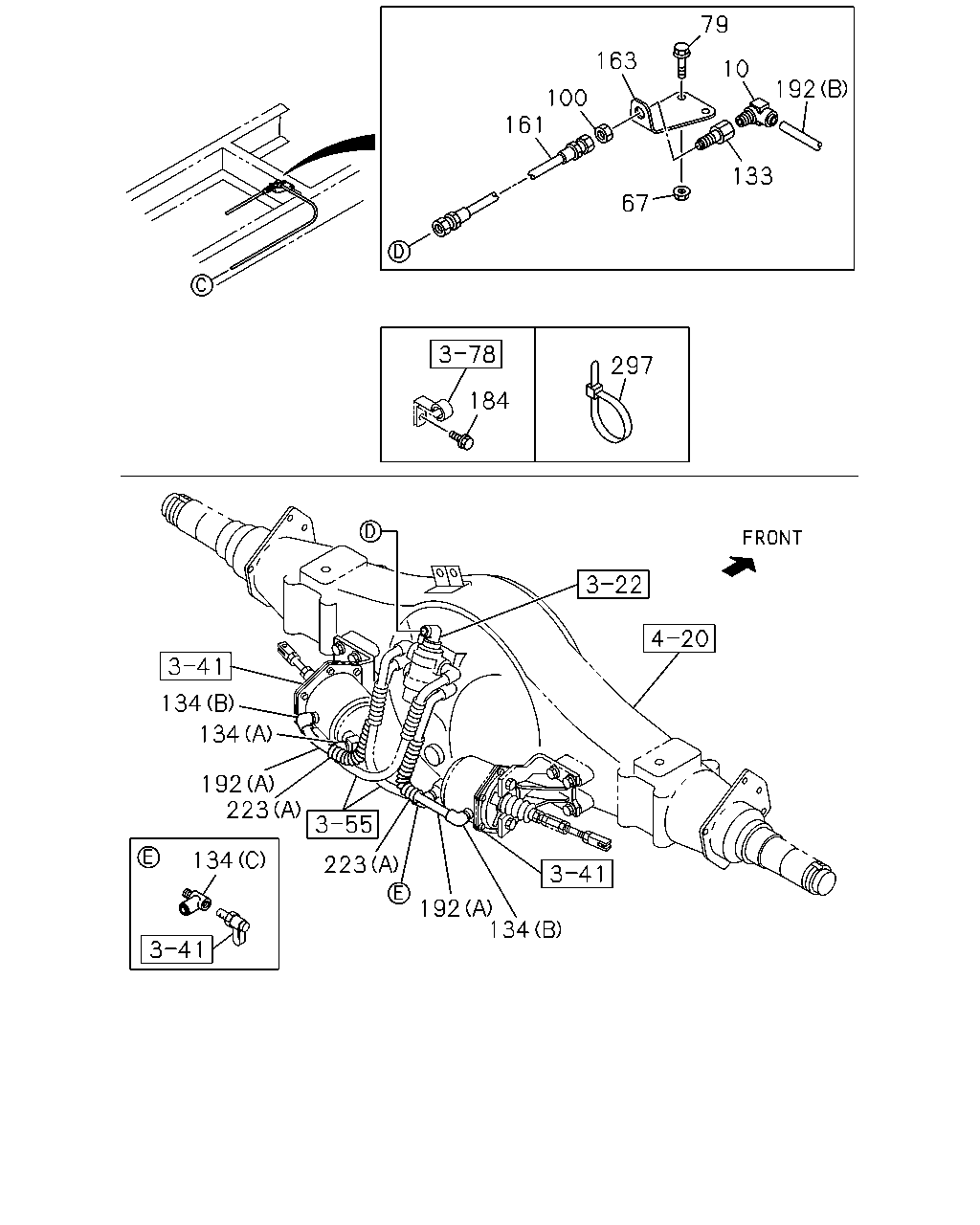

çizim 385838
79 10 192 163 133 100 161 67 184 297 134 134 192 223 223 192 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1311- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1311- ● ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1311- ● ●
134 CONNECTOR
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1311- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1311- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1311- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 1311- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 1311- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 1311- ● ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1311- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1311- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1311- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1311- ● ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 12 1 1311- ● ●
297 CLIP; BAND
WHEEL BASE 4300MM(43W) L=350 		1-09707-183-0 14 1 1311- ● ●
297 CLIP; BAND
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 19 1 1311- ● ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 21 1 1311- ● ●
297 CLIP; BAND
L=350 		1-09707-183-0 05 1 1311- ●

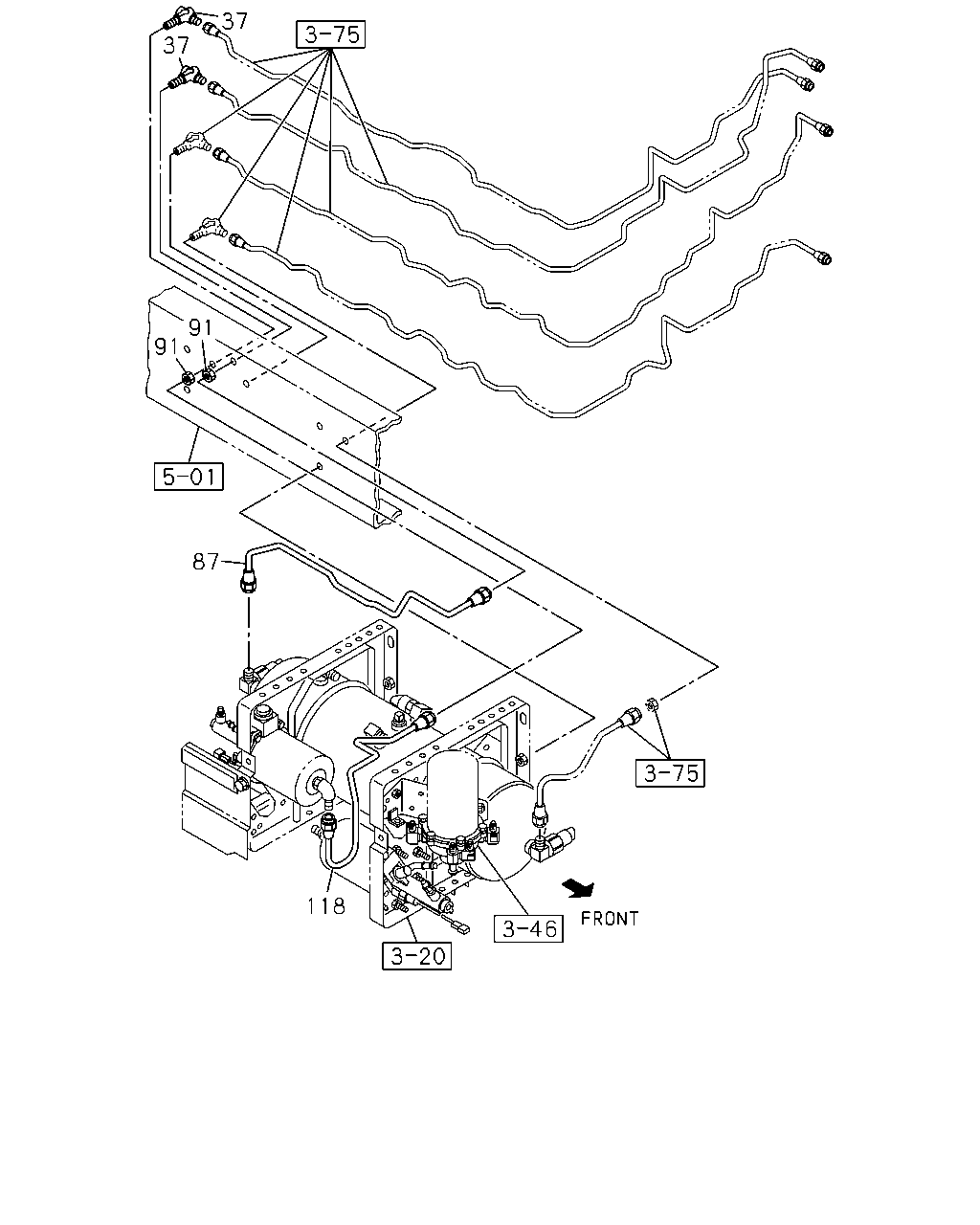

çizim 386128
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1311- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1311- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1311- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1311- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1311- ● ●
