◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#130259) — 43 parça

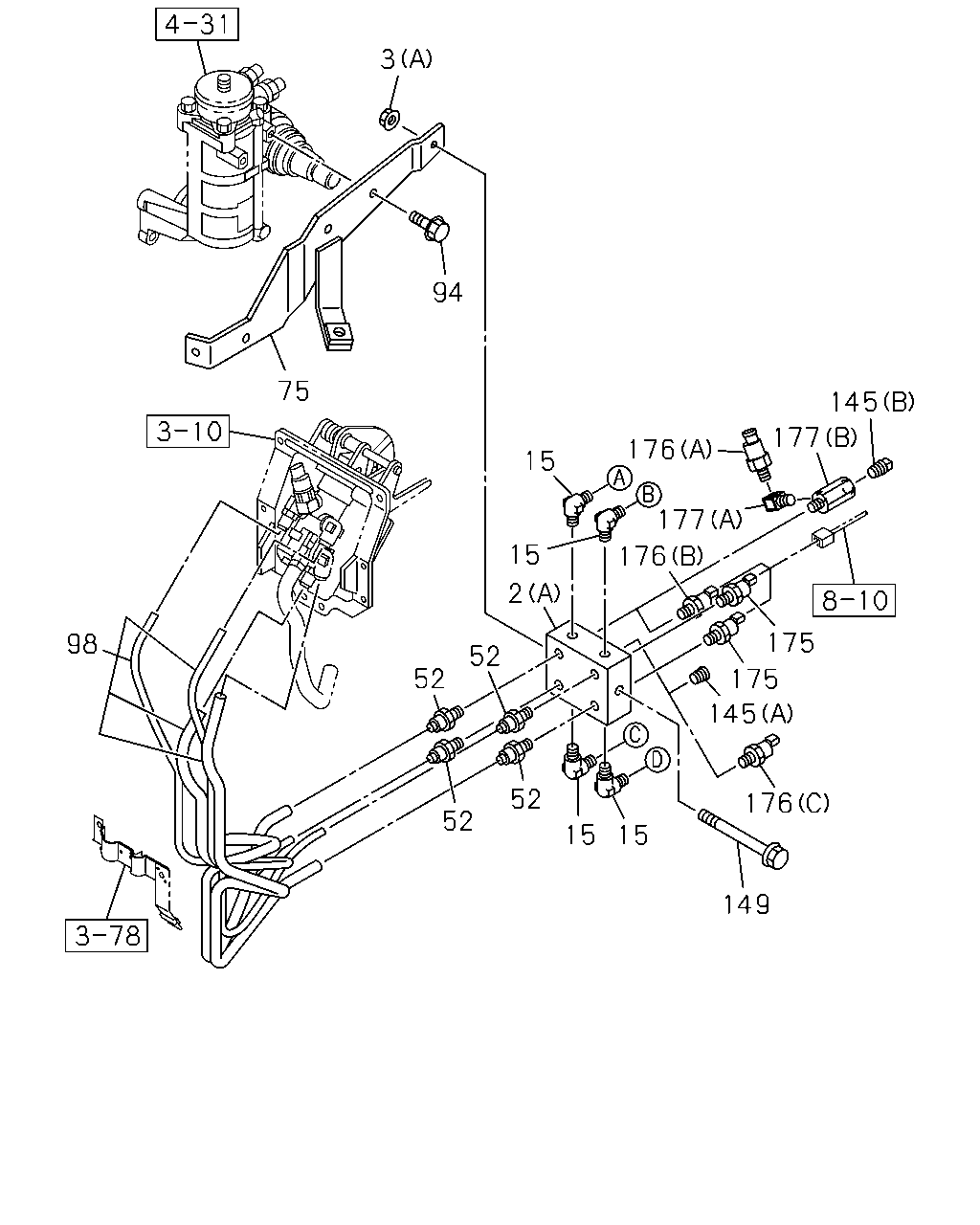

çizim 385690
3 94 75 98 52 52 52 52 15 15 15 15 149 176 145 175 175 176 177 176 177 145 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1311- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1311- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1311- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1311- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1311- ● ●
75 BRACKET; UNION
FACE LIFT MODEL<TX7> 		8-98281-610-0 01 1 1412- ● ●
75 BRACKET; UNION 8-98124-802-0 01 1 1311-1411 ● ●
75 BRACKET; UNION
H.S.A SYSTEM<6EP> EXC. FACE LIFT MODEL<TX7> 		8-98124-802-0 01 1 1412- ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1311- ● ●
98 TUBE; NYLON 8-98123-961-0 01 1 1311- ● ●
145 PLUG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) PT1/4 		9-99204-513-0 01 1 1311- ● ●
145 PLUG
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) PT1/2 		9-09204-521-0 01 1 1311- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1311- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1311- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) STAMP 0.3 		8-98010-857-0 01 1 1311- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) STAMP 0.7 		8-97622-710-0 01 1 1311- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) STAMP 2.2 		8-98010-858-0 01 1 1311- ● ●
177 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1311- ● ●
177 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98134-010-0 01 1 1311- ● ●

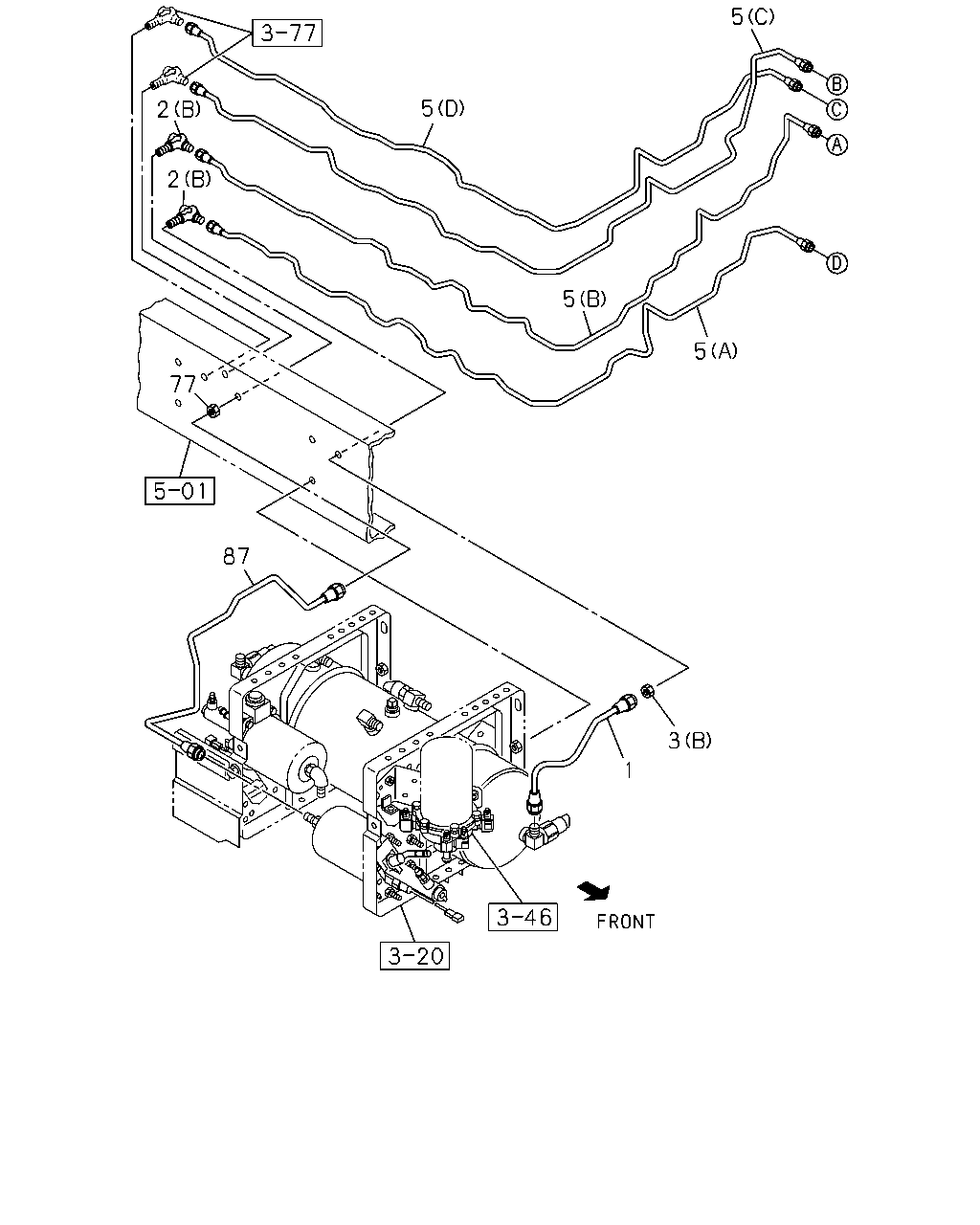

çizim 385726
2 2 5 5 5 5 77 87 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=279 		8-98213-359-0 01 1 1311- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1311- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1311- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1311- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2658 SERVICED BY L=2900 		1-47428-885-0 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=3041 SERVICED BY L=3300 		1-47428-886-0 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=3025 		8-98203-586-1 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2996 		8-98222-395-0 01 1 1311- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1311- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1311- ● ●

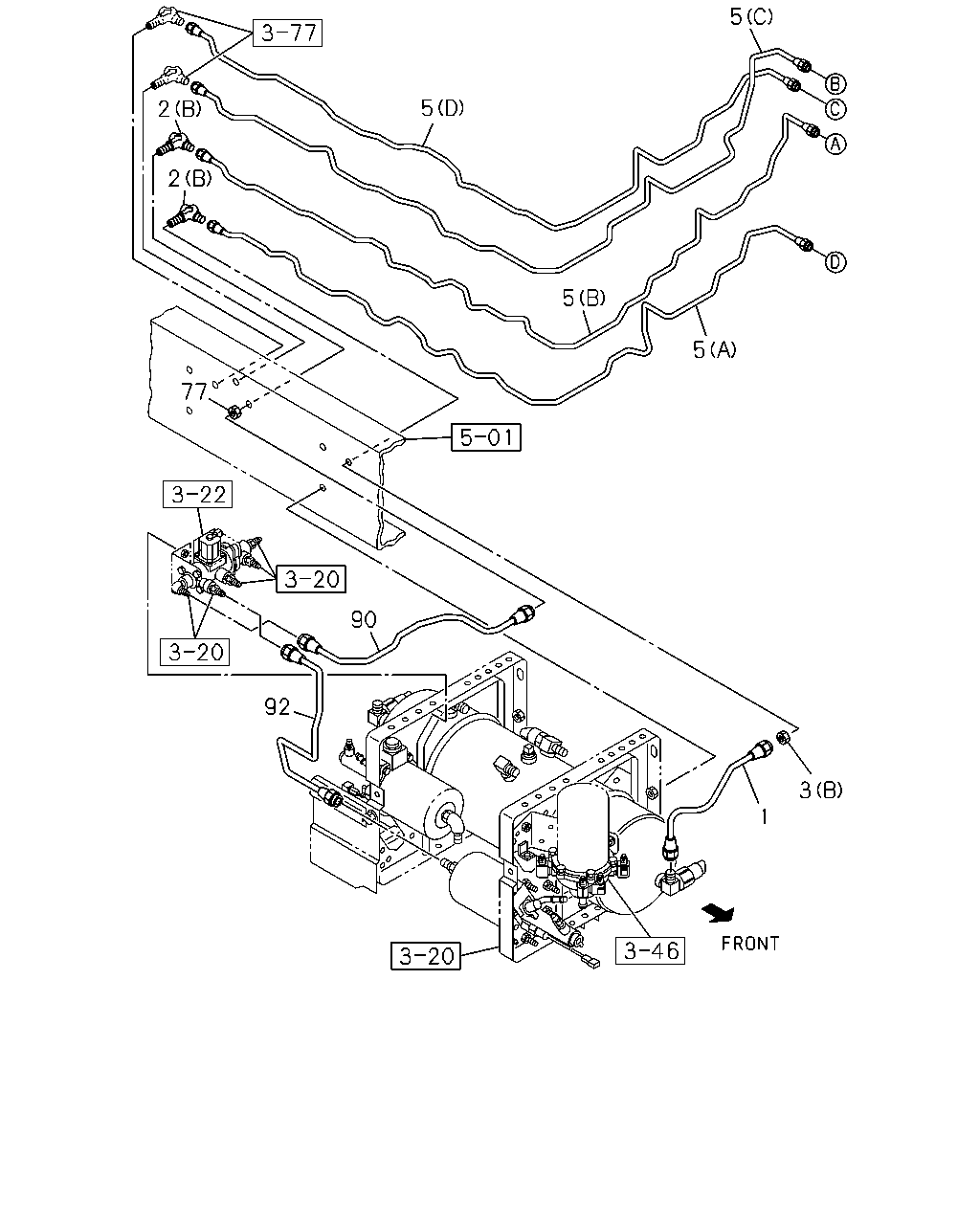

çizim 385748
2 2 5 5 5 5 77 90 92 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=279 		8-98213-359-0 01 1 1311- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1311- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1311- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1311- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2658 SERVICED BY L=2900 		1-47428-885-0 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=3041 SERVICED BY L=3300 		1-47428-886-0 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=3025 		8-98203-586-1 01 1 1311- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2996 		8-98222-395-0 01 1 1311- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1311- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1311- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=476 		8-98212-632-0 01 1 1311- ● ●
