3-70 — BRAKE PIPING; AIR,AIR MASTER (#130258) — 75 parça

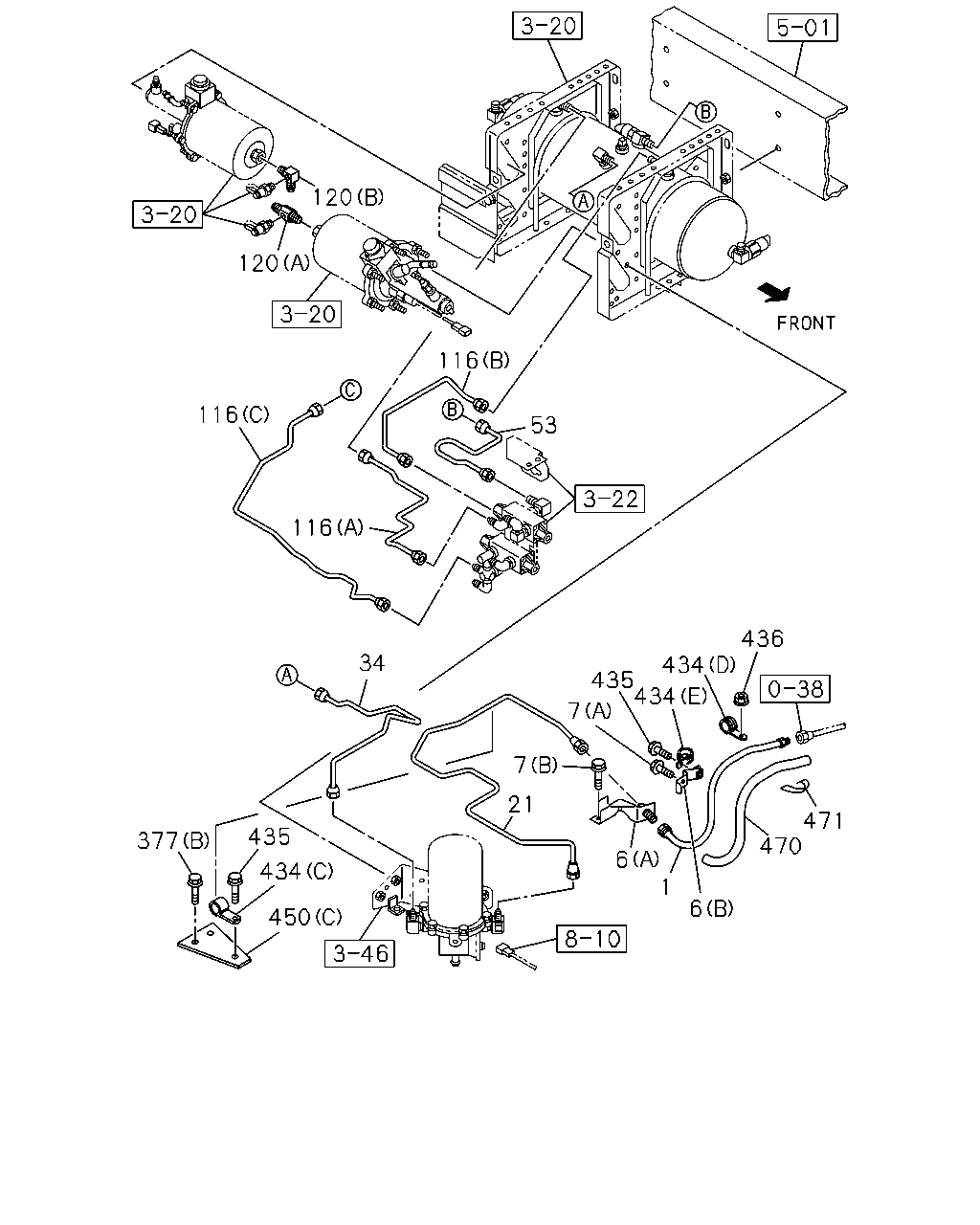

çizim 385542
120 120 116 53 116 116 34 435 7 7 21 434 434 436 471 470 6 1 6 450 434 435 377
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98204-092-0 01 1 1311- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98202-799-0 01 1 1311- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98238-607-0 01 1 1311- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1743 		8-98223-320-0 01 1 1311- ● ●
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1311- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
(C) SERVICED BY L=1200 		1-47428-816-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1311- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1311- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1311- ● ●
377 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
377 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ●
377 BOLT; BRKT FIX
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1311- ● ●
434 CLIP
(C) ID=13 L=20 		0-95235-235-0 01 1 1311- ● ●
434 CLIP
(C) ID=16 L=20 		0-95235-536-0 02 1 1311- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1311- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1311- ● ●
434 CLIP
(D) ID=31 L=44 		8-98170-379-0 01 1 1311- ● ●
434 CLIP
(E) ID=31 L=33 		8-98190-830-1 02 1 1311- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
450 BRACKET; CLIP
(A) 		8-98117-686-0 02 1 1311- ● ●
450 BRACKET; CLIP
(D) 		8-98157-748-0 01 1 1311- ● ●
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1311- ● ●
450 BRACKET; CLIP
(C) 		8-98202-800-1 01 1 1311- ● ●
470 INSULATOR; HOSE 8-98188-543-0 01 1 1311- ● ●
471 TAPE; COVER
18X185 		8-98190-442-0 04 1 1311- ● ●

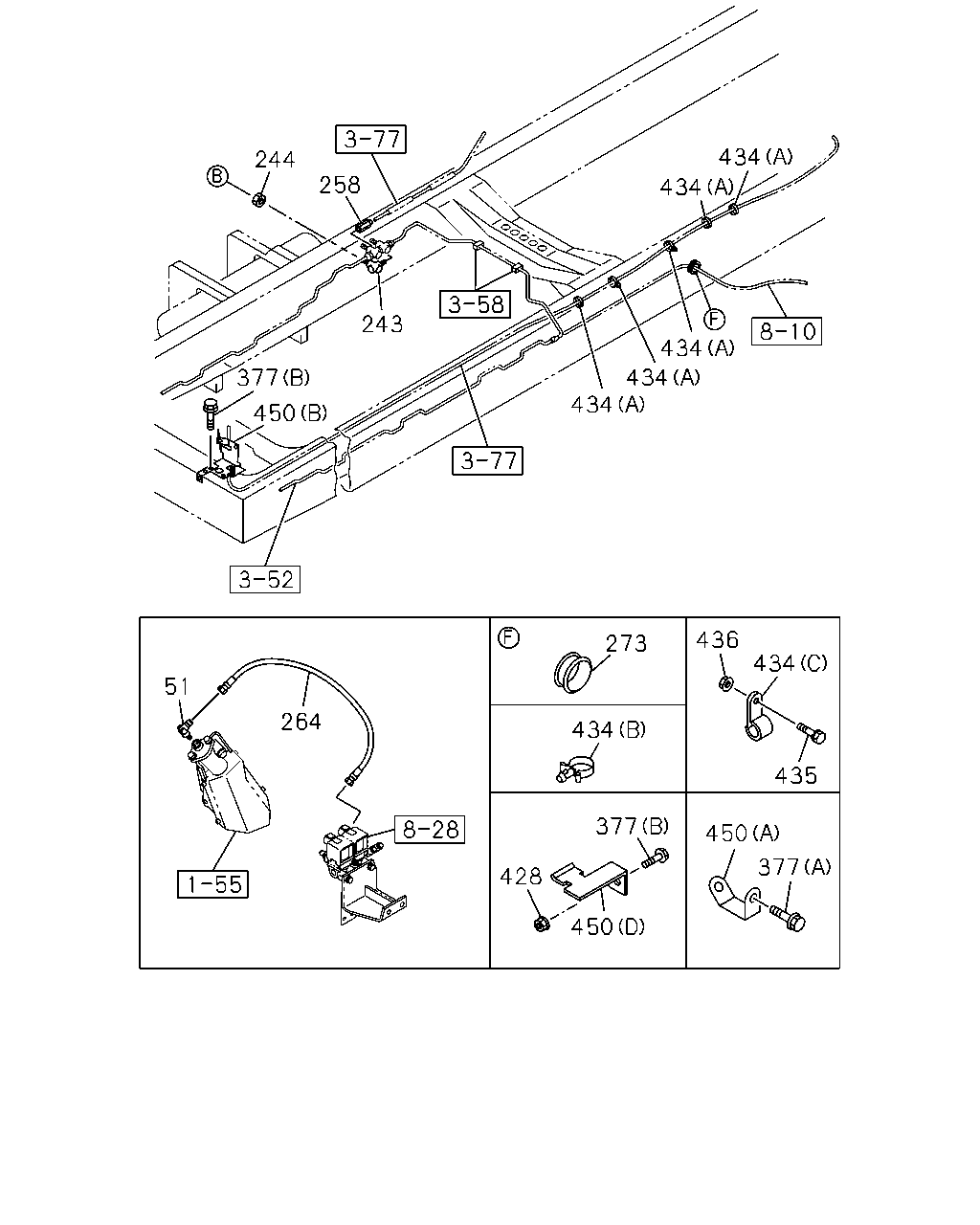

çizim 385621
244 243 377 450 434 434 434 434 434 434 434 51 264 273 436 377 428 450 450 377 435 258
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1311- ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1311- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1311- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1311- ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) L=620 		8-98236-995-0 01 1 1311- ● ●
264 HOSE; FLEX
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) L=530 		8-98236-996-0 01 1 1311- ● ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1311- ● ●
377 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
377 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1311- ● ●
377 BOLT; BRKT FIX
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1311- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1311- ● ●
434 CLIP
(C) ID=13 L=20 		0-95235-235-0 01 1 1311- ● ●
434 CLIP
(C) ID=16 L=20 		0-95235-536-0 02 1 1311- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1311- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1311- ● ●
434 CLIP
(D) ID=31 L=44 		8-98170-379-0 01 1 1311- ● ●
434 CLIP
(E) ID=31 L=33 		8-98190-830-1 02 1 1311- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
450 BRACKET; CLIP
(A) 		8-98117-686-0 02 1 1311- ● ●
450 BRACKET; CLIP
(D) 		8-98157-748-0 01 1 1311- ● ●
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1311- ● ●
450 BRACKET; CLIP
(C) 		8-98202-800-1 01 1 1311- ● ●

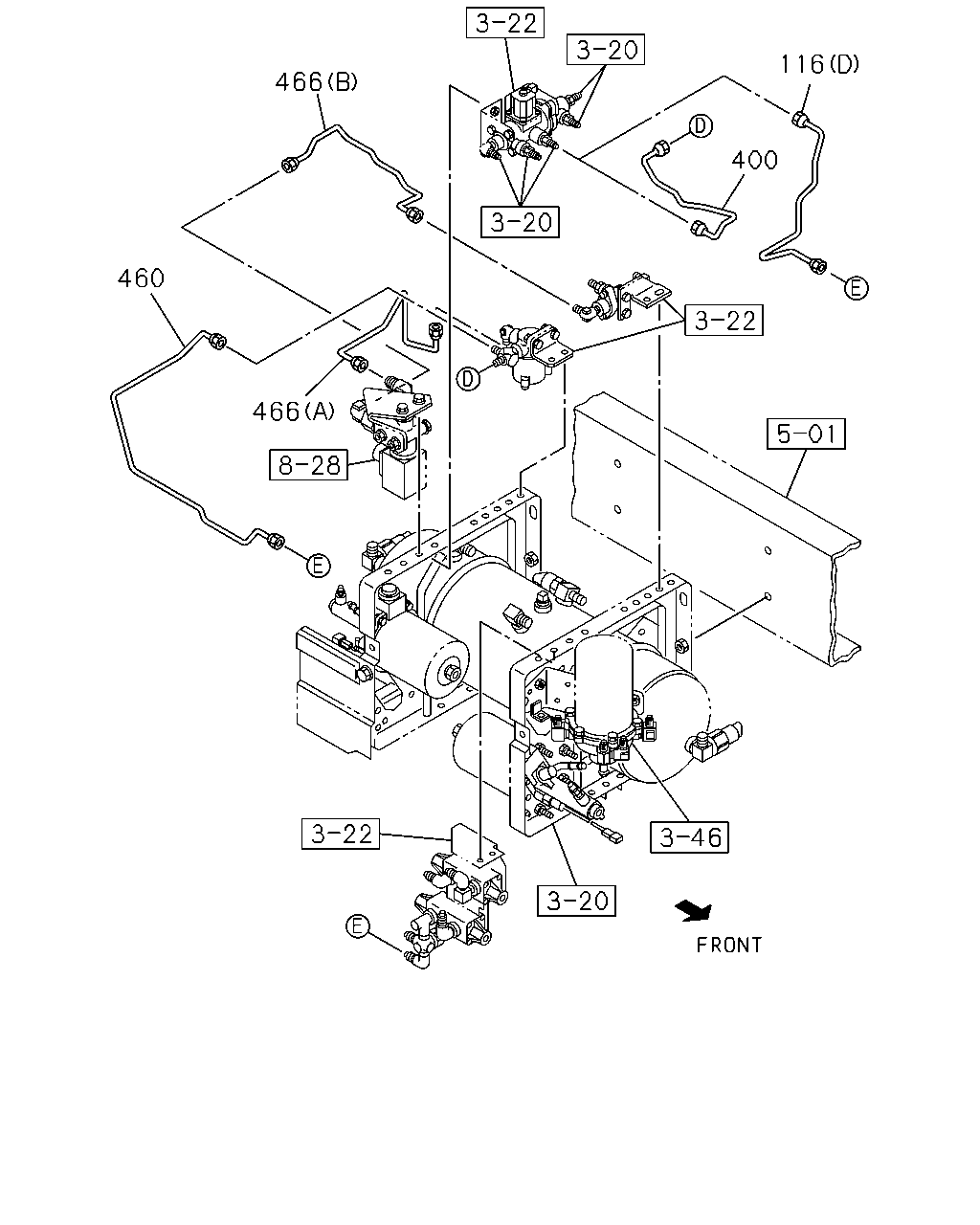

çizim 385978
466 460 466 400 116
BalonParca AdiParca NoAdetTipApplied Date A B
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
(C) SERVICED BY L=1200 		1-47428-816-0 01 1 1311- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1311- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1311- ● ●
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1311- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1311- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1311- ● ●
