3-52 — BRAKE PIPING; OIL,FRONT (#130255) — 20 parça

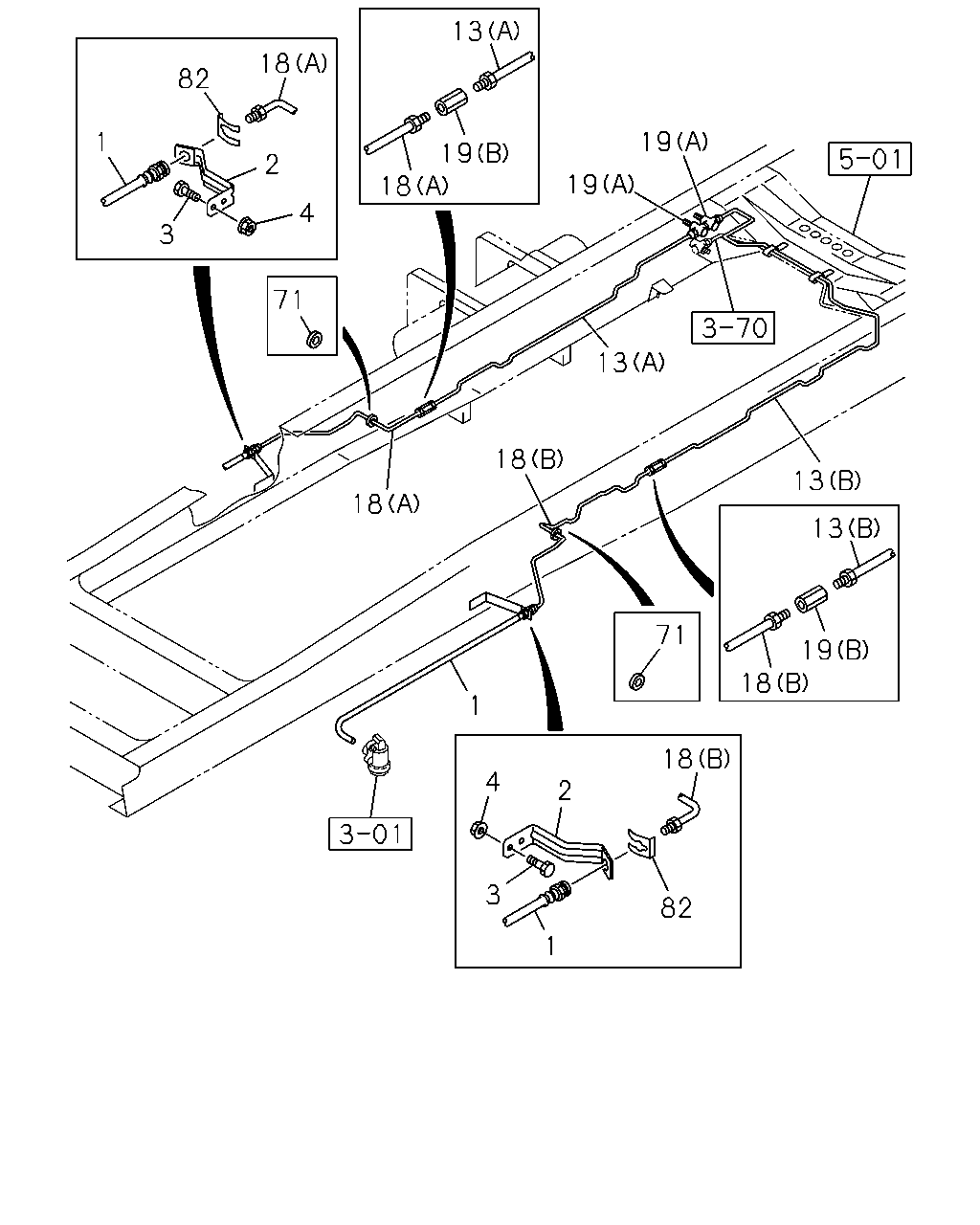

82 18 1 2 3 4 18 19 13 71 18 18 13 19 19 13 13 19 18 71 18 2 1 4 3 1 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=330	8-98024-433-0	02	1	1311-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98012-343-1	02	1	1311-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1311-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=2192	8-98222-476-0	01	1	1311-	●	●
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=975	8-98204-971-0	01	1	1311-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=687	8-98169-194-0	01	1	1311-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=656	8-98208-712-0	01	1	1311-	●	●
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1311-	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	1311-	●	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1311-	●	●
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1311-	●	●

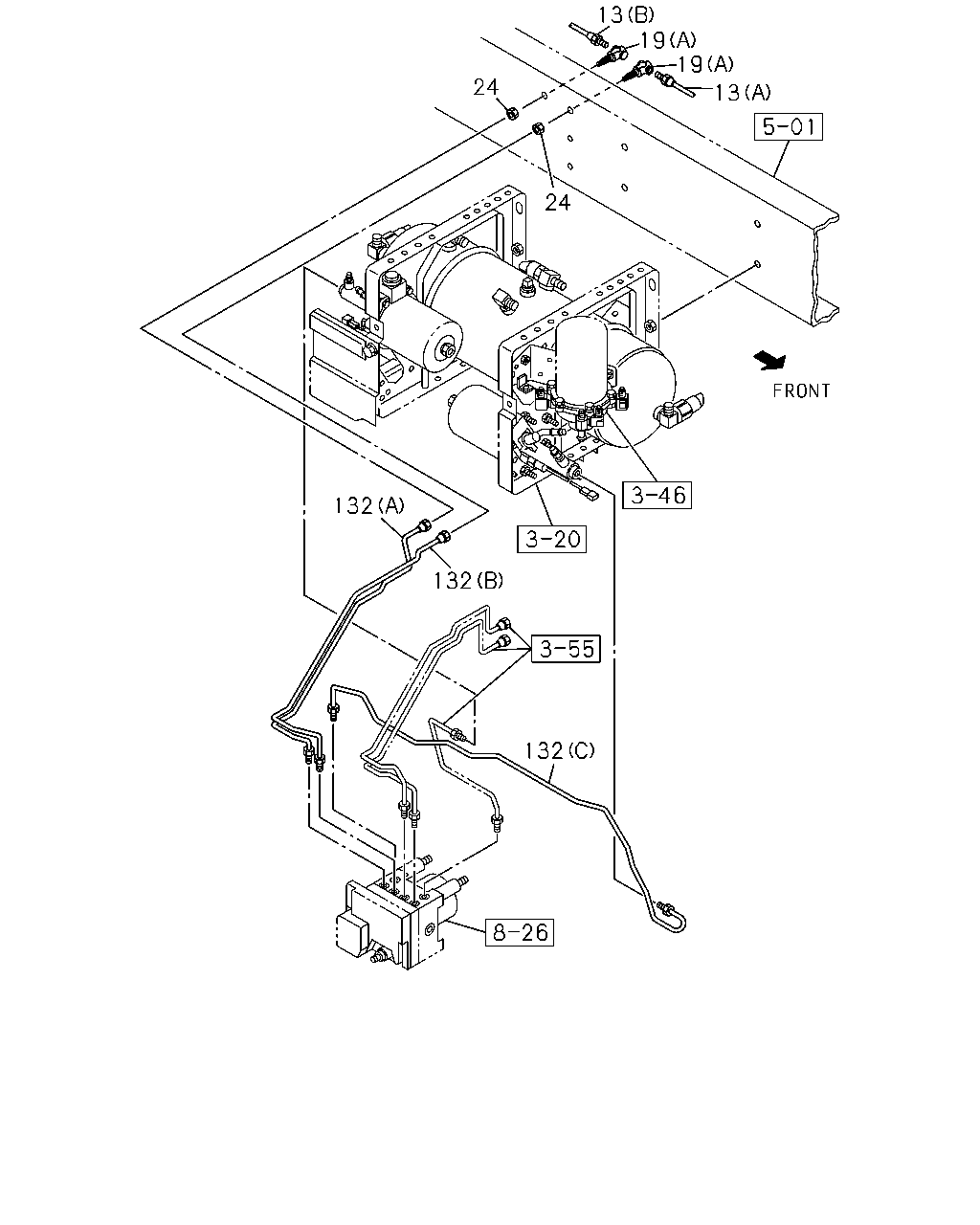

13 19 19 13 24 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=2192	8-98222-476-0	01	1	1311-	●	●
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=975	8-98204-971-0	01	1	1311-	●	●
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1311-	●	●
19	UNION; OIL PIPE (A) M10X2 ELBOW	8-98018-438-0	02	1	1311-	●	●
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	1311-	●	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=625	8-98116-095-0	01	1	1311-	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=661	8-98213-363-0	01	1	1311-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=948	8-98213-849-0	01	1	1311-	●	●
