Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#130249) — 71 parça
Tümü
A - FCD6CS
B - FCR6CS
◀
[322A] PROTECTION,REGULATION,CHECK VALVE (32 parça)
[322A] COMPONENT;HSA VALVE (17 parça)
[322A] REPAIR KIT;HSA VALVE (2 parça)
[322A] QUICK RELEASE VALVE (11 parça)
[322A] REPAIR KIT;REGULATION VALVE (1 parça)
[322A] FIXING (7 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶

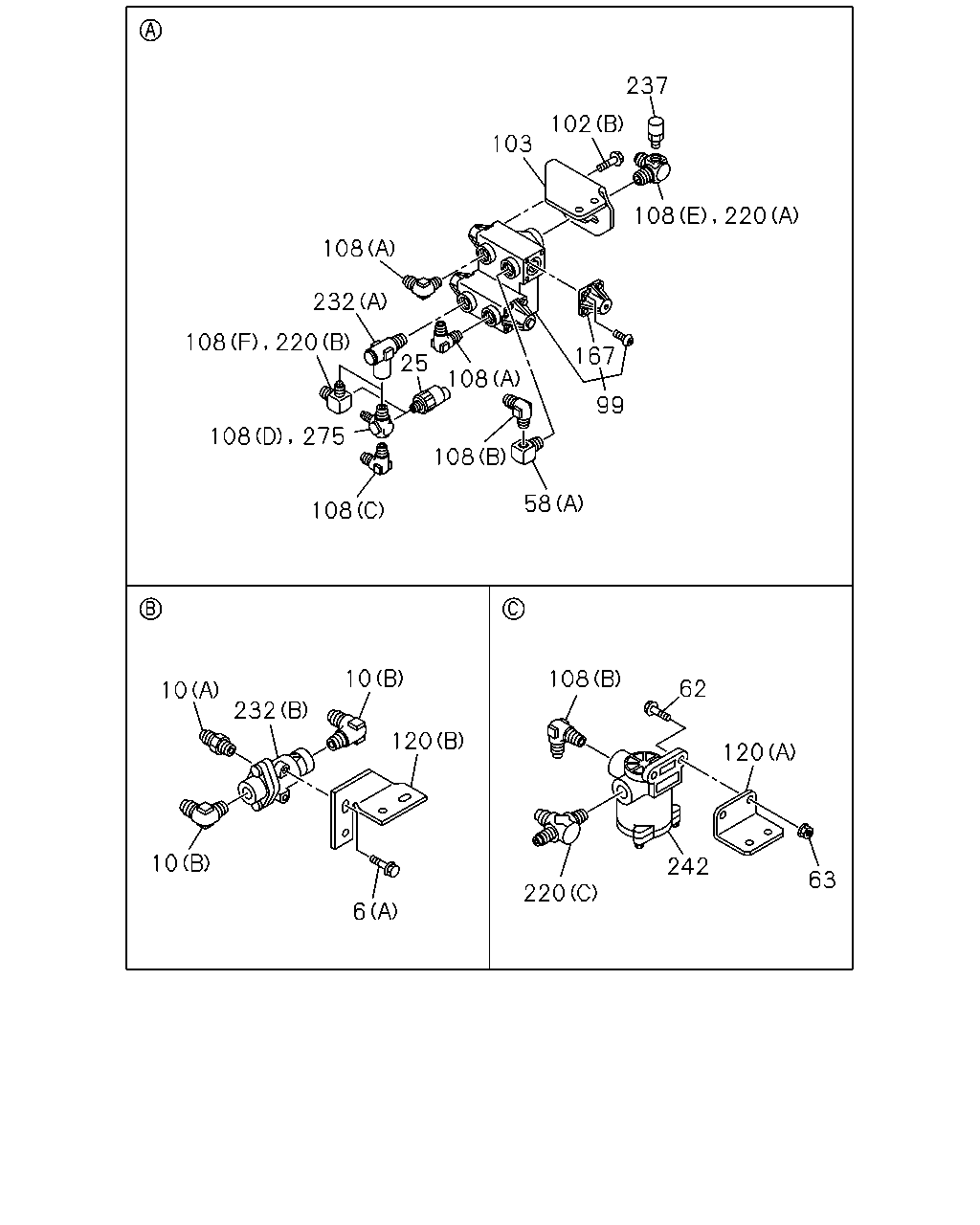

103
102
237
108
220
167
99
58
108
108
25
232
108
220
108
108
275
108
10
120
108
62
120
63
242
220
6
10
10
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
BOLT; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE
0-28050-816-0
02
1
1311-
●
●
6
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE
0-28650-825-0
02
1
1311-
●
●
10
CONNECTOR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
1311-
●
●
10
CONNECTOR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1311-
●
●
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1311-
●
●
58
ADAPTER
(B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
1311-
●
●
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1311-
●
●
62
BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE
0-28650-830-0
02
1
1311-
●
●
63
NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
99
VALVE; PROTECTION
1-48110-290-3
01
1
1311-
●
●
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
1311-
●
●
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1311-
●
●
103
BRACKET; PROTECTION VALVE
8-98162-113-1
01
1
1311-1311
●
●
103
BRACKET; PROTECTION VALVE
8-98221-293-0
01
1
1312-
●
●
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1311-
●
●
108
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (D)
8-98035-011-0
01
1
1311-1311
●
●
108
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW
0-92134-310-0
02
1
1311-
●
●
108
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1311-
●
●
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1311-
●
●
108
CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1311-1311
●
●
108
CONNECTOR; ELBOW
(E) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1311-1311
●
●
120
BRACKET; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B)
8-98050-131-0
01
1
1311-
●
●
120
BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A)
1-48316-012-0
01
1
1311-
●
●
167
COVER; VALVE
1-48119-625-0
04
1
1311-
●
●
220
CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1312-
●
●
220
CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1312-
●
●
220
CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (C) PT1/4 & M12 & M16 3WAY
1-09656-331-1
01
1
1311-
●
●
232
VALVE; CHECK
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B)
1-48410-531-1
01
1
1311-
●
●
232
VALVE; CHECK
(A) DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1311-
●
●
237
VALVE; SAFETY
1-48320-012-2
01
1
1311-
●
●
242
VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH)
1-48410-723-0
01
1
1311-
●
●
275
CONNECTOR; 4WAY
H.S.A SYSTEM<6EP>
8-98035-011-0
01
1
1312-
●
●
200
197
201
205
203
192
189
202
190
204
198
196
199
198
200
197
199
201
196
203
205
106
201
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-147-1
01
1
1311-
●
●
189
VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-253-0
01
1
1311-
●
●
190
BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-192-0
01
1
1311-
●
●
192
SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-181-0
01
1
1311-
●
●
195
SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-191-0
04
1
1311-
●
●
196
PISTON; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-251-0
02
1
1311-
●
●
197
SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-161-0
02
1
1311-
●
●
198
PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-122-0
02
1
1311-
●
●
199
RETAINER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-121-0
02
1
1311-
●
●
200
SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-120-0
02
1
1311-
●
●
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-118-1
02
1
1311-
●
●
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-241-0
01
1
1311-
●
●
202
FILTER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-117-1
02
1
1311-
●
●
203
SCREW; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-116-1
06
1
1311-
●
●
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
1311-
●
●
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-149-0
01
1
1311-
●
●
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-150-0
01
1
1311-
●
●

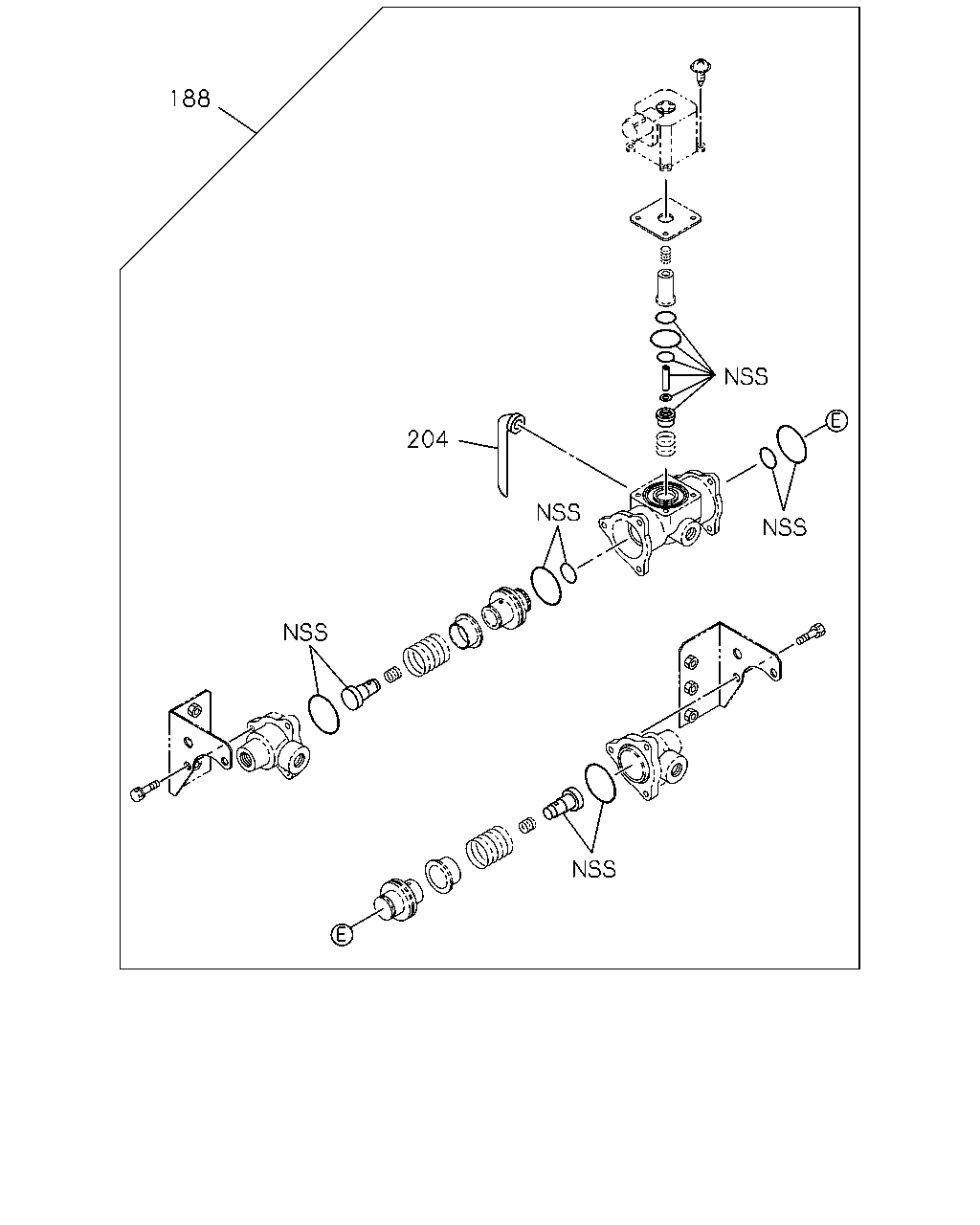

204
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
188
REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP>
1-85576-469-1
01
1
1311-
●
●
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
1311-
●
●

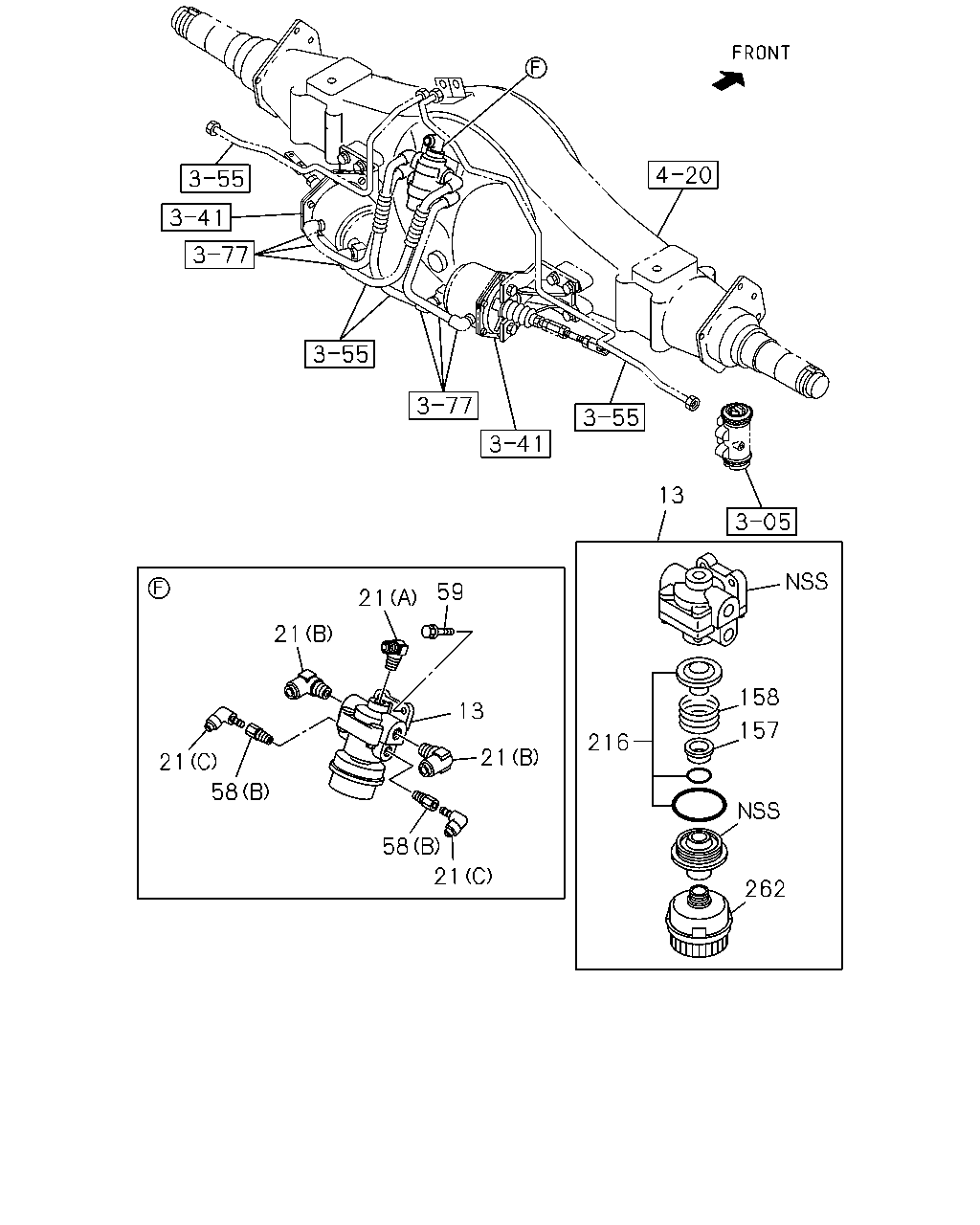

13
158
157
262
216
21
21
13
59
21
21
21
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
VALVE ASM; QUICK RELEASE
1-48410-781-2
01
1
1311-
●
●
21
CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1311-
●
●
21
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1311-
●
●
21
CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR
1-09661-816-0
02
1
1311-
●
●
58
ADAPTER
(B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
1311-
●
●
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1311-
●
●
59
BOLT; RELEASE VALVE FIX
M8X20 FLANGE
0-28050-820-0
02
1
1311-
●
●
157
RETAINER; VALVE
1-48419-036-0
01
1
1311-
●
●
158
SPRING; VALVE
9-48419-003-0
01
1
1311-
●
●
216
REPAIR KIT; QUICK RELEASE VLV
1-85579-062-0
01
1
1311-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1311-
●
●
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
259
REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH)
1-85576-381-0
01
1
1311-
●
●

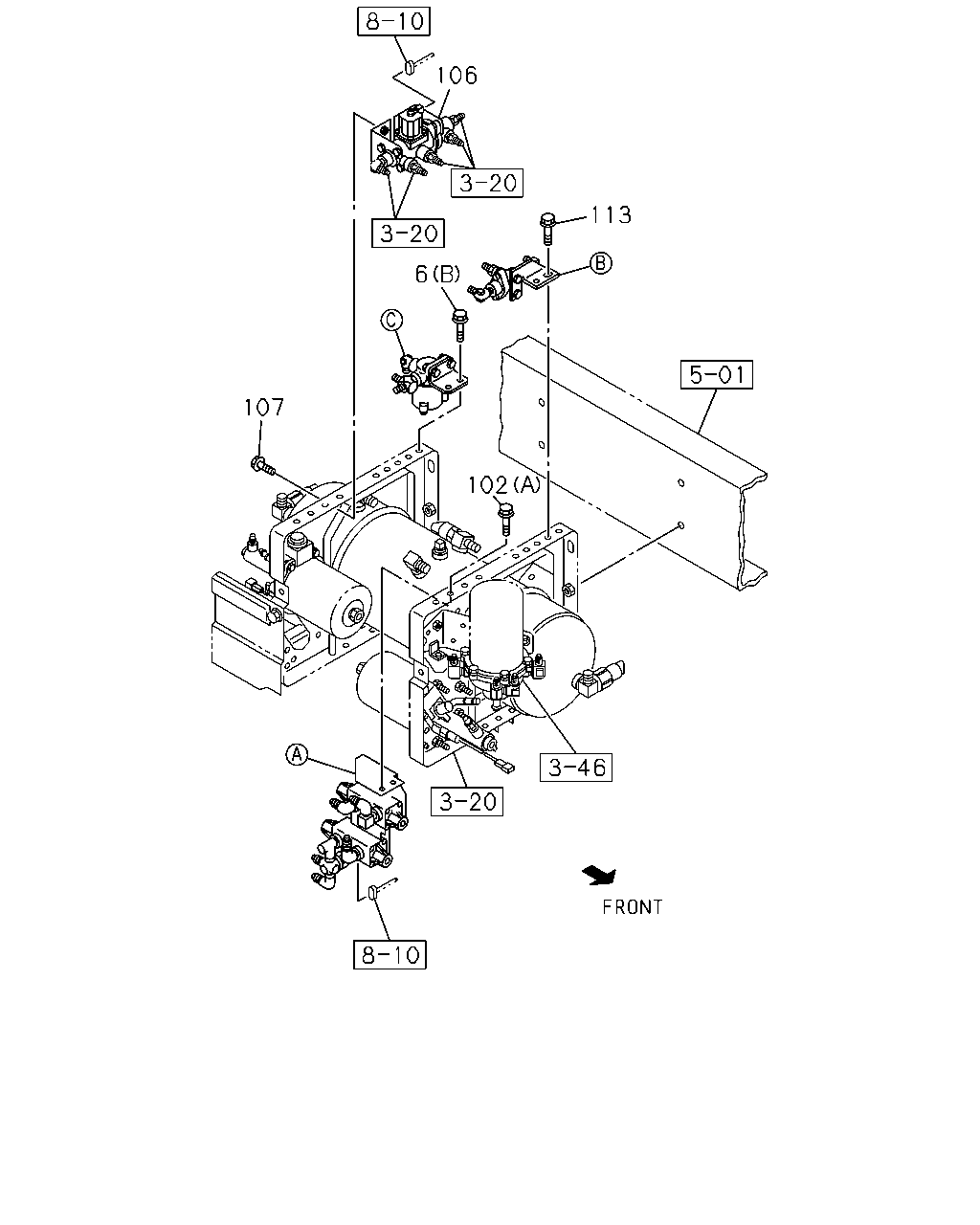

106
113
6
102
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
BOLT; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE
0-28050-816-0
02
1
1311-
●
●
6
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE
0-28650-825-0
02
1
1311-
●
●
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
1311-
●
●
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1311-
●
●
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-147-1
01
1
1311-
●
●
107
BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE
0-28650-820-0
03
1
1311-
●
●
113
BOLT; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE
0-28650-825-0
02
1
1311-
●
●
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1311-
●
●
