3-05 — REAR WHEEL BRAKE (#130244) — 96 parça

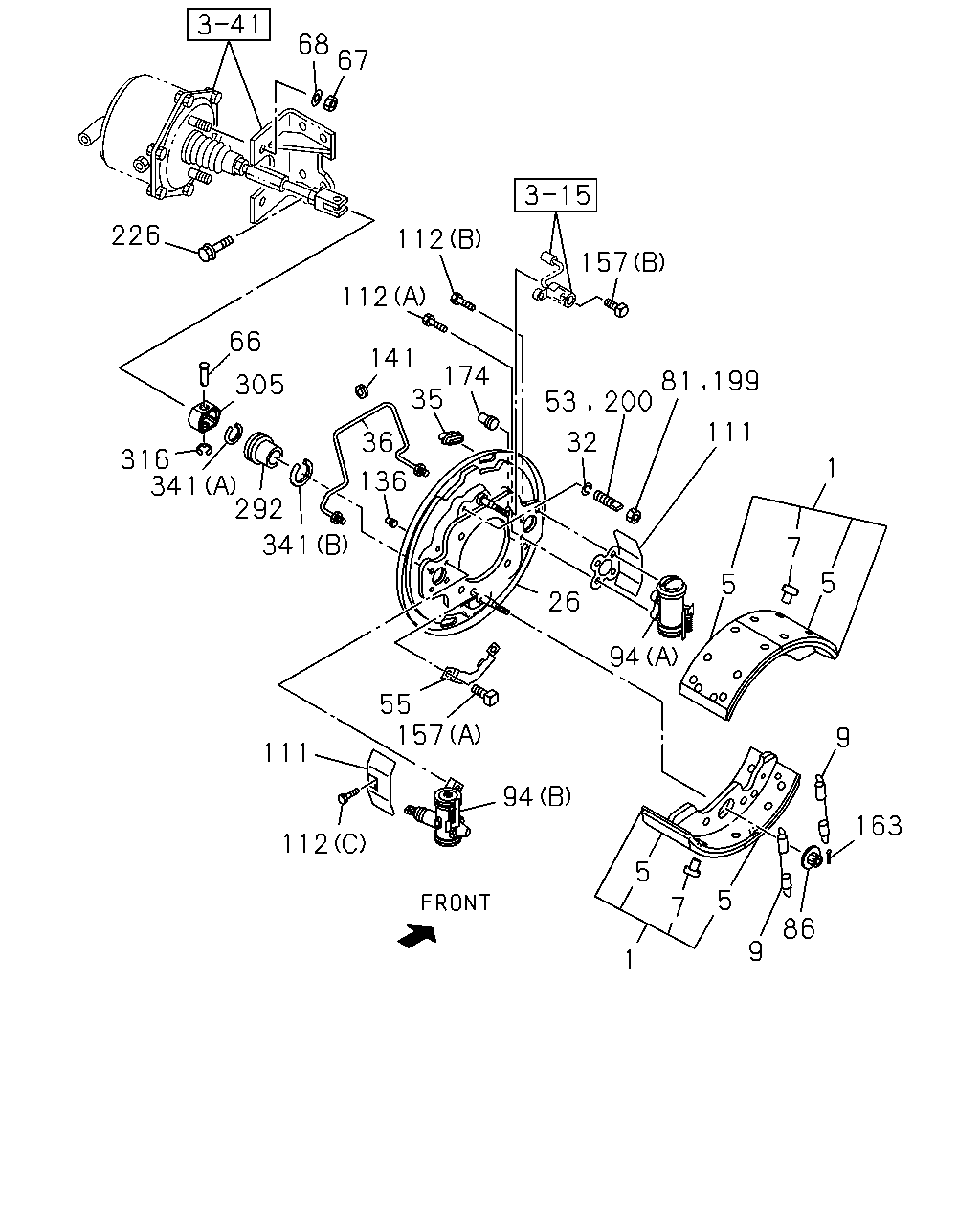

çizim 385932
199 81 200 53 32 111 1 7 5 5 9 163 86 9 5 7 5 1 94 112 111 55 157 341 292 341 316 305 66 226 68 67 112 112 141 35 36 136 174 157 26 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47170-466-0 04 1 1311- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 1311- ● ●
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1311- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-346-0 04 1 1311- ● ●
26 PLATE; BACK,RR BRK 1-47150-642-0 01 1 1311- ● ●
26 PLATE; BACK,RR BRK 1-47150-643-0 01 1 1311- ● ●
32 WASHER; LK 1-09985-346-0 04 1 1311- ● ●
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1311- ● ●
36 PIPE; OIL,RR BRK 1-49167-875-0 01 1 1311- ● ●
36 PIPE; OIL,RR BRK 1-49167-876-0 01 1 1311- ● ●
53 BOLT; LOCK PLATE 1-47162-050-0 02 1 1311- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47139-169-0 02 1 1311- ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 1311- ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 1311- ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 1311- ● ●
81 NUT 1-09400-167-0 02 1 1311- ● ●
86 NUT; FLANGE 1-09440-102-0 04 1 1311- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 1311- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 1311- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 1311-1410 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-367-0 01 1 1411- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 1311-1410 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-368-0 01 1 1411- ● ●
111 COVER; WHEEL CYL 1-47159-233-0 04 1 1311- ● ●
112 BOLT; WHEEL CYL SETTING
(A) 		1-47159-231-0 08 1 1311- ● ●
112 BOLT; WHEEL CYL SETTING
(B) 		1-47159-232-0 06 1 1311- ● ●
112 BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE 		8-94134-103-0 08 1 1311- ● ●
136 GROMMET 9-09956-640-0 04 1 1311- ● ●
141 PROTECTOR; RR BRK PIPE 1-47143-008-0 02 1 1311- ● ●
157 BOLT; RR BRK SET
(A) 		1-09060-021-0 12 1 1311- ● ●
157 BOLT; RR BRK SET
(B) 		1-09060-022-0 04 1 1311- ● ●
163 PIN; SPLIT,SHOE HOLD 1-09740-098-0 04 1 1311- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47154-008-0 04 1 1311- ● ●
199 NUT 1-09400-167-0 02 1 1311- ● ●
200 BOLT 1-47162-050-0 02 1 1311- ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 1311- ● ●
292 BOOT; ROD 1-47616-107-0 02 1 1311- ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 1311- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1311- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 1311- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 1311- ● ●

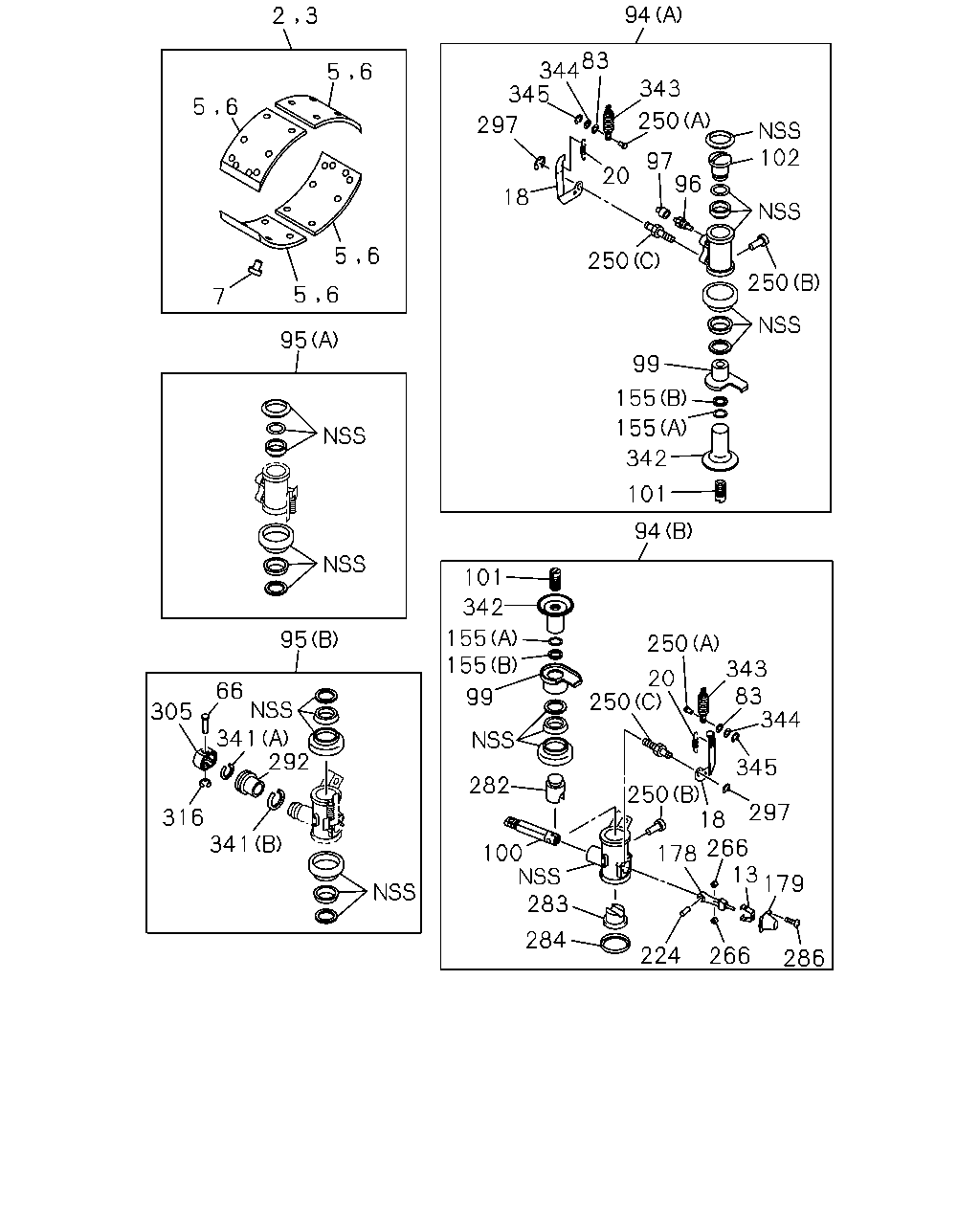

çizim 386068
99 97 250 343 94 83 344 345 297 18 20 250 96 102 250 155 101 342 155 5 6 5 3 2 6 5 7 5 6 6 95 95 66 305 341 316 341 292 101 94 286 266 224 179 13 266 178 250 345 83 344 297 18 343 250 20 250 342 155 155 99 282 100 283 284
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING SET; RR BRK,STANDARD 1-88310-839-1 02 1 1311- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-840-1 02 1 1311- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-161-0 08 1 1311- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-162-0 08 1 1311- ● ●
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1311- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47619-139-0 02 1 1311- ● ●
18 LEVER; AUTO ADJ 1-47629-164-0 02 1 1311- ● ●
18 LEVER; AUTO ADJ 1-47629-165-0 02 1 1311- ● ●
20 SPRING; ADJ LEVER 1-09583-345-0 04 1 1311- ● ●
66 PIN; JAW JOINT 1-09744-128-0 02 1 1311- ● ●
83 WASHER; PL 1-47619-108-0 04 1 1311- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-184-0 01 1 1311- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-185-0 01 1 1311- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-186-0 01 1 1311-1410 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-367-0 01 1 1411- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-187-0 01 1 1311-1410 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		8-98289-368-0 01 1 1411- ● ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-933-0 02 1 1311- ● ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87831-246-1 02 1 1311- ● ●
96 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 1311- ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 1311- ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-349-0 01 1 1311- ● ●
99 PISTON; RR WHEEL CYL
FORWARD 		1-47624-350-0 01 1 1311- ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-351-0 01 1 1311- ● ●
99 PISTON; RR WHEEL CYL
BACKWARD 		1-47624-352-0 01 1 1311- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47619-169-0 02 1 1311-1410 ● ●
100 ROD; PUSH,RR WHEEL CYL 8-98290-467-0 02 1 1411- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-053-0 02 1 1311- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-054-0 02 1 1311- ● ●
102 PISTON; REAR WHEEL CYL 1-47624-333-0 02 1 1311- ● ●
155 WASHER; PL,WHEEL CYL
(A) 		1-47629-150-0 04 1 1311- ● ●
155 WASHER; PL,WHEEL CYL
(B) 		1-47629-151-0 04 1 1311- ● ●
178 WEDGE; RR WHEEL CYL 1-47619-168-0 02 1 1311- ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47619-141-0 02 1 1311- ● ●
224 PIN; ROD 1-47619-130-0 02 1 1311- ● ●
250 PIN; RETAINING
(A) 		1-47619-106-0 04 1 1311- ● ●
250 PIN; RETAINING
(B) 		1-47629-112-0 04 1 1311- ● ●
250 PIN; RETAINING
(C) 		1-47629-262-0 04 1 1311- ● ●
266 ROLLER; WEDGE 1-47619-138-0 04 1 1311- ● ●
282 PLUNGER; INNER 1-47629-255-0 02 1 1311- ● ●
283 PLUNGER; OUTER 1-47629-256-0 01 1 1311- ● ●
283 PLUNGER; OUTER 1-47629-257-0 01 1 1311- ● ●
284 BOOT; PISTON 1-47616-093-0 02 1 1311- ● ●
286 SCREW; COVER 1-47619-132-0 06 1 1311- ● ●
292 BOOT; ROD 1-47616-107-0 02 1 1311- ● ●
297 RING; SNAP 1-47629-263-0 04 1 1311- ● ●
305 GUIDE; SLACK ADJ 1-46346-023-0 02 1 1311- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1311- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47619-175-0 02 1 1311- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-176-0 02 1 1311- ● ●
342 GEAR; WHEEL CYL 1-47629-158-0 02 1 1311- ● ●
342 GEAR; WHEEL CYL 1-47629-159-0 02 1 1311- ● ●
343 SPRING; WHEEL CYL 1-47629-141-0 04 1 1311- ● ●
344 WASHER; WAVE 1-47619-107-0 04 1 1311- ● ●
345 RETAINER; LEVER 1-47619-109-0 04 1 1311- ● ●
