◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#130243) — 54 parça

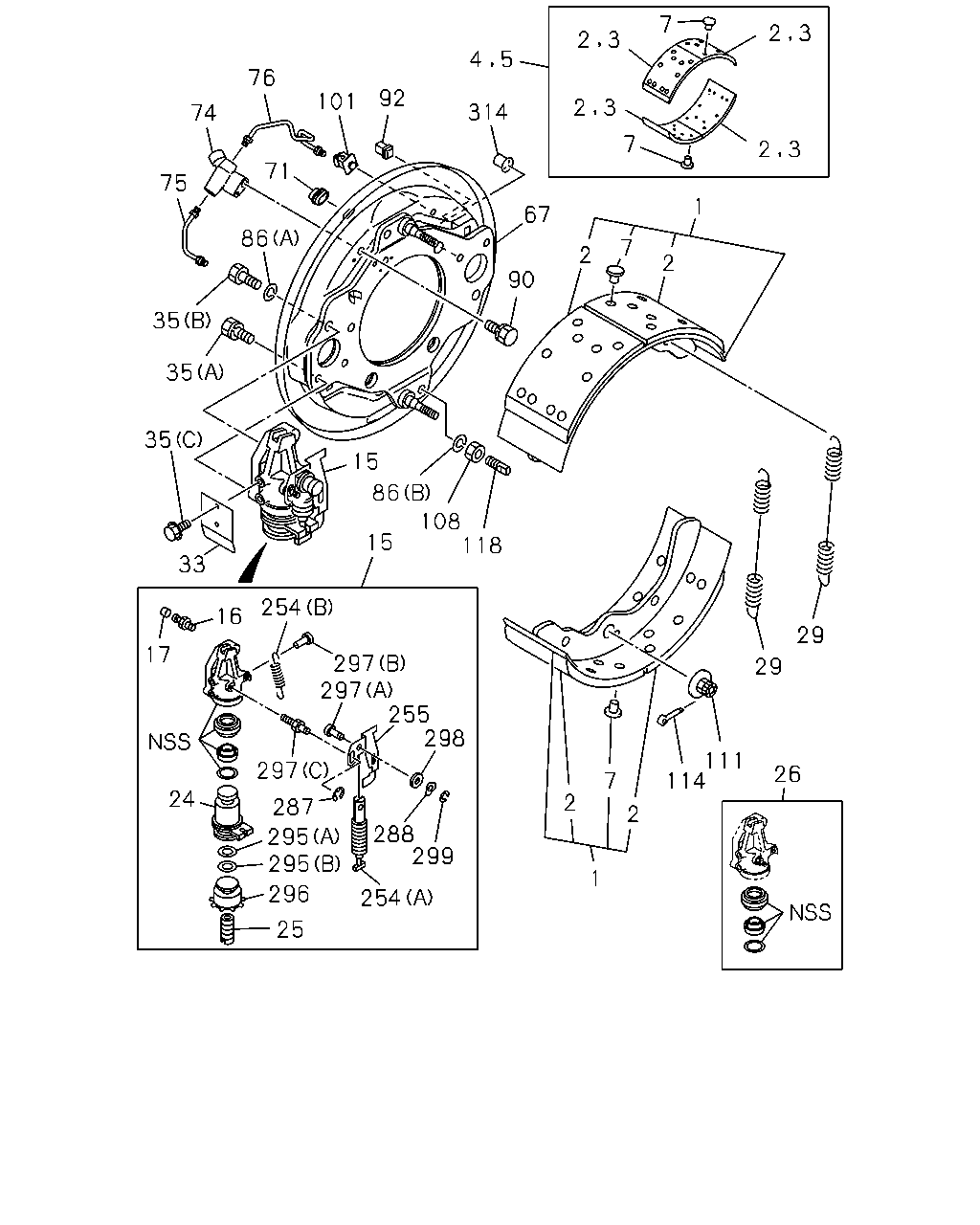

çizim 385911
76 74 75 71 101 92 314 4 5 2 3 2 3 2 3 2 3 7 7 67 2 2 7 1 90 108 118 86 15 15 254 297 297 255 298 288 299 254 297 287 295 295 296 25 24 17 16 86 35 35 35 33 2 2 1 7 114 111 26 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 1-47120-999-1 04 1 1311- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-161-0 08 1 1311- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-162-0 08 1 1311- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88310-839-1 02 1 1311- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-840-1 02 1 1311- ● ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 96 1 1311- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-134-0 02 1 1311- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-135-0 02 1 1311- ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 04 1 1311- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 04 1 1311- ● ●
24 PISTON; FRT WHEEL CYL 1-47624-394-0 02 1 1311- ● ●
24 PISTON; FRT WHEEL CYL 1-47624-395-0 02 1 1311- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
M16 		1-47622-061-0 02 1 1311- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
M16 LH THREAD 		1-47622-062-0 02 1 1311- ● ●
26 CUP SET; FRT WHEEL CYL 1-87831-176-0 04 1 1311- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-346-0 04 1 1311- ● ●
33 COVER; WHEEL CYL 1-47159-163-0 04 1 1311- ● ●
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50541-025-0 08 1 1311- ● ●
35 BOLT; FRT WHEEL CYL
(B) 		1-47119-111-0 08 1 1311- ● ●
35 BOLT; FRT WHEEL CYL
(C) M6X10 FLANGE 		8-94134-103-0 08 1 1311- ● ●
67 PLATE; BACK,FRT BRK 1-47150-678-0 01 1 1311- ● ●
67 PLATE; BACK,FRT BRK 1-47150-679-0 01 1 1311- ● ●
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1311- ● ●
74 CONNECTOR; FRT BRK 1-47630-035-0 01 1 1311- ● ●
74 CONNECTOR; FRT BRK 1-47630-036-0 01 1 1311- ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49166-735-0 01 1 1311- ● ●
75 PIPE; OIL,FWD,FRT BRK 1-49166-737-0 01 1 1311- ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-49166-736-0 01 1 1311- ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-49166-738-0 01 1 1311- ● ●
86 WASHER; LK,FRT WHEEL CYL
(B) ID=12.2 		0-91510-512-0 04 1 1311- ● ●
86 WASHER; LK,FRT WHEEL CYL
(A) 		1-47159-131-0 08 1 1311- ● ●
90 BOLT; CONNECTOR 5-09030-016-1 02 1 1311- ● ●
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 1311- ● ●
101 PROTECTOR; OIL PIPE,FRT BRK 1-47143-008-0 02 1 1311- ● ●
108 NUT 1-09400-100-0 04 1 1311- ● ●
111 NUT; FLANGE,SHOE HOLD 1-09440-003-0 04 1 1311- ● ●
114 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1311- ● ●
118 BOLT; STOPPER 1-47162-050-0 04 1 1311- ● ●
254 SPRING; ADJ LEVER
(B) 		1-09583-345-0 04 1 1311- ● ●
254 SPRING; ADJ LEVER
(A) 		1-47629-141-0 04 1 1311- ● ●
255 LEVER; ADJ 1-47629-142-0 02 1 1311- ● ●
255 LEVER; ADJ 1-47629-143-0 02 1 1311- ● ●
287 RING; SNAP 1-47629-263-0 04 1 1311- ● ●
288 WASHER; WAVE 1-47619-107-0 04 1 1311- ● ●
295 WASHER; PL,FRT WHEEL CYL
(A) 		1-47629-135-0 04 1 1311- ● ●
295 WASHER; PL,FRT WHEEL CYL
(B) 		1-47629-136-0 04 1 1311- ● ●
296 GEAR; WHEEL CYL 1-47629-133-0 02 1 1311- ● ●
296 GEAR; WHEEL CYL 1-47629-134-0 02 1 1311- ● ●
297 PIN; RETAINING
(A) 		1-47619-106-0 04 1 1311- ● ●
297 PIN; RETAINING
(B) 		1-47629-112-0 04 1 1311- ● ●
297 PIN; RETAINING
(C) 		1-47629-268-0 04 1 1311- ● ●
298 WASHER; PL 1-47619-108-0 04 1 1311- ● ●
299 RETAINER; LEVER 1-47619-109-0 04 1 1311- ● ●
314 COVER; CYL,FRT WHEEL CYL 1-47154-008-0 04 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
