2-26 — MANUAL TRANSMISSION GEAR (#130233) — 132 parça

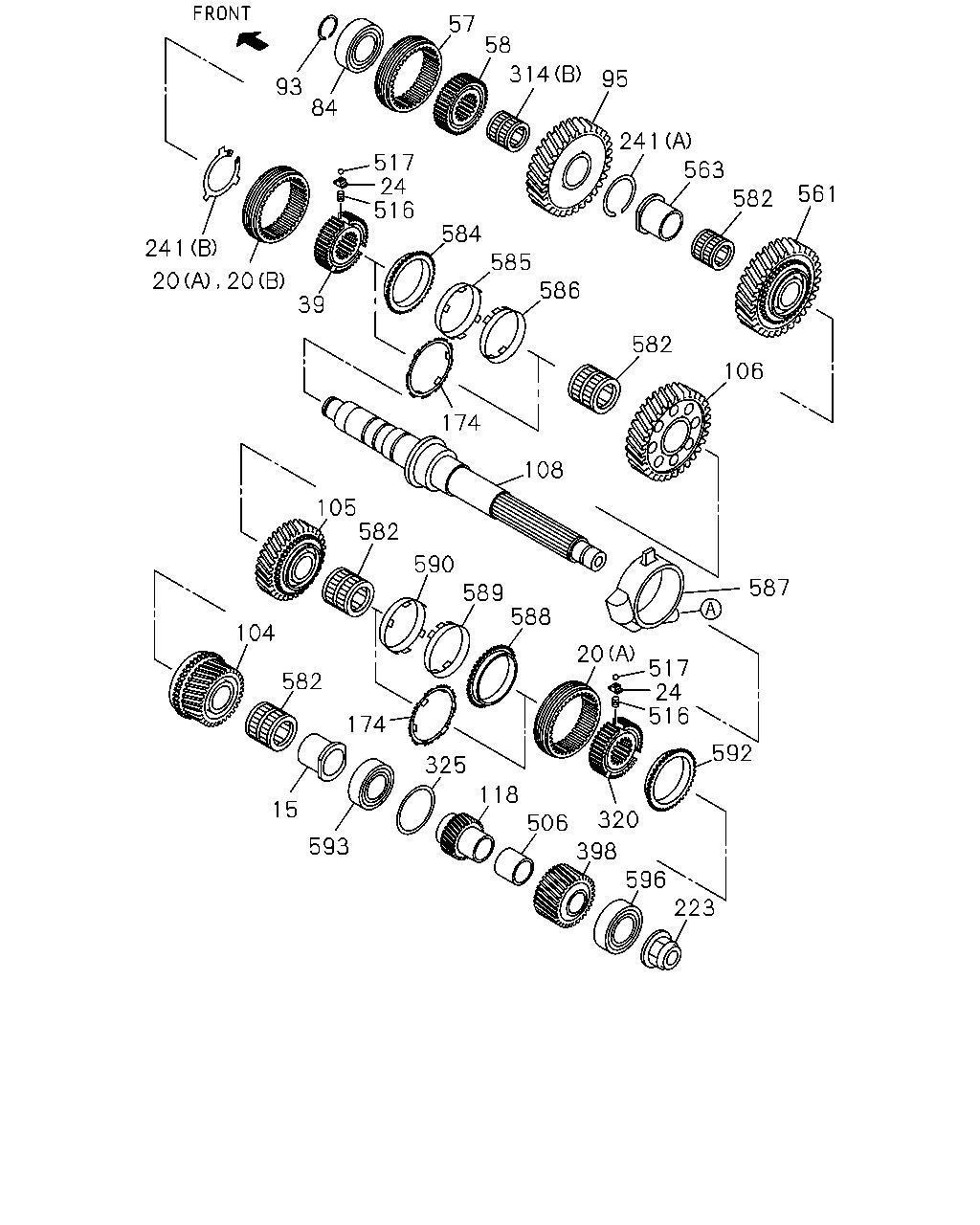

93 57 84 58 517 241 24 314 241 95 563 516 20 39 20 584 586 585 582 561 106 582 174 108 105 104 582 582 590 589 588 20 517 24 516 592 587 174 325 118 506 320 398 596 223 593 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1311-
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1311-1311
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45	8-98258-279-0	03	1	1509-
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1311-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1311-
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1311-1501
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1311-
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1311-
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1311-
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1311-
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1311-
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1311-
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1311-
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1311-
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1311-1501
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1311-
174	SYNCHRONIZER ASM; 2ND-3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98315-823-2	02	1	1509-
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1311-
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1311-
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1311-
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1311-
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1311-
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1311-1501
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1311-
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1311-
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1311-
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1311-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1311-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1311-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1311-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1311-
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1311-
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1311-
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1311-
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1311-1508
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1509-
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1311-1508
585	RING; OUTSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1311-1508
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1311-1501
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1311-1508
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1509-
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1311-1508
589	RING; OUTSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1311-1508
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1311-
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1311-
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1311-

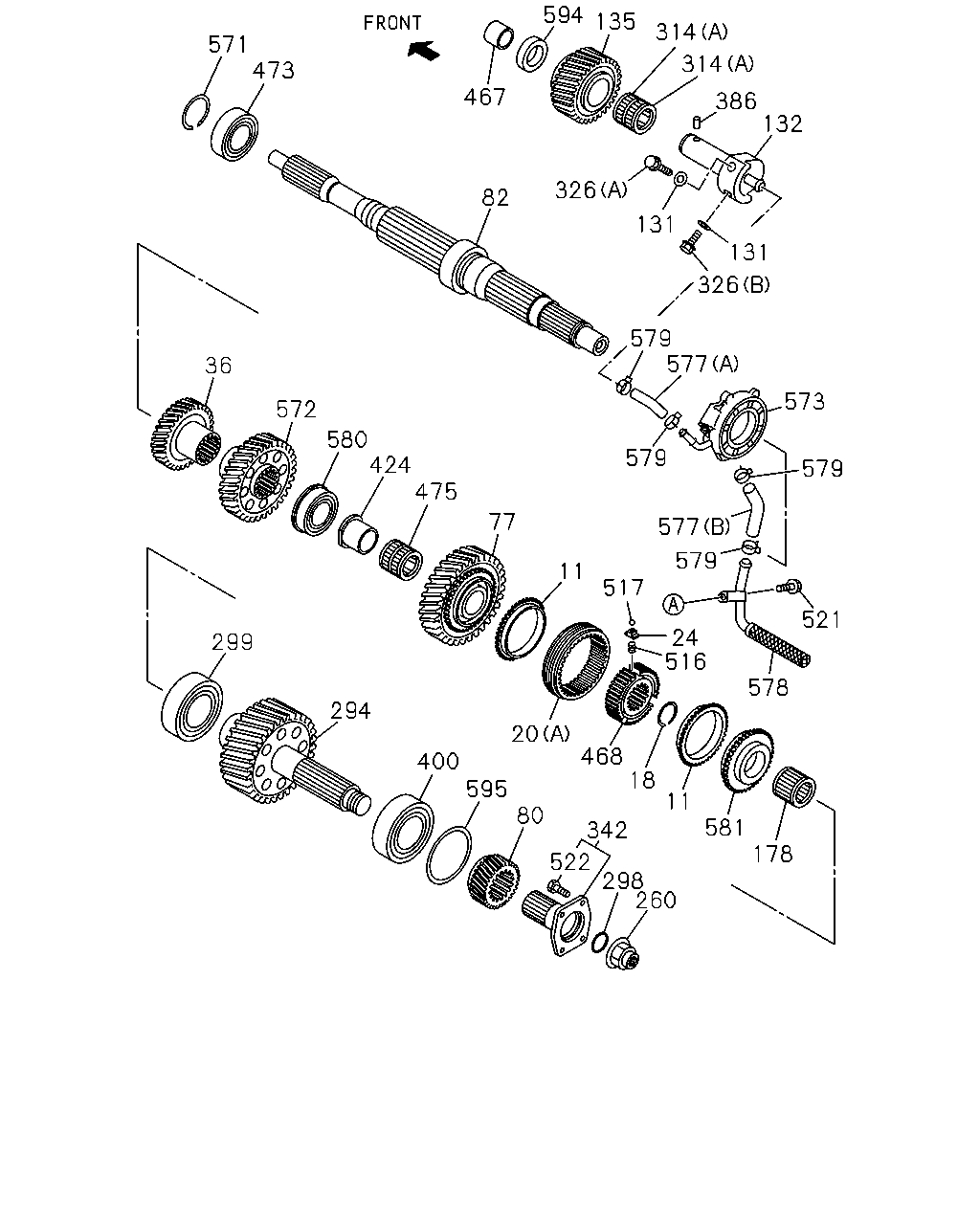

594 571 473 467 326 82 135 314 314 386 132 131 131 326 579 577 573 579 579 577 579 521 578 516 517 11 77 475 424 580 572 36 299 294 400 595 80 342 18 11 581 178 468 20 24 298 260 522

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1311-
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1311-
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1311-1311
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45	8-98258-279-0	03	1	1509-
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1311-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1311-
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1311-
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1311-
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1311-
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98245-057-0	01	1	1311-
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1311-1507
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1311-
132	SHAFT; REV	8-98009-372-0	01	1	1311-
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1311-
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1311-
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1311-
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1311-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1311-
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1311-
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1311-
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1311-
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1311-
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1311-
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1311-
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1311-
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1311-
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1311-
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1311-
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1311-
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1311-
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1311-
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1311-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1311-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1311-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1311-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1311-
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1311-
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	1311-
571	RING; SNAP,BRG	8-97377-951-0	01	1	1311-
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1311-
573	PUMP ASM; OIL	8-98212-241-0	01	1	1311-
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1311-
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1311-
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	1311-
579	CLAMP; HOSE ID=16	8-97329-628-0	04	1	1311-
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1311-
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1311-
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1311-
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1311-
