◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#130227) — 34 parça

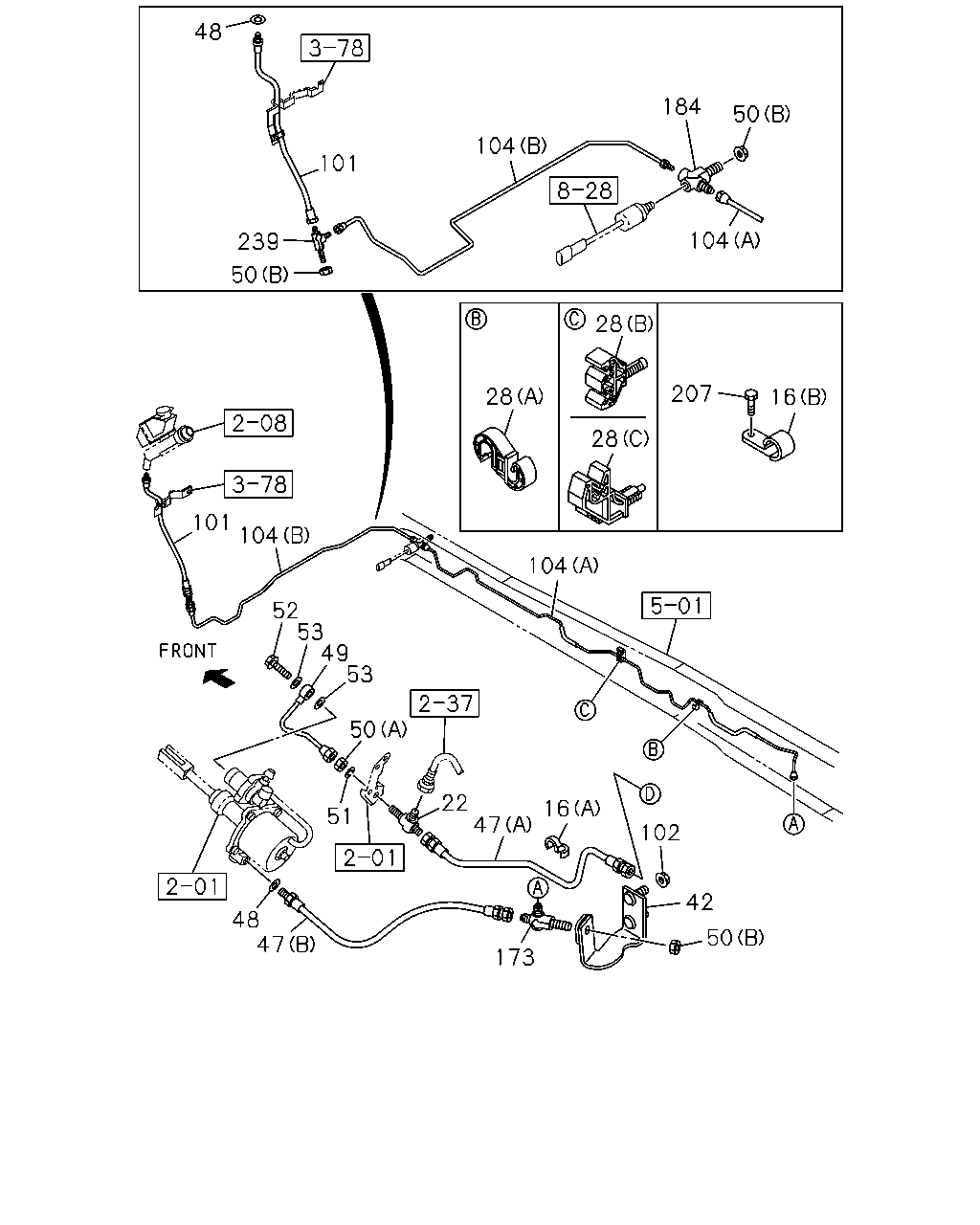

çizim 385423
48 101 239 50 104 184 50 104 28 28 28 207 16 101 104 52 53 49 53 50 51 48 47 173 22 47 16 102 42 50 104
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=18 L=28 		1-09701-067-0 01 1 1311- ● ●
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 01 1 1311- ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1311- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1311- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1311- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 04 1 1311-1411 ● ●
28 CLIP; OIL PIPE
FACE LIFT MODEL<TX7> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 03 1 1412- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FACE LIFT MODEL<TX7> (B) 		8-98012-254-1 04 1 1412- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-636-0 01 1 1311- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=500 		1-09363-733-0 01 1 1311- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=440 		8-98072-346-0 01 1 1311- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1311- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98222-994-0 01 1 1311- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1311- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1311- ● ●
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1311- ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1311- ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1311- ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1311-1312 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=570 		8-98116-741-0 01 1 1311- ● ●
102 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1311- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2459 SERVICED BY L=2500 		1-47428-742-0 01 1 1311- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519 		8-98217-131-0 01 1 1311-1411 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FACE LIFT MODEL<TX7> (B) L=1519 		8-98217-131-0 01 1 1412- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FACE LIFT MODEL<TX7> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1450 		8-98281-680-0 01 1 1412- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1311- ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98150-865-0 01 1 1311- ● ●
207 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1311- ● ●
çizim 385963
205 200
BalonParca AdiParca NoAdetTipApplied Date A B
200 TUBE; NYLON
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1311- ● ●
200 TUBE; NYLON
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1311- ● ●
205 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1311- ● ●
205 TUBE; CORRUGATE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
