1-56 — EXHAUST BRAKE SYSTEM (#130224) — 24 parça

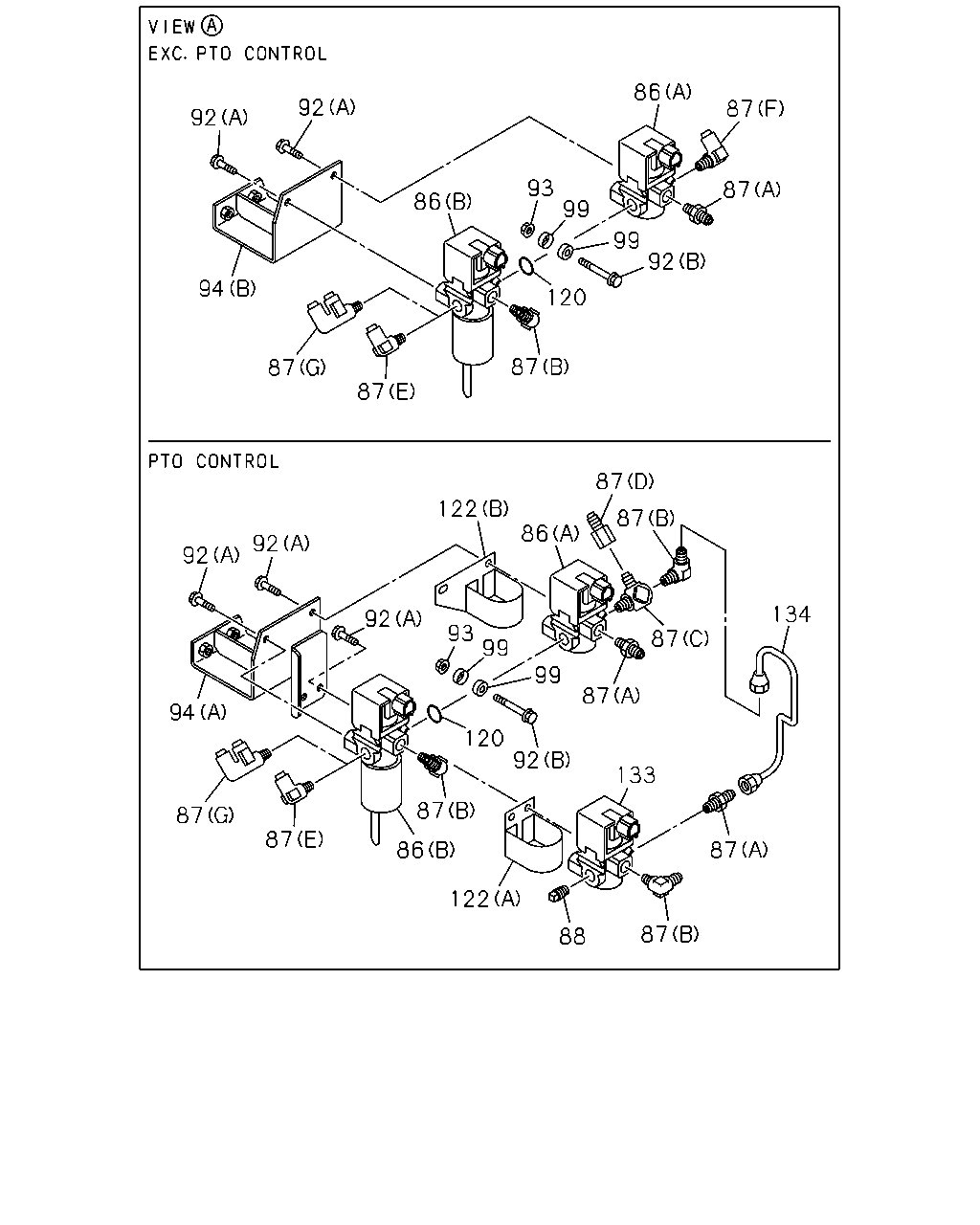

çizim 385899
87 87 86 99 92 93 86 87 87 92 92 94 87 122 87 87 86 134 87 99 99 93 92 120 92 133 87 87 88 122 87 86 87 87 94 92 87 92 99 120
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 1311-
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 1311-
87 CONNECTOR
DIFF LOCK<C3N> (G) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1311-
87 CONNECTOR
EXC. DIFF LOCK<C3N> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1311-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1311-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1311-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1311-
88 PLUG
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1311-
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 1311-
92 BOLT; MAG VLV
PTO CONTROL<SV6> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1311-
92 BOLT; MAG VLV
EXC. PTO CONTROL<SV6> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1311-
93 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1311-
94 BRACKET; MAG VLV,EXH BRAKE
PTO CONTROL<SV6> (A) 		8-98237-819-0 01 1 1311-
94 BRACKET; MAG VLV,EXH BRAKE
EXC. PTO CONTROL<SV6> (B) 		8-98223-109-0 01 1 1311-
99 WASHER; MAG VLV 1-82569-266-0 02 1 1311-
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1311-
122 PROTECTOR; MAG VLV
PTO CONTROL<SV6> (A) 		1-47471-046-0 01 1 1311-
122 PROTECTOR; MAG VLV
PTO CONTROL<SV6> (B) 		8-98237-820-0 01 1 1311-
133 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1311-
134 PIPE; AIR,MAG VLV
PTO CONTROL<SV6> 		8-98237-821-0 01 1 1311-
