Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

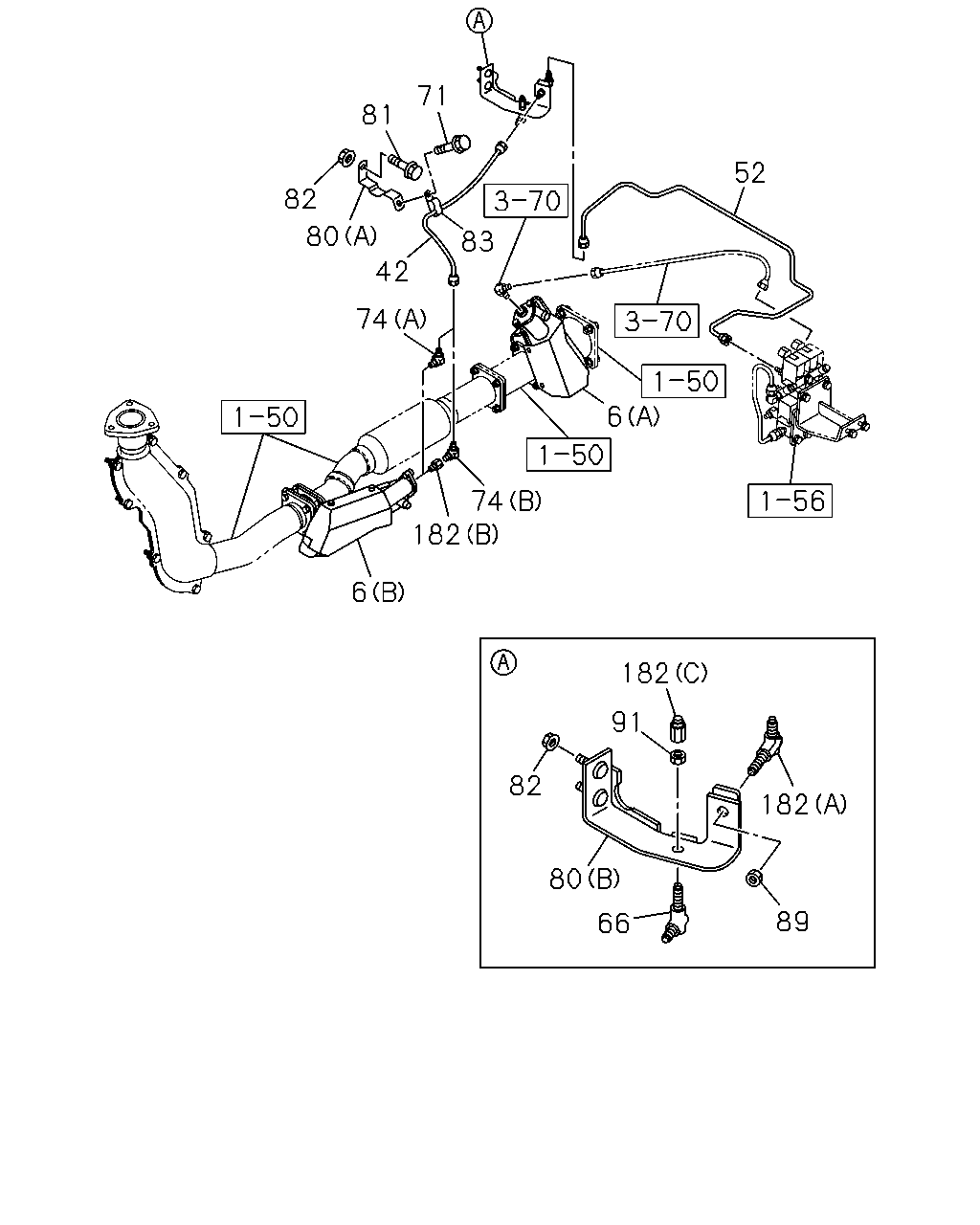

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#130223) — 20 parça
52
71
81
82
80
83
42
74
6
74
182
6
182
91
182
89
66
80
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(A)
8-98160-836-2
01
1
1311-
6
VALVE; EXH BRAKE
(B)
8-98193-416-1
01
1
1311-
42
HOSE; FLEX,EXH BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=310
1-09363-713-0
01
1
1311-
42
HOSE; FLEX,EXH BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) L=440
8-98238-300-0
01
1
1311-
52
PIPE ASM; AIR FLEX HOSE
8-98232-881-0
01
1
1311-
66
UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 ELBOW
0-92125-206-0
01
1
1311-
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1311-
74
CONNECTOR; EXH BRK VLV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1311-1503
74
CONNECTOR; EXH BRK VLV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 ELBOW
8-98299-777-0
01
1
1504-
74
CONNECTOR; EXH BRK VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1311-
80
BRACKET; FLEX HOSE
(A)
8-98078-153-0
01
1
1311-
80
BRACKET; FLEX HOSE
(B)
8-98232-877-0
01
1
1311-
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1311-
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
03
1
1311-
83
CLIP; FLEX HOSE
ID=11X2 L=16
1-09700-820-0
01
1
1311-
89
NUT; BRKT
M12
9-09840-280-0
01
1
1311-
91
NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12
9-09840-280-0
01
1
1311-
182
CONNECTOR
(A) M12 ELBOW
0-92125-206-0
01
1
1311-
182
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PS1/4 & PT1/4 STRAIGHT
1-09660-090-0
01
1
1311-
182
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1311-
