Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#130219) — 255 parça

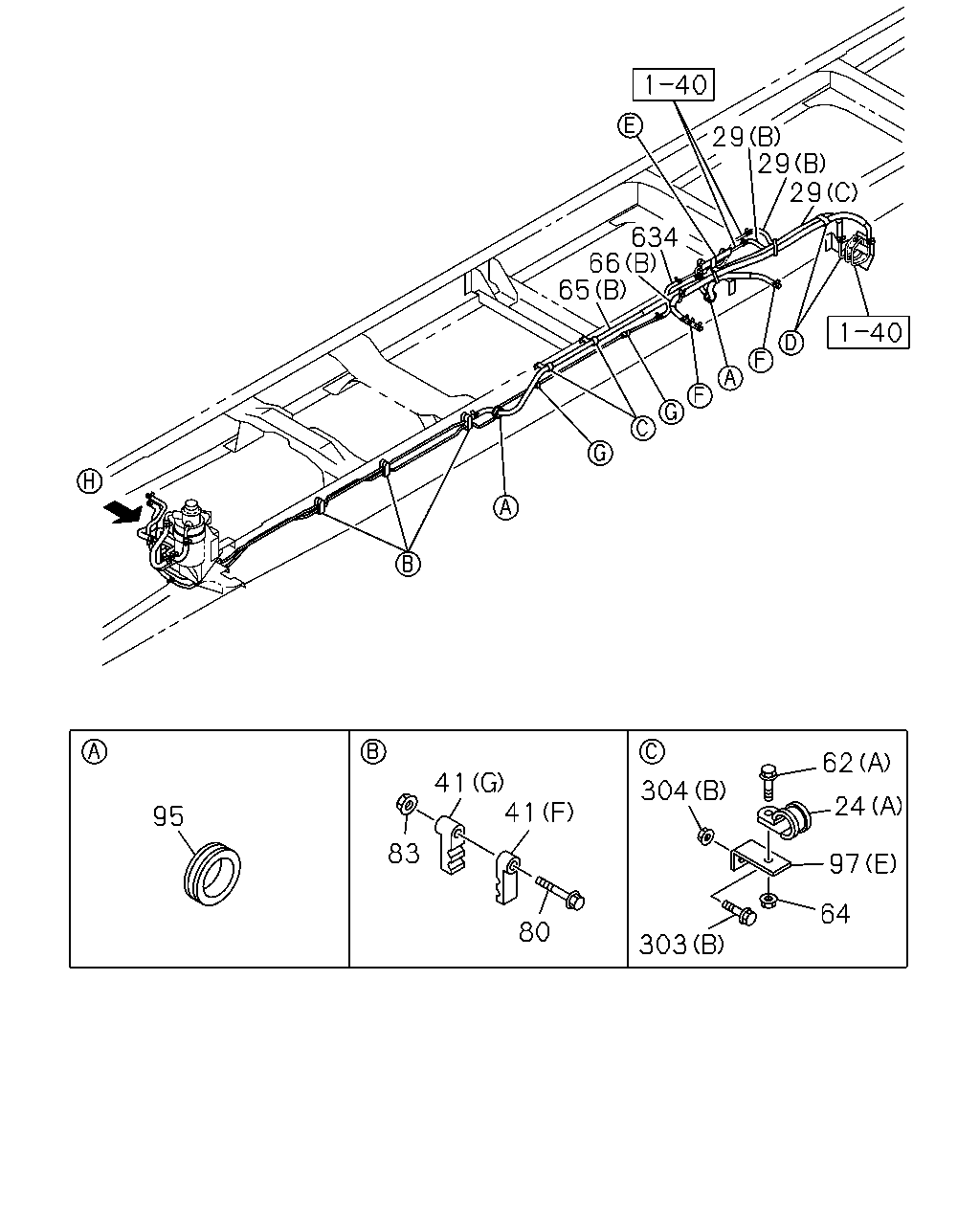

29 29 29 634 66 65 95 41 41 80 83 304 62 24 97 64 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1311-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=21 L=24	8-98019-191-0	02	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●	●
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (E) ID=11 H=20 L=20	8-98033-780-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (B) L=600	8-98234-314-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) (B) L=850	8-98183-311-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=1550	8-98183-313-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B)	8-98249-048-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98249-049-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1311-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (H)	8-98253-212-0	01	1	1311-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1311-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1311-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-669-1	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98234-233-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=55	1-47476-177-0	02	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1311-	●	●
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1311-	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1311-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●

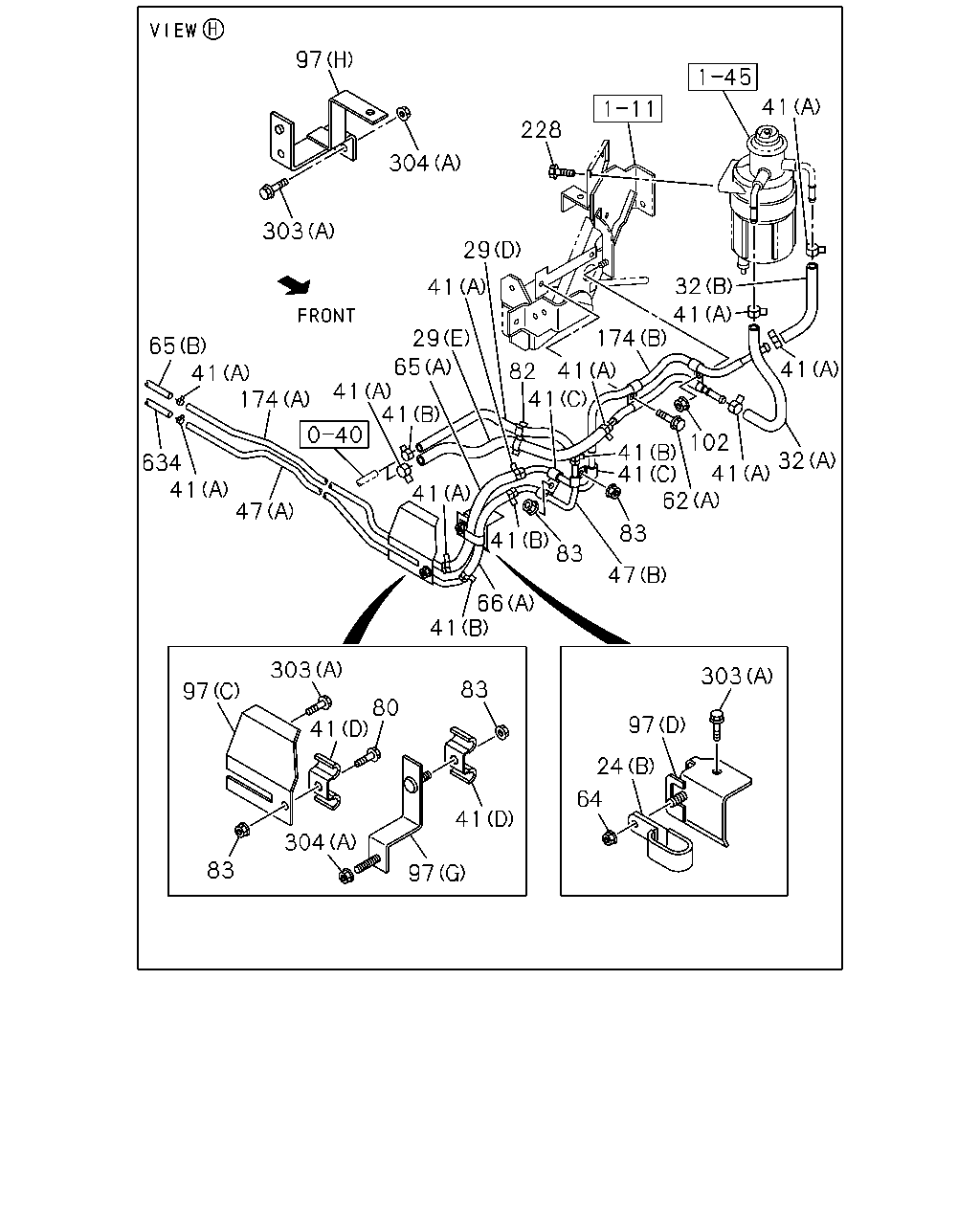

41 41 41 41 41 41 41 66 29 47 80 41 83 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●	●
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (E) ID=11 H=20 L=20	8-98033-780-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●	●
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1311-	●	●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=1514	8-98245-732-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) (A) L=1827	8-98245-733-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=2568	8-98245-734-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (B) L=600	8-98234-314-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) (B) L=850	8-98183-311-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=1550	8-98183-313-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B)	8-98249-048-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98249-049-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1311-	●	●

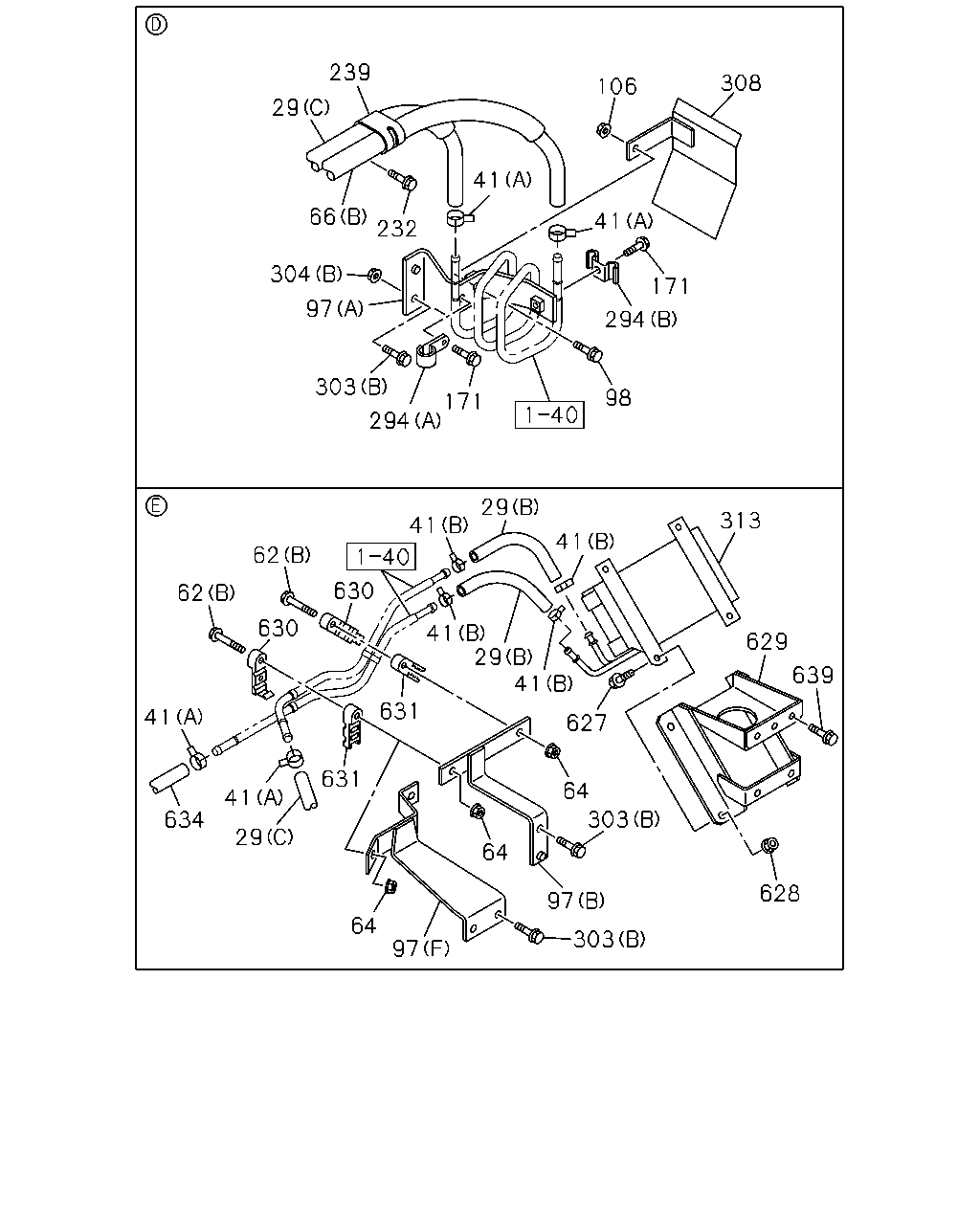

239 29 66 304 303 171 98 294 97 232 41 106 308 41 171 294 62 62 630 41 41 634 29 631 631 630 41 29 41 29 41 627 41 313 629 639 628 303 64 97 303 97 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●	●
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (E) ID=11 H=20 L=20	8-98033-780-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B)	8-98249-048-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98249-049-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (H)	8-98253-212-0	01	1	1311-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1311-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1311-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-669-1	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98234-233-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=55	1-47476-177-0	02	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1311-	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
106	NUT; FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
171	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
239	CLIP; FUEL PIPE ID=24 & 24 L=49	1-09701-018-0	01	1	1311-	●	●
294	CLIP; FUEL PIPE (A) ID=11 L=16	0-95235-025-0	01	1	1311-	●	●
294	CLIP; FUEL PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1311-	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1311-	●	●
308	BRACKET; FUEL PIPE	8-98249-019-0	01	1	1311-	●	●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1311-	●	●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1311-	●	●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1311-	●	●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1311-	●	●
630	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	1311-	●	●
631	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	1311-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
639	BOLT; BRKT,FUEL CLR M10X30 FLANGE	0-28651-030-0	04	1	1311-	●	●

97 304 303 65 634 41 41 174 47 41 65 29 41 29 228 41 32 174 41 32 41 102 41 41 41 82 41 41 62 83 83 47 41 41 41 66 41 303 97 80 41 83 41 97 304 83 303 97 24 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1311-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=21 L=24	8-98019-191-0	02	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●	●
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
32	PIPE; DELIVERY,FUEL TANK (A)	8-98204-102-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (E) ID=11 H=20 L=20	8-98033-780-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●	●
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1311-	●	●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=1514	8-98245-732-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) (A) L=1827	8-98245-733-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=2568	8-98245-734-0	01	1	1311-	●	●
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (B) L=600	8-98234-314-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) (B) L=850	8-98183-311-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=1550	8-98183-313-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (B)	8-98249-048-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98249-049-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1311-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W) (H)	8-98253-212-0	01	1	1311-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1311-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1311-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-669-1	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98234-233-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=55	1-47476-177-0	02	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1311-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1311-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) (A)	8-98245-727-0	01	1	1311-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98245-728-0	01	1	1311-	●	●
228	BOLT; BRKT,SEDIMENTER M10X20 FLANGE	0-28651-020-0	02	1	1311-	●	●
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1311-	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1311-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
