Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#130216) — 55 parça
◀

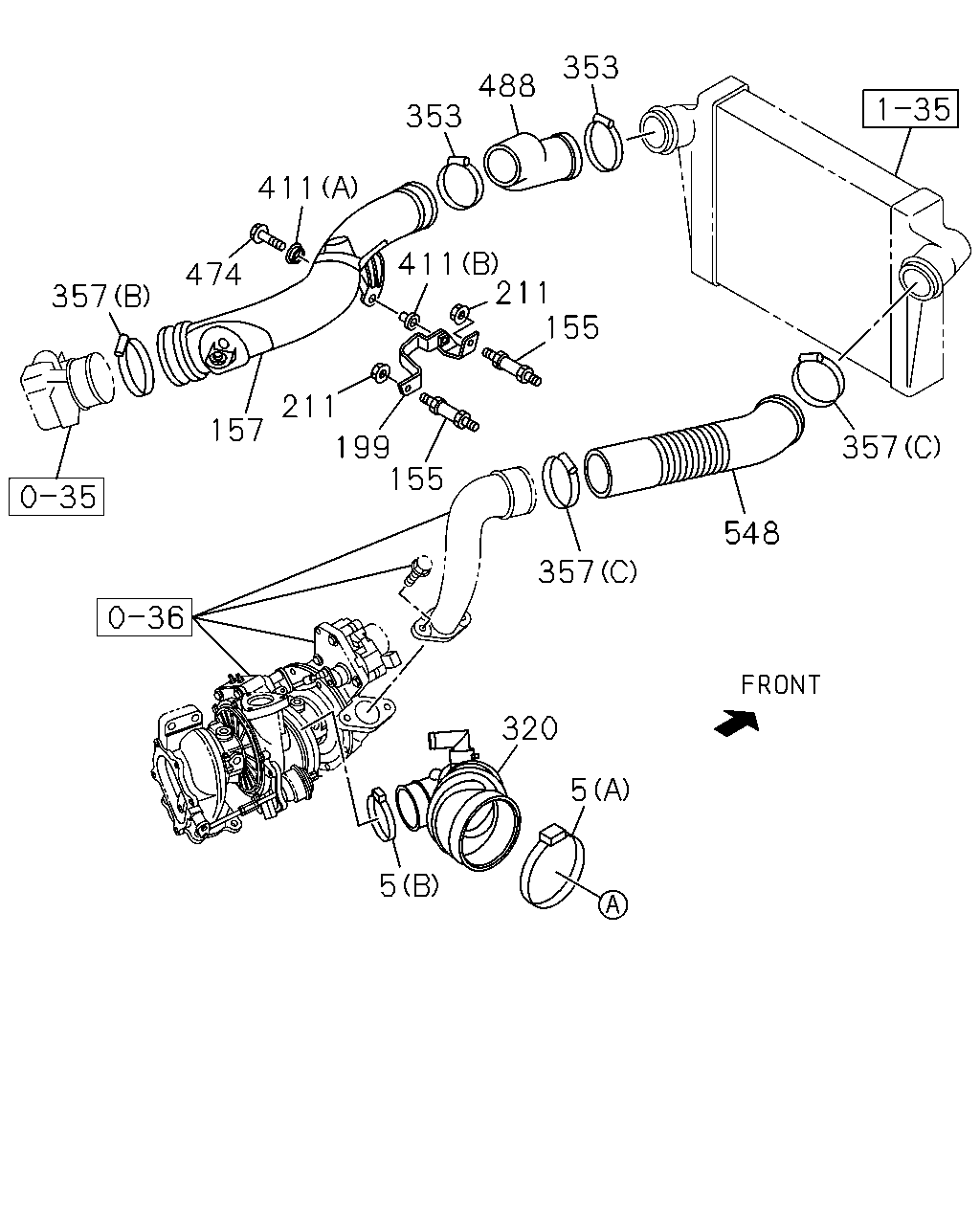

[131A] PIPING (21 parça)
[131A] DUCT FIXING (34 parça)
▶
353
488
353
411
474
357
157
211
199
155
411
211
155
357
548
357
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=55-75
8-98133-349-0
01
1
1311-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1311-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1311-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=75
8-98206-613-0
01
1
1311-
155
BOLT; BRKT
8-98165-255-0
02
1
1311-
157
PIPE; AIR
8-98107-744-2
01
1
1311-
199
BRACKET; PIPE
8-98166-709-0
01
1
1311-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1311-
320
HOSE; CONN,ACL
8-98152-296-1
01
1
1311-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85
8-98133-350-0
02
1
1311-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85
8-98096-592-0
02
1
1311-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1311-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85
8-98133-350-0
02
1
1311-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1311-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1311-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85
8-98096-592-0
02
1
1311-
411
RUBBER; CUSHION
(A) OD=32
8-94395-766-0
02
1
1311-
411
RUBBER; CUSHION
(B) OD=23
8-97105-689-6
02
1
1311-
474
BOLT; PIPE
M8X40 FLANGE
0-28650-840-0
02
1
1311-
488
HOSE; RUBBER,PIPE
8-98230-516-0
01
1
1311-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98230-515-0
01
1
1311-

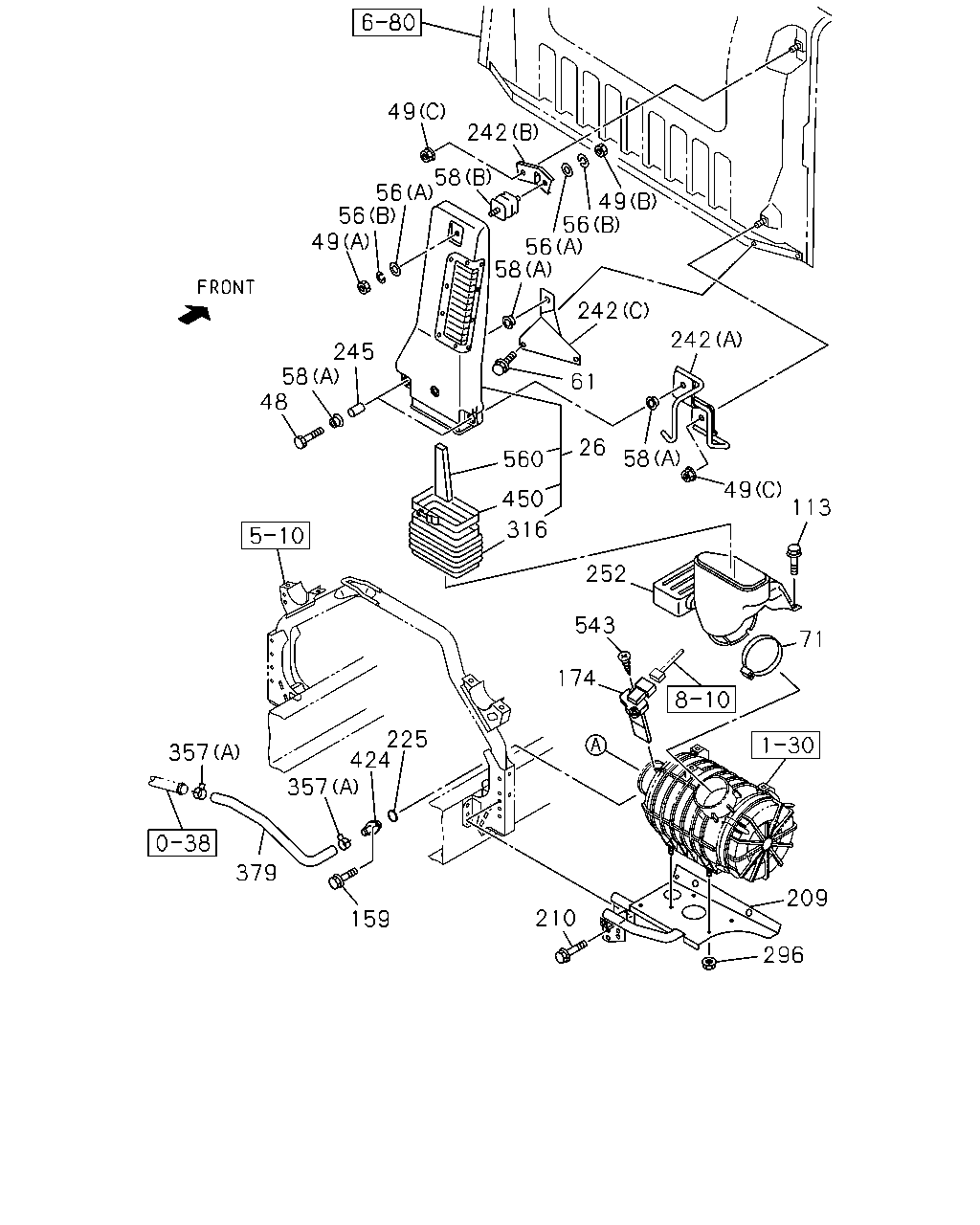

49
242
58
56
56
49
245
58
48
357
379
357
424
225
174
543
252
210
296
209
71
113
49
58
26
560
450
316
58
56
56
49
159
61
242
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1311-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1311-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1311-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1311-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1311-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1311-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1311-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1311-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1311-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1311-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1311-
113
BOLT; RESONATOR
M6X16 W/PL WASHER
8-98094-071-0
03
1
1311-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1311-
174
SENSOR; AIR FLOW CONT
8-98113-202-1
01
1
1311-
209
BRACKET; ACL
8-98152-298-0
01
1
1311-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1311-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1311-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1311-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1311-
242
BRACKET; AIR DUCT
(A)
8-98238-917-0
01
1
1311-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1311-
252
DUCT; AIR INT
8-98207-266-0
01
1
1311-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1311-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1311-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1311-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=65-85
8-98133-350-0
02
1
1311-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1311-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1311-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85
8-98096-592-0
02
1
1311-
379
HOSE; RUBBER
8-98126-531-0
01
1
1311-
424
PIPE; AIR,INL
8-98081-835-0
01
1
1311-
450
CLAMP; HOSE
9-09915-504-1
01
1
1311-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1311-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1311-
