◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#1302) — 19 parça

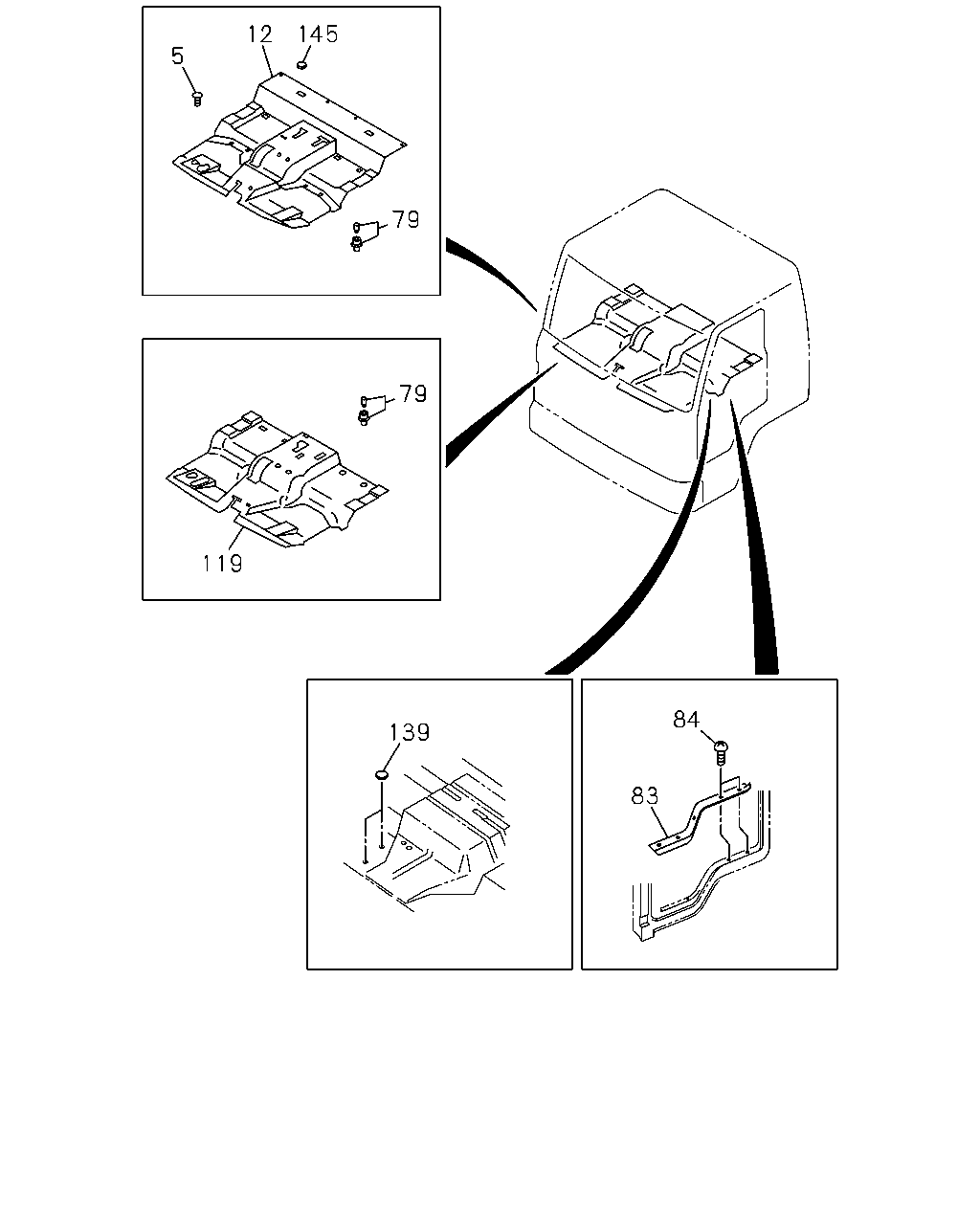

çizim 92309
12 145 5 79 79 119 84 139 83
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; TRIM,HEAT INSULATOR 8-94279-048-0 04 1 9202- ● ●
12 CARPET; FLOOR,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> EXC. PASSENGER SEAT MULTI<WX9> 		1-73238-717-3 01 1 9202- ● ●
12 CARPET; FLOOR,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VINYL CARPET<B30> PASSENGER SEAT MULTI<WX9> 		1-73238-719-3 01 1 9202- ● ●
12 CARPET; FLOOR,RR
VINYL CARPET<B30> PASSENGER SEAT MULTI<WX9> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-73238-718-3 01 1 9202- ●
12 CARPET; FLOOR,RR
VINYL CARPET<B30> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PASSENGER SEAT MULTI<WX9> 		1-73238-716-3 01 1 9202- ●
79 HOOK; MALE
NYLON 6 		8-94291-778-0 08 1 9202- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-019-3 01 1 9202- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-018-3 01 1 9202- ● ●
84 SCREW; PLATE TO FLOOR
M6X24 W/PL WASHER 		1-09981-504-0 04 1 9202- ● ●
84 SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER 		1-09981-505-0 06 1 9202- ● ●
119 MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) EXC. VINYL CARPET<B30> 		1-73238-803-1 01 1 9202-9203 ● ●
119 MAT; FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) EXC. VINYL CARPET<B30> 		1-73238-796-1 01 1 9202-9203 ● ●
119 MAT; FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. VINYL CARPET<B30> 		1-73238-810-1 01 1 9204- ● ●
119 MAT; FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. VINYL CARPET<B30>,HEATER & DEFROSTER(C41), AIRCON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73238-693-1 01 1 9202- ● ●
119 MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), VINYL CARPET<B30> 		1-73238-795-1 01 1 9202-9203 ●
119 MAT; FLOOR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), VINYL CARPET<B30> 		1-73238-795-1 01 1 9204- ●
119 MAT; FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), VINYL CARPET<B30>,HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73238-692-1 01 1 9202- ●
139 SEAL; FLOOR 1-76778-007-0 01 1 9202- ● ●
145 SEAL; FLOOR PANEL
OD=25 BLACK 		1-76798-019-0 01 1 9202- ● ●
