Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

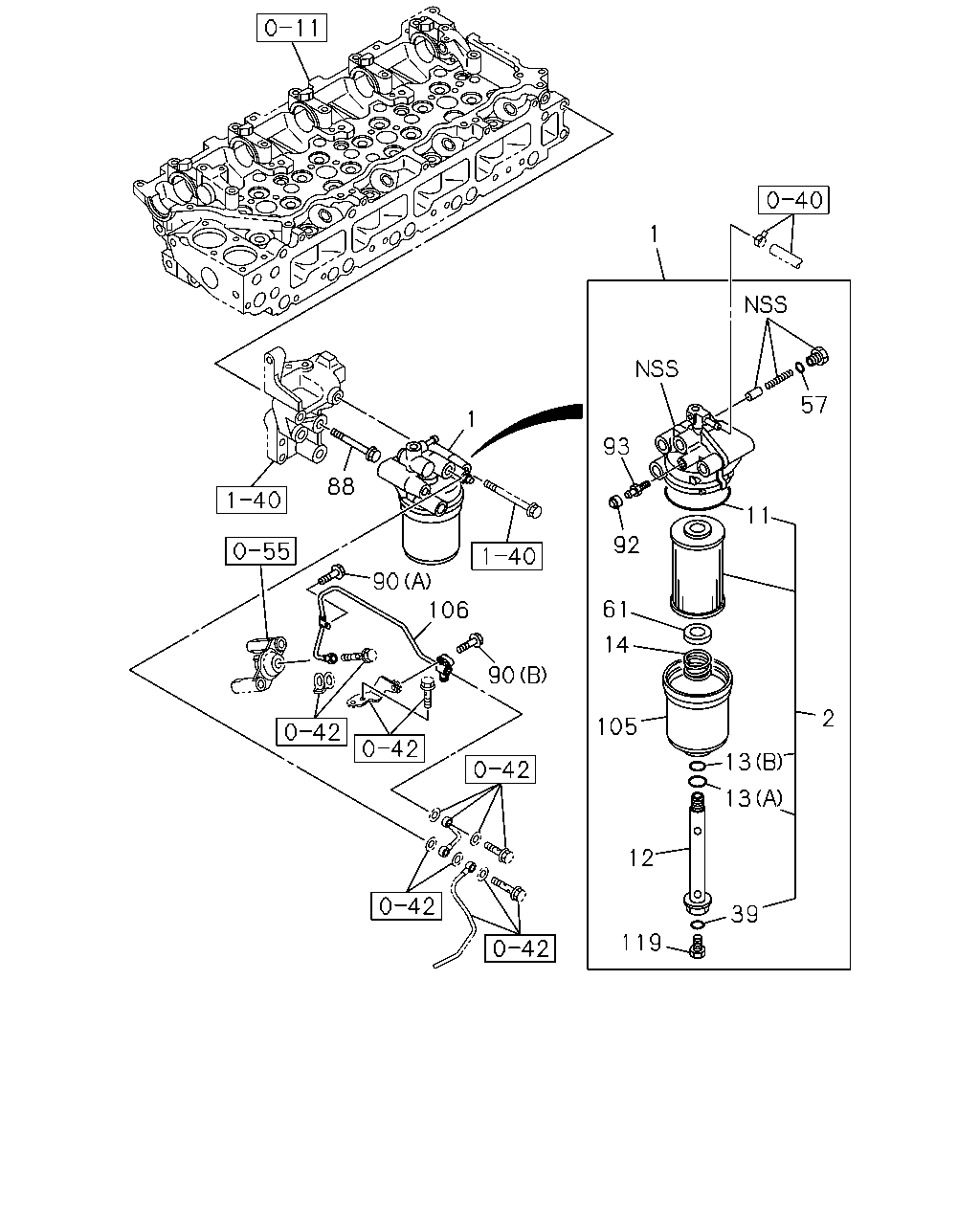

0-41 — FUEL FILTER AND BRACKET
(#130199) — 18 parça
1
88
90
106
90
1
57
11
92
93
61
14
105
2
13
13
12
39
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98087-925-4
01
1
1311-
2
ELEMENT KIT; FUEL FILTER
8-98147-525-0
01
1
1311-
11
GASKET; CASE TO BODY,FUEL FILTER
8-98024-708-0
01
1
1311-
12
BOLT; CENTER,FUEL FILTER
8-98093-406-0
01
1
1311-
13
GASKET; CENTER BOLT
(A)
8-98158-464-0
01
1
1311-
13
GASKET; CENTER BOLT
(B)
8-98165-968-0
01
1
1311-
14
SPRING; ELEMENT SUPPORT,FUEL FILTER
8-98093-413-0
01
1
1311-
39
GASKET; DRAIN PLUG
8-98158-466-0
01
1
1311-
57
GASKET; PLUG
8-98159-365-0
01
1
1311-
61
SEAT; SPR ELEMENT
8-98110-233-0
01
1
1311-
88
BOLT; BRKT,FUEL FILTER
M12X80
0-28151-280-0
03
1
1311-
90
BOLT; PIPE TO BRKT
(A) M6X16 FLANGE
0-28050-616-0
01
1
1311-
90
BOLT; PIPE TO BRKT
(B) M8X35 FLANGE
0-28050-835-0
01
1
1311-
92
CAP; FUEL FILTER
8-98034-314-0
01
1
1311-
93
CONNECTOR; FUEL FILTER
M8X10
8-98034-312-0
01
1
1311-
105
CASE; FUEL FILTER
8-98093-416-0
01
1
1311-
106
PIPE; FUEL
8-98202-495-0
01
1
1311-
119
PLUG; DRAIN,FUEL FILTER
M10
1-09000-105-0
01
1
1311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
