◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11561 - FSR-LHD(EU)SPACE EU6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#130198) — 90 parça
çizim 385181
424 199 199 216 366 369 369 216 368 368 382 1 199 365 199 205 1 445
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98081-772-3 01 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1311-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1311-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1311-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1311-
216 BOLT; EYE
(B) 		8-98207-288-0 01 1 1311-
365 BOLT; EYE,OIL INLET 8-98200-752-0 01 1 1311-
366 BOLT; EYE,OIL OUTLET 5-15759-003-0 01 1 1311-
368 GASKET; EYE BOLT,OIL INLET 1-15619-507-0 02 1 1311-
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-507-0 02 1 1311-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1311-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1311-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1311-

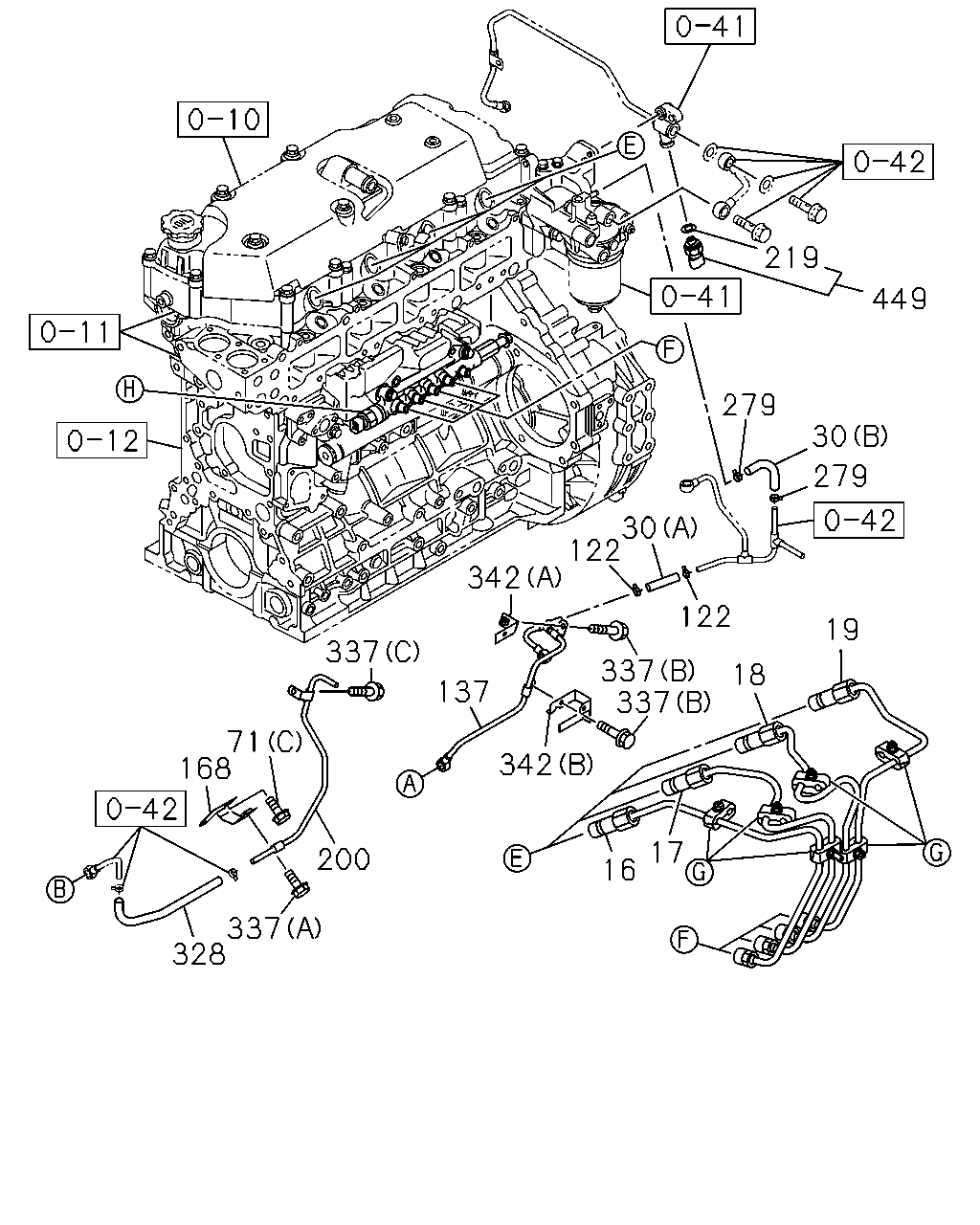

çizim 385186
17 16 342 337 337 18 122 19 122 342 30 279 30 279 449 219 71 337 137 337 328 168 200
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98083-078-1 01 1 1311-1502
16 PIPE; INJ NO.1 8-98242-419-0 01 1 1503-
17 PIPE; INJ NO.2 8-98126-473-1 01 1 1311-1502
17 PIPE; INJ NO.2 8-98242-420-0 01 1 1503-
18 PIPE; INJ NO.3 8-98083-080-1 01 1 1311-1502
18 PIPE; INJ NO.3 8-98242-421-0 01 1 1503-
19 PIPE; INJ NO.4 8-98083-081-1 01 1 1311-1502
19 PIPE; INJ NO.4 8-98242-422-0 01 1 1503-
30 HOSE; RUBBER,FUEL LEAK
(A) L=60 SERVICED BY L=3000 		0-01558-300-0 01 1 1311-
30 HOSE; RUBBER,FUEL LEAK
(B) 		8-98128-912-0 01 1 1311-
71 BOLT; BRKT
(A) M8X30 FLANGE 		0-28050-830-0 01 1 1311-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1311-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1311-
71 BOLT; BRKT
(C) M10X12 FLANGE 		0-28151-012-0 01 1 1311-
122 CLIP; LEAK OFF PIPE
ID=11.5 		8-97375-638-0 02 1 1311-
137 PIPE ASM; LEAK OFF 8-98107-385-3 01 1 1311-
168 BRACKET; FUEL PIPE 8-98107-389-1 01 1 1311-
200 PIPE; FUEL FEED 8-98169-373-0 01 1 1311-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1311-1312
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401-
279 CLIP; FUEL HOSE
ID=11.5 		8-97375-638-0 02 1 1311-
328 HOSE; RUBBER,FUEL 8-98242-513-2 01 1 1311-
337 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1311-
337 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1311-
337 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1311-
342 BRACKET; CLIP,LEAK OFF
(A) 		8-98107-392-2 01 1 1311-
342 BRACKET; CLIP,LEAK OFF
(B) 		8-98134-976-3 01 1 1311-
449 SENSOR KIT; FUEL FILTER PRESSURE 5-87311-231-0 01 1 1311-
çizim 385189
290 289 71 71 169 211 216 199 199 210 283 282 110 68 68 9
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 06 1 1311-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 06 1 1311-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 06 1 1311-
71 BOLT; BRKT
(A) M8X30 FLANGE 		0-28050-830-0 01 1 1311-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1311-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1311-
71 BOLT; BRKT
(C) M10X12 FLANGE 		0-28151-012-0 01 1 1311-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 06 1 1311-
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1311-
210 PIPE; INJ,C/R 8-98106-195-1 01 1 1311-
211 RAIL ASM; COMMON 8-98081-768-1 01 1 1311-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1311-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1311-
216 BOLT; EYE
(B) 		8-98207-288-0 01 1 1311-
282 BRACKET; COMMON RAIL 8-98092-440-1 01 1 1311-
283 BOLT; COMMON RAIL
M10X35 FLANGE 		0-28151-035-0 02 1 1311-
289 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1311-
290 SENSOR; PRESS 8-98138-738-0 01 1 1311-

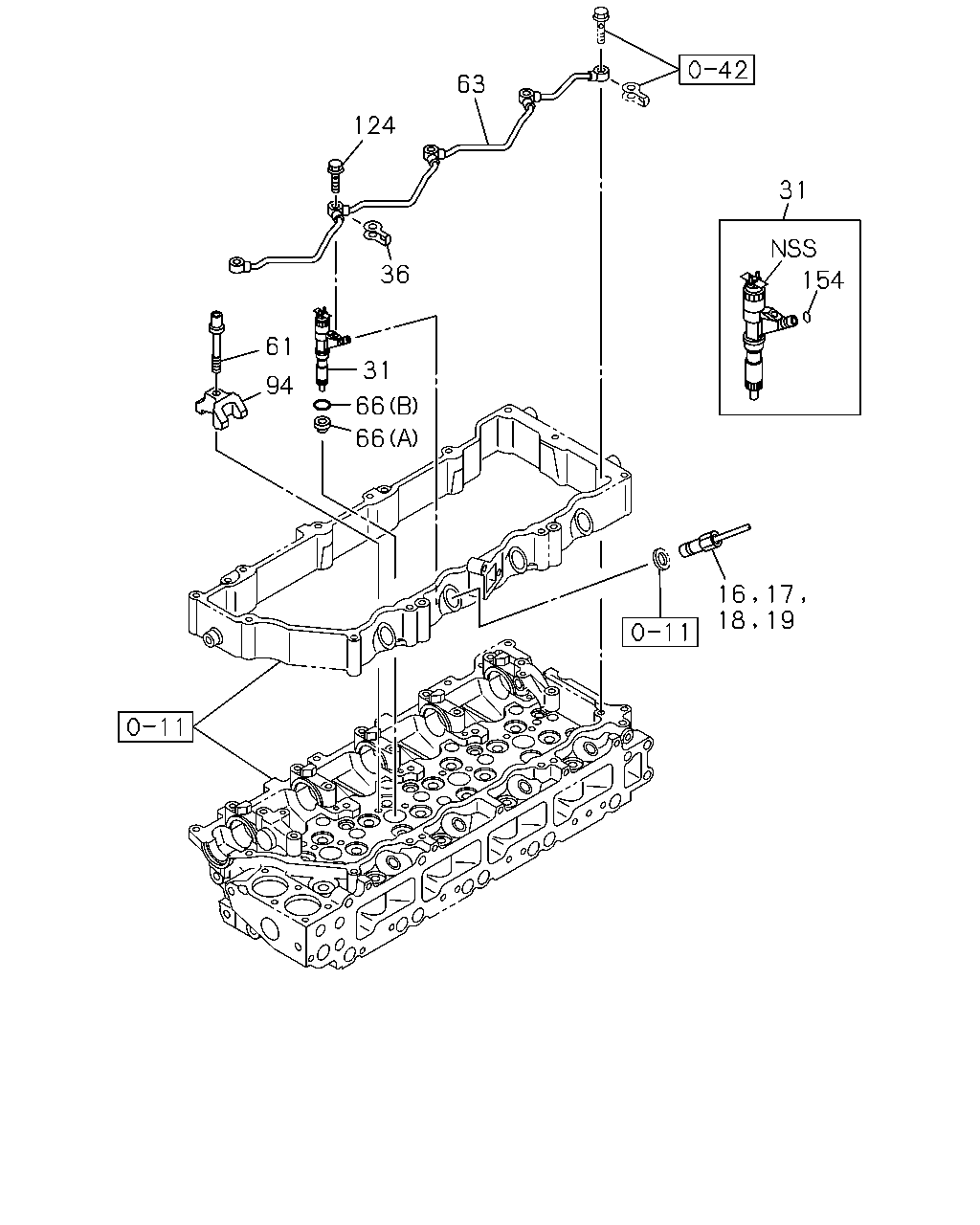

çizim 385190
124 63 36 61 94 31 66 66 16 17 18 19 31 154
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98083-078-1 01 1 1311-1502
16 PIPE; INJ NO.1 8-98242-419-0 01 1 1503-
17 PIPE; INJ NO.2 8-98126-473-1 01 1 1311-1502
17 PIPE; INJ NO.2 8-98242-420-0 01 1 1503-
18 PIPE; INJ NO.3 8-98083-080-1 01 1 1311-1502
18 PIPE; INJ NO.3 8-98242-421-0 01 1 1503-
19 PIPE; INJ NO.4 8-98083-081-1 01 1 1311-1502
19 PIPE; INJ NO.4 8-98242-422-0 01 1 1503-
31 NOZZLE ASM; INJ 8-98197-185-1 04 1 1311-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1311-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1311-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-98072-612-1 01 1 1311-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1311-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10 		8-97216-082-0 04 1 1311-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1311-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1311-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1311-

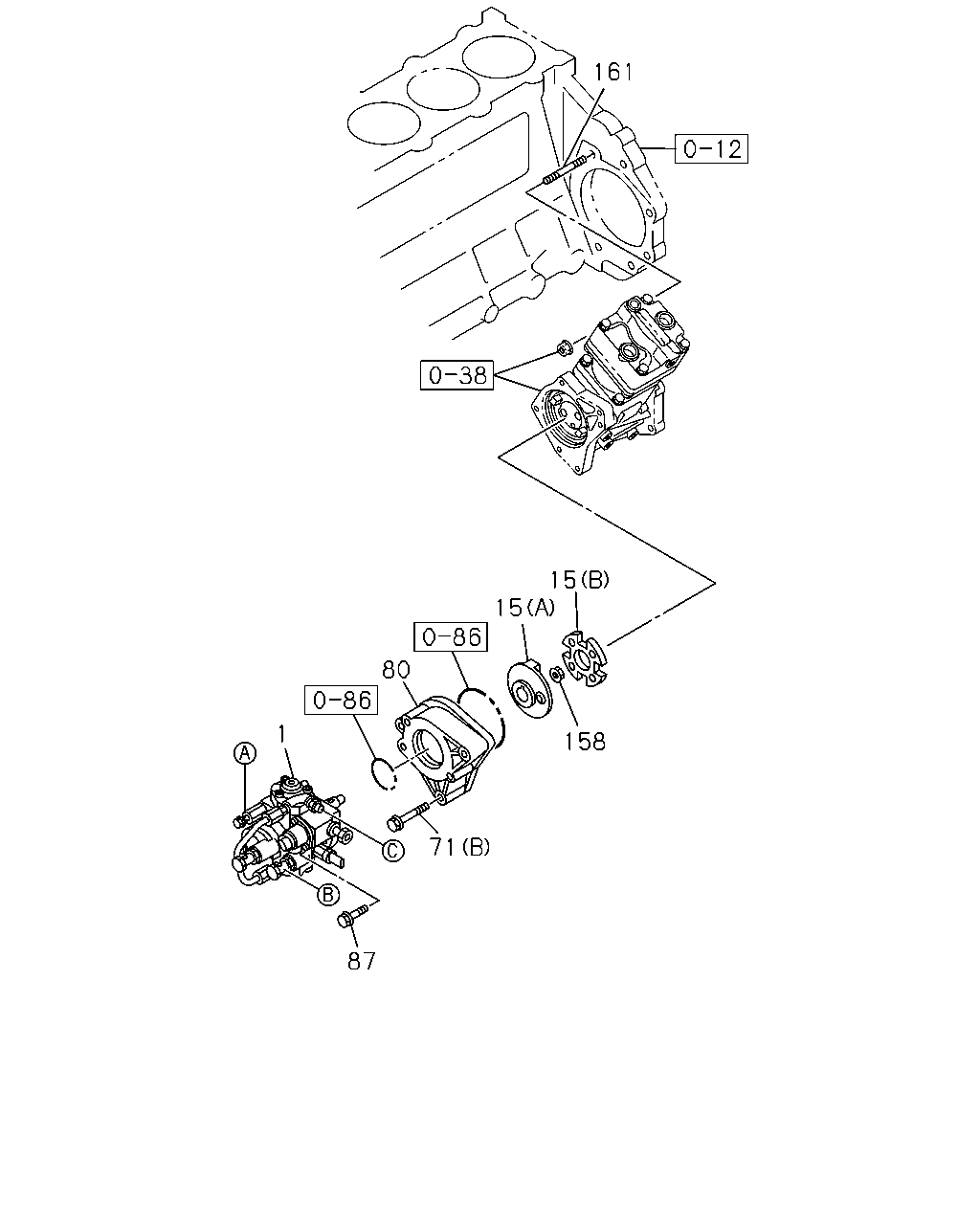

çizim 386263
158 71 87 1 80 15 15 161
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98081-772-3 01 1 1311-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1311-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1311-
71 BOLT; BRKT
(A) M8X30 FLANGE 		0-28050-830-0 01 1 1311-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1311-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1311-
71 BOLT; BRKT
(C) M10X12 FLANGE 		0-28151-012-0 01 1 1311-
80 BRACKET; PUMP 8-98061-699-0 01 1 1311-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1311-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1311-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1311-
