Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

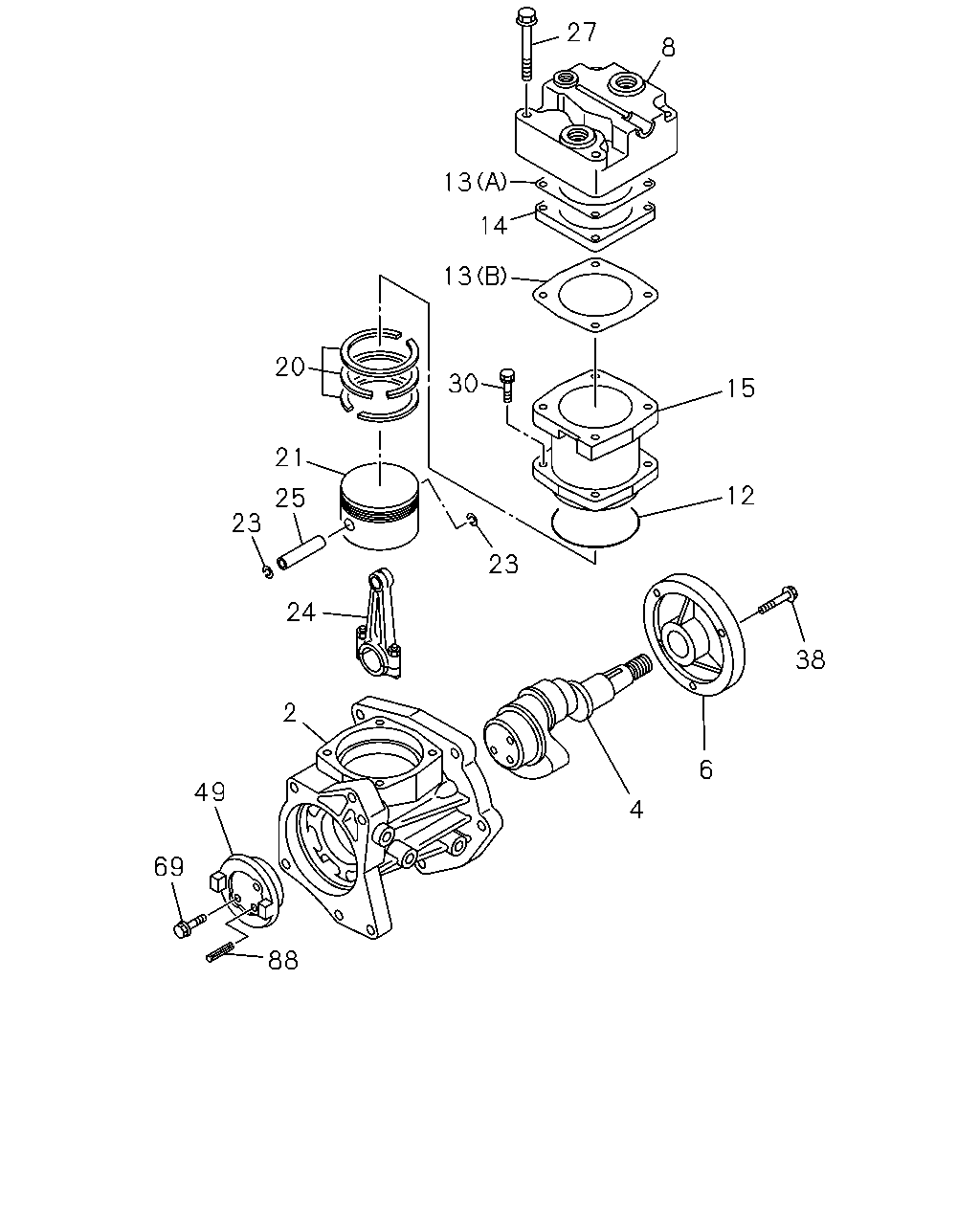

0-39 — AIR COMPRESSOR; BRAKE
(#130197) — 21 parça
27
8
13
13
14
30
15
12
38
6
4
23
21
20
23
25
24
2
49
69
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19151-303-0
01
1
1311-
4
CRANKSHAFT; AIR CMPR
1-19171-090-1
01
1
1311-
6
COVER ASM; BRG,AIR CMPR
1-19156-086-1
01
1
1311-
8
HEAD ASM; CYL,AIR CMPR
1-19110-075-0
01
1
1311-
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1311-
13
GASKET; AIR CMPR
(A)
1-19115-015-0
01
1
1311-
13
GASKET; AIR CMPR
(B)
1-19115-016-0
01
1
1311-
14
PLATE; AIR CMPR
1-19130-010-1
01
1
1311-1405
14
PLATE; AIR CMPR
8-98271-713-0
01
1
1406-
15
CYLINDER; AIR CMPR
1-19163-068-1
01
1
1311-
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1311-
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1311-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1311-
24
ROD ASM; CONN,AIR CMPR
1-19173-023-0
01
1
1311-
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1311-
27
BOLT; HD
8-98188-172-0
04
1
1311-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
1311-
38
BOLT; COVER FIX
1-19159-023-0
03
1
1311-
49
COUPLING ASM
1-19179-032-0
01
1
1311-
69
BOLT ASM; AIR COMP
1-19179-033-0
02
1
1311-
88
PIN; SPRING
1-19179-034-0
01
1
1311-
