Isuzu WW
▶
TRUCKS
▶
FSR
▶
11561 - FSR-LHD(EU)SPACE EU6
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶

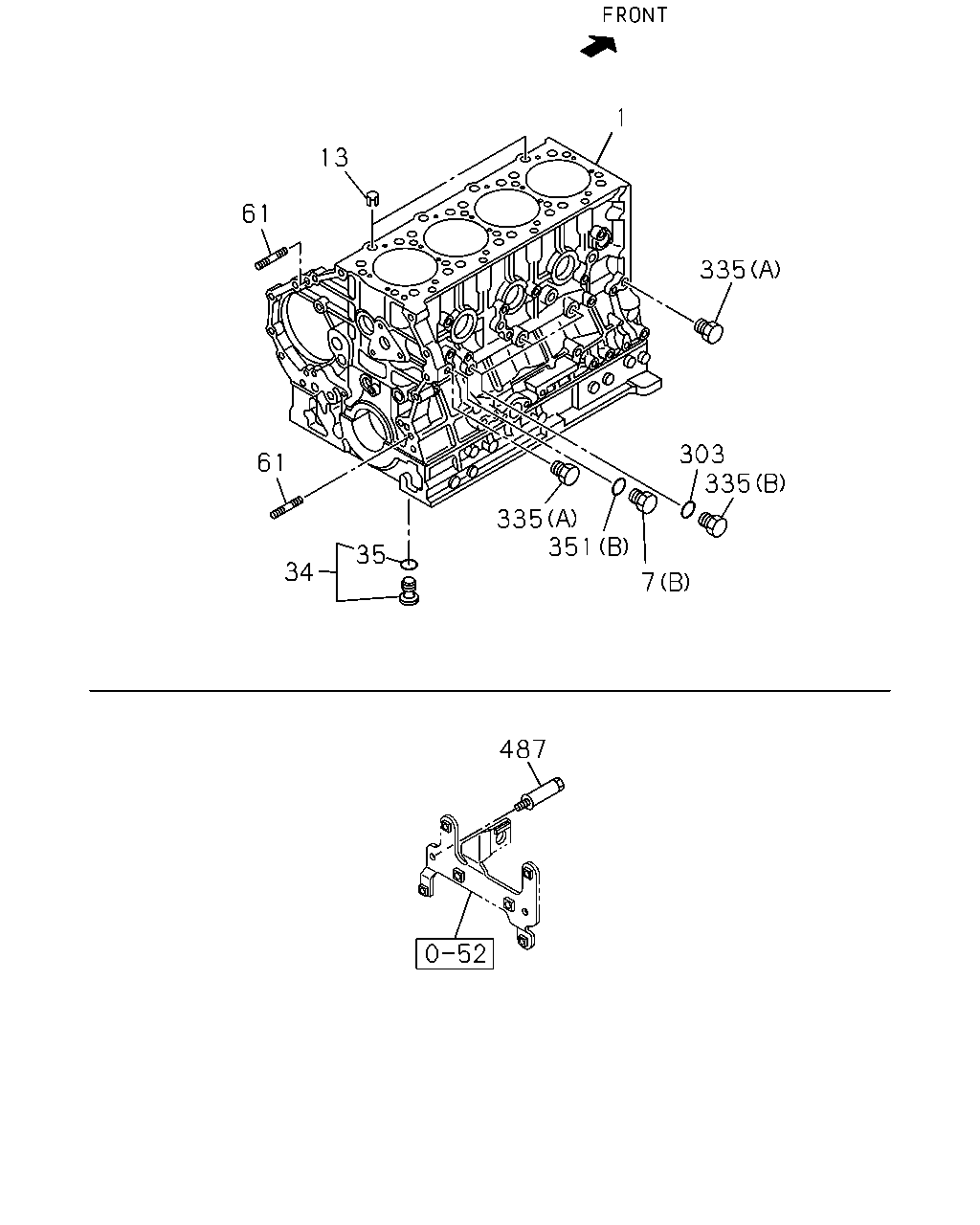

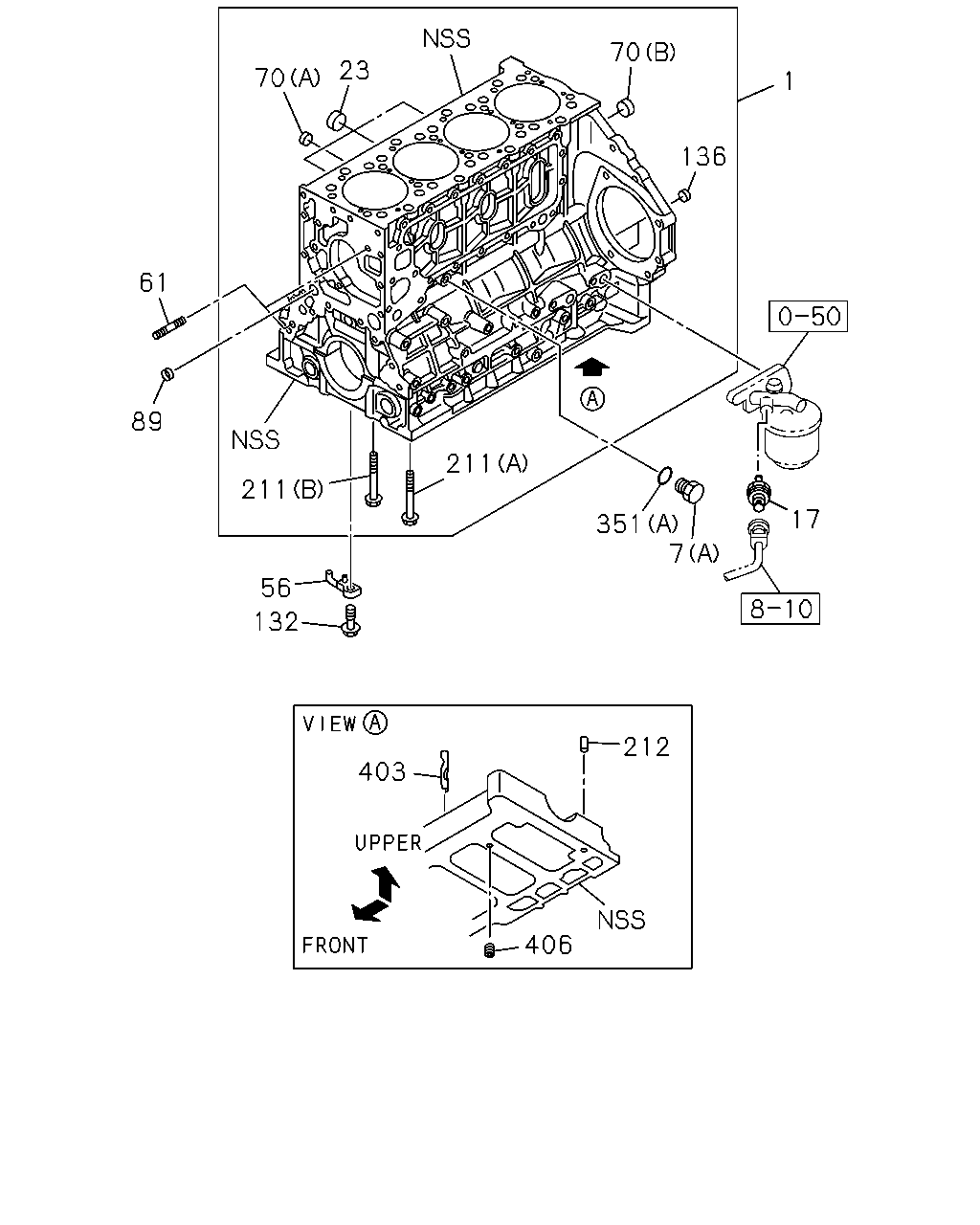

0-12 — CYLINDER BLOCK
(#130180) — 35 parça
◀
[012A] OTHER PARTS (15 parça)
[012A] CYL BLOCK ASM (20 parça)
▶
335
1
13
61
61
35
34
335
303
7
351
335
487
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98164-983-1
01
1
1311-
7
PLUG; WATER DRAIN
(B) M10X10
8-97352-537-0
01
1
1311-
7
PLUG; WATER DRAIN
(A) M14X18
8-98038-403-0
01
1
1311-
13
DOWEL; C/BL TO HD
OD=18.15
8-94399-688-1
02
1
1311-
34
VALVE; OIL RELIEF
8-97328-859-0
01
1
1311-
35
GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3
8-94173-412-0
01
1
1311-
61
PIN; STRAIGHT
L=22
8-94483-674-0
04
1
1311-
303
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
04
1
1311-1312
303
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
335
PLUG; C/BL,SIDE
(A) M14X16.5
8-97329-617-0
02
1
1311-
335
PLUG; C/BL,SIDE
(B) M14X18
8-98038-403-0
04
1
1311-
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
01
1
1311-
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
01
1
1311-1312
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
487
ADAPTER; OIL PRESSURE UNIT
8-98183-128-1
01
1
1311-
17
7
351
211
1
136
70
23
70
61
89
211
56
132
403
212
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98164-983-1
01
1
1311-
7
PLUG; WATER DRAIN
(B) M10X10
8-97352-537-0
01
1
1311-
7
PLUG; WATER DRAIN
(A) M14X18
8-98038-403-0
01
1
1311-
17
SWITCH; OIL PRESSURE
8-97176-230-0
01
1
1311-
23
CUP; SEALING,C/BL FRT & RR
OD=45
8-97036-550-1
03
1
1311-
56
JET; OIL,PISTON COOLING
8-98067-162-0
04
1
1311-
61
PIN; STRAIGHT
L=22
8-94483-674-0
04
1
1311-
70
CUP; SEALING,FRT & RR
(A) OD=25
1-09600-016-0
01
1
1311-
70
CUP; SEALING,FRT & RR
(B) OD=40
8-97096-824-0
01
1
1311-
89
CUP; SEALING,OIL GALLERY
OD=20
9-11129-128-0
03
1
1311-
132
VALVE; CHECK,OIL
M10X18.5
8-97329-618-0
04
1
1311-
136
BUSHING; DRIVE SHAFT,OIL PUMP
8-98091-566-0
02
1
1311-
211
BOLT; CRANKCASE
(A) M10X82
8-94399-553-2
17
1
1311-
211
BOLT; CRANKCASE
(B) M14X122
8-98152-294-0
10
1
1311-
212
PIN; CRANKCASE
OD=10 L=20
8-97135-423-0
02
1
1311-
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
01
1
1311-
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
01
1
1311-1312
351
GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
403
GUIDE; GALLERY
8-98070-339-0
01
1
1311-
406
PLUG; CRANK CASE
PT3/8
5-09605-005-0
01
1
1311-
