◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11047 - EXR LHD EURO4 WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#13018) — 15 parça

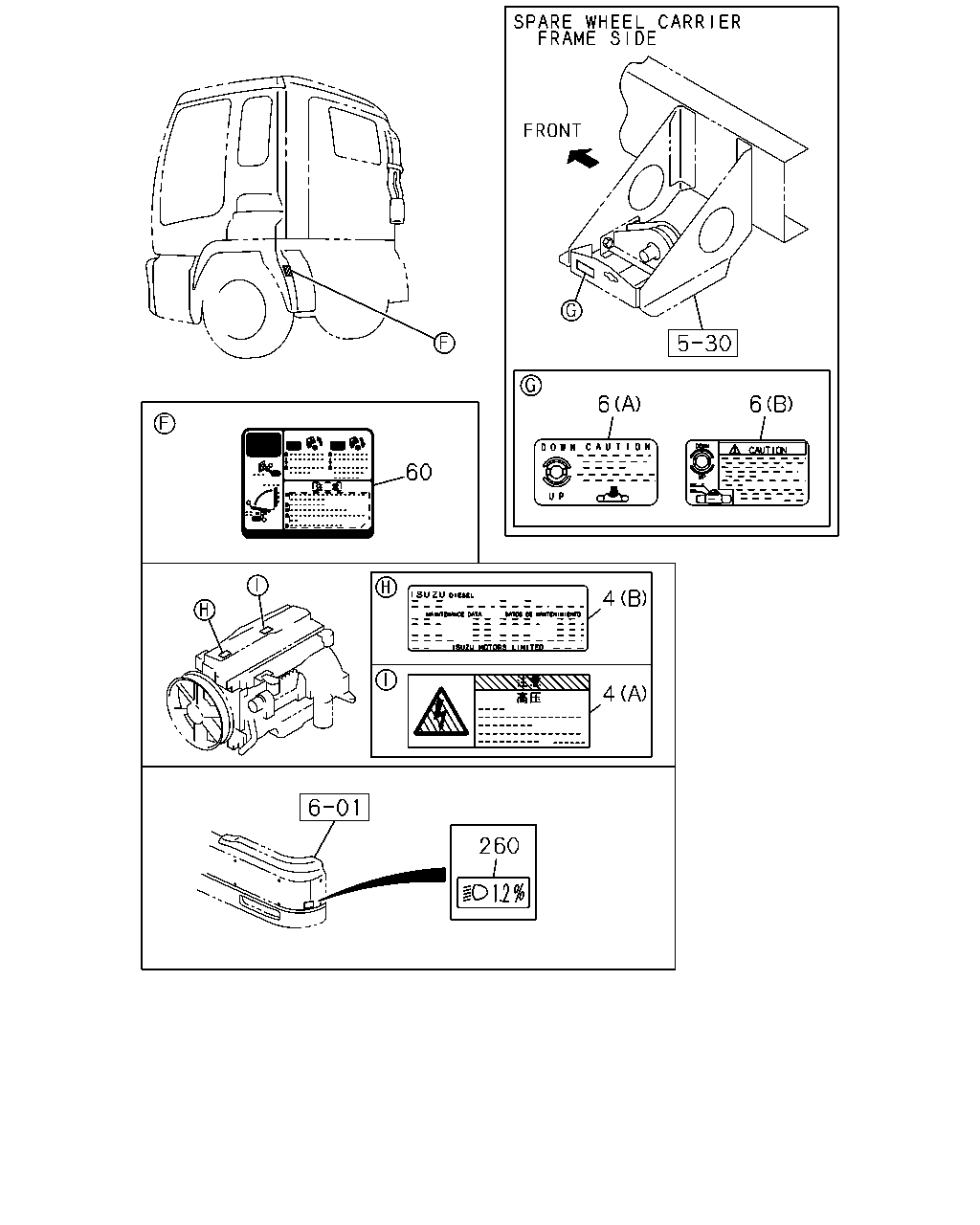

çizim 91391
6 6 60 4 4 260
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		1-85875-350-2 01 1 0611-
4 LABEL; ENG MAINTENANCE
(A) 		8-94391-524-0 01 1 0611-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0611-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98082-437-0 01 1 0709-
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0611-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0611-

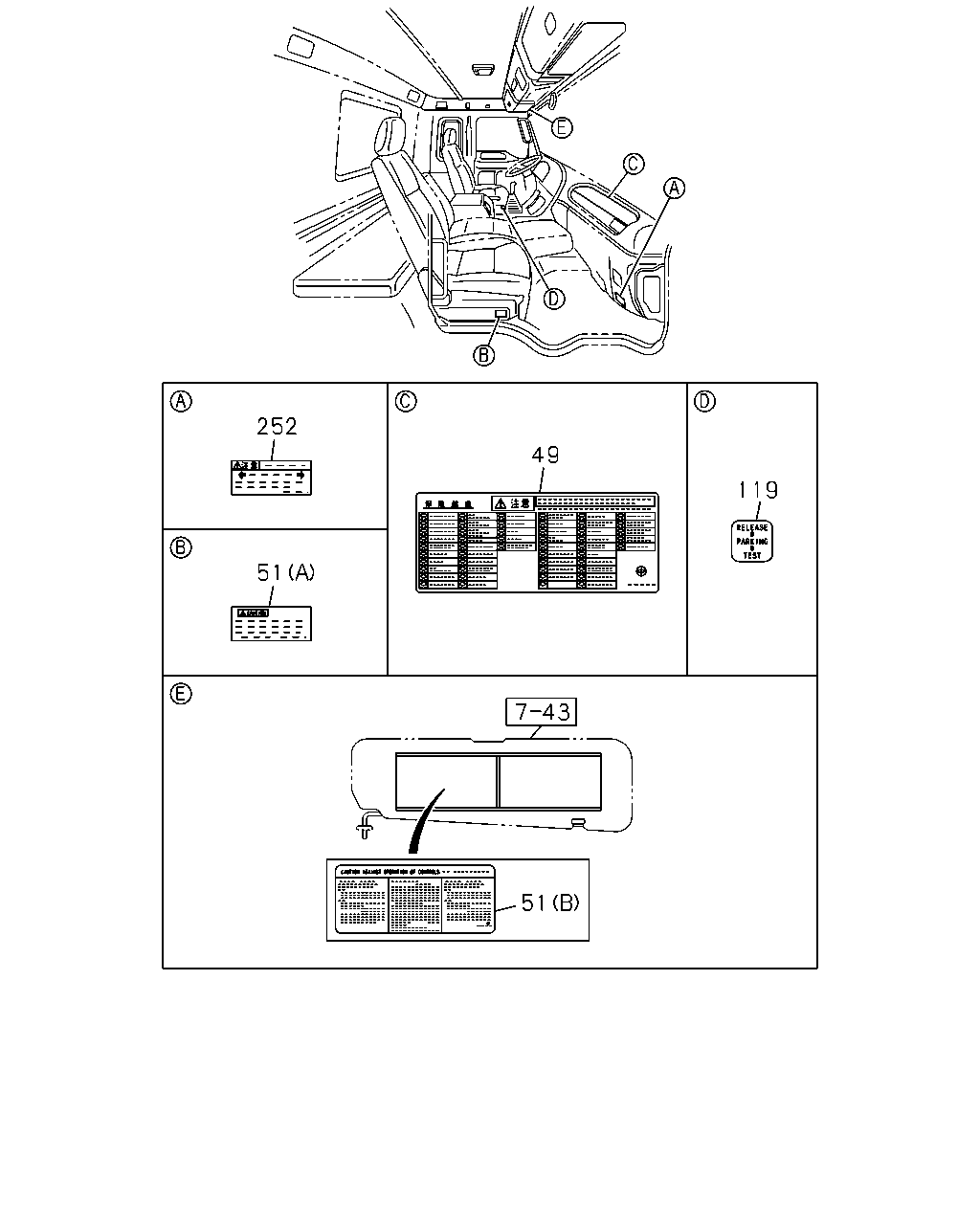

çizim 91660
252 49 119 51 51
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 8-97619-855-0 01 1 0611-
51 PLATE; CAUTION,WARNING
(A) 		1-85878-544-0 01 1 0611-
51 PLATE; CAUTION,WARNING
(B) 		1-85880-777-0 01 1 0611-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0611-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0611-
çizim 105307
6 6 5
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0611-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0611-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98082-437-0 01 1 0709-
çizim 105313
181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0611-
