Sayfa 8-45 - Isuzu EPC

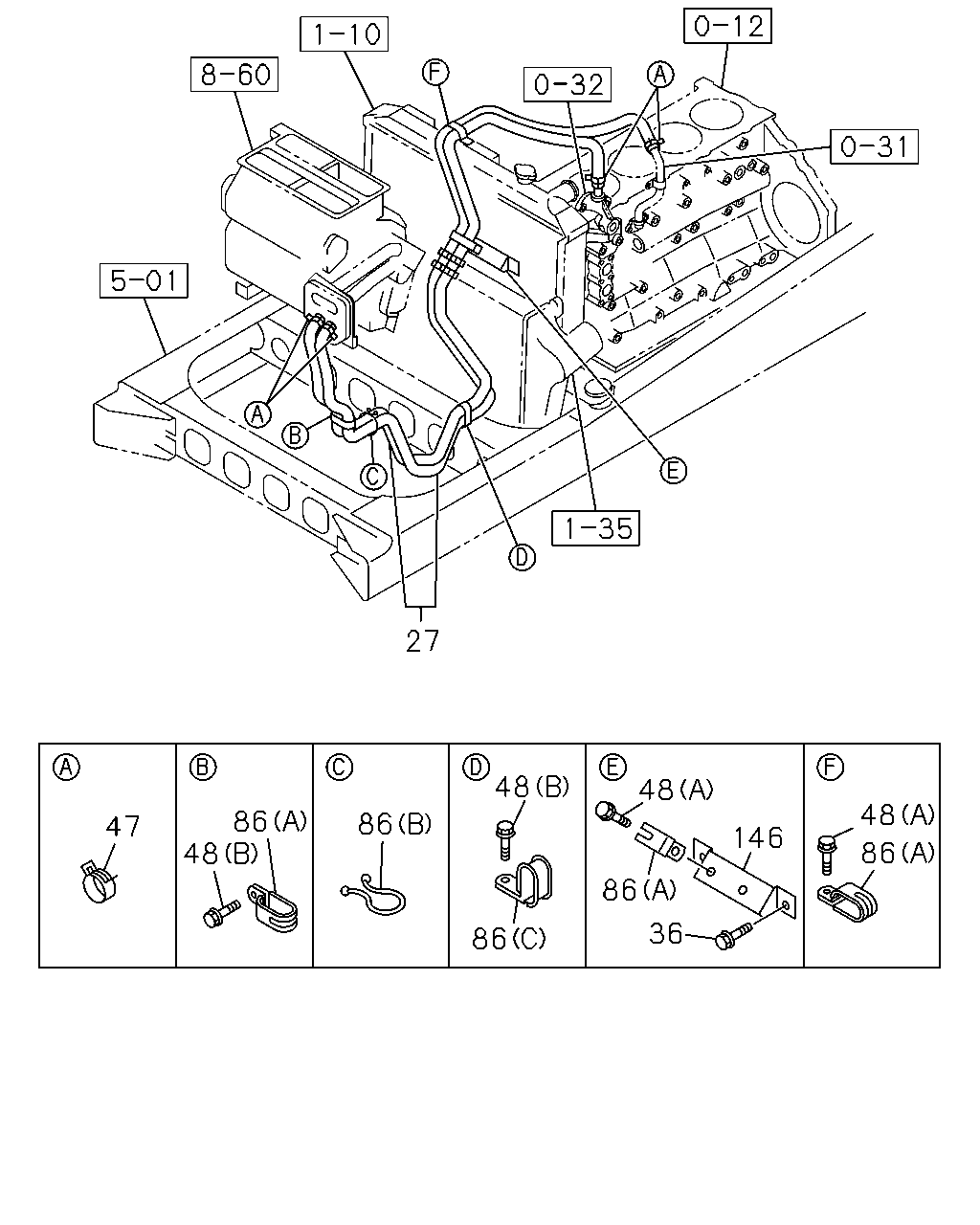

27 47 48 86 86 48 86 48 146 86 36 48 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98235-103-0	01	1	1311-	●	●
36	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1311-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	1311-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1311-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1311-	●	●
146	BRACKET; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98102-154-1	01	1	1311-	●	●

27 63 56 56 56 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98235-103-0	01	1	1311-	●	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1311-	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98238-213-0	01	1	1311-	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98238-214-0	01	1	1311-	●	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98238-215-0	01	1	1311-	●	●
