8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#130162) — 8 parça

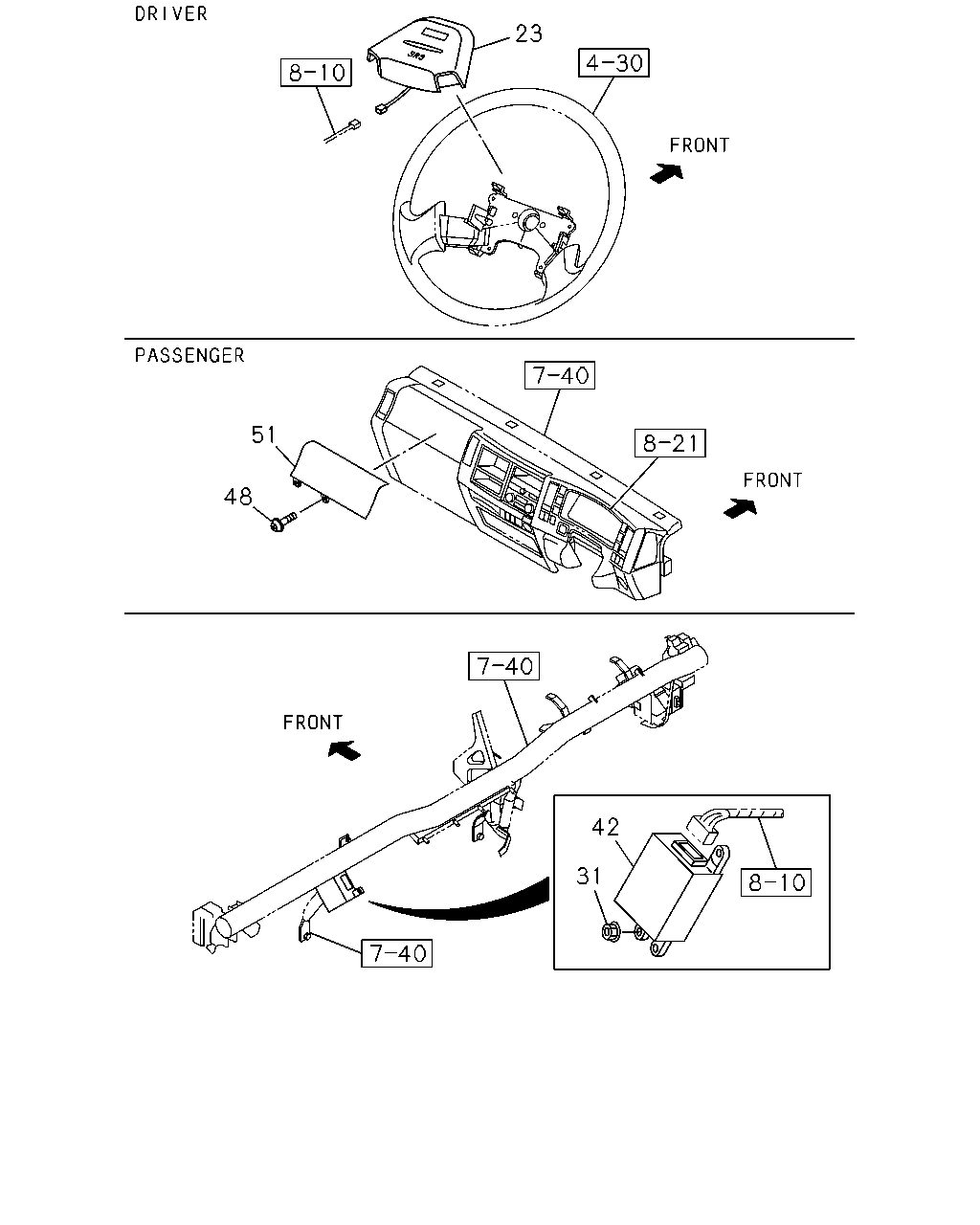

çizim 386647
23 51 48 42 31
BalonParca AdiParca NoAdetTipApplied Date A B
23 AIR BAG UNIT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97428-391-0 01 1 1412- ● ●
23 AIR BAG UNIT
DARK GRAY 		8-97423-999-1 01 1 1311-1411 ● ●
23 AIR BAG UNIT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97423-999-1 01 1 1412- ● ●
31 NUT
M6 FLANGE 		0-91180-106-0 03 1 1311- ● ●
42 CONTROL UNIT; SRS
AIR BAG DRIVER(AJ3) 		8-98120-070-2 01 1 1311- ● ●
42 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98120-071-2 01 1 1311- ● ●
48 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 1311- ● ●
51 AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-266-4 01 1 1311- ● ●
