◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#130159) — 29 parça

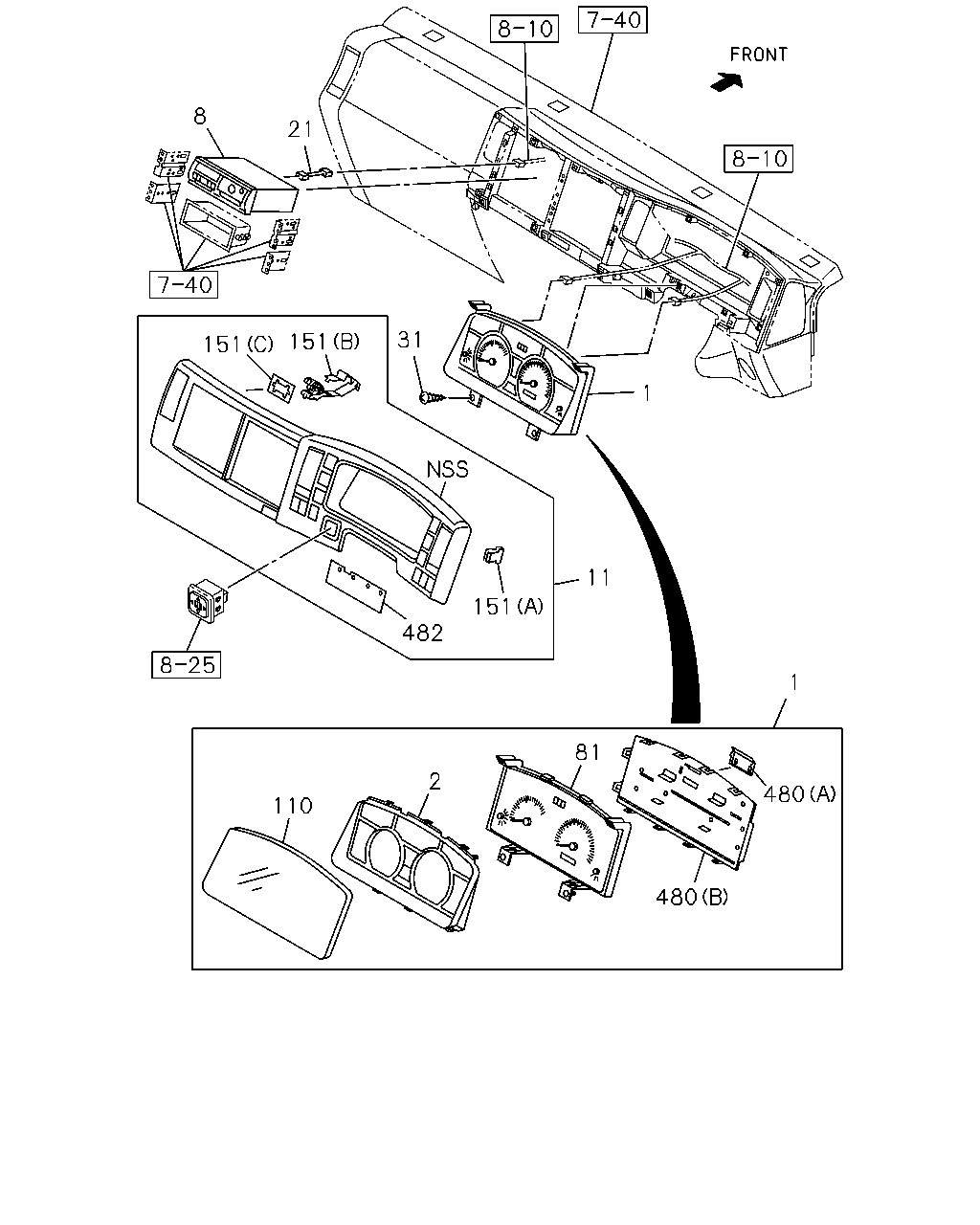

çizim 386878
1 11 1 31 21 8 151 151 151 482 81 2 110 480 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-718-2 01 1 1311-1503 ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-125-0 01 1 1504- ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98195-716-2 01 1 1311-1503 ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-123-0 01 1 1504- ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98195-717-2 01 1 1311-1503 ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-124-0 01 1 1504- ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98195-715-2 01 1 1311-1503 ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-122-0 01 1 1504- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1311- ● ●
8 TACHOGRAPH; CLUSTER METER 8-98204-004-0 01 1 1311- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-530-1 01 1 1311- ● ●
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98203-748-0 01 1 1311- ● ●
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-747-0 01 1 1311- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1311- ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-334-0 01 1 1311-1503 ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-129-0 01 1 1504- ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-332-0 01 1 1311-1503 ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-127-0 01 1 1504- ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-333-0 01 1 1311-1503 ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98308-128-0 01 1 1504- ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-331-0 01 1 1311-1503 ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-126-0 01 1 1504- ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1311- ● ●
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1311- ● ●
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1311- ● ●
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1311- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1311- ● ●
480 COVER; METER
(B) 		8-98151-362-0 01 1 1311- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1311- ● ●
