◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#130156) — 383 parça

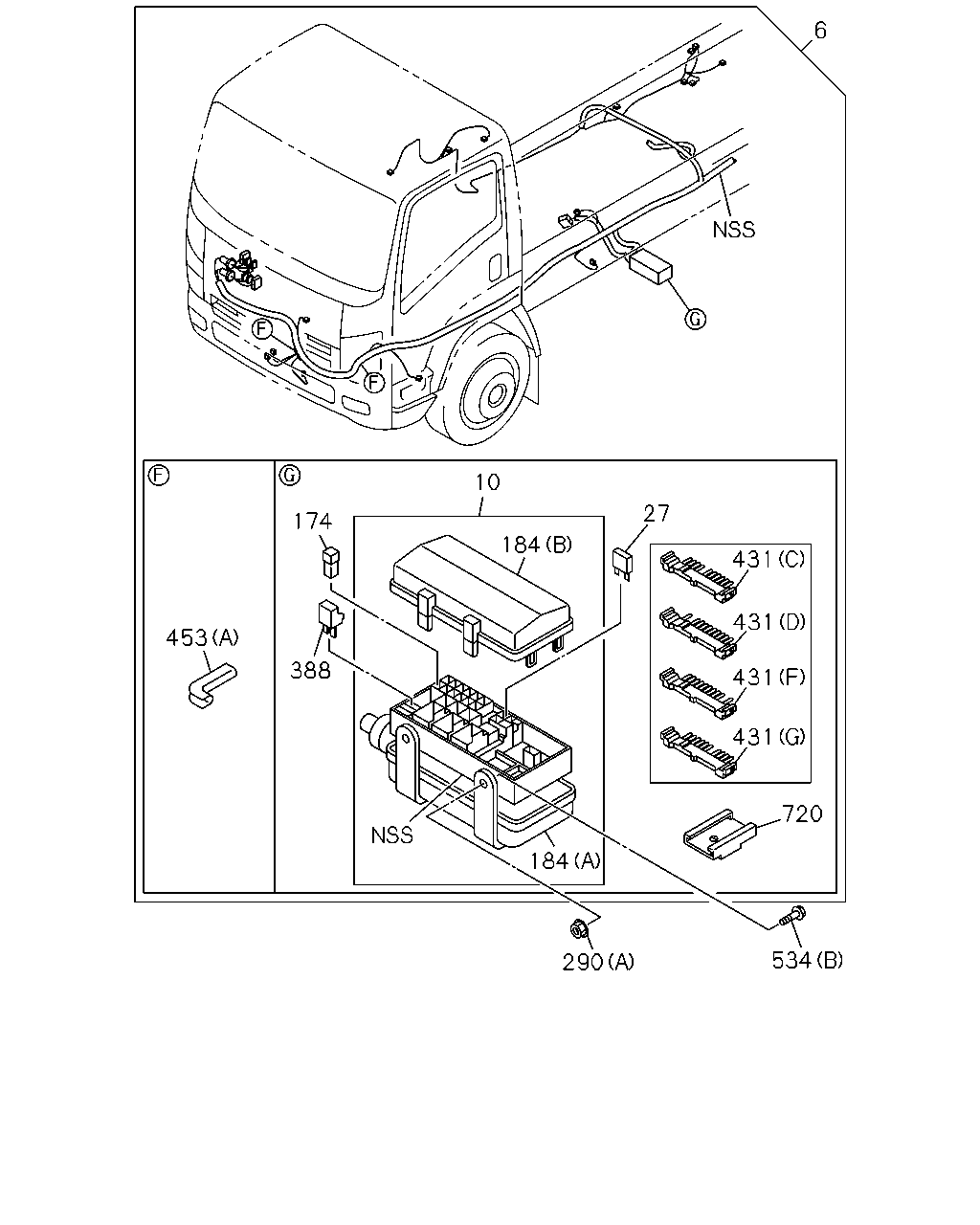

çizim 386168
6 10 174 453 388 184 184 27 431 431 431 431 720 534 290
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-864-3 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-865-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-860-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-861-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-862-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-863-3 01 1 1311- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1311- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1311- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1311- ● ●
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 01 1 1311- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1311- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1311- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1311- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1311- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1311- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1311- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1311- ● ●
290 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1311- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1311- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1311- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1311- ● ●
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 02 1 1311- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98042-155-0 01 1 1311- ●
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1311- ● ●
534 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1311- ● ●

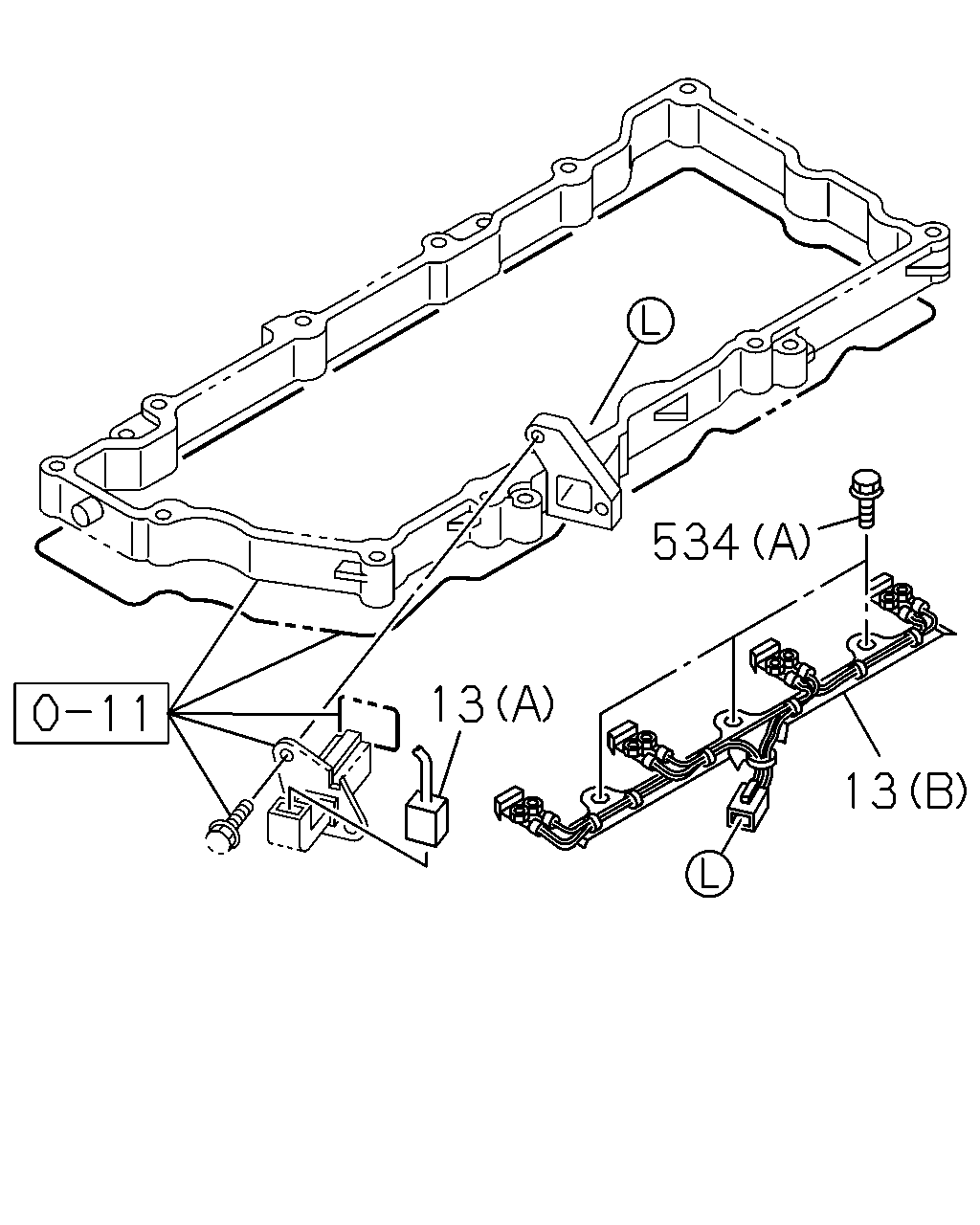

çizim 386194
13 534 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98212-304-4 01 1 1311- ● ●
13 HARNESS; ENG
(B) 		8-98120-924-0 01 1 1311- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98212-303-4 01 1 1311- ● ●
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1311- ● ●
534 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311- ● ●

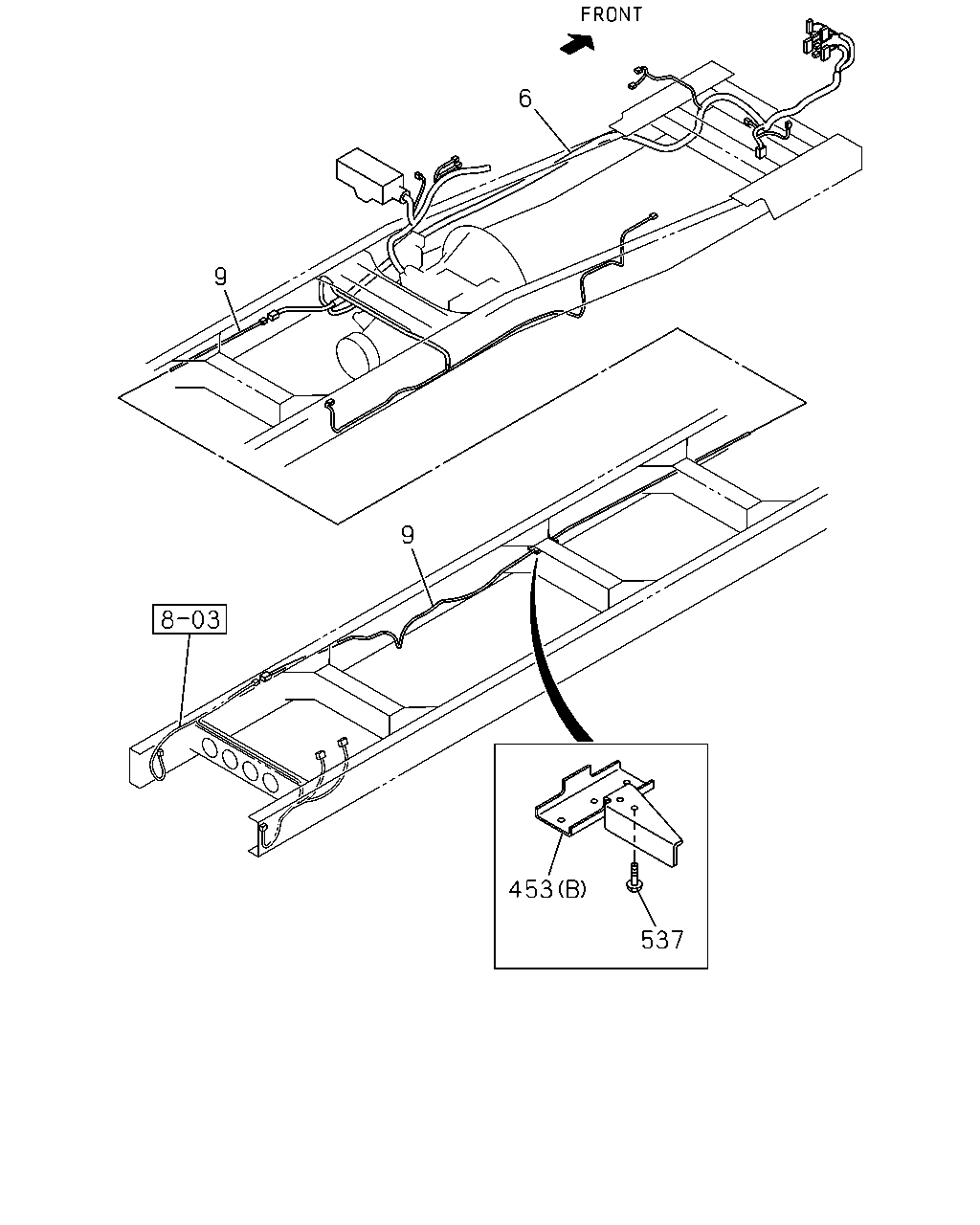

çizim 386305
6 9 9 537 453
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-864-3 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-865-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-860-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-861-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-862-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-863-3 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98223-765-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98223-769-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98224-006-0 01 1 1311- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98224-010-0 01 1 1311- ●
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 02 1 1311- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98042-155-0 01 1 1311- ●
537 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●

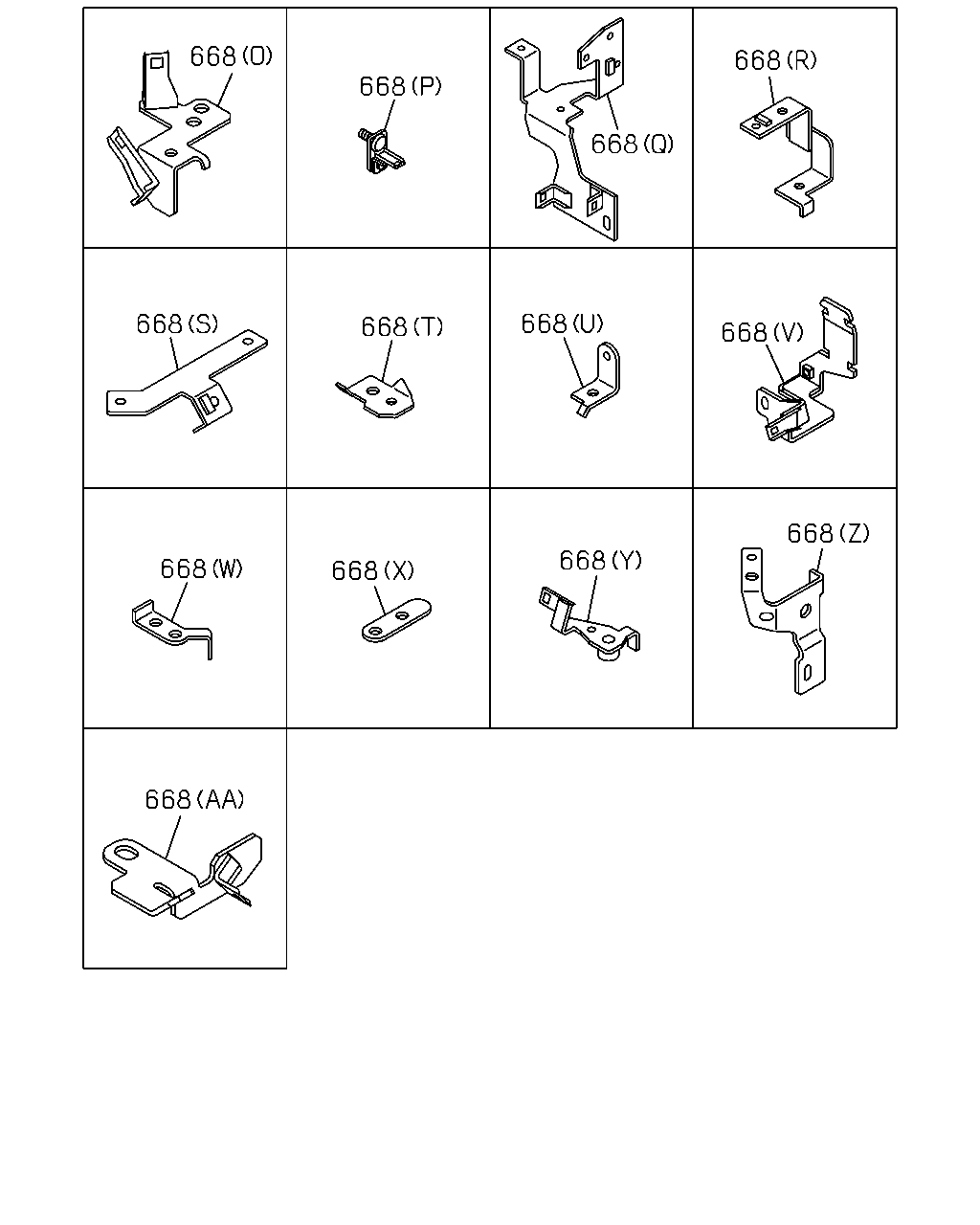

çizim 386615
668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(L) 		8-98147-490-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(W) 		8-98150-855-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(X) 		8-98161-100-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(Z) 		8-98242-475-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(S) 		8-98249-358-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(J) L=95 		1-82699-085-0 01 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1311-1502 ● ●
668 BRACKET; HARNESS
(AA) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(Q) 		8-98158-109-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(Y) 		8-98164-831-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(V) 		8-98207-041-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(R) 		8-98207-043-0 01 1 1311- ● ●
çizim 386617
479 431 431 431 431 431 479 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1311- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1311- ● ●
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1311- ● ●
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) 		1-82691-191-0 01 1 1311- ● ●

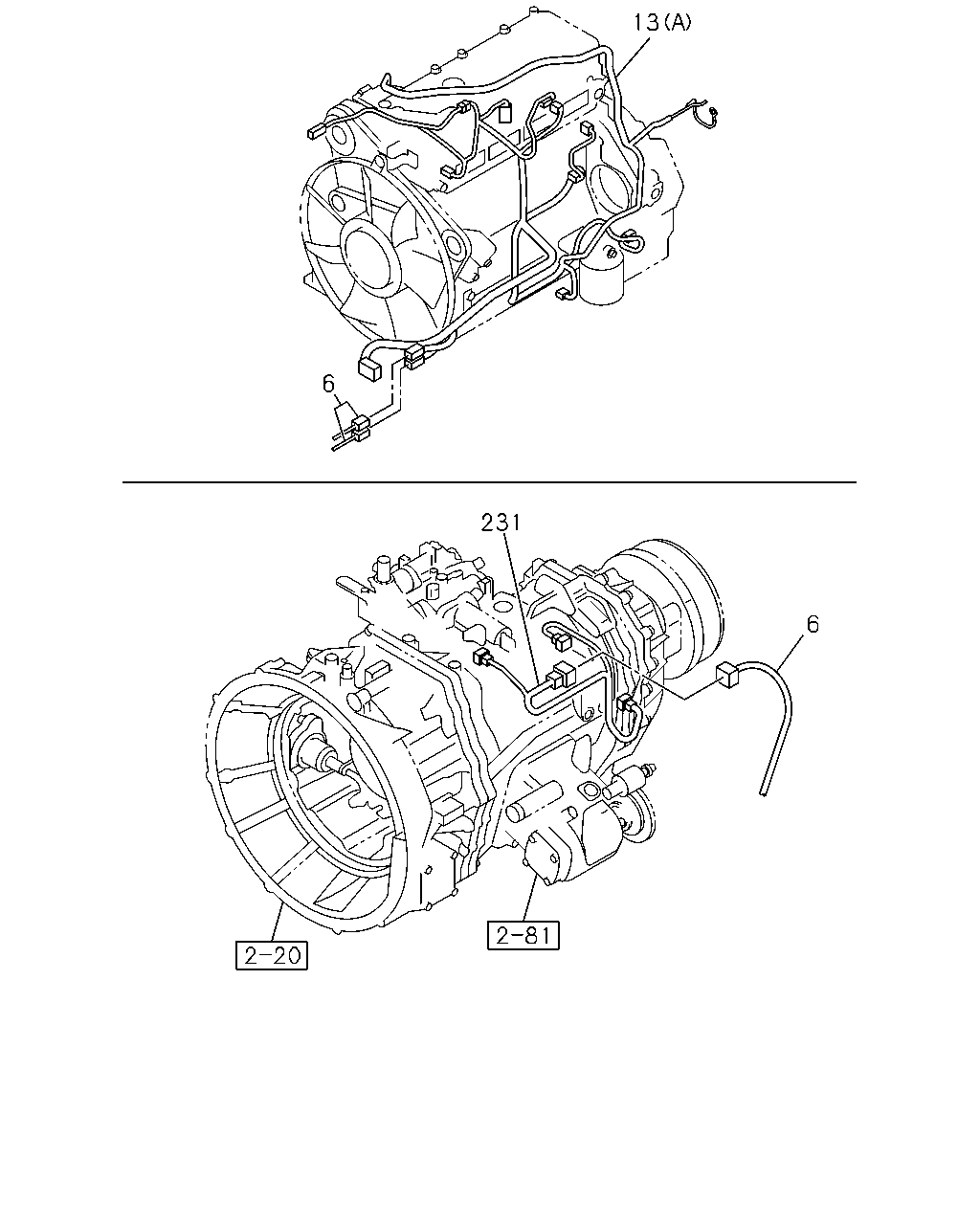

çizim 386702
6 231 6 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-864-3 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-865-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-860-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-861-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-862-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-863-3 01 1 1311- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98212-304-4 01 1 1311- ● ●
13 HARNESS; ENG
(B) 		8-98120-924-0 01 1 1311- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98212-303-4 01 1 1311- ● ●
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97620-317-3 01 1 1311- ● ●
231 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-728-1 01 1 1311- ● ●

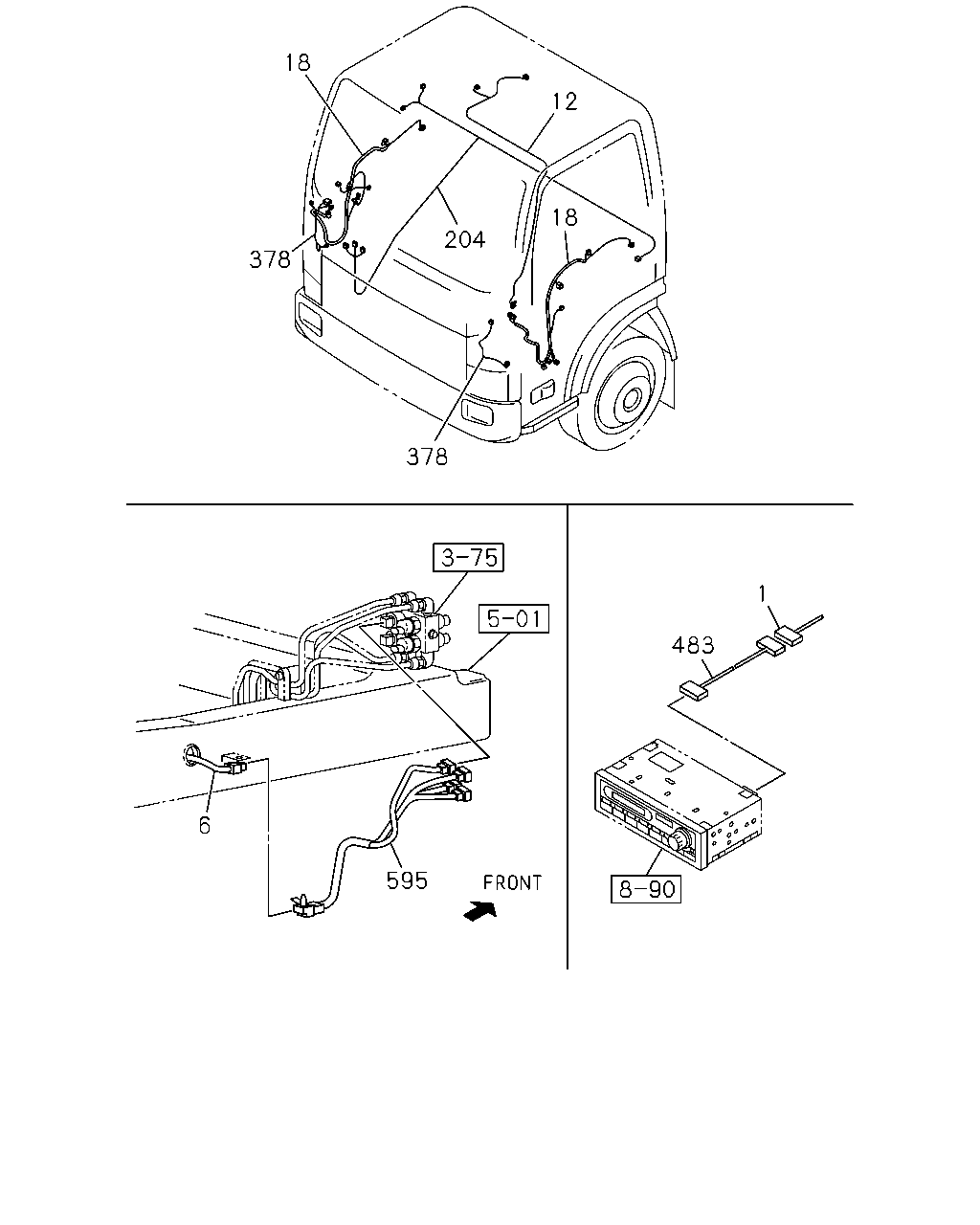

çizim 386736
1 483 6 595 378 378 204 18 12 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-024-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-022-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-025-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-023-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-864-3 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-865-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-860-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-861-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-862-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-863-3 01 1 1311- ●
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-071-1 01 1 1311- ● ●
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-247-0 01 1 1311- ● ●
18 HARNESS; DOOR 8-98084-283-3 01 1 1311- ● ●
18 HARNESS; DOOR 8-98084-288-3 01 1 1311- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-498-0 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-197-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-499-0 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-202-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-209-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-195-1 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-213-2 01 1 1311- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98084-200-2 01 1 1311- ●
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 1311- ● ●
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 1311- ● ●
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 1311- ● ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98251-241-0 01 1 1311- ● ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98251-240-0 01 1 1311- ● ●

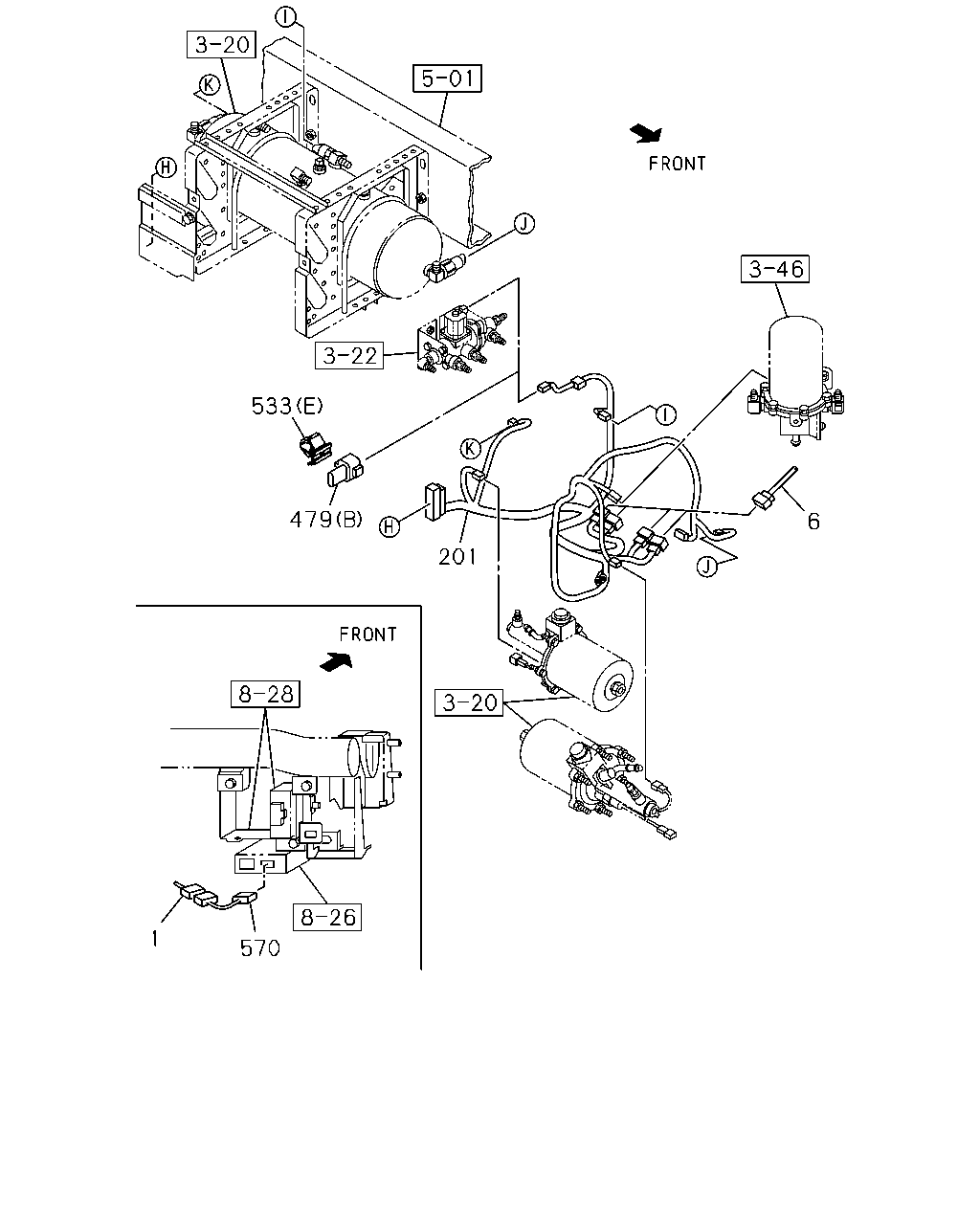

çizim 386775
570 1 201 479 533 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-024-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-022-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-025-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-023-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-864-3 01 1 1311- ●
6 HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-865-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-860-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-861-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-862-3 01 1 1311- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-863-3 01 1 1311- ●
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) 		8-98156-704-2 01 1 1311- ● ●
201 HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-705-2 01 1 1311- ● ●
479 CAP; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82690-667-0 01 1 1311- ● ●
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) 		1-82691-191-0 01 1 1311- ● ●

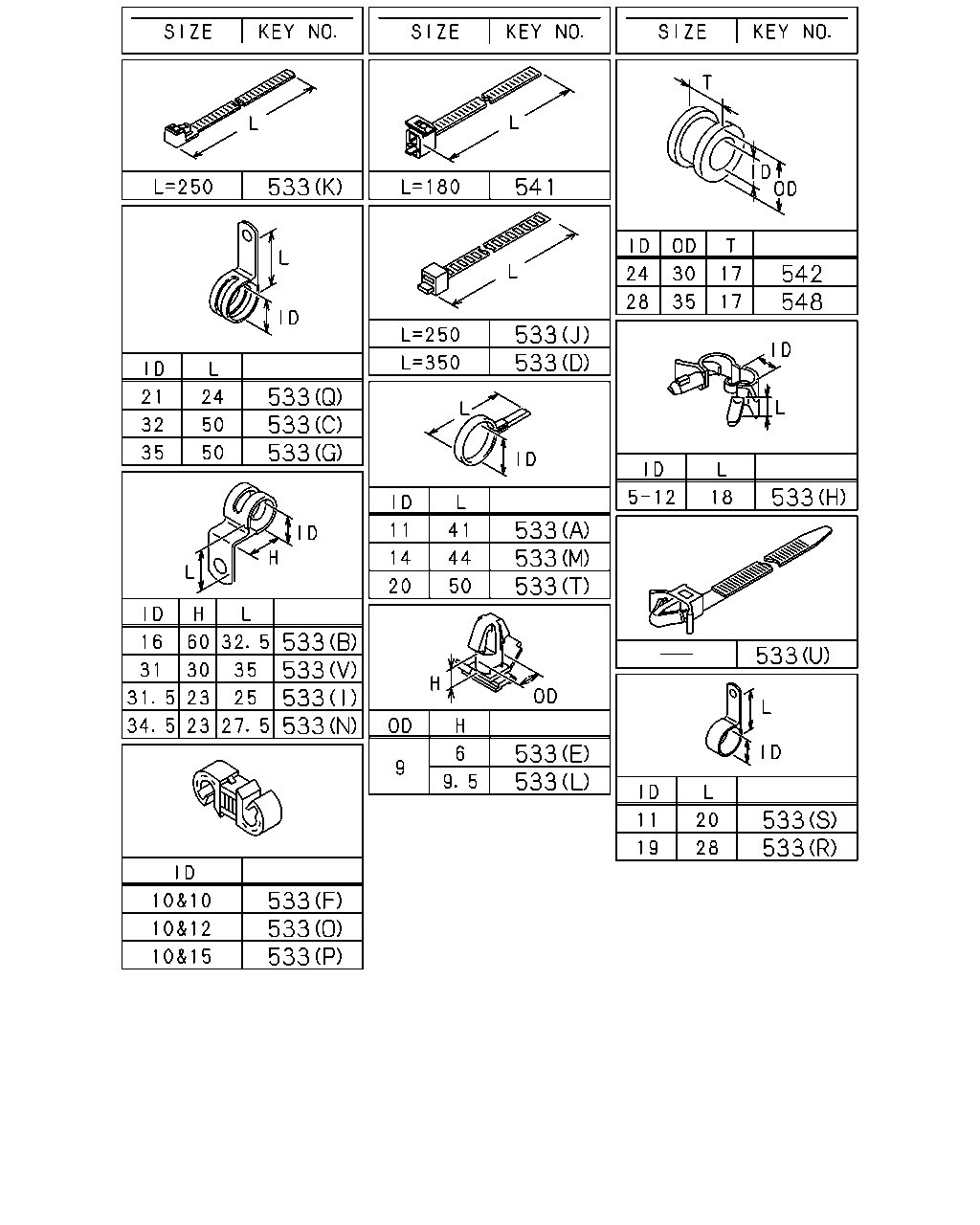

533 CLIP
(V) ID=31 H=30 L=35 		1-09700-994-0 02 1 1501- ● ●
533 CLIP
(U) L=112 		8-94232-618-0 03 1 1311- ● ●
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1311- ● ●
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1311- ● ●
533 CLIP
WHEEL BASE 4900MM(49W) (T) ID=20 L=50 		9-09917-430-0 15 1 1311- ●
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 02 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1311- ● ●
533 CLIP
WHEEL BASE 5300MM(53W) (T) ID=20 L=50 		9-09917-430-0 16 1 1311- ●
533 CLIP
(N) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1311- ●
533 CLIP
(B) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
(S) ID=11 L=20 		0-95235-035-0 02 1 1311- ●
533 CLIP
(R) ID=19 L=28 		0-95235-856-0 02 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 02 1 1311- ●
533 CLIP
(Q) ID=21 L=24 		8-94176-807-1 03 1 1311- ●
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
(G) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1311- ● ●
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1311- ● ●
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1311- ● ●
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 03 1 1311- ● ●
533 CLIP
(O) ID=10 & 12 		1-09709-278-1 01 1 1311- ● ●
533 CLIP
(P) ID=10 & 15 		1-09709-279-1 01 1 1311- ● ●
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 01 1 1311- ● ●
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1311- ● ●
533 CLIP
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 09 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=32 L=50 		1-09701-055-1 01 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1311- ●
570 HARNESS; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98058-327-1 01 1 1311- ● ●
570 HARNESS; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98091-562-0 01 1 1311- ● ●

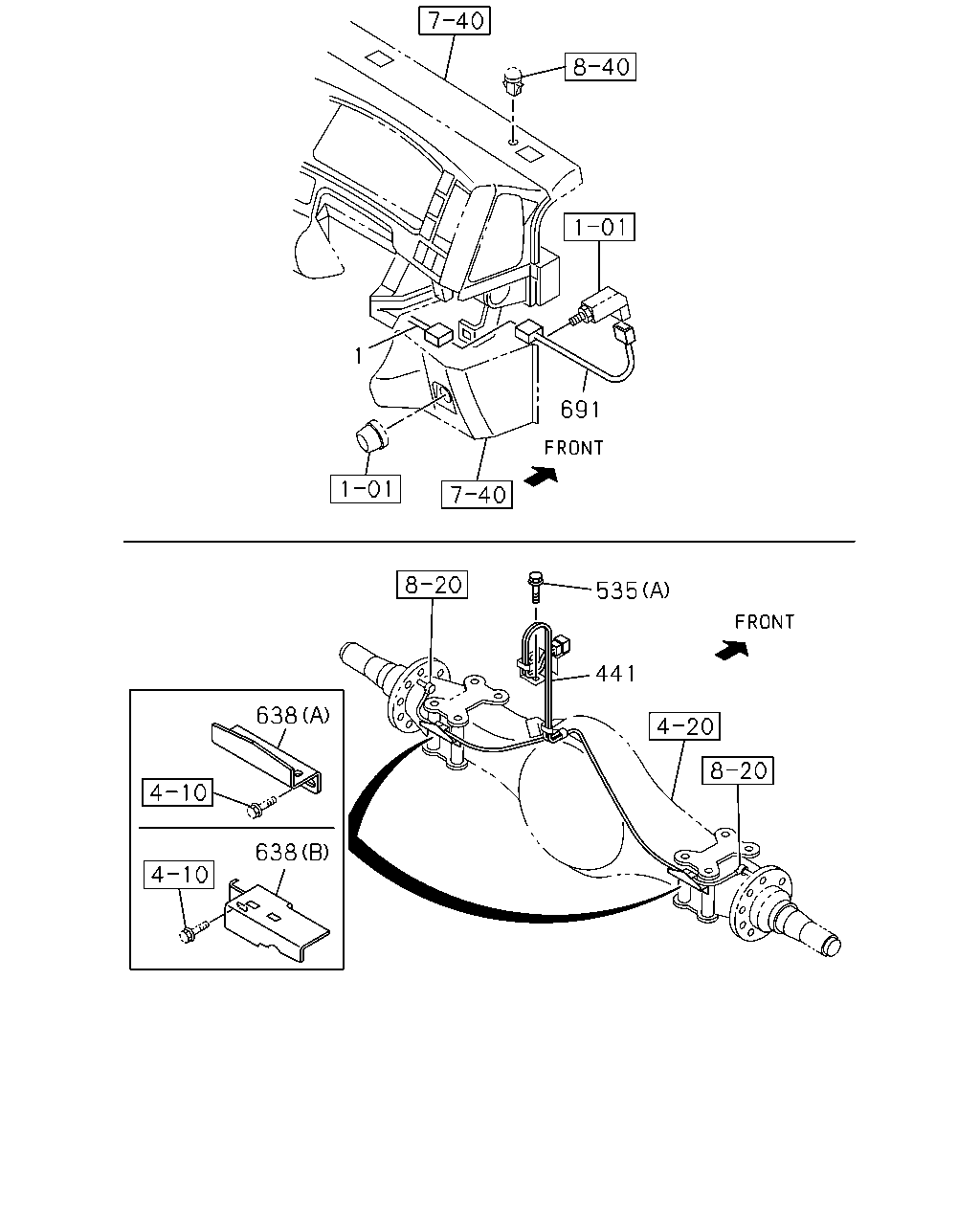

çizim 386812
691 1 535 441 638 638
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-024-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-022-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-025-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-023-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1311- ●
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
535 BOLT; BRKT FIX
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1311- ●
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
535 BOLT; BRKT FIX
(E) M14X35 FLANGE 		0-28851-435-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1311- ● ●

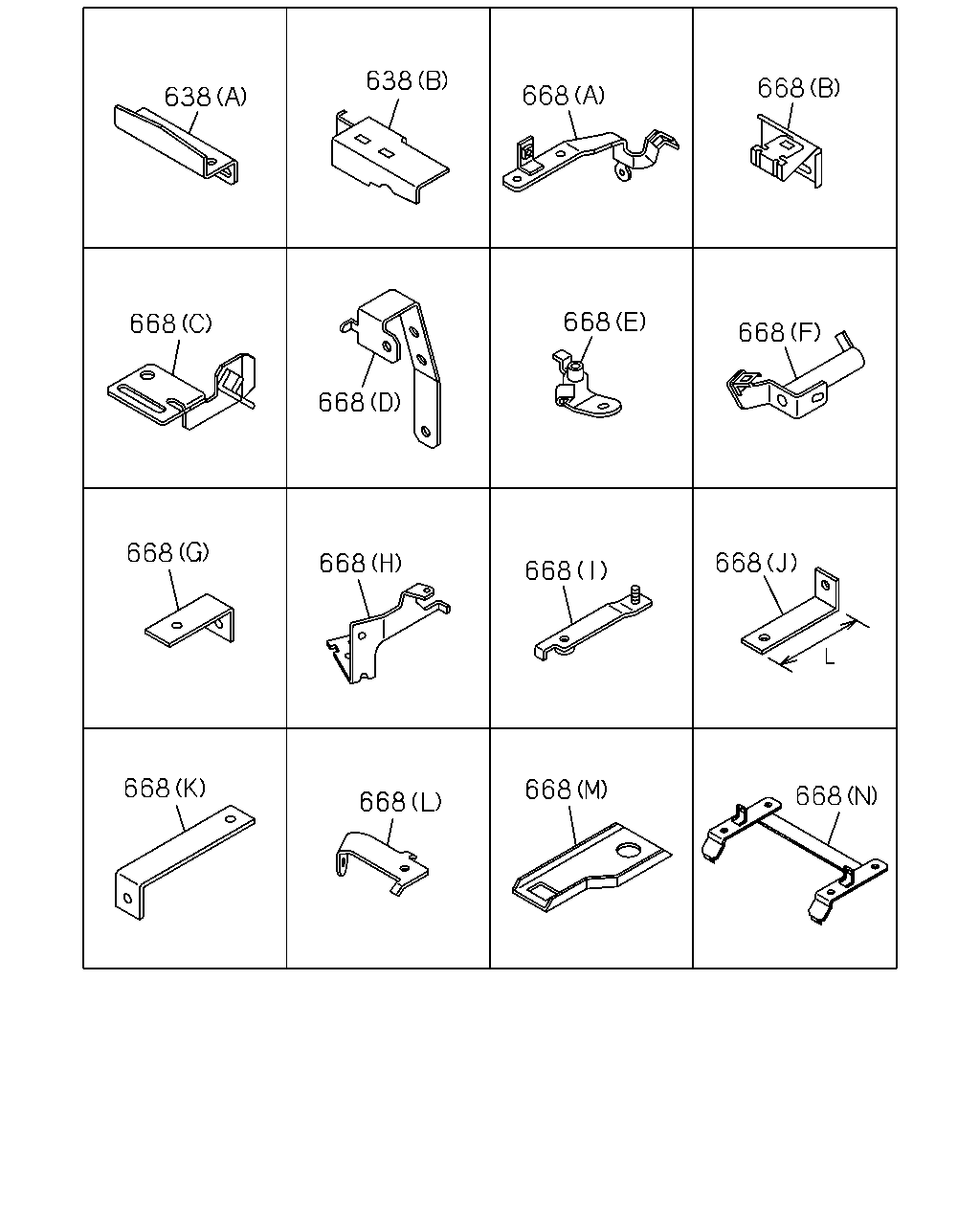

638 BRACKET; SPD SENSOR
(B) 		8-98012-539-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(B) 		8-98012-540-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(A) 		8-98012-580-1 02 1 1311- ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1311- ● ●

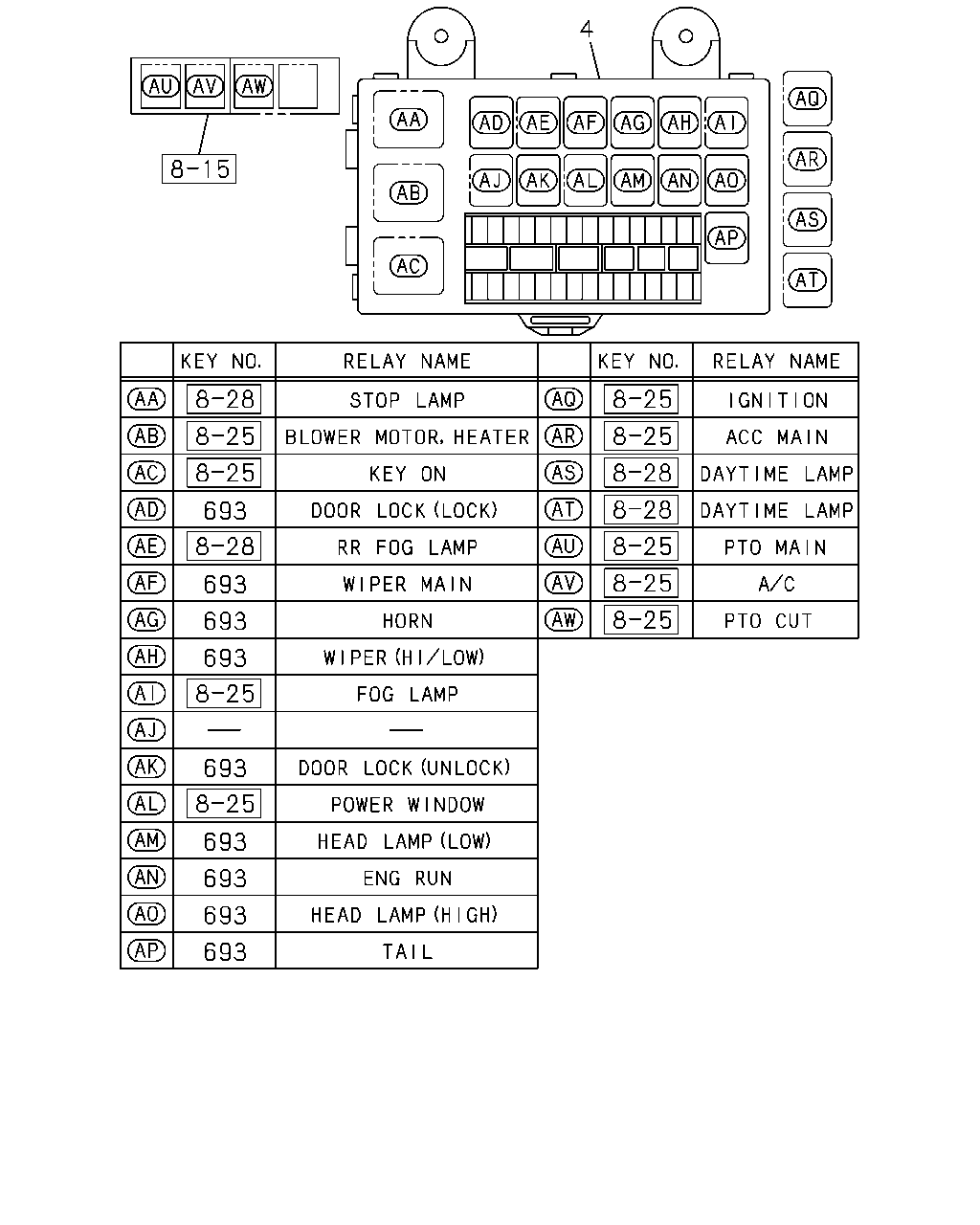

çizim 386814
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1311- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ●
çizim 386856
102 680 680 534 102 535 28 102 267 535 639 267 534 537 639 267 535 639 267 535 280 290 293 295 525 538 640 290 534 535
BalonParca AdiParca NoAdetTipApplied Date A B
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1311- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1311- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
(B) M10X100 FLANGE 		0-28151-000-0 01 1 1311- ● ●
267 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1311- ●
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1311- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1311- ● ●
290 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1311- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1311-1412 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1501- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1501- ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
534 BOLT
(A) M10X70 FLANGE 		0-28151-070-0 03 1 1311- ● ●
534 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1311- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311- ● ●
535 BOLT; BRKT FIX
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
535 BOLT; BRKT FIX
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1311- ●
535 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
535 BOLT; BRKT FIX
(E) M14X35 FLANGE 		0-28851-435-0 01 1 1311- ● ●
535 BOLT; BRKT FIX
(A) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1311- ● ●
537 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
538 NUT
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
639 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1501- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1311- ●
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1311- ● ●
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1311- ● ●
640 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1311- ●
680 BOLT; ENG HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1311-1311 ● ●
680 BOLT; ENG HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
680 BOLT; ENG HARNESS
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ● ●
680 BOLT; ENG HARNESS
GENERATOR 24V90A(K44) (A) M8X12 FLANGE 		0-28050-812-0 01 1 1311- ● ●

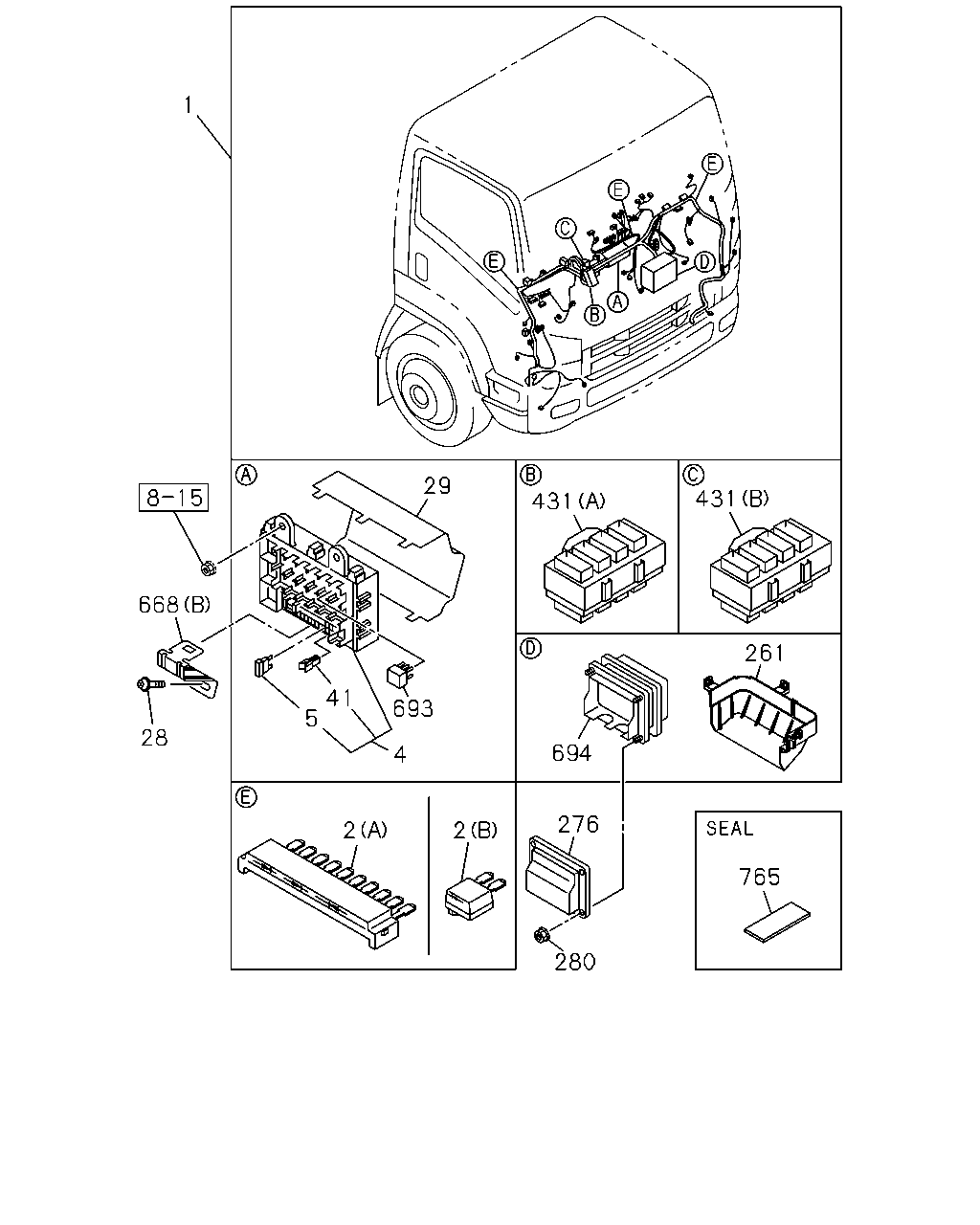

çizim 386893
765 280 276 2 2 28 668 5 4 41 693 694 261 431 431 29 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-024-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-022-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-025-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-023-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-020-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-018-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-021-1 01 1 1311- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-019-1 01 1 1311- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1311- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 1311- ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1311- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1311- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1311- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1311- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1311- ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1311- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1311- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1311- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1311- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1311- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1311- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1311- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 03 1 1311- ● ●
431 CONNECTOR; JOINT
(E) 6P LIGHT GRAY 		8-97616-195-0 01 1 1311- ● ●
431 CONNECTOR; JOINT
(H) 10P LIGHT GRAY 		8-97616-198-0 03 1 1311- ● ●
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(L) 		8-98147-490-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(W) 		8-98150-855-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(X) 		8-98161-100-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(Z) 		8-98242-475-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(S) 		8-98249-358-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(J) L=95 		1-82699-085-0 01 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1311-1502 ● ●
668 BRACKET; HARNESS
(AA) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(Q) 		8-98158-109-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(Y) 		8-98164-831-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(V) 		8-98207-041-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(R) 		8-98207-043-0 01 1 1311- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1311- ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1311- ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ●
çizim 386896
533 533 533 533 533 533 533 533 533 533 533 541 533 533 533 533 533 533 533 542 548 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
(V) ID=31 H=30 L=35 		1-09700-994-0 02 1 1501- ● ●
533 CLIP
(U) L=112 		8-94232-618-0 03 1 1311- ● ●
533 CLIP
(D) L=350 		1-09707-183-0 01 1 1311- ● ●
533 CLIP
PTO CONTROL<SV6> (D) L=350 		1-09707-183-0 01 1 1311- ● ●
533 CLIP
WHEEL BASE 4900MM(49W) (T) ID=20 L=50 		9-09917-430-0 15 1 1311- ●
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 02 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1311- ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1311- ● ●
533 CLIP
WHEEL BASE 5300MM(53W) (T) ID=20 L=50 		9-09917-430-0 16 1 1311- ●
533 CLIP
(N) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (N) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1311- ●
533 CLIP
(B) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=35 L=50 		1-09701-214-0 01 1 1311- ●
533 CLIP
(S) ID=11 L=20 		0-95235-035-0 02 1 1311- ●
533 CLIP
(R) ID=19 L=28 		0-95235-856-0 02 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 02 1 1311- ●
533 CLIP
(Q) ID=21 L=24 		8-94176-807-1 03 1 1311- ●
533 CLIP
(E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1311- ● ●
533 CLIP
(G) ID=16 H=60 L=32.5 		1-09700-214-0 01 1 1311- ● ●
533 CLIP
(J) L=250 		1-09707-126-0 02 1 1311- ● ●
533 CLIP
(L) OD=9 H=9.5 		1-09709-179-0 01 1 1311- ● ●
533 CLIP
(F) ID=10 & 10 		1-09709-277-1 03 1 1311- ● ●
533 CLIP
(O) ID=10 & 12 		1-09709-278-1 01 1 1311- ● ●
533 CLIP
(P) ID=10 & 15 		1-09709-279-1 01 1 1311- ● ●
533 CLIP
(H) ID=5-12 L=18 		1-09709-287-0 01 1 1311- ● ●
533 CLIP
(M) ID=14 L=44 		9-09917-427-0 01 1 1311- ● ●
533 CLIP
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 09 1 1311- ●
533 CLIP
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 16 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1311- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=32 L=50 		1-09701-055-1 01 1 1311- ●
533 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1311- ●
541 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180 		1-09707-162-1 01 1 1311- ● ●
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 01 1 1311- ● ●
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1311- ● ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 03 1 1311- ● ●
çizim 386917
638 638 668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
638 BRACKET; SPD SENSOR
(B) 		8-98012-539-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(B) 		8-98012-540-0 01 1 1311- ●
638 BRACKET; SPD SENSOR
(A) 		8-98012-580-1 02 1 1311- ●
668 BRACKET; HARNESS
(F) 		8-98126-636-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(H) 		8-98126-637-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(I) 		8-98126-638-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(L) 		8-98147-490-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(T) 		8-98147-491-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(U) 		8-98150-334-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(W) 		8-98150-855-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(X) 		8-98161-100-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(Z) 		8-98242-475-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(S) 		8-98249-358-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(D) 		8-97619-097-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(J) L=95 		1-82699-085-0 01 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(K) L=145 		1-47475-655-0 02 1 1311- ●
668 BRACKET; HARNESS
(G) L=55 		1-47475-304-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(M) 		1-82698-569-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(C) 		8-97616-305-0 01 1 1311-1502 ● ●
668 BRACKET; HARNESS
(AA) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(N) 		8-98047-276-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(A) 		8-98126-634-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(E) 		8-98126-635-2 01 1 1311- ● ●
668 BRACKET; HARNESS
(Q) 		8-98158-109-1 01 1 1311- ● ●
668 BRACKET; HARNESS
(Y) 		8-98164-831-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(O) 		8-98168-184-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(P) 		8-98171-607-0 02 1 1311- ● ●
668 BRACKET; HARNESS
(V) 		8-98207-041-0 01 1 1311- ● ●
668 BRACKET; HARNESS
(R) 		8-98207-043-0 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
