◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#130146) — 127 parça

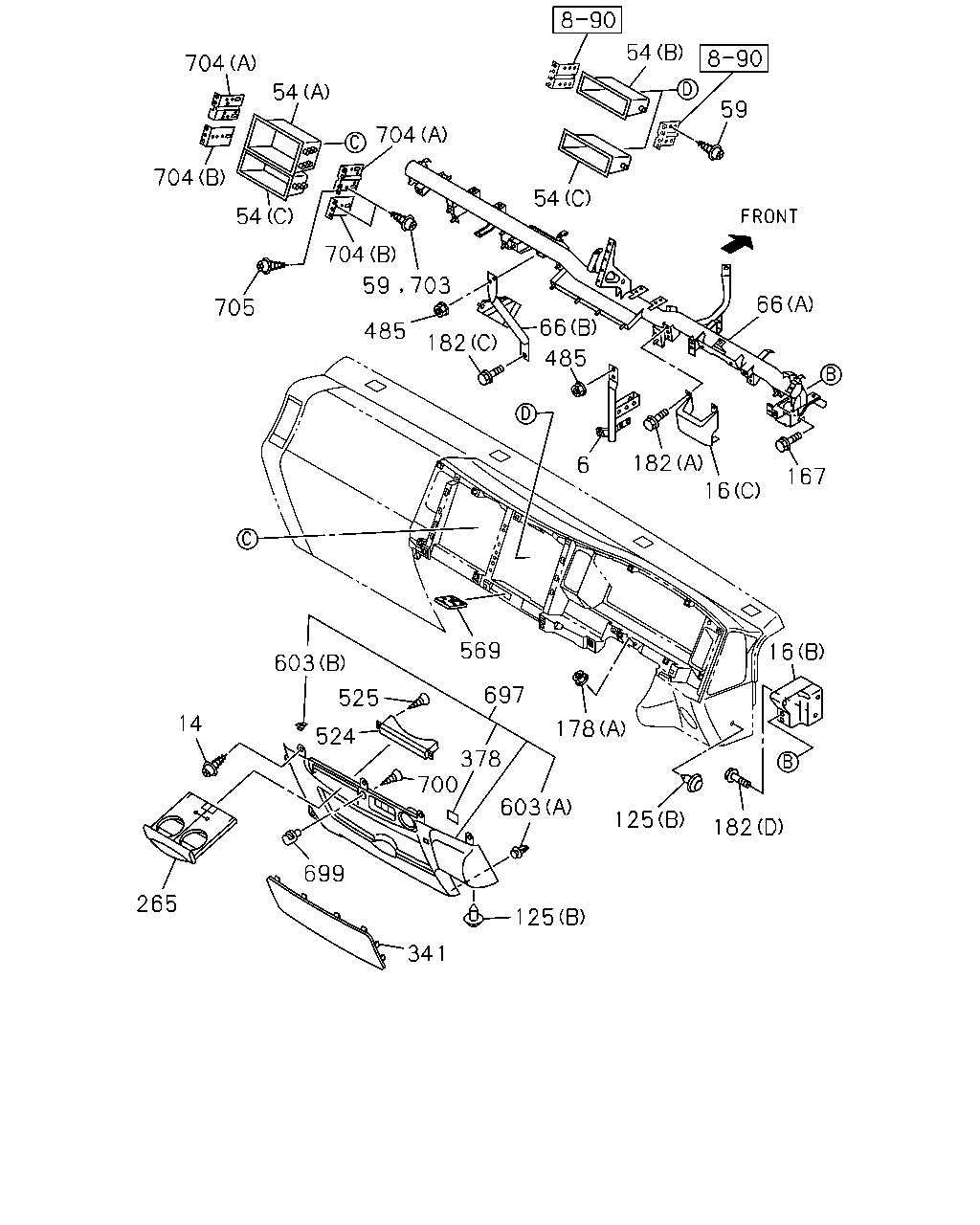

çizim 386157
704 704 54 54 704 704 705 59 703 485 182 66 54 54 59 66 485 182 16 167 6 16 182 125 178 697 569 378 603 125 341 700 699 265 14 524 525 603
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1311- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1311- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1311- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 1311- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1311- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1311- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1311- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1311- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1311- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1311- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98170-401-0 01 1 1311-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98240-605-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1311- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-399-0 01 1 1311-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1311- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1311- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1311- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1311- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1311- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1311- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1311- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1311- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1311- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1311- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1311- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1311- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1311- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1311- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1311- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1311- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1311- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1311- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1311- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1311- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1311- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1311- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1311- ● ●

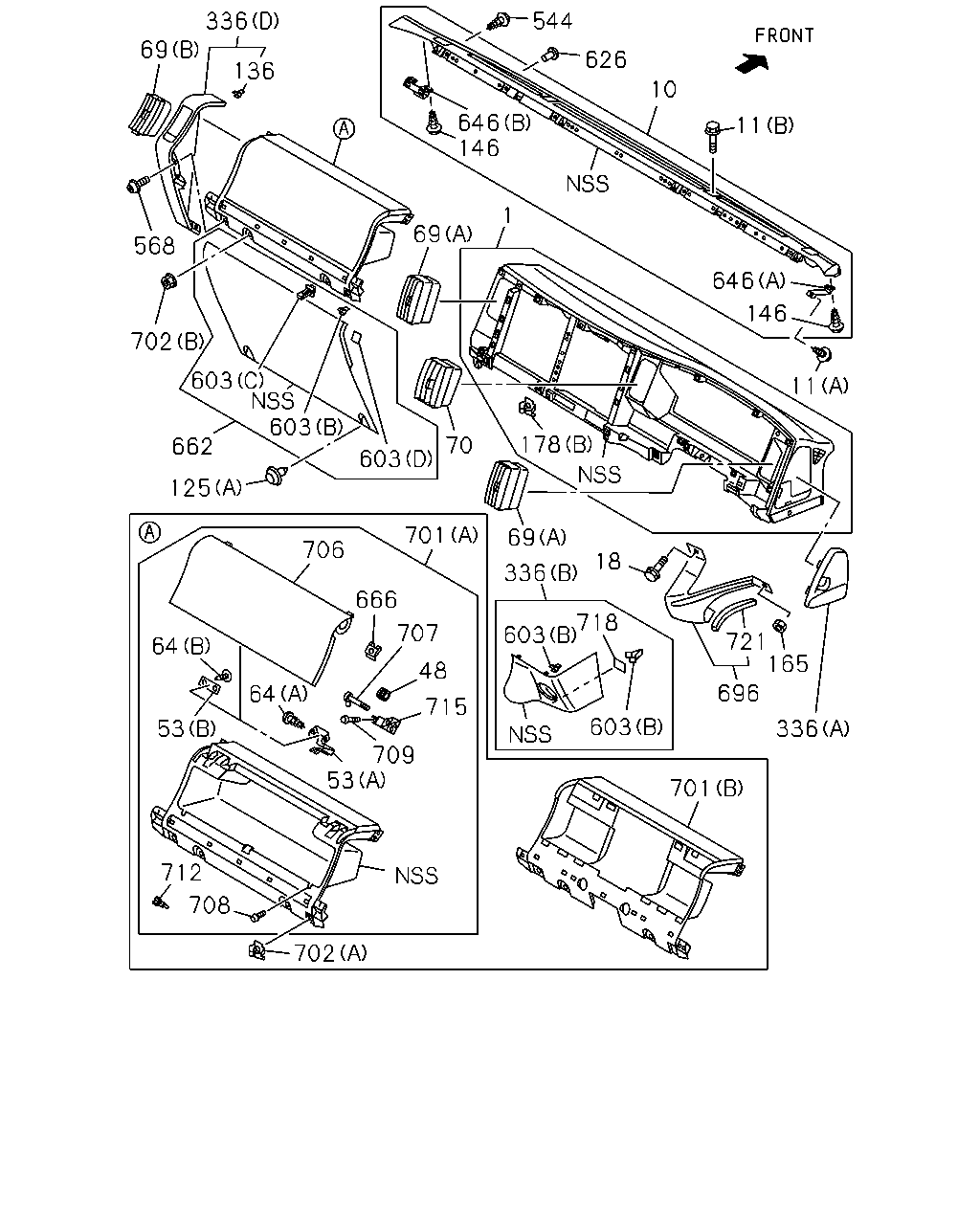

çizim 386250
336 136 69 568 702 603 603 662 125 64 53 712 702 702 53 64 709 715 48 707 666 706 603 701 69 336 18 603 718 603 701 336 696 721 165 178 70 69 146 646 1 626 544 10 11 646 146 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1311- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1311- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1311- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1311- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1311- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1311-1311 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1311-1311 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1311-1405 ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1311-1405 ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1311- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1311- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1311- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1311- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1311- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1311- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1311- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1311- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1311- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1311- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1311- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1311- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1311- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1311- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1311- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1311- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1311- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1311- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1311- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1311- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1311- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1311- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1311- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1311-1311 ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1311- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1311- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1311-1405 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1311- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1311- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1311-1405 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1311-1311 ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1311- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1311- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1311- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1311-1311 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1311-1311 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1311- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1311- ● ●

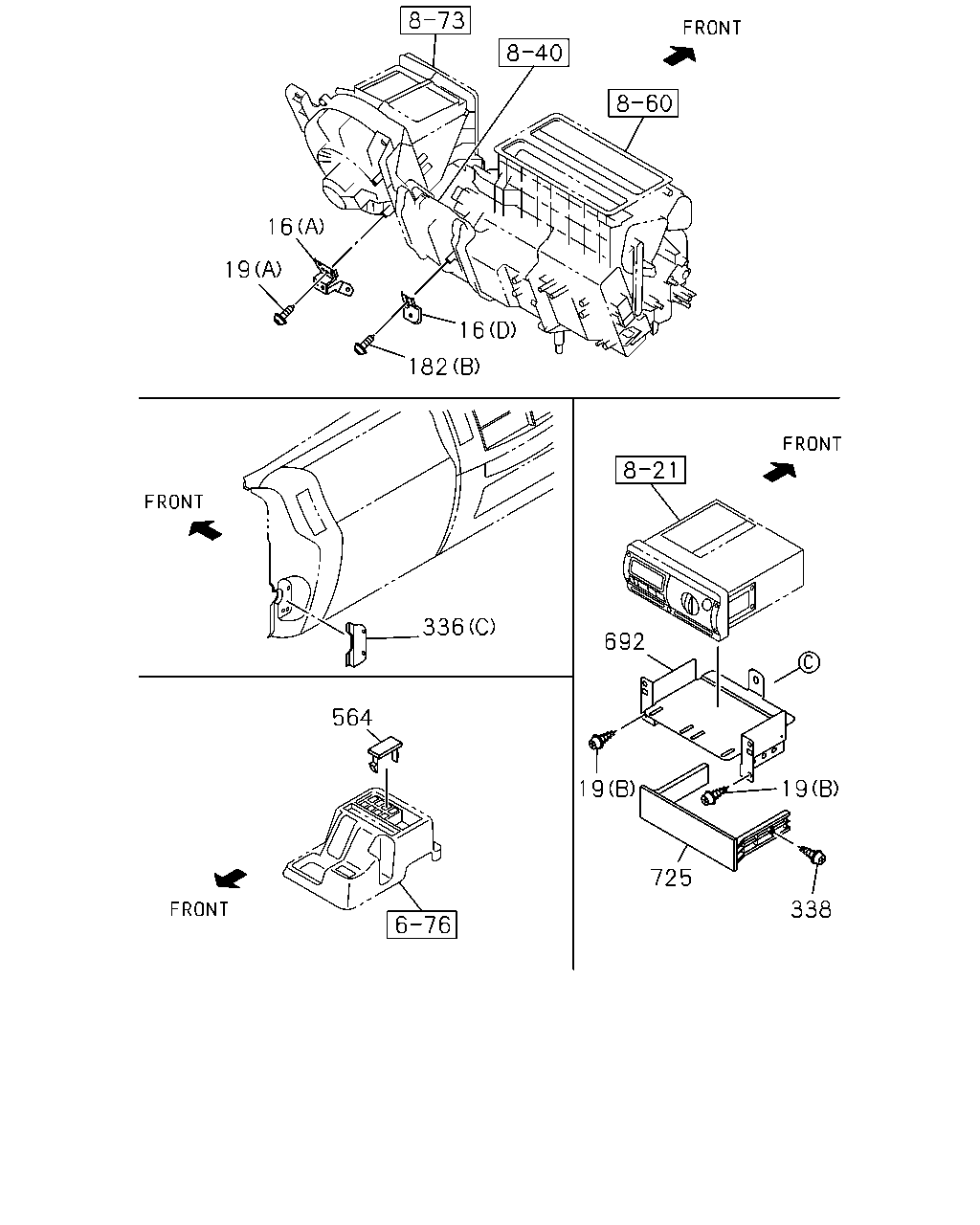

çizim 386767
16 19 182 16 692 19 338 725 19 336 564
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1311- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 1311- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1311- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1311- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1311- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ●
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1311- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1311- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1311- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1311- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1311- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1311- ● ●
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311- ● ●
564 COVER; SW 8-97043-732-1 06 1 1311- ● ●
692 BRACKET; TACHOGRAPH 8-98094-271-0 01 1 1311- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1311- ● ●
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1311- ● ●
