◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#130144) — 105 parça

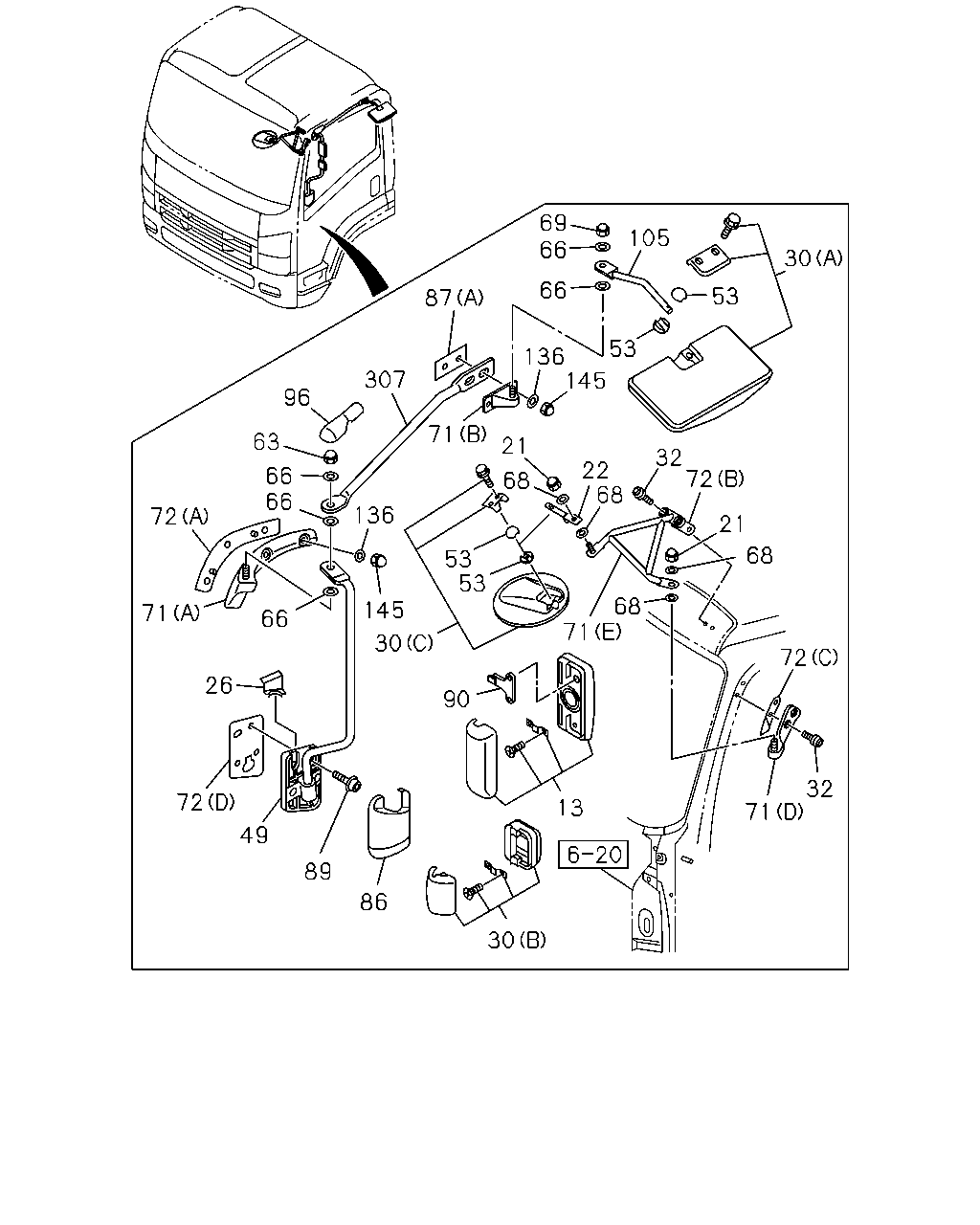

çizim 386058
72 71 26 72 49 89 86 66 66 63 66 96 136 145 30 90 30 13 71 53 53 71 307 87 136 21 68 22 68 32 72 21 68 72 32 71 53 30 105 69 66 66 53 145 68
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1311- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1311- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1311- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1311- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1311- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1311- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1311-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1311- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1311- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1311- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1311- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1311- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1311- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1311- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1311- ● ●
72 SHEET
(B) 		8-98060-245-1 01 1 1311- ● ●
72 SHEET
(C) 		8-98064-776-0 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1311- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1311- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1311- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1311- ● ●
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1311- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1311- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1311- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1311- ● ●

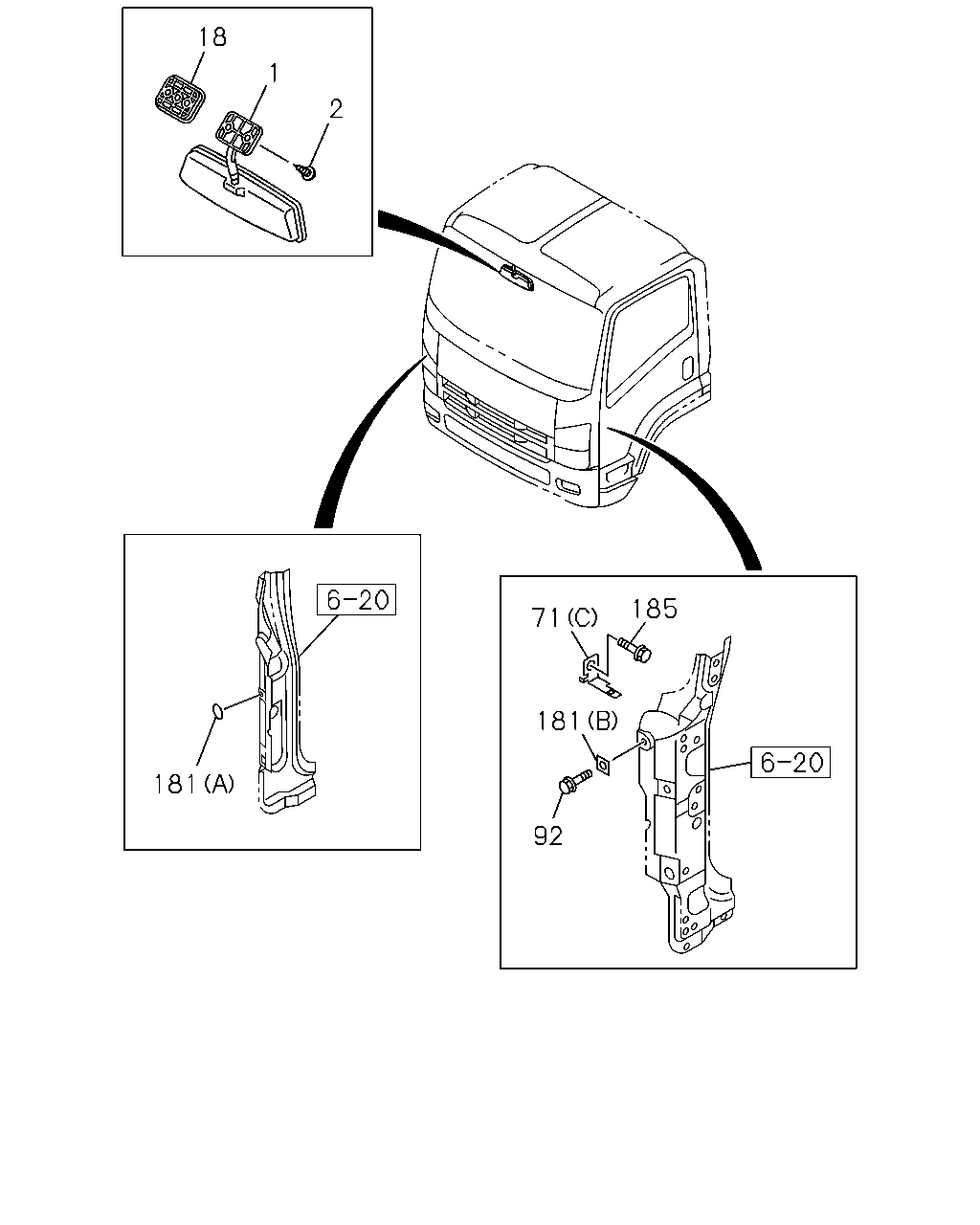

çizim 386124
18 181 1 2 71 181 92 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 1311- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 1311- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1311- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1311- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1311- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1311- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1311- ● ●

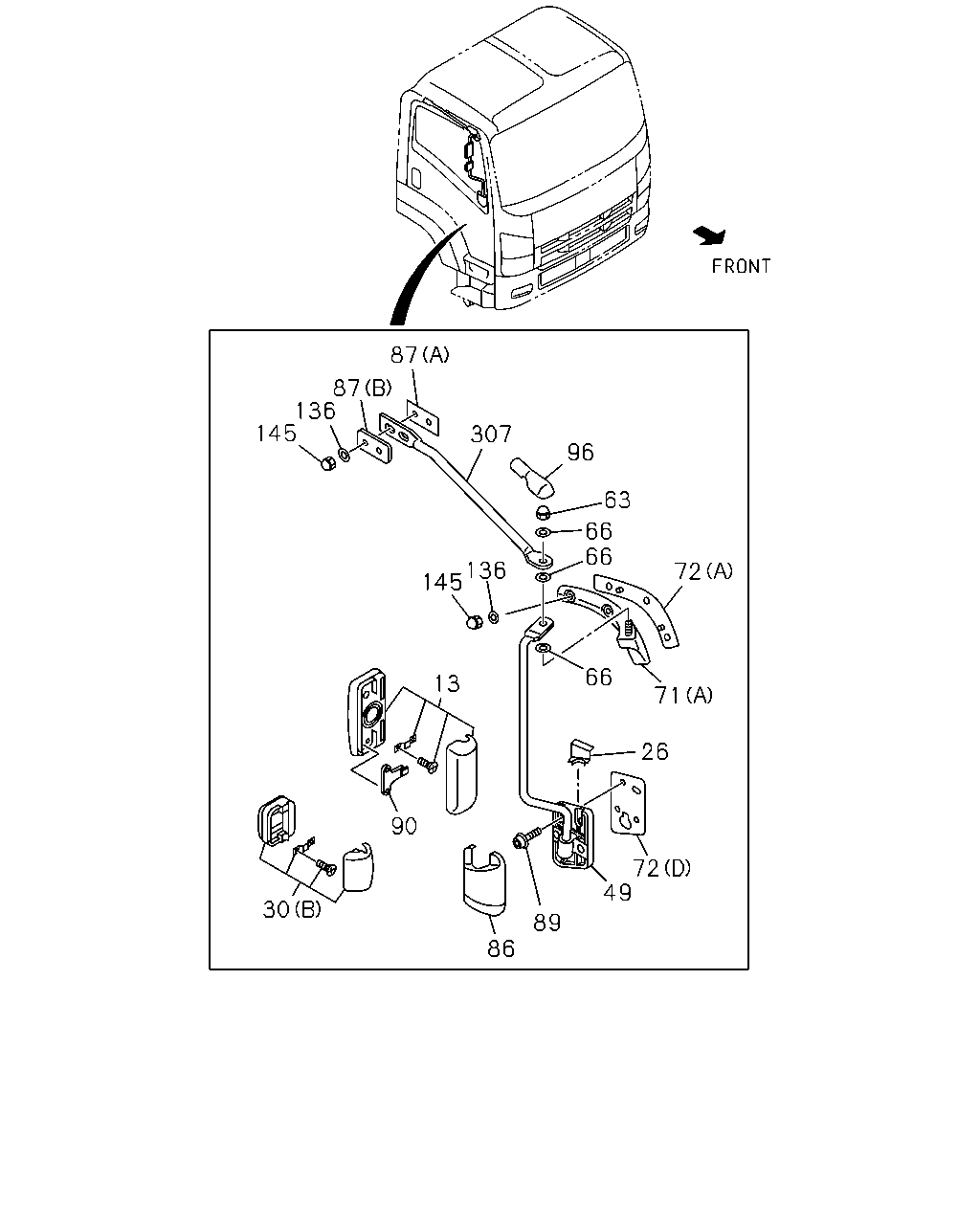

çizim 386562
145 136 87 87 307 96 63 66 66 72 71 66 136 145 26 13 90 86 49 72 89 30
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 1311- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1311- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1311- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1311- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1311- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1311-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1311- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1311- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1311- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1311- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1311- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1311- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1311- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1311- ● ●
72 SHEET
(B) 		8-98060-245-1 01 1 1311- ● ●
72 SHEET
(C) 		8-98064-776-0 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1311- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1311- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1311- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1311- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1311- ● ●
90 BRACKET; MIRROR STAY 8-98129-822-0 02 1 1506- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1311- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1311- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1311- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1311- ● ●
