7-10 — CAUTION PLATE AND LABEL (#130143) — 14 parça

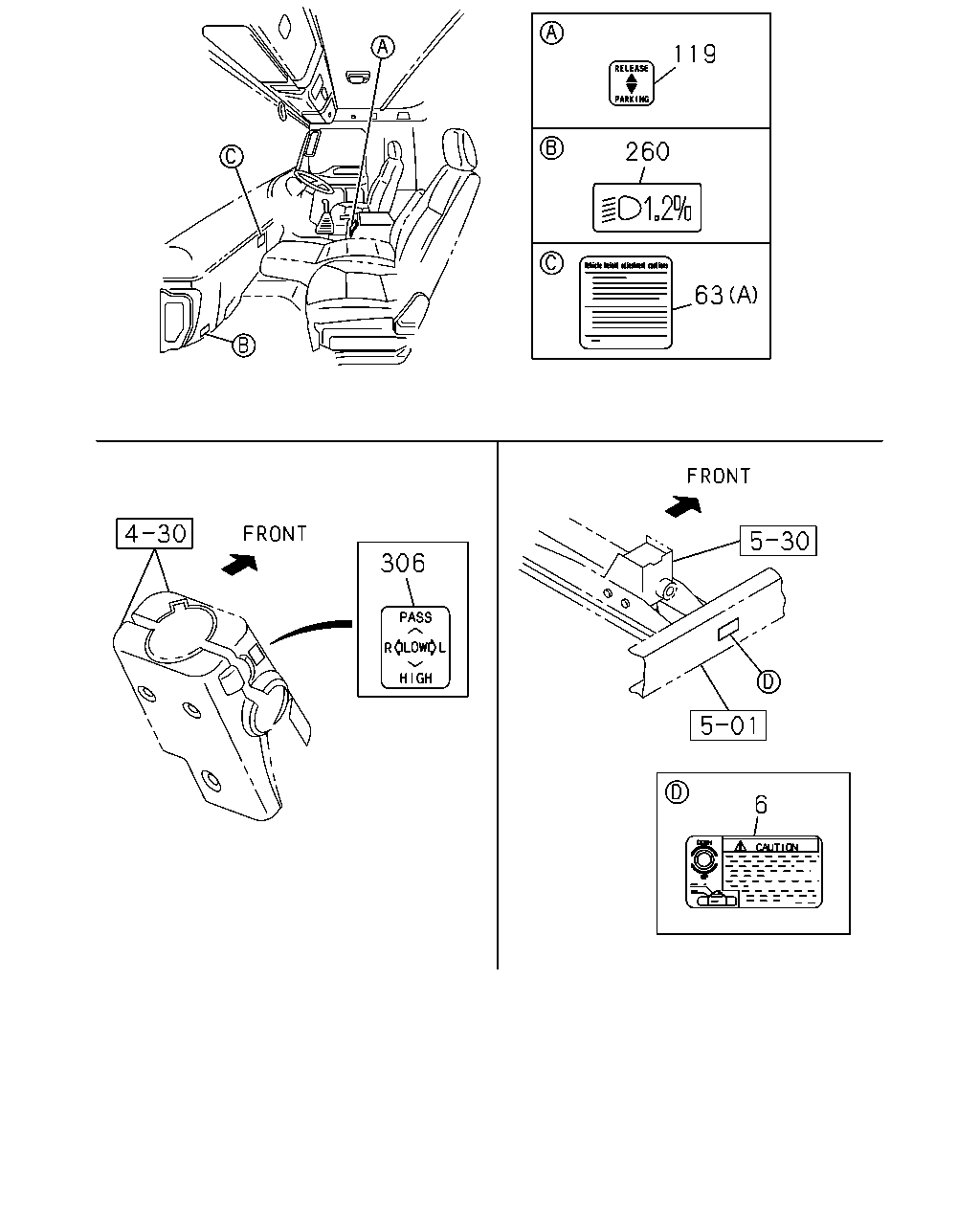

çizim 385957

306 119 260 63 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	8-98082-437-0	01	1	1311-	●	●
	63	PLATE; CAUTION,SEAT AIR (B)	1-85881-823-0	01	1	1311-	●
	63	PLATE; CAUTION,SEAT AIR (A)	1-85881-861-0	01	1	1311-	●
	119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1311-	●	●
	260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	1311-	●	●
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1311-	●	●

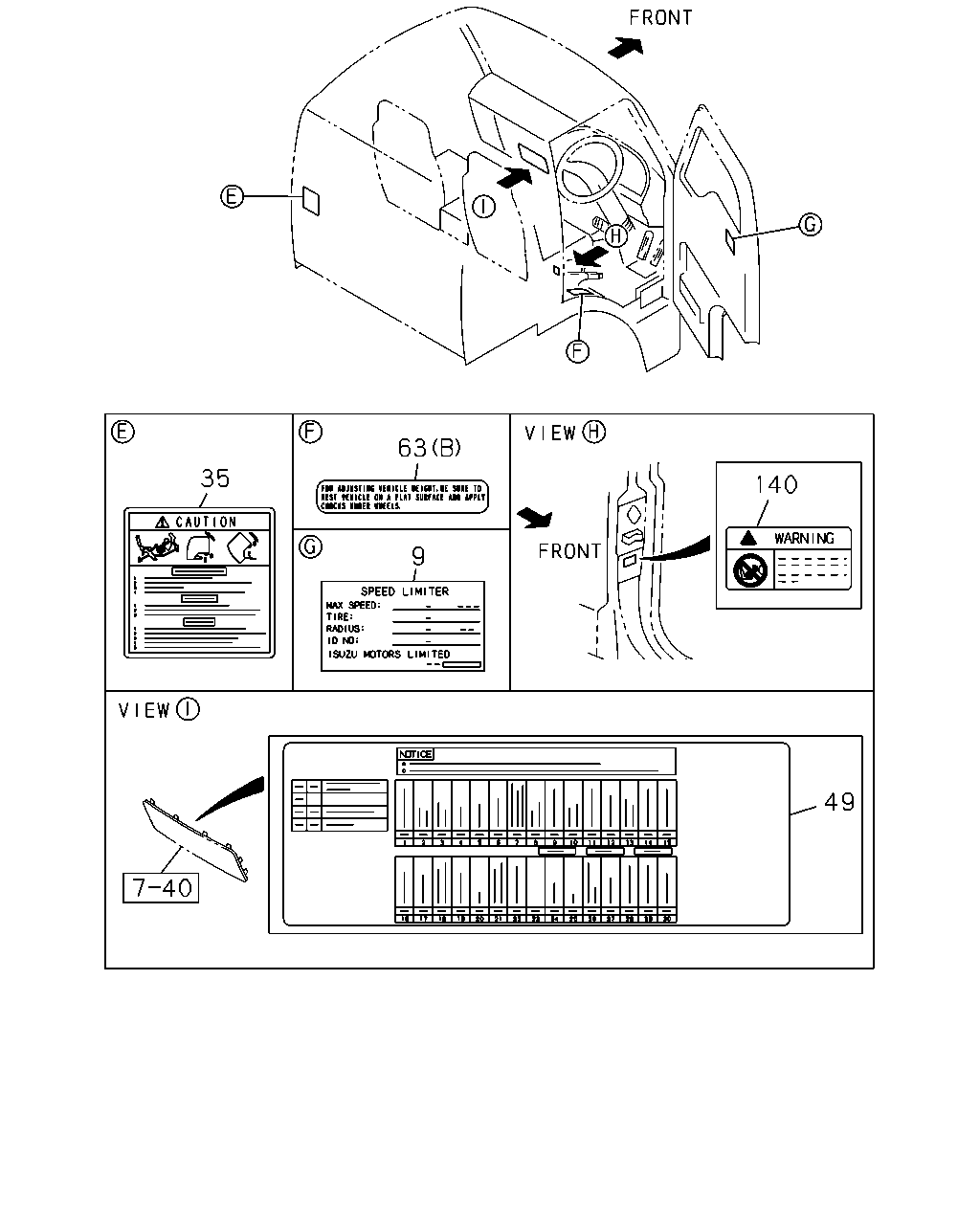

çizim 386197

35 63 140 49 9

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	9	PLATE; NAME,SPD RANGE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98222-339-0	01	1	1311-	●	●
	9	PLATE; NAME,SPD RANGE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98222-338-0	01	1	1311-	●	●
	35	PLATE; CAUTION,CAB	8-98065-363-0	01	1	1311-	●	●
	49	PLATE; CAUTION,FUSE BOX	8-98223-111-0	01	1	1311-	●	●
	63	PLATE; CAUTION,SEAT AIR (B)	1-85881-823-0	01	1	1311-	●
	63	PLATE; CAUTION,SEAT AIR (A)	1-85881-861-0	01	1	1311-	●
	140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	02	1	1311-	●	●

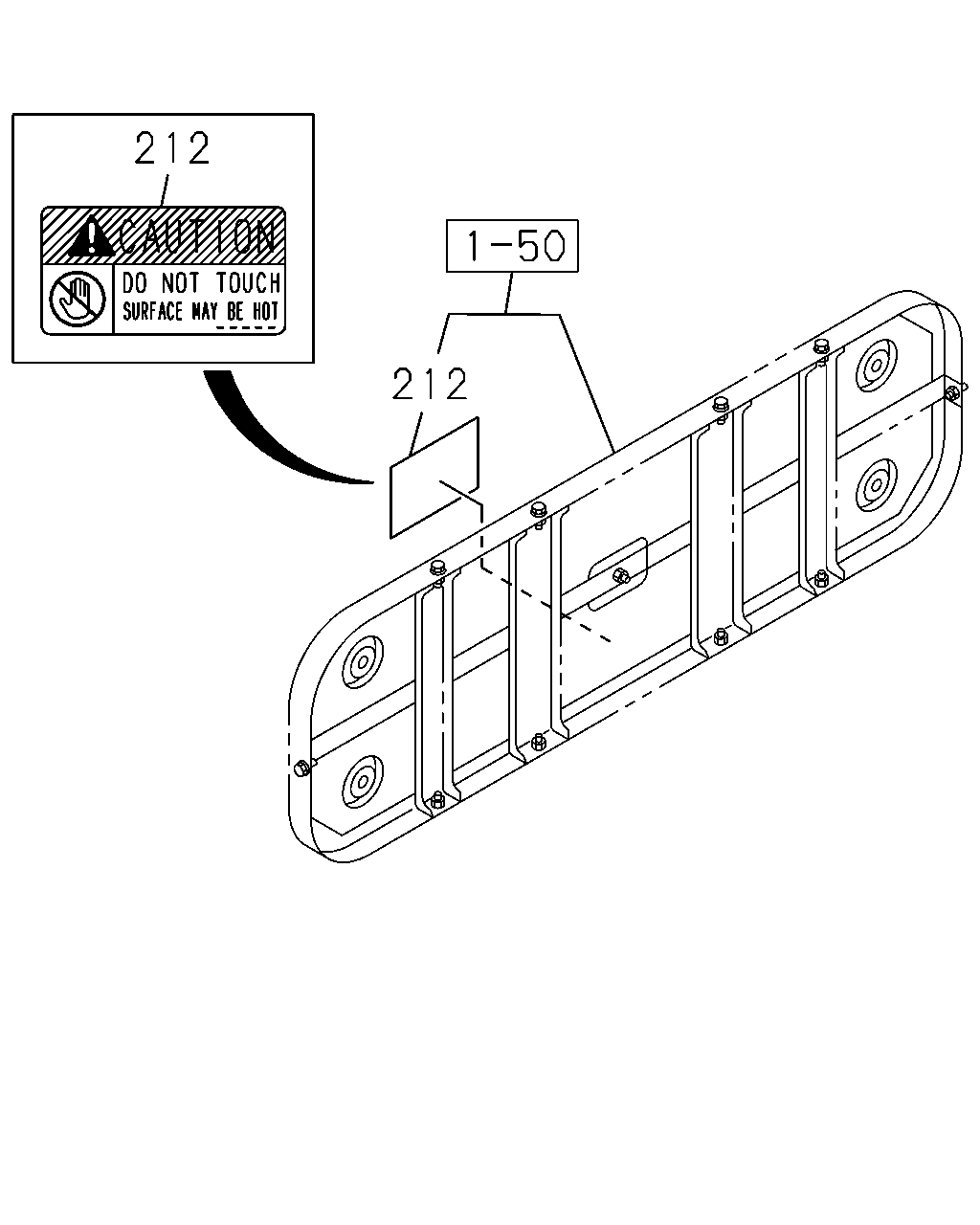

çizim 498411

212 212

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	212	LABEL; SAFETY	8-98236-285-0	01	1	1311-	●	●
