Sayfa 6-84 - Isuzu EPC

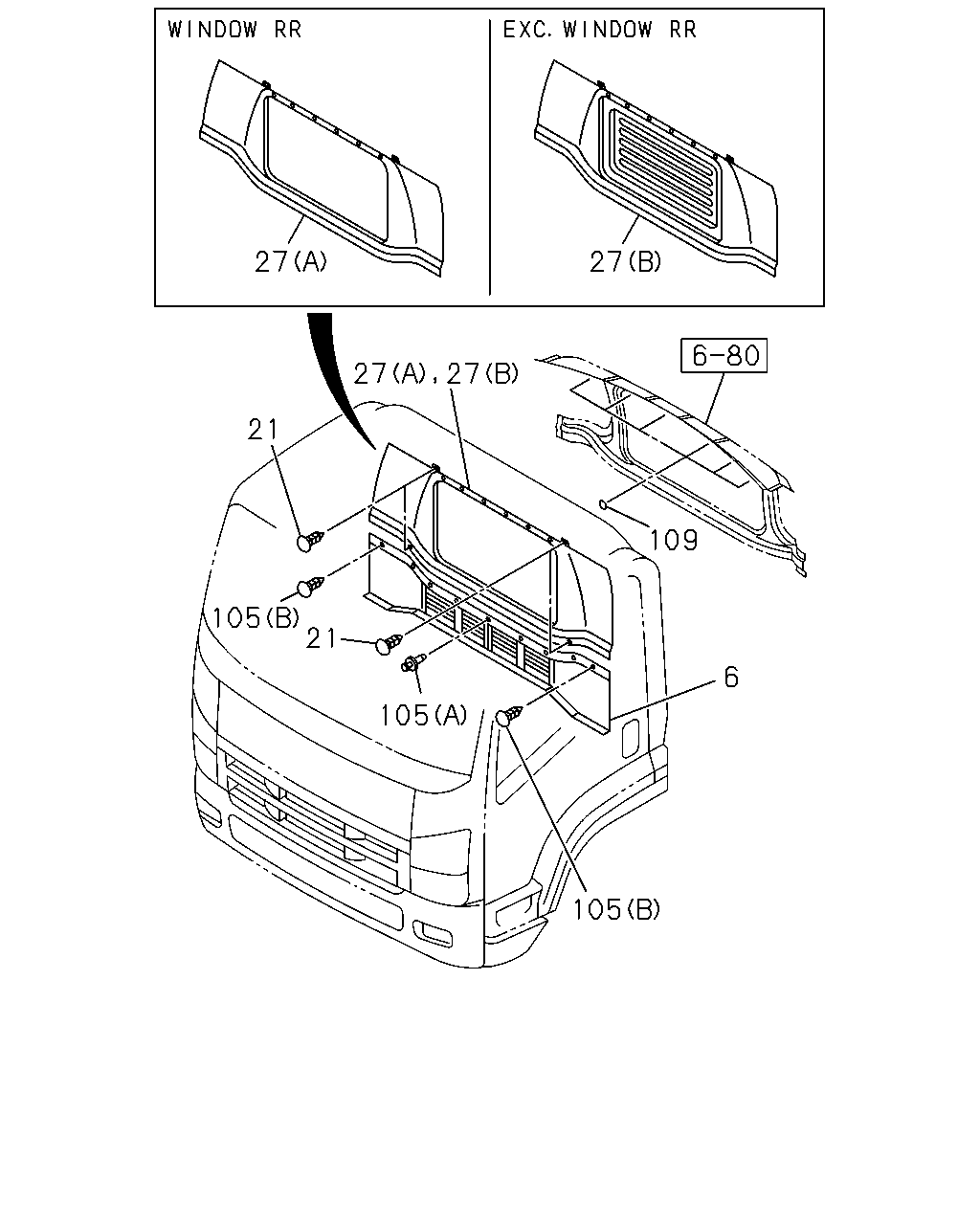

6-84 — BACK TRIM (#130140) — 8 parça

6 109 105 105 21 105 21 27 27 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	MAT; SILENCER,CAB BACK GRAY	8-97407-457-1	01	1	1311-	●	●
21	RETAINER; TRIM,BED ROOM INTERIOR FULL TRIM<WM3> GRAY	8-97407-467-0	04	1	1311-	●	●
27	COVER; TRIM,BACK INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY	8-97407-463-2	01	1	1311-	●	●
27	COVER; TRIM,BACK INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97407-541-3	01	1	1311-	●	●
105	CLIP; BACK TRIM (B) GRAY	8-97407-467-0	02	1	1311-	●	●
105	CLIP; BACK TRIM (A) GRAY	8-97408-022-0	07	1	1311-	●	●
109	SEAL; HOLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK	5-76777-036-0	06	1	1311-	●	●
109	SEAL; HOLE BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE	8-98059-421-0	06	1	1311-	●	●
