Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

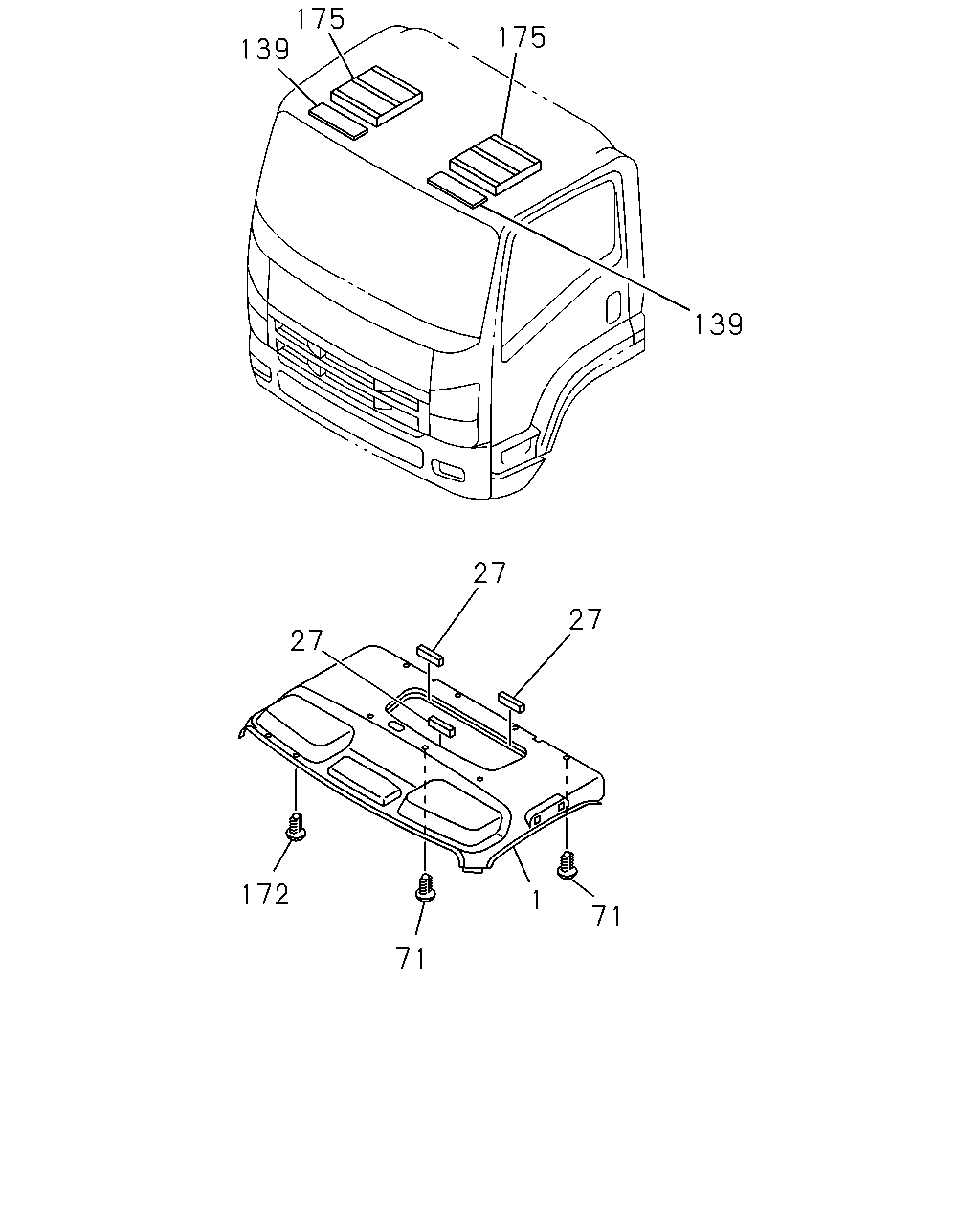

6-66 — HEAD LINING AND TRIM
(#130133) — 9 parça
Tümü
A - FCD5CS
B - FCR5CS
139
175
175
139
27
27
27
172
71
1
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINING; HD
RR VIEW MIRROR<D31> FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-672-0
01
1
1311-
●
●
1
LINING; HD
RR VIEW MIRROR<D31> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-659-0
01
1
1311-
●
●
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY
8-97426-674-0
01
1
1311-
●
●
1
LINING; HD
EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-658-0
01
1
1311-
●
●
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
1311-
●
●
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1311-
●
●
139
SEAL; ROOF
8-98169-116-0
02
1
1311-
●
●
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
1311-
●
●
175
CUSHION; HEAD LINING
8-98030-965-2
02
1
1311-
●
●
