Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#130131) — 45 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

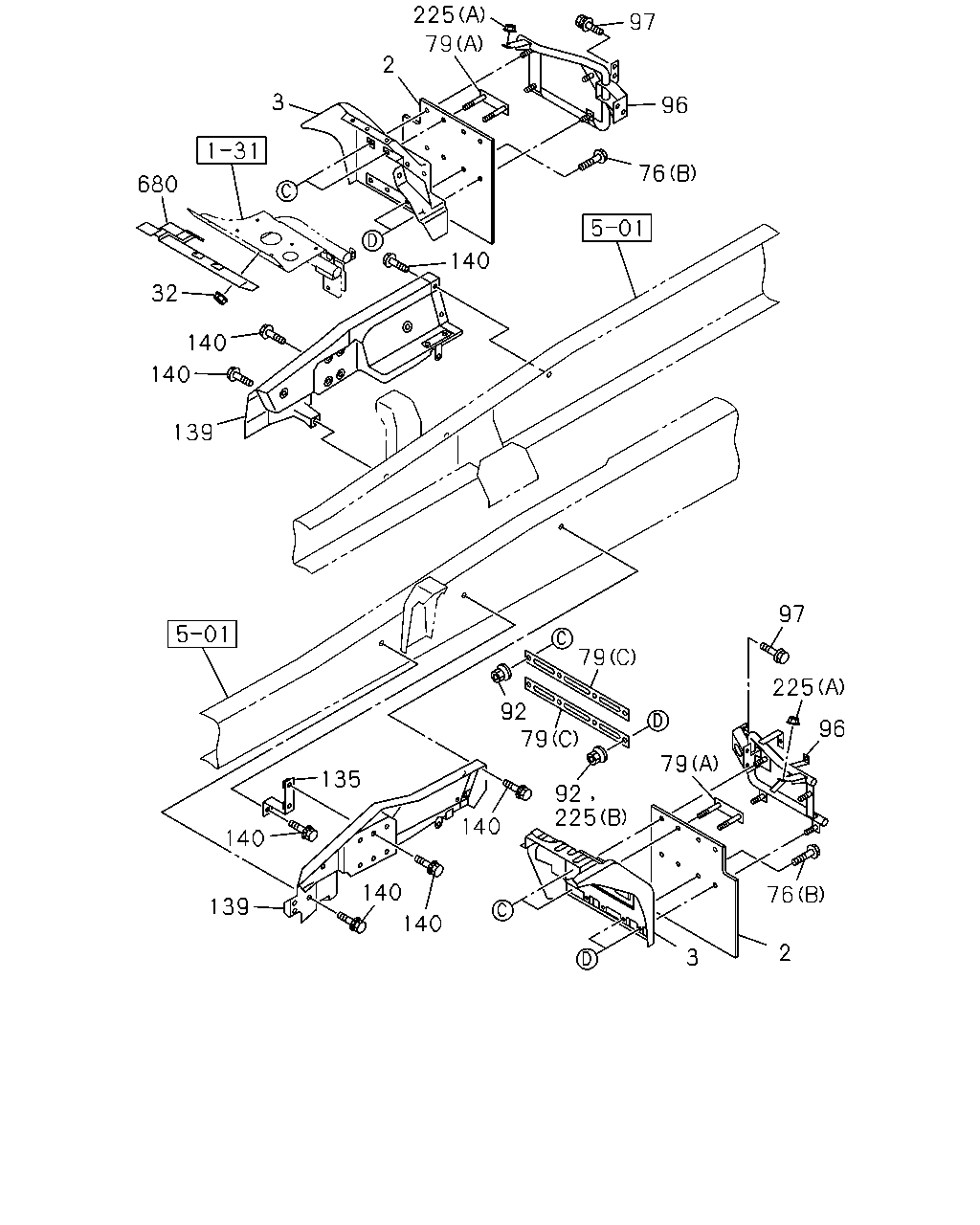

[647A] MUD GUARD;REAR AND SIDE PANEL (23 parça)

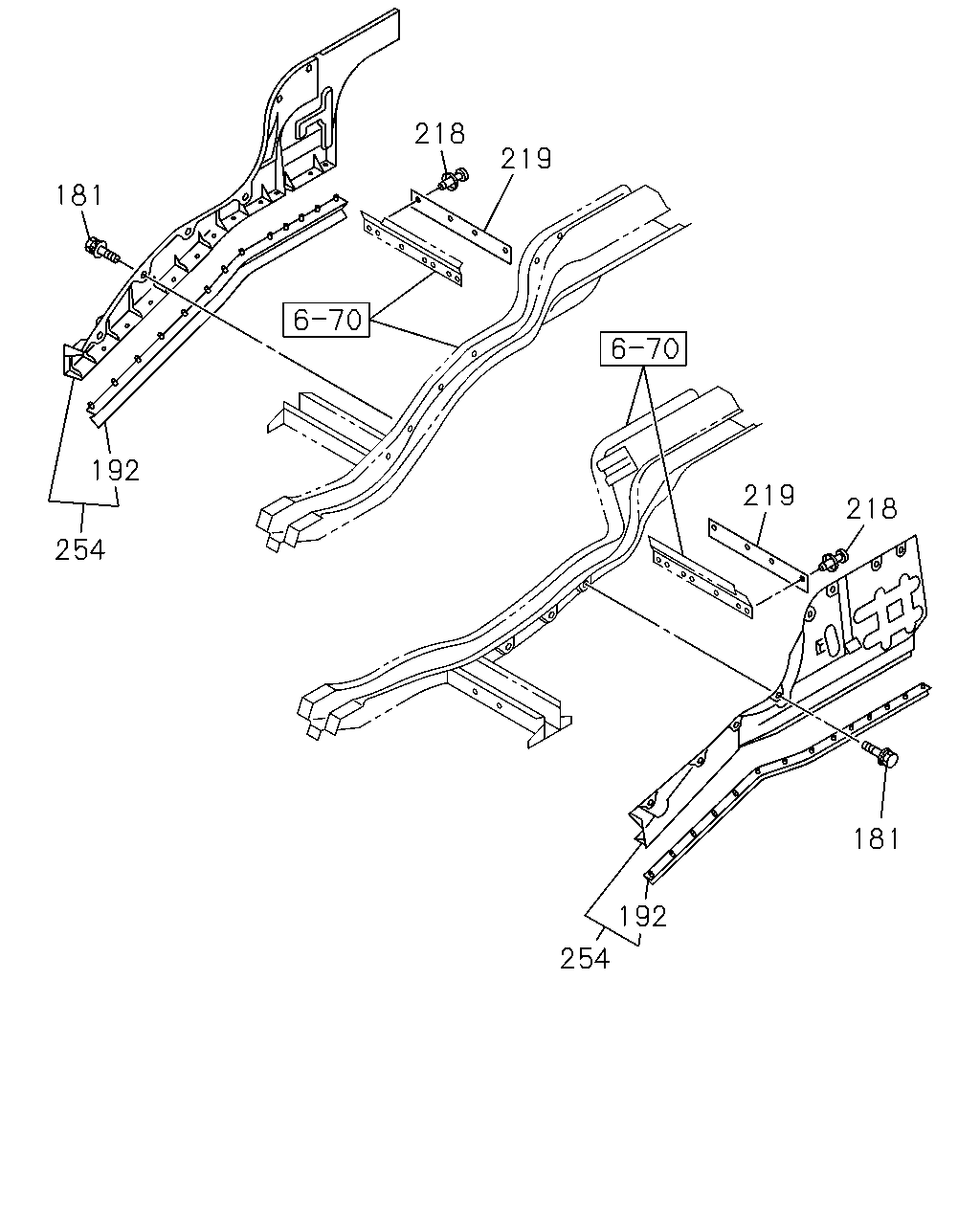

[647A] MUD COVER AND SEAL (7 parça)

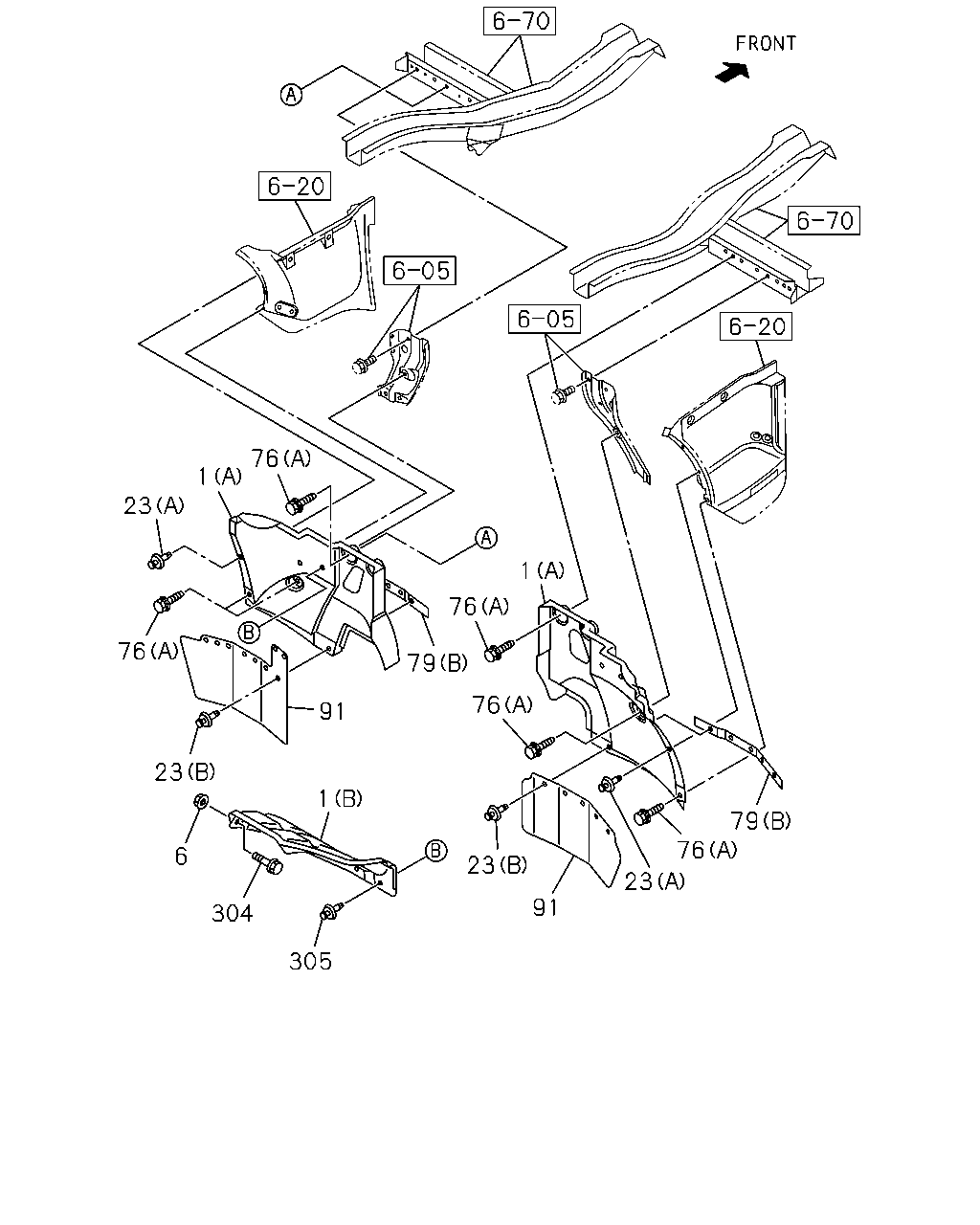

[647A] MUD GUARD;FRONT (15 parça)
▶
225
2
3
680
32
140
140
139
140
76
96
97
79
135
140
139
140
140
140
225
92
79
92
79
79
97
225
96
76
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
COVER; MUD,TIRE RR
8-98083-793-1
01
1
1311-1312
●
●
2
COVER; MUD,TIRE RR
8-98261-619-0
01
1
1401-
●
●
2
COVER; MUD,TIRE RR
8-98083-794-1
01
1
1311-1312
●
●
2
COVER; MUD,TIRE RR
8-98261-620-0
01
1
1401-
●
●
3
GUARD; MUD,RR
8-98090-849-1
01
1
1311-
●
●
3
GUARD; MUD,RR
8-98205-385-1
01
1
1311-
●
●
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
1311-
●
●
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
04
1
1311-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1311-
●
●
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1311-
●
●
79
RETAINER; MUD COVER
(A)
8-98083-606-1
04
1
1311-
●
●
79
RETAINER; MUD COVER
(C)
8-98117-496-0
04
1
1311-
●
●
92
NUT; MUD COVER
M8 W/DISHED WASHER
8-97329-625-0
16
1
1311-
●
●
96
STAY; MUD GUARD
8-98056-956-1
01
1
1311-
●
●
96
STAY; MUD GUARD
8-98140-674-0
01
1
1311-
●
●
97
BOLT; STAY TO FRAME
M10X35 FLANGE
0-28651-035-0
08
1
1311-
●
●
135
BRACKET; SIDE PANEL
1-53457-191-0
01
1
1311-
●
●
139
PANEL; SIDE
8-98090-078-0
01
1
1311-
●
●
139
PANEL; SIDE
8-98122-448-0
01
1
1311-
●
●
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
09
1
1311-
●
●
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1311-
●
●
680
GUARD; MUD,UPPER
8-98225-342-0
01
1
1311-
●
●
181
192
218
219
219
218
181
192
254
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
1311-
●
●
192
SEAL; MUD COVER
8-98041-156-2
01
1
1311-
●
●
192
SEAL; MUD COVER
8-98041-157-2
01
1
1311-
●
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1311-
●
●
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1311-
●
●
254
COVER; MUD,VALANCE
8-98039-924-1
01
1
1311-
●
●
254
COVER; MUD,VALANCE
8-98148-215-0
01
1
1311-
●
●
1
23
76
76
91
76
23
76
79
1
76
23
79
91
23
6
304
305
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-188-0
01
1
1311-
●
●
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1311-
●
●
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1311-
●
●
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1311-
●
●
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1311-
●
●
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1311-
●
●
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
04
1
1311-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1311-
●
●
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1311-
●
●
79
RETAINER; MUD COVER
(A)
8-98083-606-1
04
1
1311-
●
●
79
RETAINER; MUD COVER
(C)
8-98117-496-0
04
1
1311-
●
●
91
COVER; MUD,FRT
8-98092-834-0
01
1
1311-
●
●
91
COVER; MUD,FRT
8-98092-836-0
01
1
1311-
●
●
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1311-
●
●
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1311-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
