◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#130125) — 65 parça

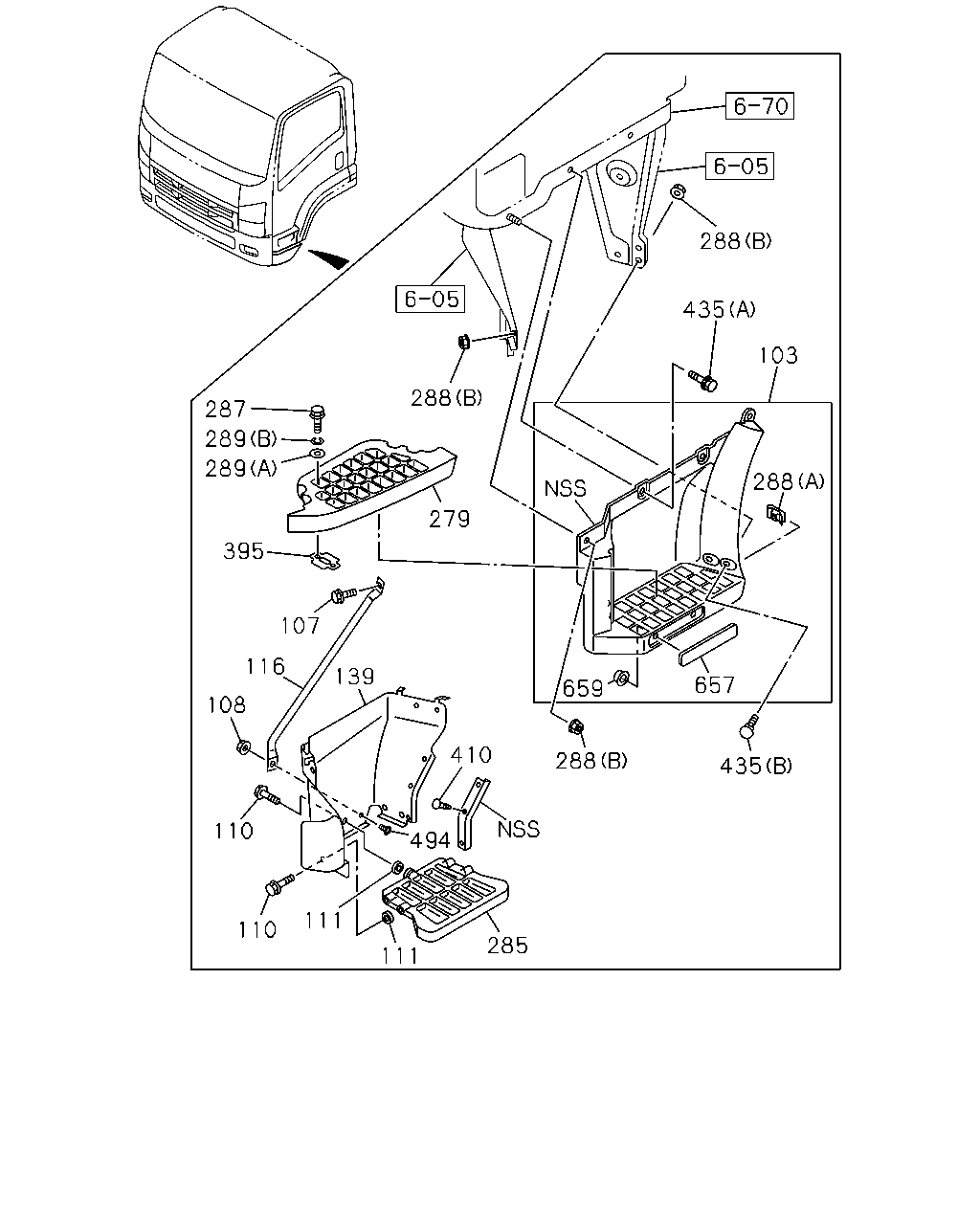

çizim 386488
287 289 289 395 107 116 108 139 279 288 110 110 111 111 285 288 659 410 494 435 657 288 103 435 288
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-327-3 01 1 1311- ● ●
103 PLATE; STEP 8-98037-329-3 01 1 1311- ● ●
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 1311- ● ●
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 1311- ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 1311- ● ●
116 STAY; 1ST STEP,FRT 8-98080-639-0 01 1 1311- ● ●
116 STAY; 1ST STEP,FRT 8-98080-640-0 01 1 1311- ● ●
139 CLOSING; 1ST STEP 8-98080-635-0 01 1 1311- ● ●
139 CLOSING; 1ST STEP 8-98080-636-0 01 1 1311- ● ●
279 BOARD; STEP 1ST 8-98080-627-0 01 1 1311- ● ●
279 BOARD; STEP 1ST 8-98080-628-0 01 1 1311- ● ●
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 1311- ● ●
287 BOLT; BOARD STEP 8-98165-009-0 08 1 1311- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1311- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1311- ● ●
289 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 1311- ● ●
289 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 1311- ● ●
395 BRACKET; SIDE STEP 8-98080-646-1 04 1 1311- ● ●
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 1311- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1311- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1311- ● ●
494 STUD; BRKT 8-94389-701-0 02 1 1311- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1311- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1311- ● ●

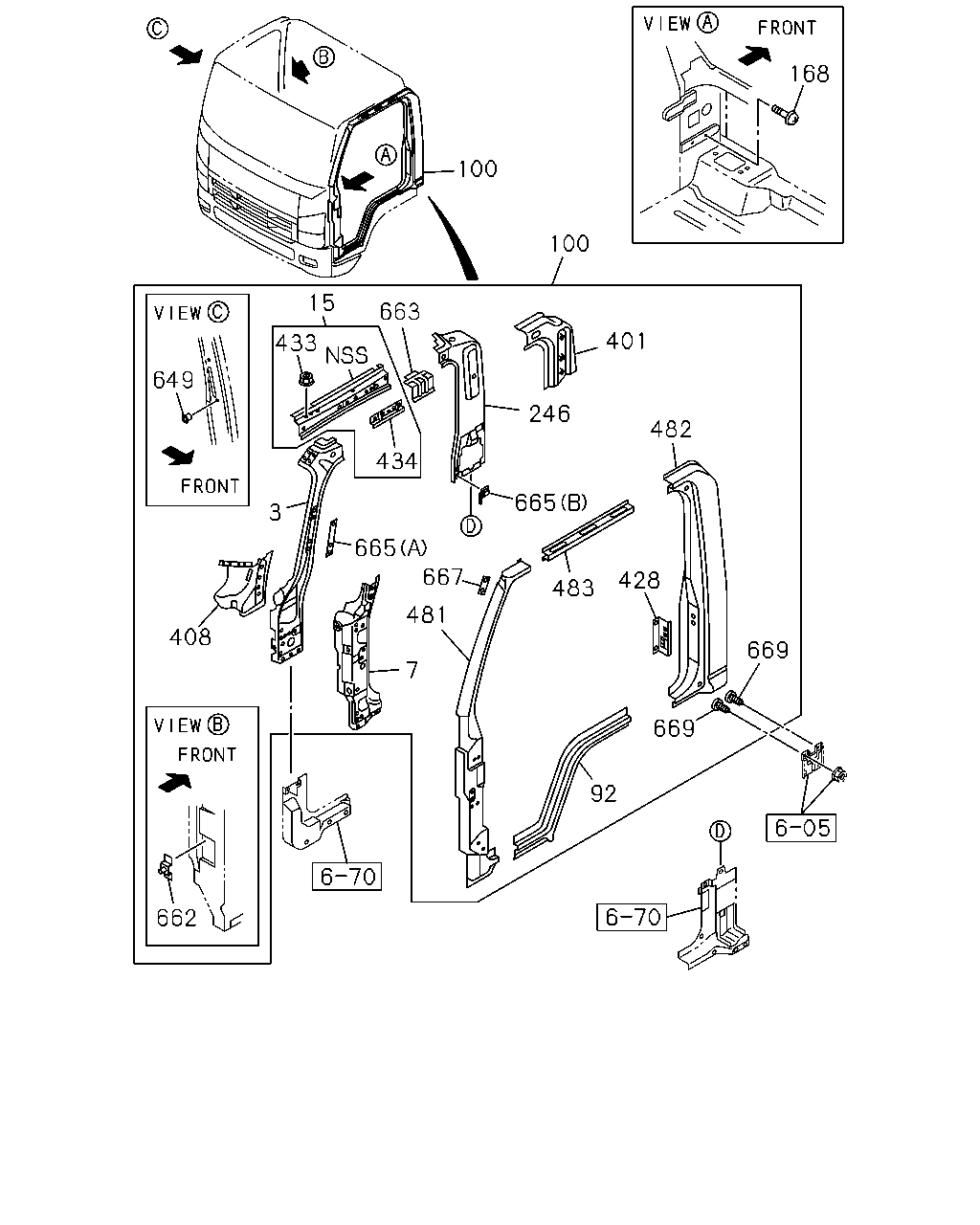

çizim 386533
100 100 168 649 15 433 663 434 401 246 482 428 669 669 92 662 408 3 7 481 667 665 665 483
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1311- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1311- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1311- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1311- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1311- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1311- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1311- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1311- ● ●
100 PANEL ASM; BODY SIDE 8-97586-059-4 01 1 1311- ● ●
100 PANEL ASM; BODY SIDE 8-98088-578-2 01 1 1311- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1311- ● ●
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1311- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1311- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 1311- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 1311- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1311- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1311- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1311- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1311- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1311- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1311- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1311- ● ●
481 PANEL; SIDE FRT PILLAR 8-98092-915-0 01 1 1311- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1311- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1311- ● ●
482 PANEL; SIDE RR PILLAR 8-98092-922-0 01 1 1311- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1311- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1311- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1311- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1311- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1311- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 1311- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1311- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1311- ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 1311- ● ●
669 STUD; FENDER
M6X18 		8-98013-113-1 04 1 1311- ● ●

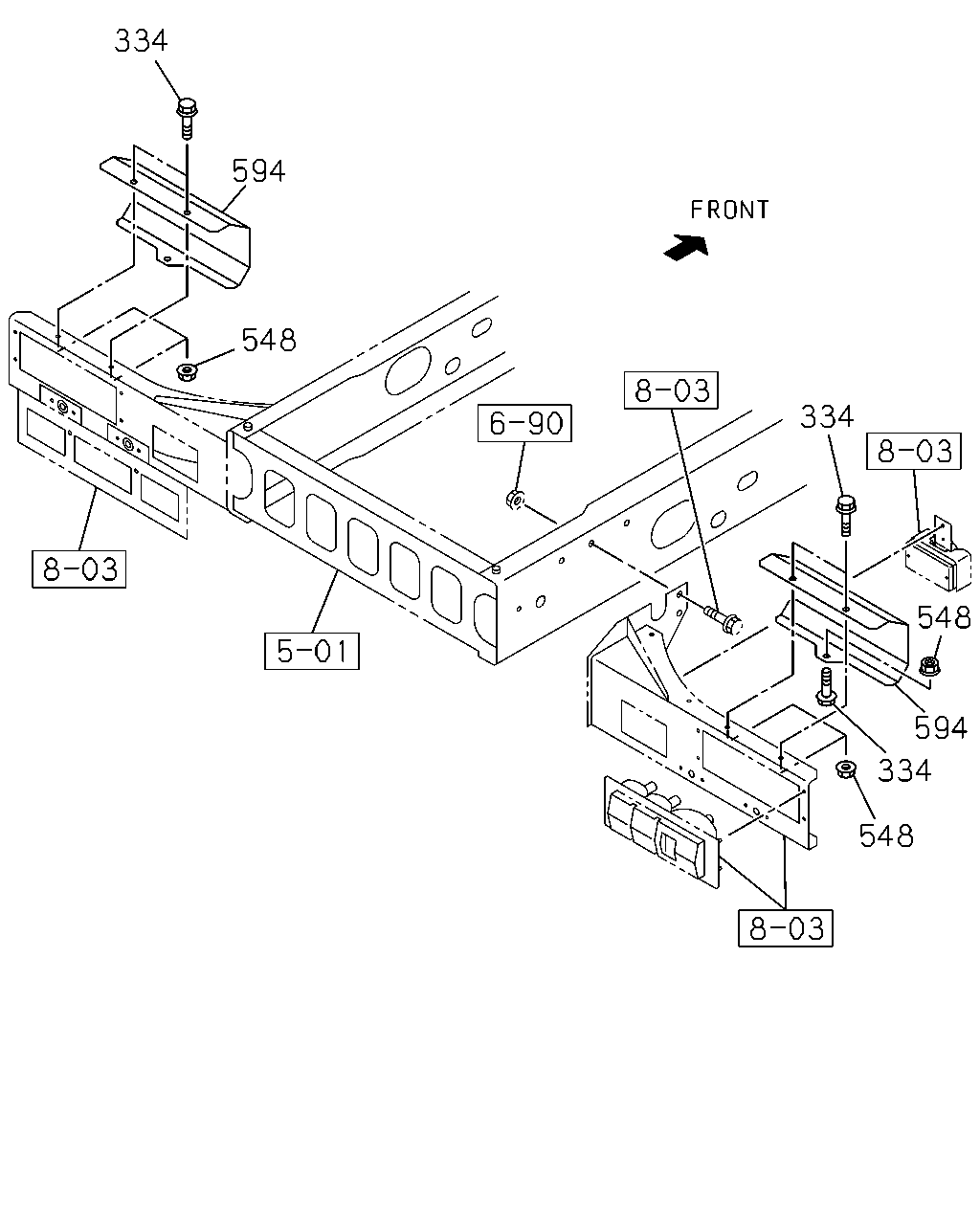

çizim 386535
334 594 548 334 548 594 334 548
BalonParca AdiParca NoAdetTipApplied Date A B
334 BOLT; COVER
M8X12 FLANGE 		0-28060-812-0 06 1 1311- ● ●
548 NUT; BRKT
M8 CAP NUT FLANGE 		8-97372-242-0 06 1 1311-1312 ● ●
548 NUT; BRKT
M8 CAP NUT FLANGE 		8-98261-347-0 06 1 1401- ● ●
594 COVER; RR COMB LAMP 8-98249-274-0 02 1 1311- ● ●
