5-01 — FRAME AND OTHER PARTS (#130115) — 127 parça

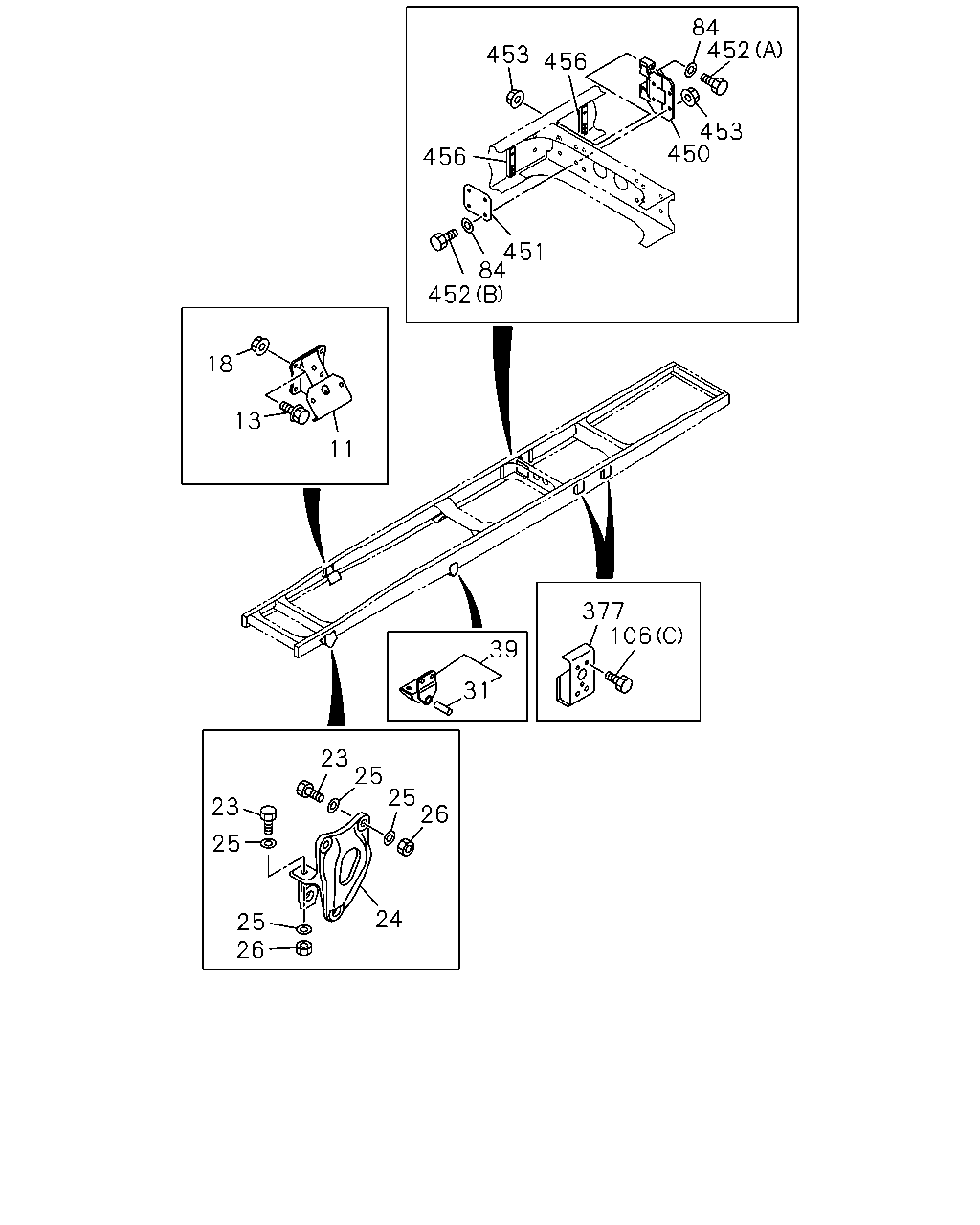

24 26 25 25 23 23 25 25 26 31 39 377 106 11 13 18 452 84 451 456 453 456 450 453 452 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97639-363-0	02	1	1311-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1311-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1311-	●	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1311-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-983-0	01	1	1311-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-984-0	01	1	1311-	●	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1311-	●	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1311-		●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	12	1	1311-	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1311-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-126-2	02	1	1311-	●	●	●
84	WASHER; PL,BRKT AIR SUS(FCD***) ID=16.2	1-09503-316-0	12	1	1311-		●
84	WASHER; PL,BRKT ID=16.2	1-09503-316-0	12	1	1311-			●
106	BOLT; BRKT AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-		●
106	BOLT; BRKT (B) M10X35	0-10961-035-0	04	1	1311-			●
106	BOLT; BRKT AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-		●
106	BOLT; BRKT (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-			●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1311-	●
106	BOLT; BRKT LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●
377	BRACKET; TOP PLATE AIR SUS(FCD***)	8-98061-350-0	04	1	1311-		●
377	BRACKET; TOP PLATE	8-98061-350-0	04	1	1311-			●
450	BRACKET; V ROD AIR SUS(FCD***)	1-53353-121-0	02	1	1311-		●
450	BRACKET; V ROD	1-53353-121-0	02	1	1311-			●
451	GUSSET; V ROD AIR SUS(FCD***)	8-97610-436-0	02	1	1311-		●
451	GUSSET; V ROD	8-97610-436-0	02	1	1311-			●
452	BOLT; V ROD AIR SUS(FCD***) (B) M16X50	1-09000-679-0	08	1	1311-		●
452	BOLT; V ROD (B) M16X50	1-09000-679-0	08	1	1311-			●
452	BOLT; V ROD AIR SUS(FCD***) (A) M16X110	1-09000-738-0	04	1	1311-		●
452	BOLT; V ROD (A) M16X110	1-09000-738-0	04	1	1311-			●
453	NUT; V ROD AIR SUS(FCD***) M16 FLANGE	1-09440-066-0	12	1	1311-		●
453	NUT; V ROD M16 FLANGE	1-09440-066-0	12	1	1311-			●
456	PATCH; STOPPER AIR SUS(FCD***)	8-97610-437-1	04	1	1311-		●
456	PATCH; STOPPER	8-97610-437-1	04	1	1311-			●

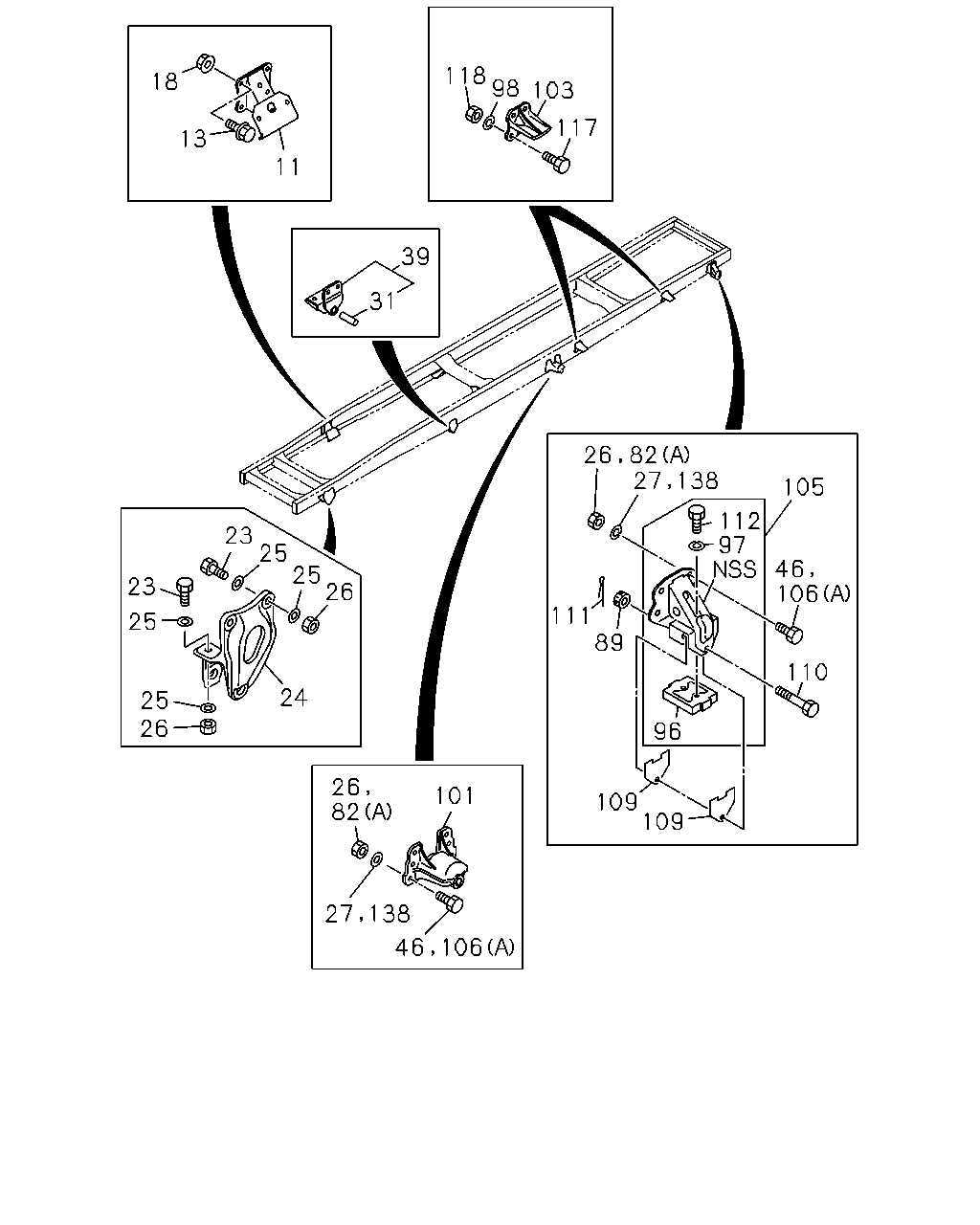

106 46 27 138 101 26 82 26 25 24 25 23 23 25 25 26 18 13 11 39 31 118 98 103 117 82 26 27 138 105 112 97 46 106 110 111 89 96 109 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97639-363-0	02	1	1311-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1311-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1311-	●	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1311-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-983-0	01	1	1311-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-984-0	01	1	1311-	●	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1311-	●	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	08	1	1311-		●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	12	1	1311-	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	0-91510-614-0	04	1	1311-	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1311-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-126-2	02	1	1311-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	04	1	1311-	●
82	NUT; BRKT AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1311-		●
82	NUT; BRKT (B) M10	0-91110-510-0	04	1	1311-			●
82	NUT; BRKT (A) M14	0-91110-514-0	02	1	1311-	●
82	NUT; BRKT LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1311-		●
89	NUT; LEAF SPR STOPPER M12	0-91116-512-0	02	1	1311-	●
89	NUT; LEAF SPR STOPPER LEAF SUS(FCR***) M12	0-91116-512-0	02	1	1311-		●
96	PAD; RR SPR	1-53359-051-2	02	1	1311-	●
96	PAD; RR SPR LEAF SUS(FCR***)	1-53359-051-2	02	1	1311-		●
97	WASHER; LK,PAD ID=14.2	0-91510-814-0	04	1	1311-	●
97	WASHER; LK,PAD LEAF SUS(FCR***) ID=14.2	0-91510-814-0	04	1	1311-		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	1311-	●
98	WASHER; LK,STOPPER LEAF SUS(FCR***) ID=14.2	0-91510-614-0	16	1	1311-		●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	1311-	●
101	BRACKET; RR SPR,FRT LEAF SUS(FCR***)	1-53353-090-4	02	1	1311-		●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	1311-	●
103	STOPPER; SUB SPR LEAF SUS(FCR***)	1-53356-059-1	04	1	1311-		●
105	BRACKET; RR SPR,RR	1-53354-084-0	02	1	1311-	●
105	BRACKET; RR SPR,RR LEAF SUS(FCR***)	1-53354-084-0	02	1	1311-		●
106	BOLT; BRKT AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-		●
106	BOLT; BRKT (B) M10X35	0-10961-035-0	04	1	1311-			●
106	BOLT; BRKT AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-		●
106	BOLT; BRKT (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-			●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1311-	●
106	BOLT; BRKT LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●
109	SHIM; RR SPR	1-53359-043-1	04	1	1311-	●
109	SHIM; RR SPR LEAF SUS(FCR***)	1-53359-043-1	04	1	1311-		●
110	BOLT; LEAF SPR STOPPER M12X121	8-98010-414-0	02	1	1311-	●
110	BOLT; LEAF SPR STOPPER LEAF SUS(FCR***) M12X121	8-98010-414-0	02	1	1311-		●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1311-	●
111	PIN; SPLIT,LEAF SPR STOPPER LEAF SUS(FCR***) OD=2.8 L=28	0-81123-028-0	02	1	1311-		●
112	BOLT; PAD M14X25	0-20851-425-0	04	1	1311-	●
112	BOLT; PAD LEAF SUS(FCR***) M14X25	0-20851-425-0	04	1	1311-		●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1311-	●
117	BOLT; STOPPER LEAF SUS(FCR***) M14X50	0-20951-450-0	16	1	1311-		●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1311-	●
118	NUT; STOPPER LEAF SUS(FCR***) M14	0-91110-514-0	16	1	1311-		●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	02	1	1311-	●
138	WASHER; LK,BRKT LEAF SUS(FCR***) ID=14.2	0-91510-614-0	06	1	1311-		●

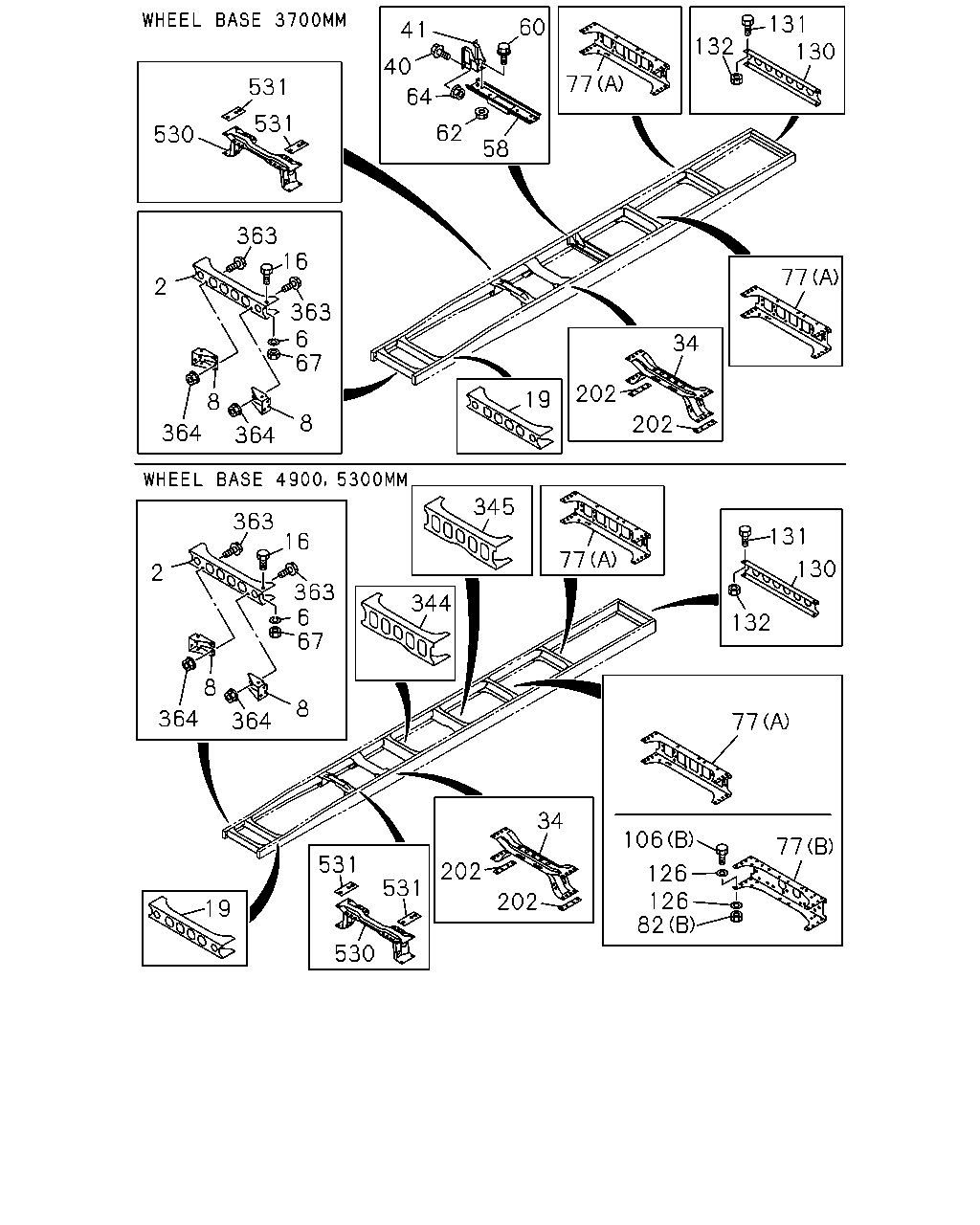

531 41 40 64 62 58 77 60 131 132 130 77 34 202 202 19 531 530 77 345 344 16 363 363 6 67 8 364 364 2 8 19 531 531 34 202 202 106 126 126 82 77 77 132 130 131 2 363 363 16 6 364 8 8 364 67 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97609-462-9	01	1	1311-	●	●	●
6	WASHER; LK,1ST C/MBR ID=12.2	0-91510-512-0	02	1	1311-	●	●	●
8	GUSSET; 1ST C/MBR	8-97609-759-2	01	1	1311-	●	●	●
8	GUSSET; 1ST C/MBR	8-97609-760-3	01	1	1311-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M12X30	0-20851-230-0	02	1	1311-	●	●	●
19	MEMBER; CROSS,2ND	8-97645-584-3	01	1	1311-	●	●	●
34	MEMBER; CROSS,3RD	8-97609-501-2	01	1	1311-	●	●	●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1311-	●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-973-2	01	1	1311-	●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-974-2	01	1	1311-	●
58	MEMBER; CENTER BRG	8-97638-924-0	01	1	1311-	●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	1311-	●
62	NUT; MBR M10 FLANGE	0-91180-110-0	08	1	1311-	●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	08	1	1311-	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1311-	●	●	●
77	MEMBER; CROSS,TRUNNION RR AIR SUS(FCD***) (A) REAR	8-97609-481-4	01	1	1311-		●
77	MEMBER; CROSS,TRUNNION RR (A) REAR	8-97609-481-4	01	1	1311-			●
77	MEMBER; CROSS,TRUNNION RR AIR SUS(FCD***) (B) FRONT	8-97609-483-0	01	1	1311-		●
77	MEMBER; CROSS,TRUNNION RR (B) FRONT	8-97609-483-0	01	1	1311-			●
77	MEMBER; CROSS,TRUNNION RR (A) FRONT,REAR	8-97609-481-4	02	1	1311-	●
77	MEMBER; CROSS,TRUNNION RR LEAF SUS(FCR***) (A) FRONT,REAR	8-97609-481-4	02	1	1311-		●
82	NUT; BRKT AIR SUS(FCD***) (B) M10	0-91110-510-0	04	1	1311-		●
82	NUT; BRKT (B) M10	0-91110-510-0	04	1	1311-			●
82	NUT; BRKT (A) M14	0-91110-514-0	02	1	1311-	●
82	NUT; BRKT LEAF SUS(FCR***) (A) M14	0-91110-514-0	06	1	1311-		●
106	BOLT; BRKT AIR SUS(FCD***) (B) M10X35	0-10961-035-0	04	1	1311-		●
106	BOLT; BRKT (B) M10X35	0-10961-035-0	04	1	1311-			●
106	BOLT; BRKT AIR SUS(FCD***) (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-		●
106	BOLT; BRKT (C) M14X35 FLANGE	0-28661-435-0	12	1	1311-			●
106	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1311-	●
106	BOLT; BRKT LEAF SUS(FCR***) (A) M14X50	0-20951-450-0	06	1	1311-		●
126	WASHER; PL,BRKT AIR SUS(FCD***) ID=10.5 OD=22	0-91614-610-0	08	1	1311-		●
126	WASHER; PL,BRKT ID=10.5 OD=22	0-91614-610-0	08	1	1311-			●
130	MEMBER; CROSS,END	8-97609-470-0	01	1	1311-	●	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1311-	●	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1311-	●	●	●
202	SPACER; 3RD C/MBR	8-97609-756-1	02	1	1311-	●	●	●
344	MEMBER; CROSS,4TH	8-97609-473-2	01	1	1311-		●	●
345	MEMBER; CROSS,5TH	8-97609-473-2	01	1	1311-		●	●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1311-	●	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	1311-	●	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1311-	●	●	●
531	SPACER; C/MBR,T/M	8-97616-461-1	02	1	1311-	●	●	●
