◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#130106) — 38 parça

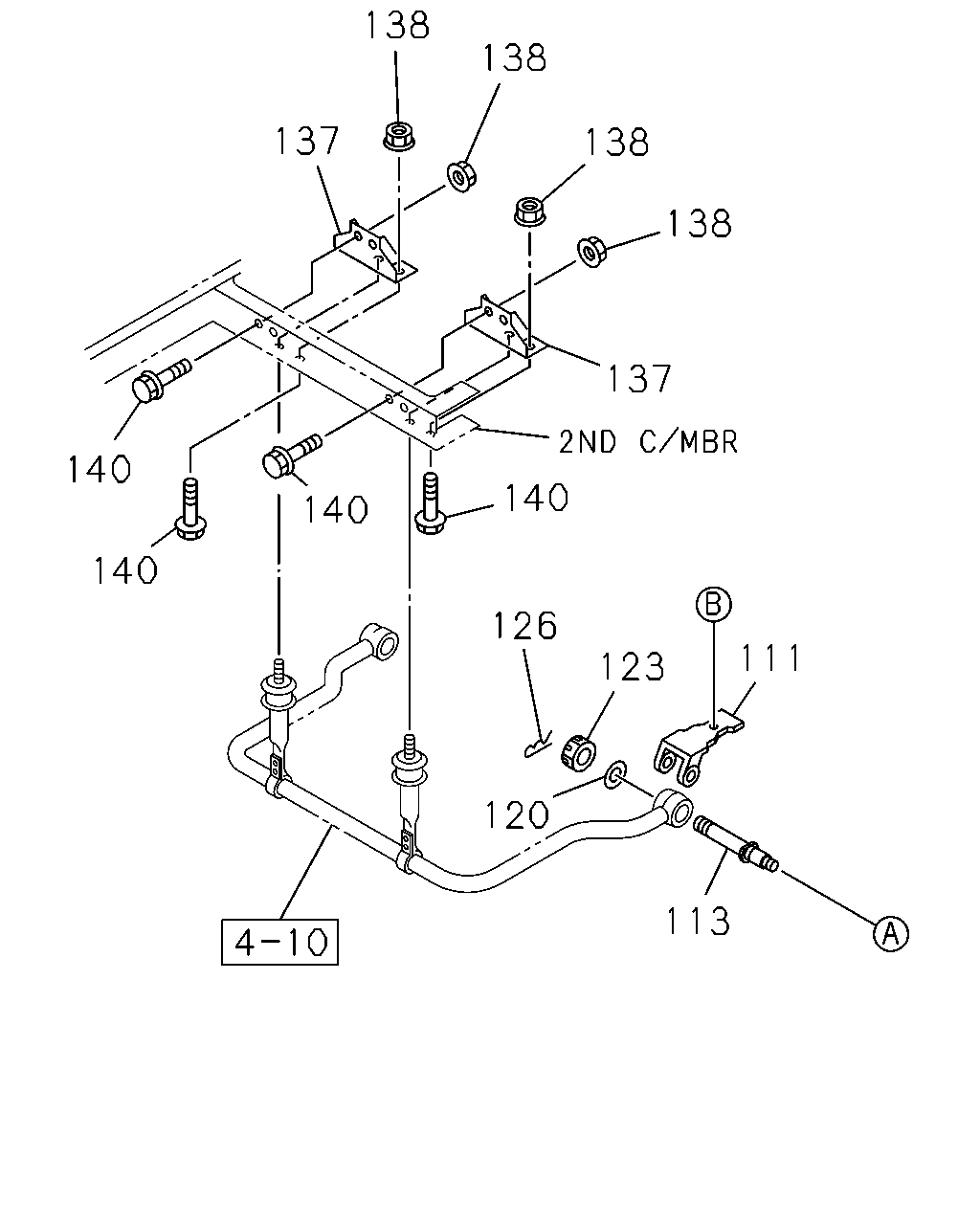

çizim 385841
113 111 123 126 140 140 137 138 138 140 140 137 138 138 120
BalonParca AdiParca NoAdetTipApplied Date A B
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-654-1 01 1 1311- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-655-1 01 1 1311- ● ●
113 PIN; SUPPORTER 8-98019-317-0 02 1 1311- ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
ID=23 		0-91614-522-0 02 1 1311- ● ●
123 NUT; PIN TO SUPPORTER
M22 		0-91116-522-0 02 1 1311- ● ●
126 PIN; SPLIT,STAB
OD=4.6 L=45 		0-81125-045-0 02 1 1311- ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-060-2 02 1 1311- ● ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1311- ● ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1311- ● ●

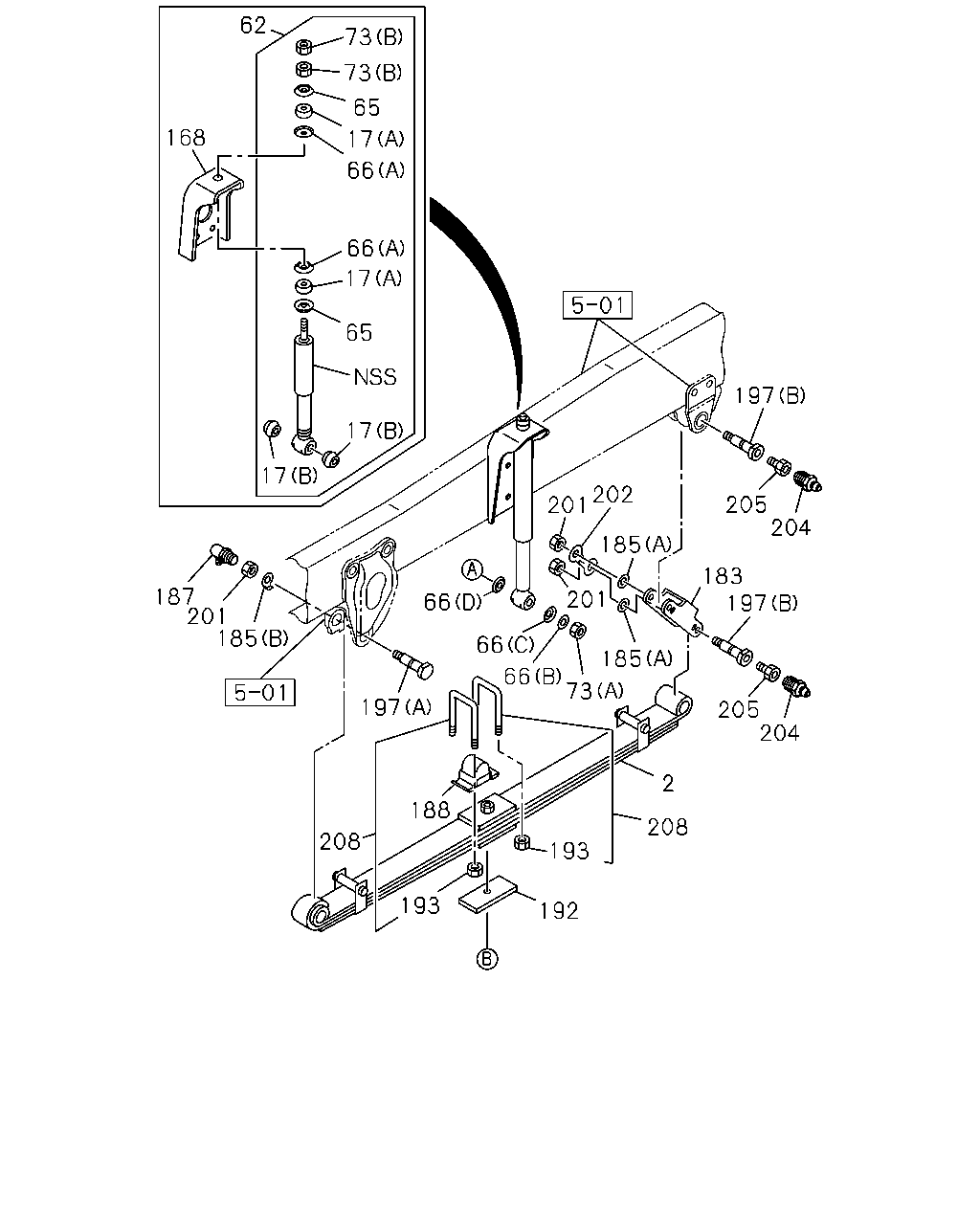

çizim 385905
202 201 185 183 197 66 66 66 73 201 185 205 204 2 208 193 192 193 188 208 197 185 201 187 17 17 65 17 66 168 66 17 65 73 73 62 197 205 204
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98063-483-0 01 1 1311-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98229-528-0 01 1 1408- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98063-484-0 01 1 1311-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98229-529-0 01 1 1408- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		1-51631-009-1 04 1 1311- ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		9-51631-050-0 04 1 1311- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-1 02 1 1311- ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1311- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=16.8 		1-51631-022-0 04 1 1311- ● ●
73 NUT; BRKT,SHOCK
(A) M16 		0-91110-516-0 02 1 1311- ● ●
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1311- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-820-0 02 1 1311- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1311- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1311- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1311- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1311- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 1311- ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1311- ● ●
193 NUT; U BOLT
M18 FLANGE 		1-09440-039-1 08 1 1311- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1311- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1311- ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1311- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1311- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1311- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1311- ● ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-444-0 04 1 1311- ● ●
