◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#130104) — 53 parça

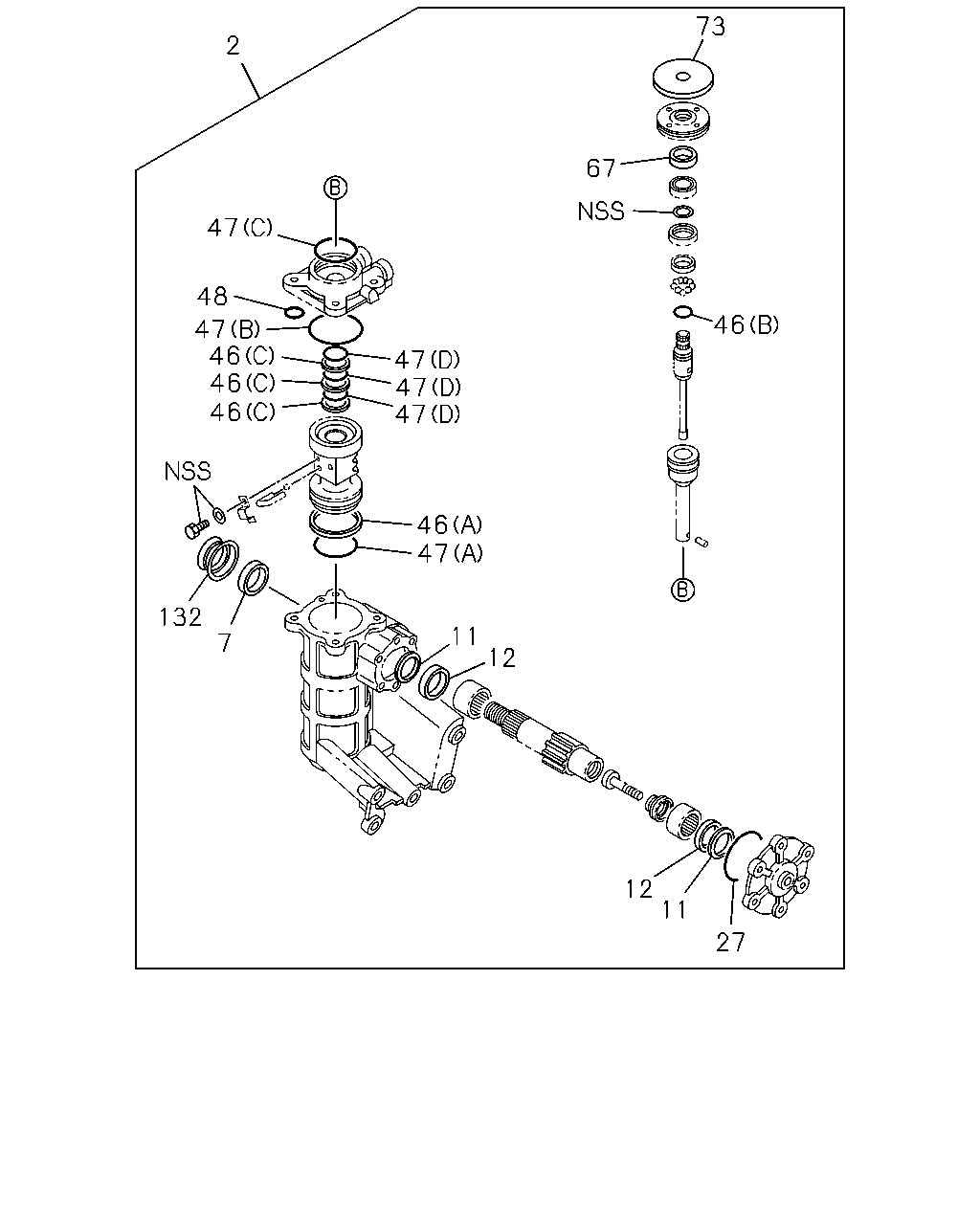

çizim 385583
2 47 48 46 47 46 46 132 7 46 47 47 47 47 11 12 12 11 27 46 73 67
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -

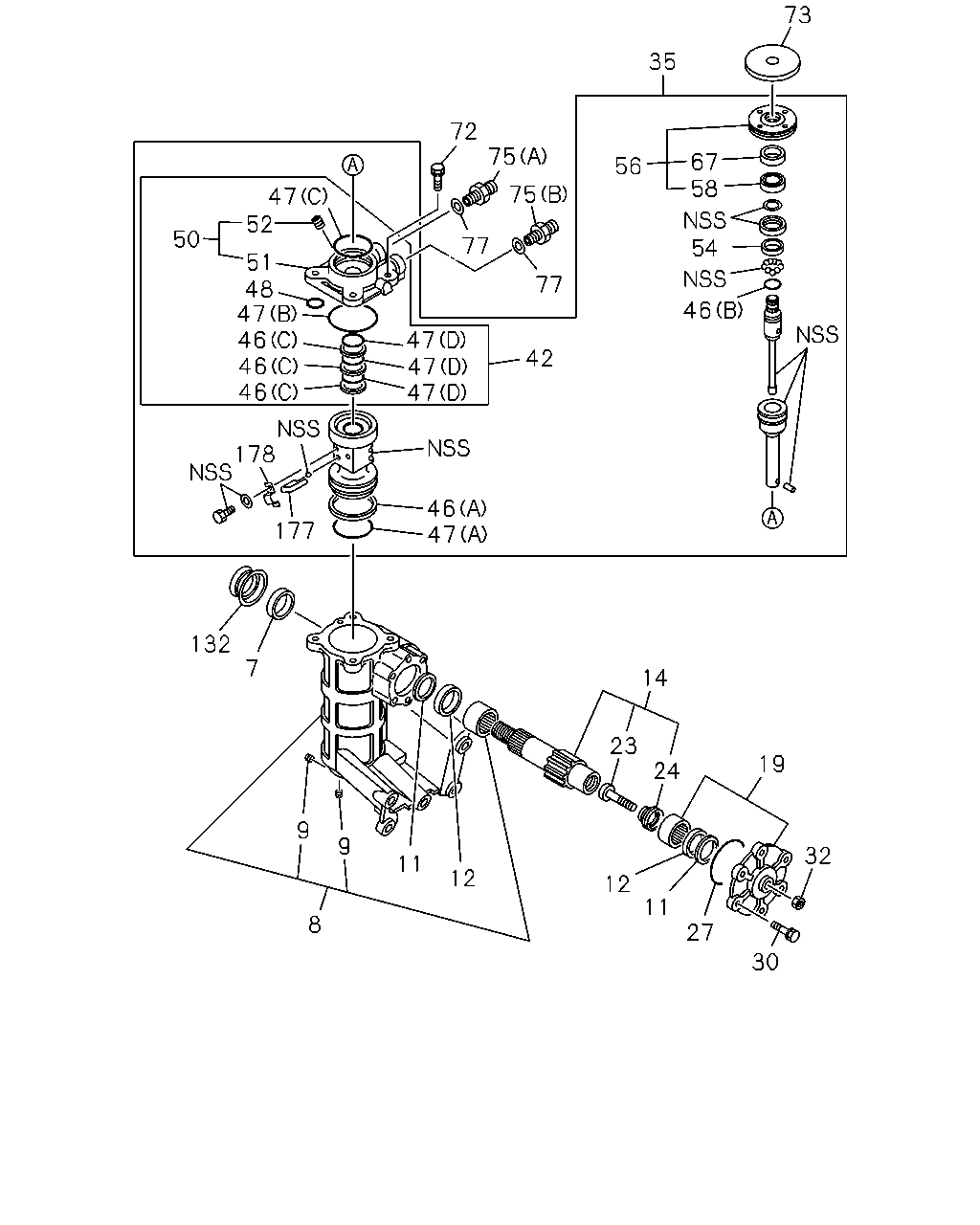

çizim 385824
73 35 67 58 56 54 46 77 77 75 75 72 42 47 47 47 47 52 51 50 48 47 46 46 46 178 177 47 46 14 19 32 30 27 11 12 24 23 7 132 12 11 9 9 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-675-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-107-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-052-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-053-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44561-015-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44151-017-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-034-0 01 1 -
