Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#130093) — 47 parça
Tümü
A - FCD5CS
B - FCR5CS
◀
[378A] NO.1 (19 parça)
[378A] NO.2 (28 parça)
▶

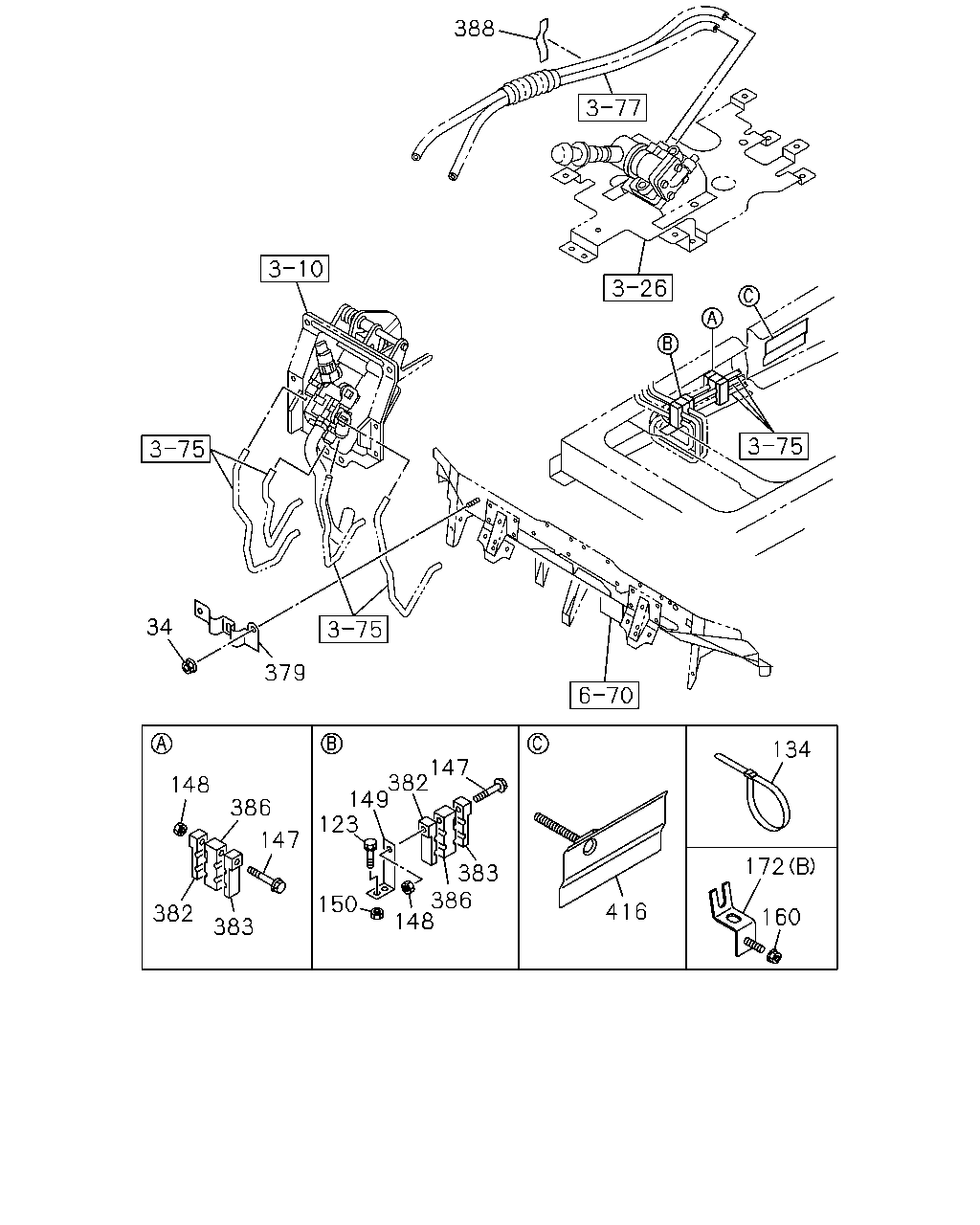

388
379
34
134
172
160
416
147
382
149
123
148
150
386
383
147
386
148
382
383
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1311-
●
●
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
02
1
1311-
●
●
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1311-
●
●
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
02
1
1311-
●
●
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
1311-
●
●
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1311-1409
●
●
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
●
●
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
160
NUT; CLIP BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE
0-91180-210-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
(A)
8-98117-686-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (A)
8-98117-686-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) (B)
8-98096-272-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) (A)
8-98117-686-0
02
1
1311-
●
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1311-
●
●
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
03
1
1311-
●
●
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
03
1
1311-
●
●
386
CLIP; CENTER
ID=10
1-09709-242-0
03
1
1311-
●
●
388
SEAL
100X40
1-72498-022-1
03
1
1311-
●
●
416
PROTECTOR; HEAT
8-98163-889-0
01
1
1311-
●
●

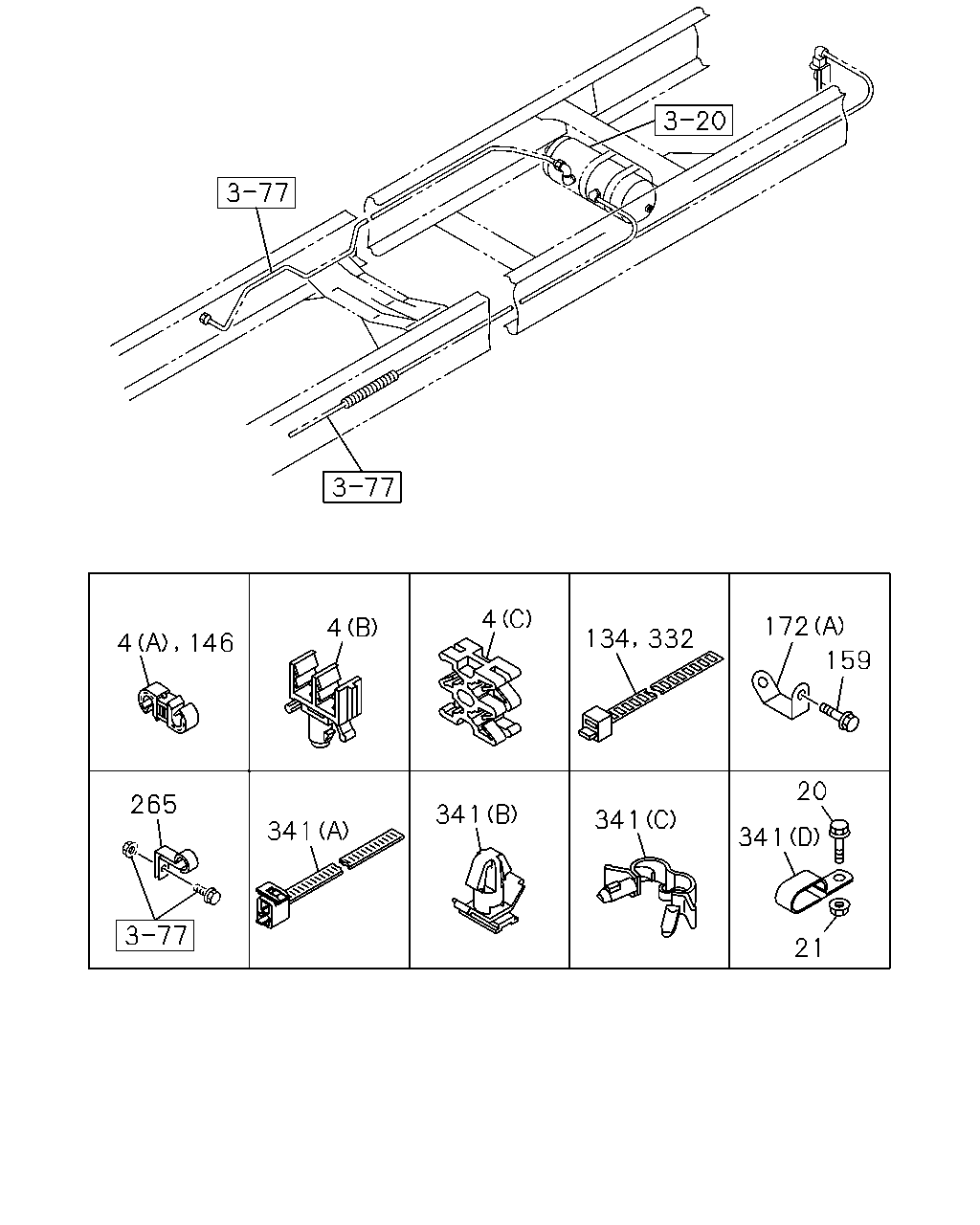

4
4
134
332
172
159
4
146
265
341
341
341
341
21
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
CLIP; AIR PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
1311-
●
●
4
CLIP; AIR PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
02
1
1311-
●
●
4
CLIP; AIR PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1311-
●
●
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0
1-09709-274-1
06
1
1311-
●
●
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10
1-09709-277-1
08
1
1311-
●
●
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0
1-09709-305-0
03
1
1311-
●
●
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0
1-09709-274-1
04
1
1311-
●
●
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10
1-09709-277-1
05
1
1311-
●
●
4
CLIP; AIR PIPE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0
1-09709-274-1
03
1
1311-
●
●
4
CLIP; AIR PIPE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10
1-09709-277-1
04
1
1311-
●
●
4
CLIP; AIR PIPE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0
1-09709-305-0
02
1
1311-
●
●
20
BOLT; CLIP
M10X30 FLANGE
0-28651-030-0
01
1
1311-
●
●
21
NUT; CLIP
M10 FLANGE
0-91180-210-0
01
1
1311-
●
●
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1311-
●
●
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1311-
●
●
159
BOLT; CLIP BRKT
M10X30 FLANGE
0-28651-030-0
01
1
1311-
●
159
BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M10X30 FLANGE
0-28651-030-0
01
1
1311-
●
159
BOLT; CLIP BRKT
WHEEL BASE 3700MM(37W) M10X30 FLANGE
0-28651-030-0
02
1
1311-
●
172
BRACKET; TUBE CLIP
(A)
8-98117-686-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (A)
8-98117-686-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) (B)
8-98096-272-0
01
1
1311-
●
172
BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) (A)
8-98117-686-0
02
1
1311-
●
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
1311-
●
●
332
CLIP; BAND
L=250
1-09707-126-0
05
1
1311-
●
●
341
CLIP; HARNESS
(A) L=180
1-09707-162-1
01
1
1311-
●
●
341
CLIP; HARNESS
(B) OD=9 H=6
1-09709-178-0
03
1
1311-
●
●
341
CLIP; HARNESS
(C) ID=5-12 L=14.5
1-09987-221-0
04
1
1311-
●
●
341
CLIP; HARNESS
(D) ID=17.5X2 L=25
5-09700-358-0
01
1
1311-
●
●
