Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#130089) — 27 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

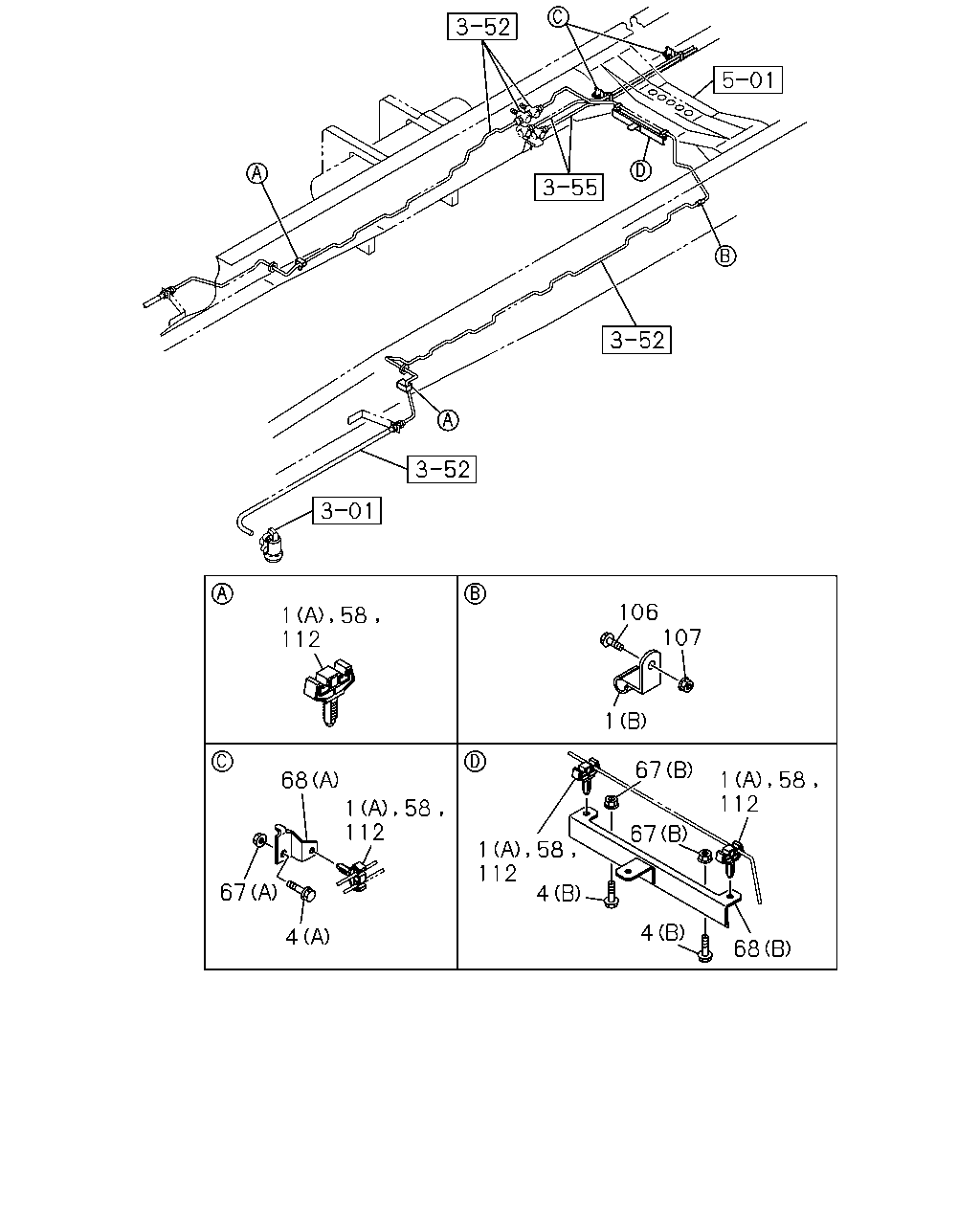

[358A] FRAME SIDE (17 parça)

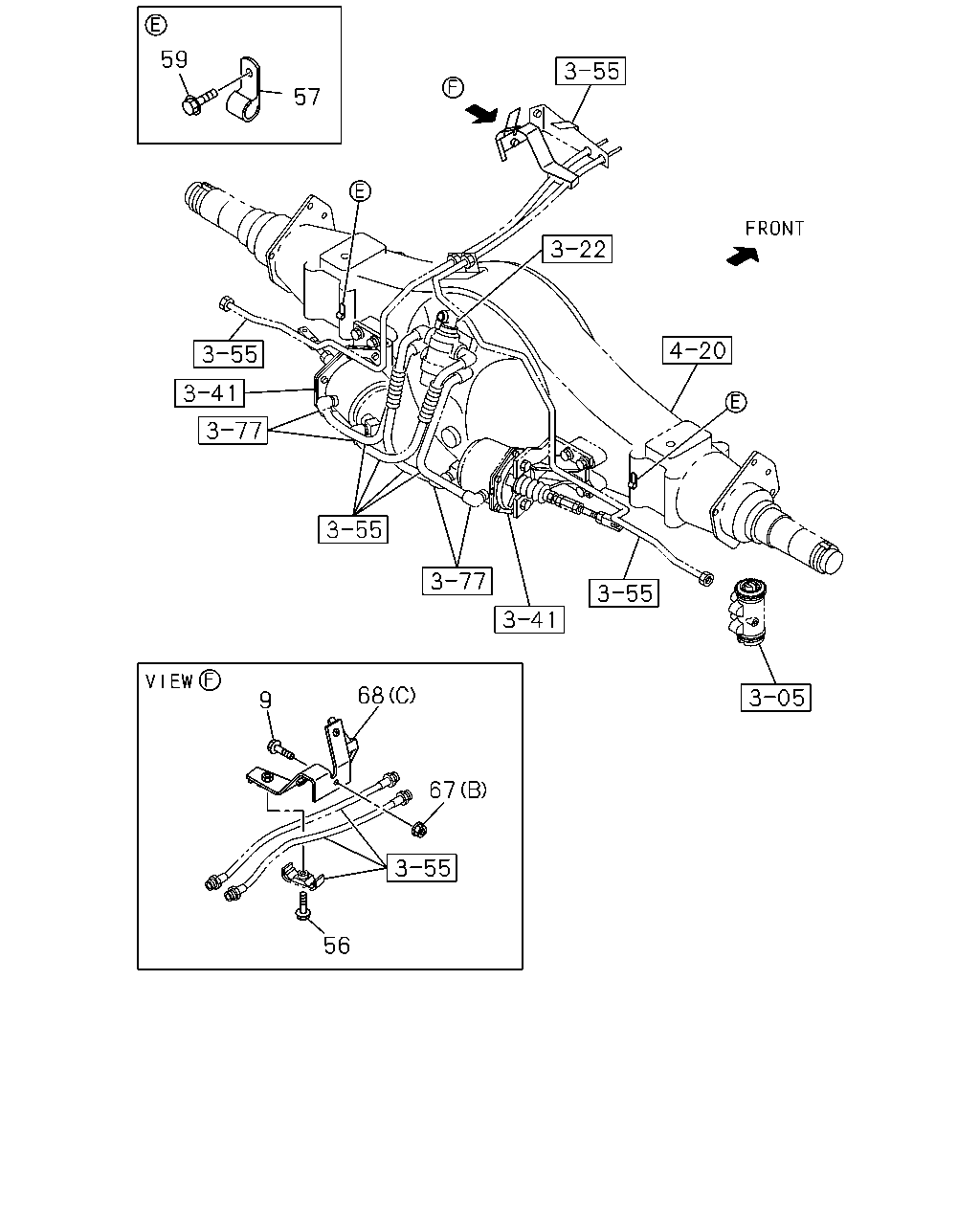

[358A] REAR AXLE SIDE (10 parça)
▶
1
58
112
68
1
112
58
67
4
106
107
1
67
1
112
58
1
112
58
4
67
4
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
09
1
1311-
●
●
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
02
1
1311-
●
●
4
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
1311-
●
●
4
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
1311-
●
●
58
CLIP; OIL PIPE
8-98012-254-1
03
1
1311-
●
58
CLIP; OIL PIPE
8-98012-254-1
04
1
1311-
●
67
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
01
1
1311-
●
67
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
67
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1311-
●
●
68
BRACKET; CLIP
(C)
8-98012-145-2
01
1
1311-
●
68
BRACKET; CLIP
(B)
8-98232-876-1
01
1
1311-
●
●
68
BRACKET; CLIP
(A)
8-98158-187-0
02
1
1311-
●
●
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
02
1
1311-
●
●
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
112
CLIP; OIL PIPE
8-98012-254-1
07
1
1311-
●
112
CLIP; OIL PIPE
WHEEL BASE 4900MM(49W)
8-98012-254-1
07
1
1311-
●
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
04
1
1311-
●
59
57
9
68
67
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1311-
●
56
BOLT; CLIP
M8X40 FLANGE
0-28050-840-0
01
1
1311-
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1311-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1311-
●
●
67
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
01
1
1311-
●
67
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1311-
●
●
67
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1311-
●
●
68
BRACKET; CLIP
(C)
8-98012-145-2
01
1
1311-
●
68
BRACKET; CLIP
(B)
8-98232-876-1
01
1
1311-
●
●
68
BRACKET; CLIP
(A)
8-98158-187-0
02
1
1311-
●
●
