2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#130068) — 20 parça

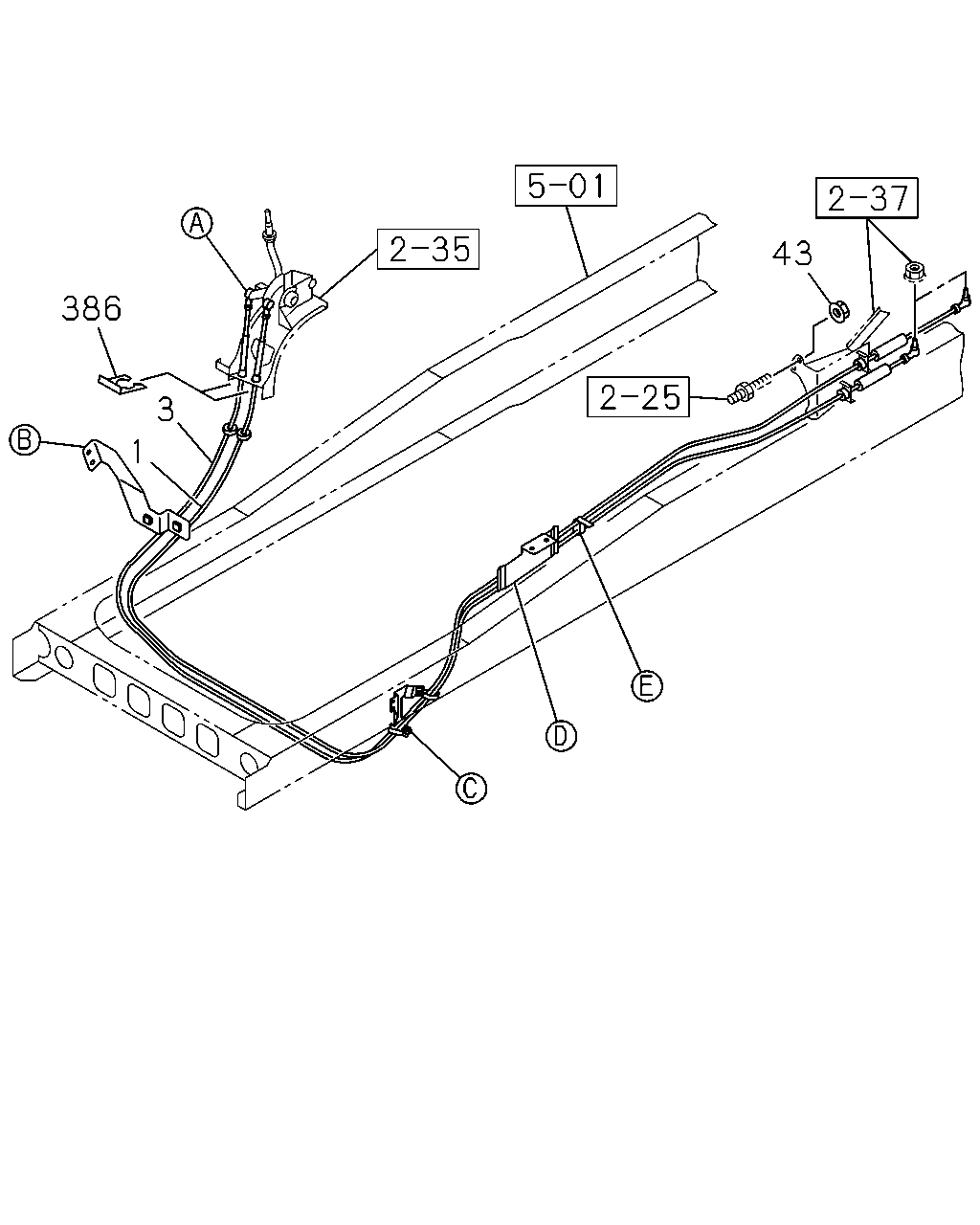

43 386 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3195	8-98214-941-1	01	1	1311-	●	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3420	8-98214-942-1	01	1	1311-	●	●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1311-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1311-	●	●

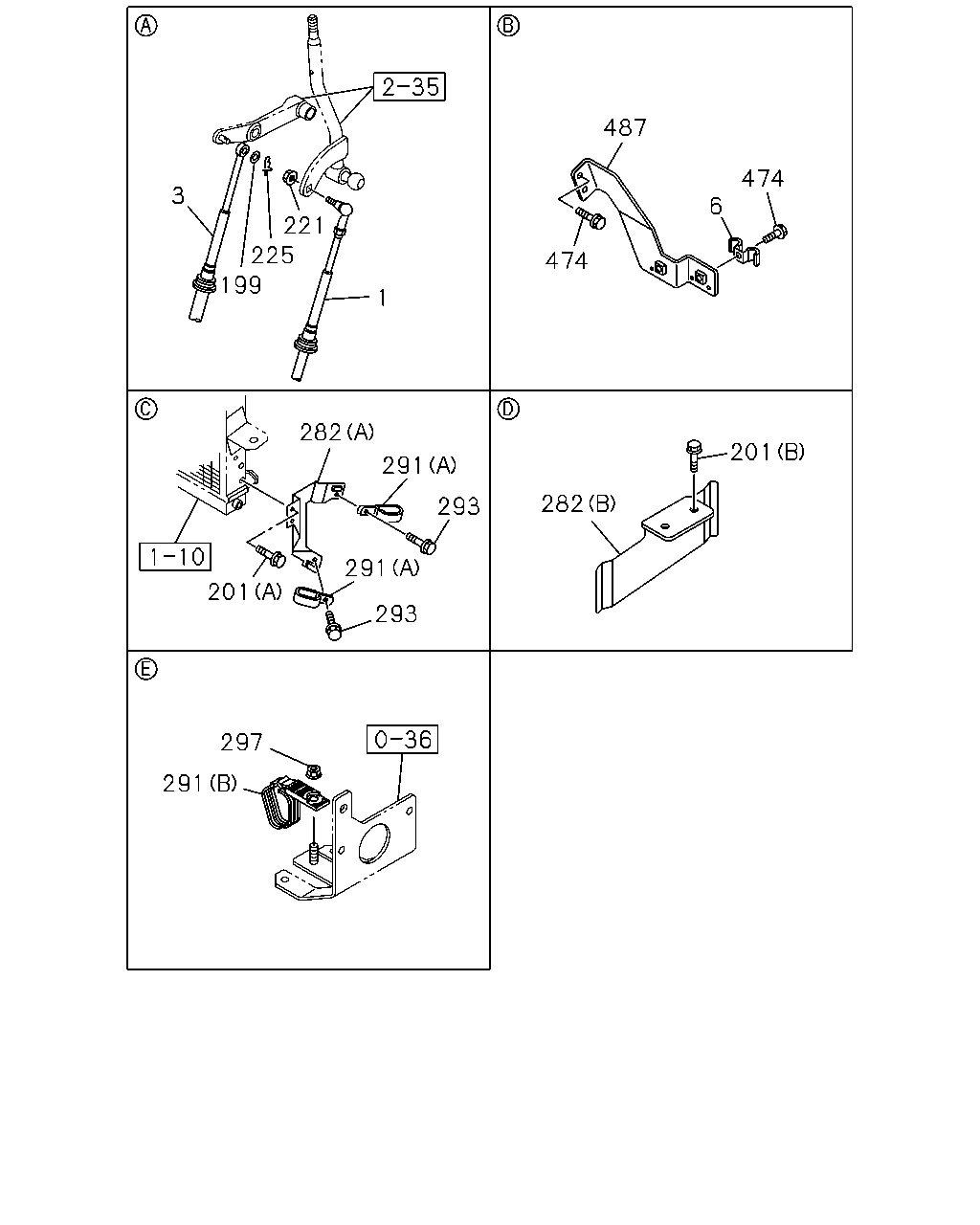

201 282 293 293 291 291 282 201 297 291 199 1 474 487 6 474 221 225 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3195	8-98214-941-1	01	1	1311-	●	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3420	8-98214-942-1	01	1	1311-	●	●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1311-	●	●
201	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●
201	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28050-820-0	02	1	1311-	●	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1311-	●	●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1311-	●	●
282	BRACKET; TRANS SIDE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98148-173-3	01	1	1311-	●	●
282	BRACKET; TRANS SIDE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98243-220-0	01	1	1311-	●	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16	0-95325-026-0	02	1	1311-	●	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98148-478-1	01	1	1311-	●	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1311-	●	●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	03	1	1311-	●	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98183-009-0	01	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
